4U Rackmount Chassis with LCD Display & Keyboard Optional Touch Screen :

Part Number : RM4019

EIA RS-310C 19" Rackmount Standard

Construction :

Heavy Duty Cold Rolled Electroplated Steel

Color :

Black (Standard) , Beige or Custom

System Board
Size :

Supports ATX M/B (Max. to 12 " x 10.5") (Standard) OR
14/15-slot Passive Backplane (SR Version)

Drive Bays :

1 x 5.25" Open Bay, 3 x 3.5" Hot-Swappable trays & 3 x 3.5" HDD

Drive Interface :

SATA2 ( Optional U320 SCSI/SCA, SAS )

Power Supply :

Optional PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 220 mm

Cooling Units :

2x 92 mm = 51CFM each & 1x 60 mm = 23.5CFM and 2 x (60 mm = 23.5CFM each Optional) Heavy Duty Ball Bearing Fans

Expansion Slot :

7 x Vertical Full Height PCI Slots OR 14/15-Slots for SR Version

Connector Port (Front) :

2 x USB Ports

LCD Display :

7" TFT LCD with Resolution 800 x 480. with 5 button control and rear input, Display Colors: 262,144 Colors

Touch Screen :

Optional Touch Screen

Keyboard :

84 key Cherry Keyboard with Integrated Track Ball + 2 Mouse Buttons that slides from the bottom of the chassis (rear connector)

Mouse :

Logitech Trackball (rear connector)

Indicators :

LEDs for Power, ON/OFF , HDD Activity

Switch :

Power ON/OFF, System Reset, Brightness, Contrast, Menu

Crossbar :

PCI Spanner Bar

Air Filter :

Inside Front Door (Washable)

Dimensions:
(W x H x D)
19" x 7" x 20.5" (483 x 178 x 490 mm)

Humidity :

5% - 95% Non-condensing

Compliance :

RoHS Compliant, TAA Compliant

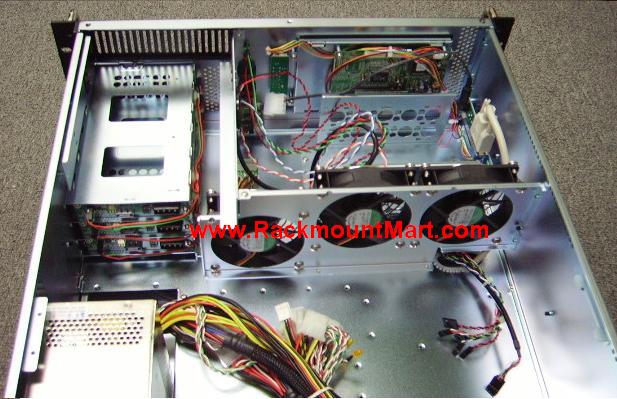

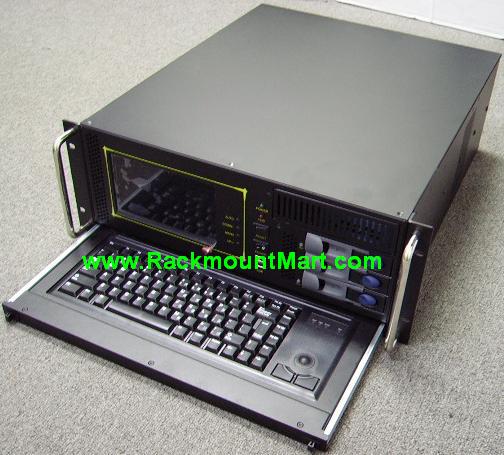

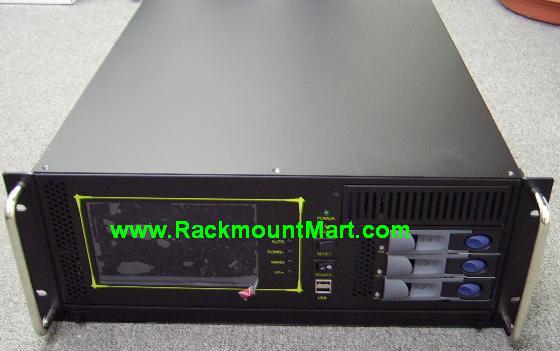

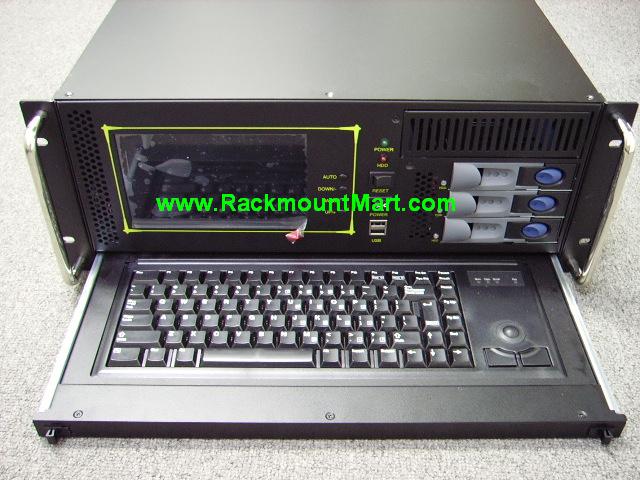

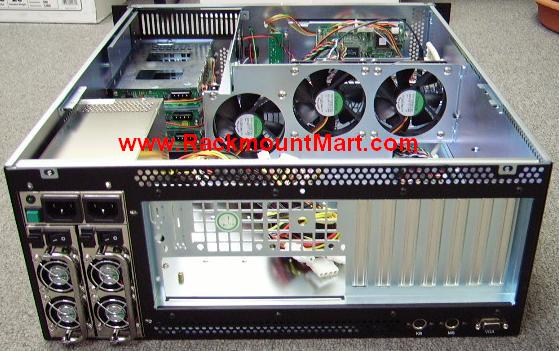

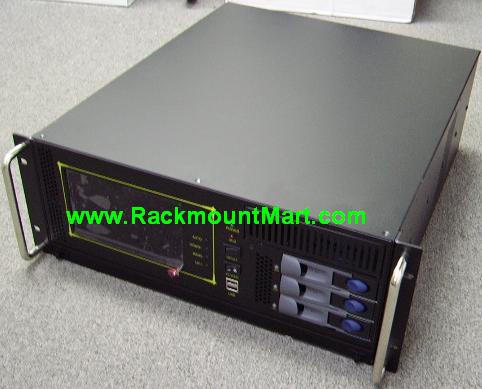

For more picture, click on the following for enlarged view:
