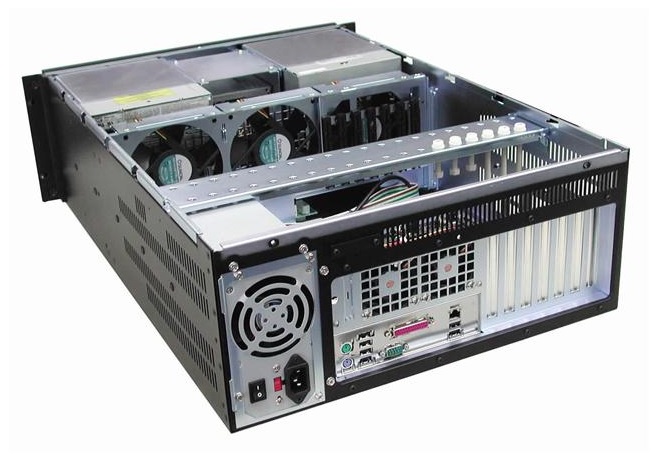

  4U Rackmount Chassis :  Part # RM4015







EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard ), Beige or Custom
System Board Size: Supports ATX M/B (Max. to 12" x 13")(Standard) OR
14/15-slot Passive Backplane ( SR Version)
Drive Bays: 1 x 3.5" Open Bay (FDD) & 4 x 3.5" Hidden Bay (HDD) & 8 x 5.25" Open Bay (CD-ROM Drive) OR
OPTIONAL
(a) 15 x 3.5" Hidden Bay (HDD) & 2 x 5.25" Open Bay  or
(b) 1 x 3.5" Open Bay, 1x5.25" Open Bay & 15 x 3.5" Hidden Bay or
(c) 17 x 3.5" Hidden Bay
Power Supply: Optional PS2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 300mm
Cooling Units: 3x (120mm = 90CFM each) Fans & 2x (60mm = 23.5CFM each)(Optional) Fans
Expansion Slot: 7 Slots or 14/15 Slots (SR Version)
Connector Port : 2 x USB Ports (Front)
Buttons: Power ON/OFF, System Reset, Buzzer Reset
Front Door: Single Door with 2 Thumbscrews (Removable)
Remarks:
Internal Hard Drive Bracket included
Dimensions: 19"x 7" x 24.5" , (483 x 177 x 624 mm) (WXHXD)
Humidity: 5% - 95% Non-condensing
Product Applications: Web Server, Email Server, RAID Server, File Server, SAN, NAS

Compliance :

RoHS Compliant, TAA Compliant

Download Product Sheet

For more picture, click on the following for enlarged view:






 Ordering Information

Part # Description
 RM4015-0
4U Rackmount Server Case for use with MotherBoard , Chassis only. Black
 RM4015-0-SR4
4U Rackmount Server Case for use with 14-Slot Passive Backplane, Chassis only. Black
 RM4015-0-SR5
4U Rackmount Server Case for use with 15-Slot Passive Backplane, Chassis only. Black
