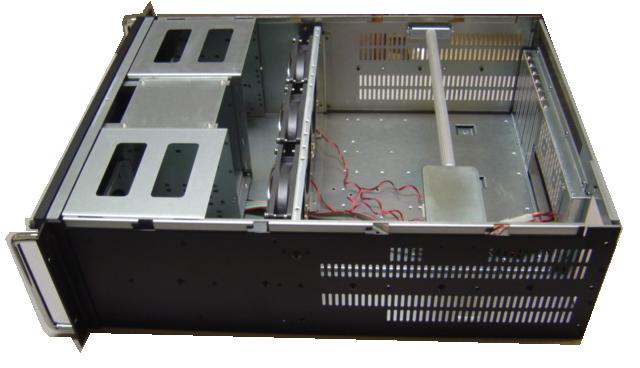

  4U Rackmount Chassis :  Part # RM4014
Click on images for enlarged views.







EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard ), Beige or Custom
Motherboard Size: Support ATX M/B (Max. 12" x 10.3" with Center Fans Bracket) or Support ATX M/B (Max. 12" x 13" without Center Fans Bracket)
Drive Bays: 1 x 3.5" Open Bay (FDD) & 4 x 3.5" Hidden Bay (HDD) & 8 x 5.25" Open Bay (CD-ROM Drive) or OPTIONAL
(a) 15 x 3.5" Hidden Bay (HDD) & 2 x 5.25" Open Bay  or (b) 1x3.5" Open Bay, 1x5.25" Open Bay & 15x3.5" Hidden Bay  or (c) 17x3.5" Hidden Bay
Power Supply: Optional PS2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 250mm
Cooling Units: 3 x (12cm) Fans (90CFM each) & 2 x (6cm) Fans(23.5CFM each) (Optional)
Expansion Slot: 7 Slots
Connector Port : 2 x USB Ports(Front)
Indicators: LEDs for Power ON/OFF, HDD Active, LAN
Buttons: Power ON/OFF, System Reset, Buzzer Reset
Front Door: Single Door with 2 Thumbscrews (Removable)
Remarks:
Internal Hard Drive Bracket included
Dimensions: 19"x 7" x 22.5" (483 x 177x 571mm )(WXDXH)
Humidity: 5% - 95% Non-condensing
Product Applications: Web Server, Email Server, RAID Server, File Server, SAN, NAS
Compliance : RoHS Compliant , TAA Compliant


Click on image below for detailed dimensions :


For more picture, click on the following for enlarged view:





Ordering Information

Part # Description
 RM4014-0
4U Rackmount Server Case for use with MotherBoard , Chassis only. Black
