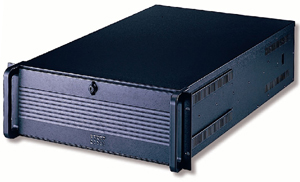

  4U Rackmount Chassis :  Part # RM4007







Material: Heavy-duty cold-rolled steel. Inside: zice-plated with bright chormate, Outside: texture-coated
Dimension: 19"(W) x 28"(D) x 7"(H
Cooling: 3x 120mm hot-swap ball-bearing fans.
Power Supply: 300W ATX, 300W/400W ATX HRP, 300W/400W AT HRP, 450W/620W N+1 HRP
PCI Extension: 7-slots for ATX M/B, 20-slots for passive backplane.
Air Filter: Removable and washable
Controls: Two CPU and one alarm reset buttons, power on/off
Indicators: 2x power, 1x system fan, 1x CPU fan, 1x temperature sensor and 5x HDD LED's
System Boards: 12"(W) x 13"(D) ATX M/B, also fits a 20-slot passive backplane
Speaker: 0.4W built-in
Drive Bay: ATX version -7 exposed 5.25" drive bays, 1 exposed 3.5" bay, 2 x 3.5" hidden bays optional (total 10 bays), HRP space can be converted to 4x5.25" exposed bays   BP version- 3  exposed 5.25" drive bays, 1 exposed 3.5" bay (total 4 bays)
Humidity: 5%~95% non-condensing

Download Engineering Drawing
(In PDF format)

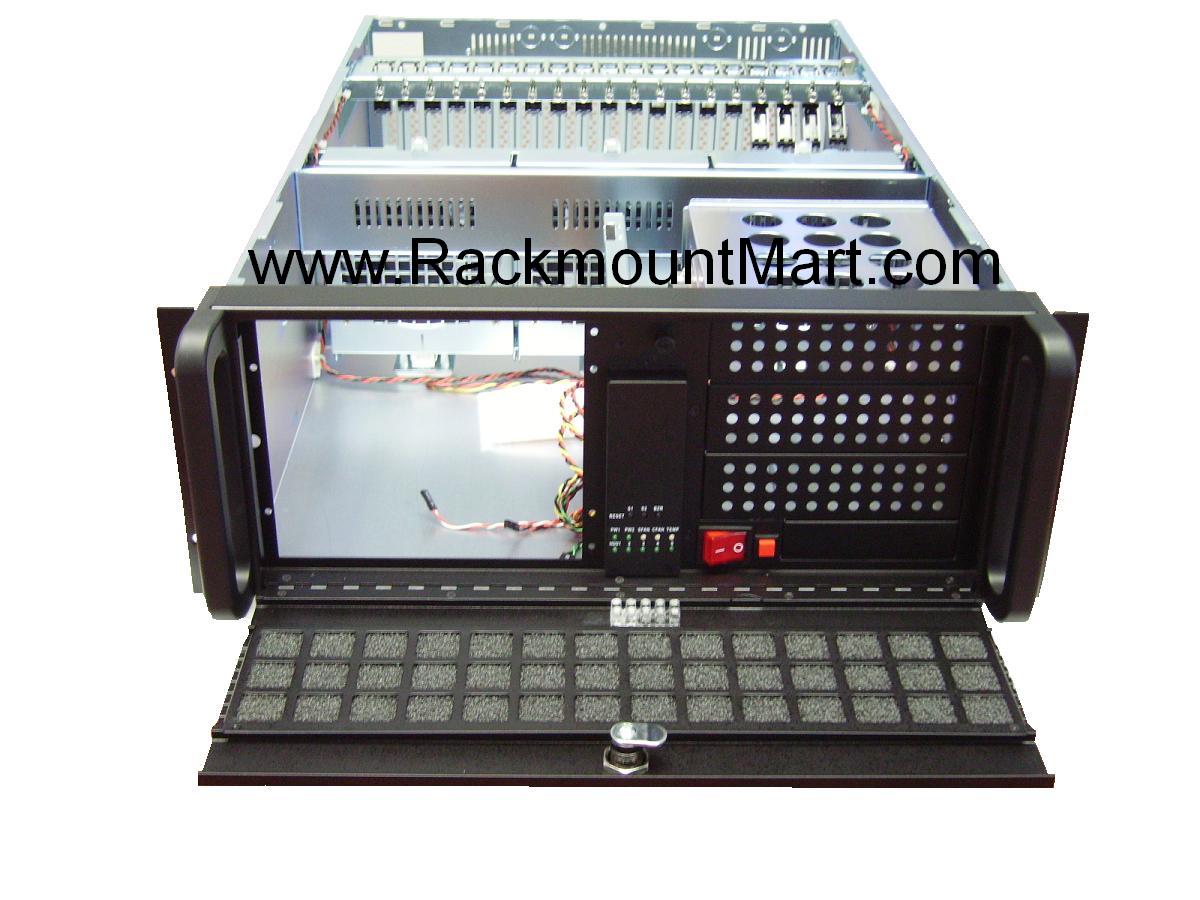

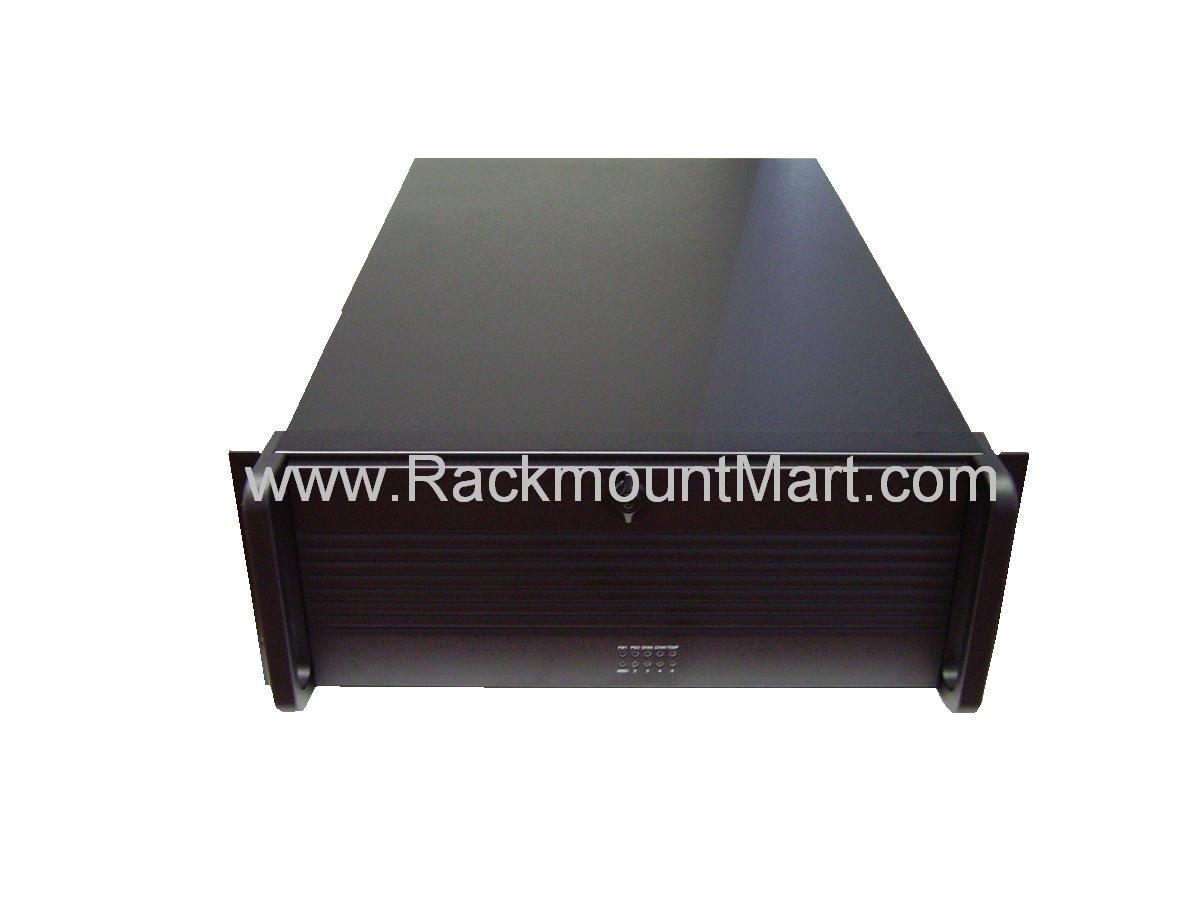

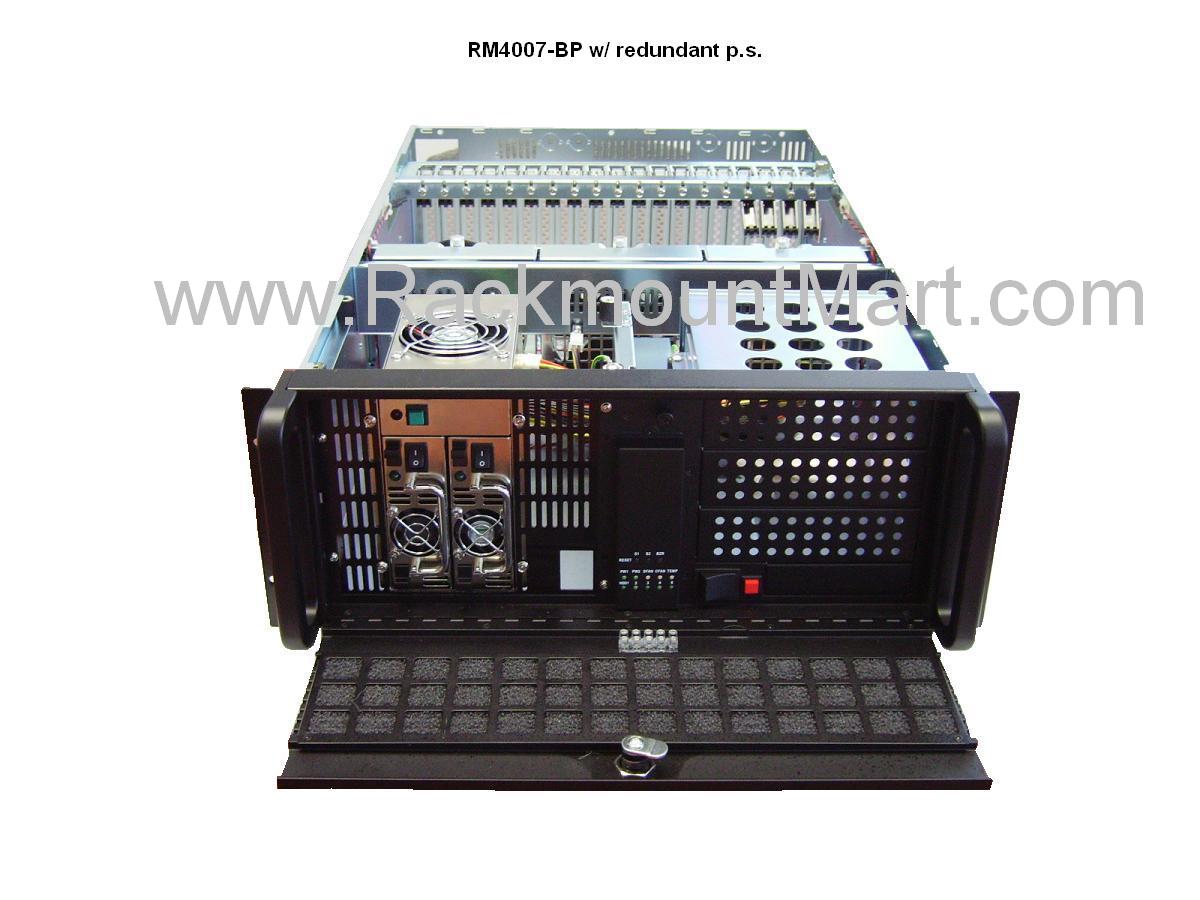

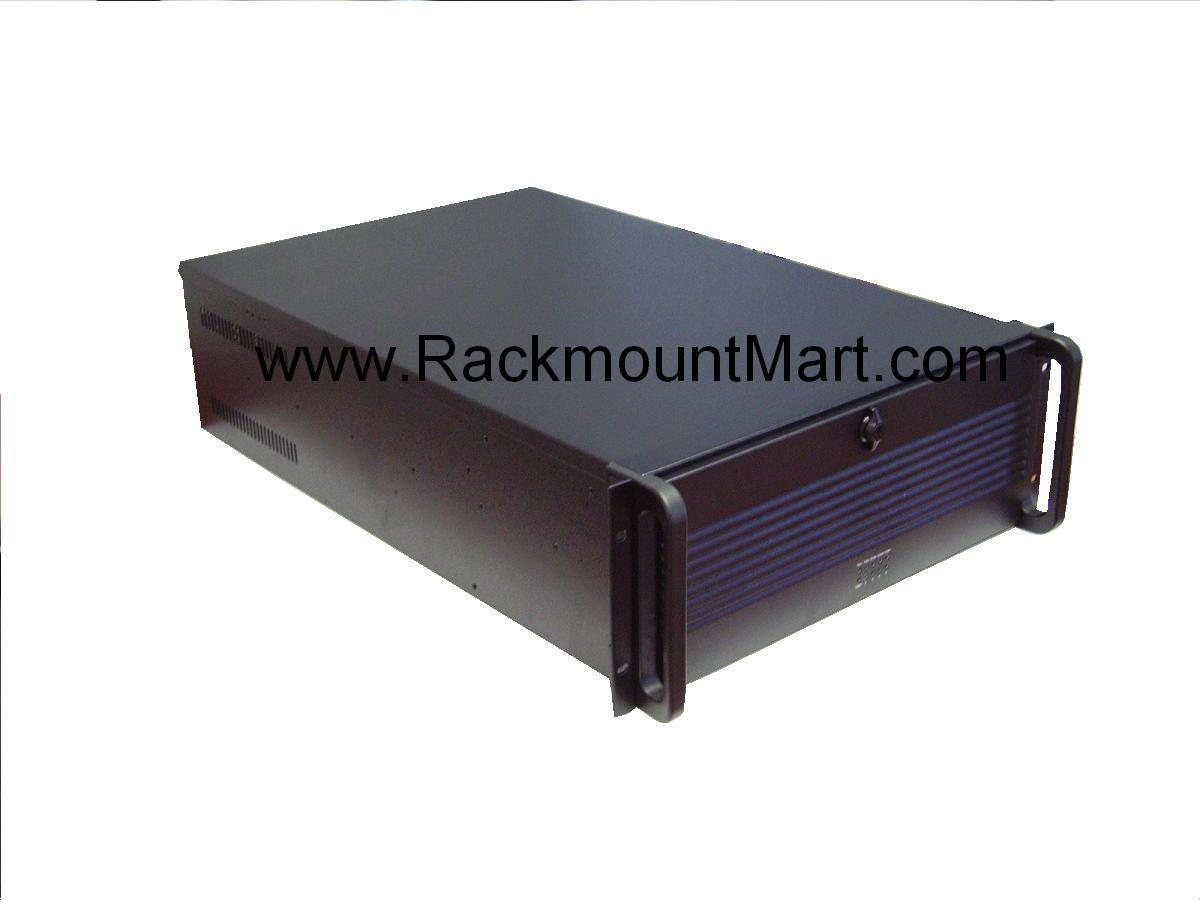

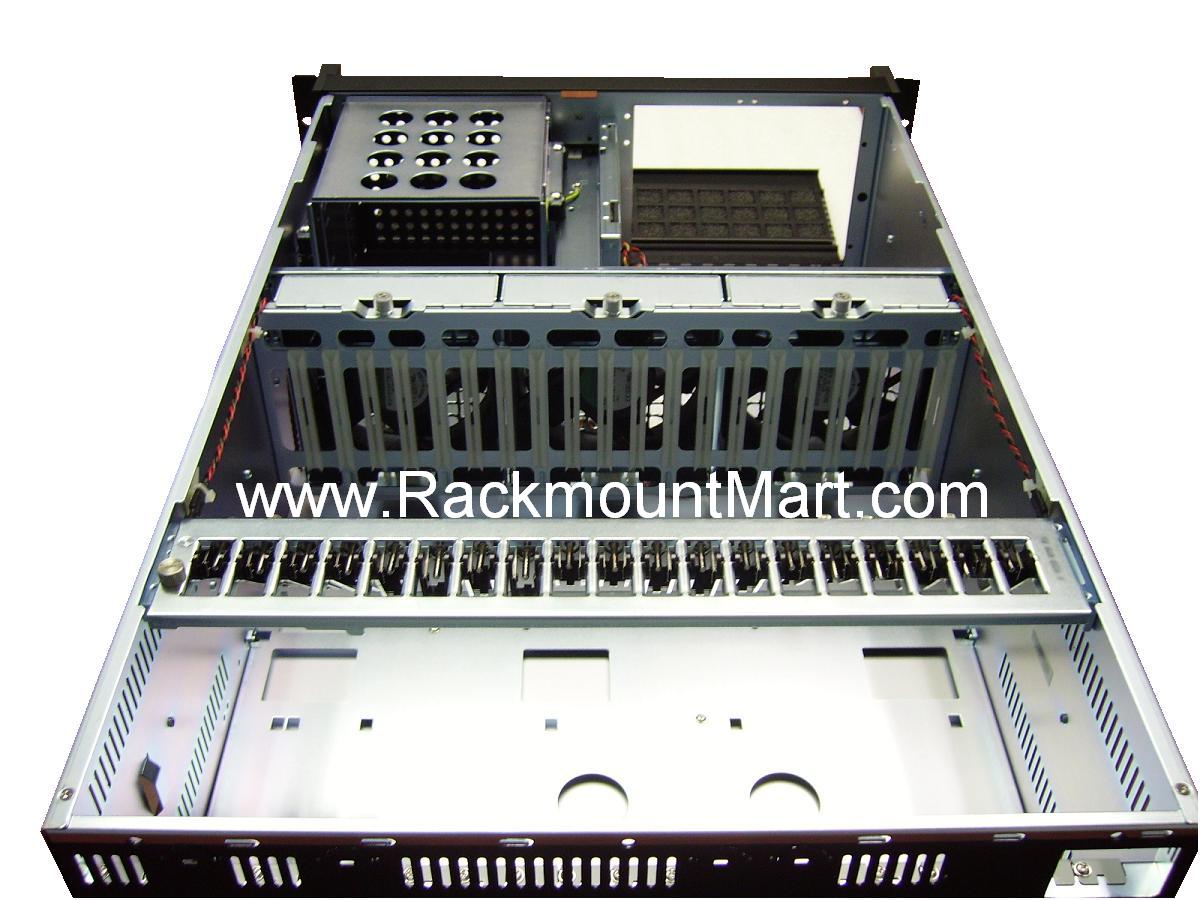

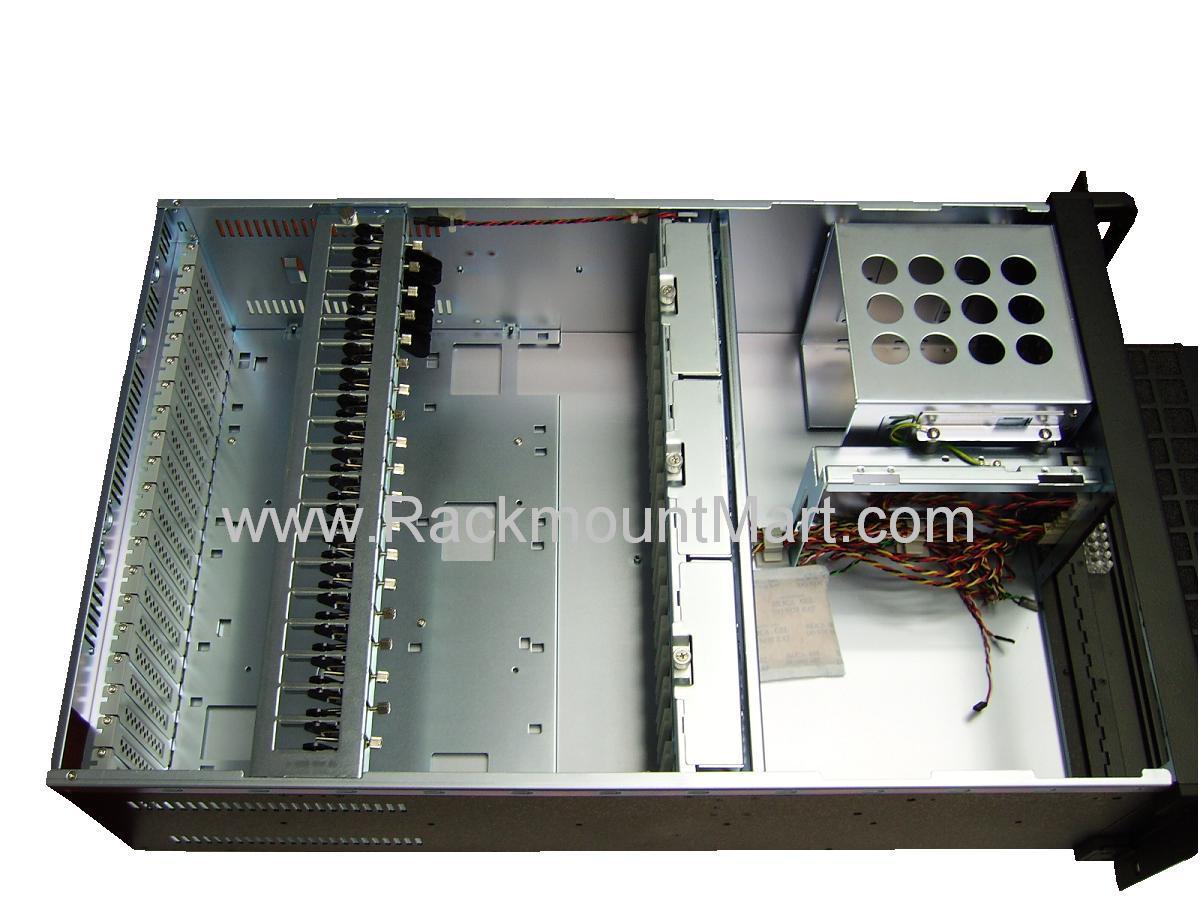

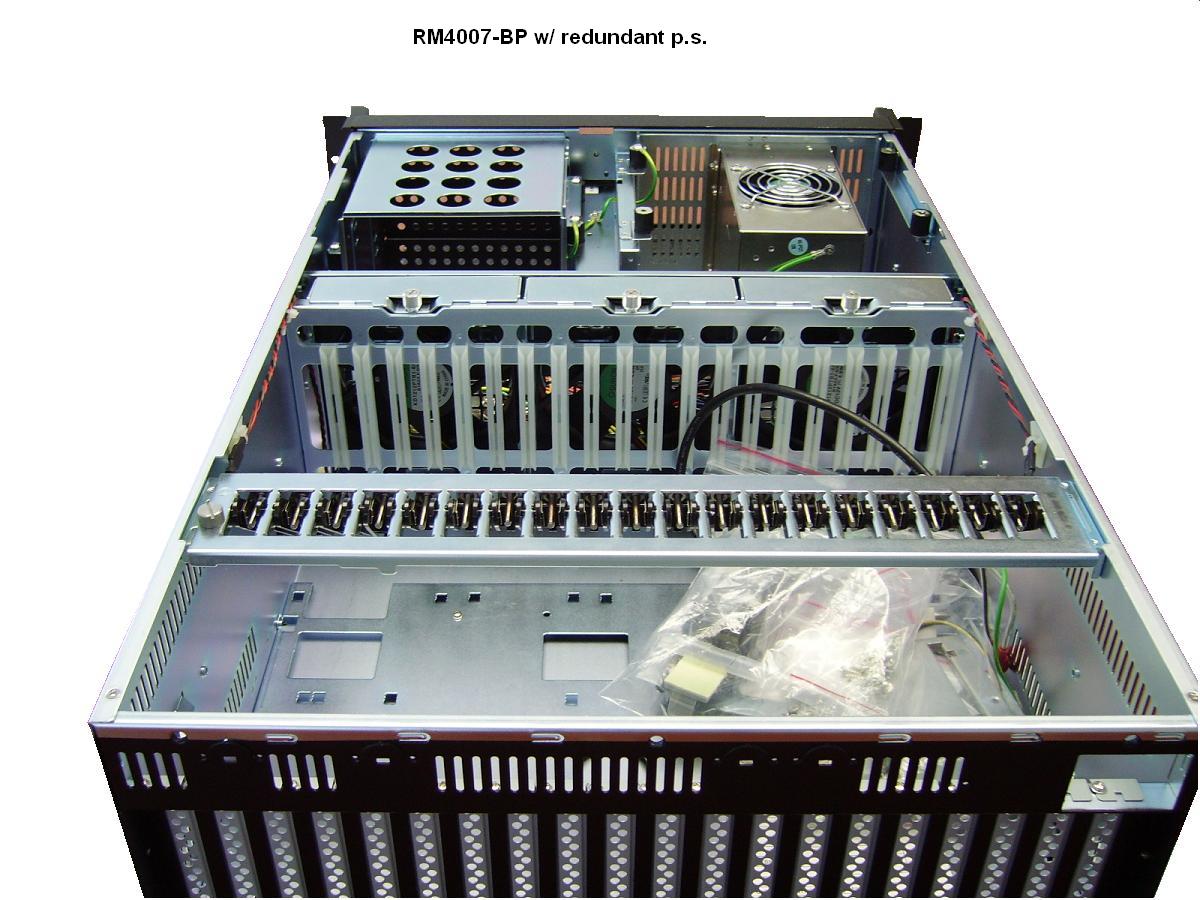

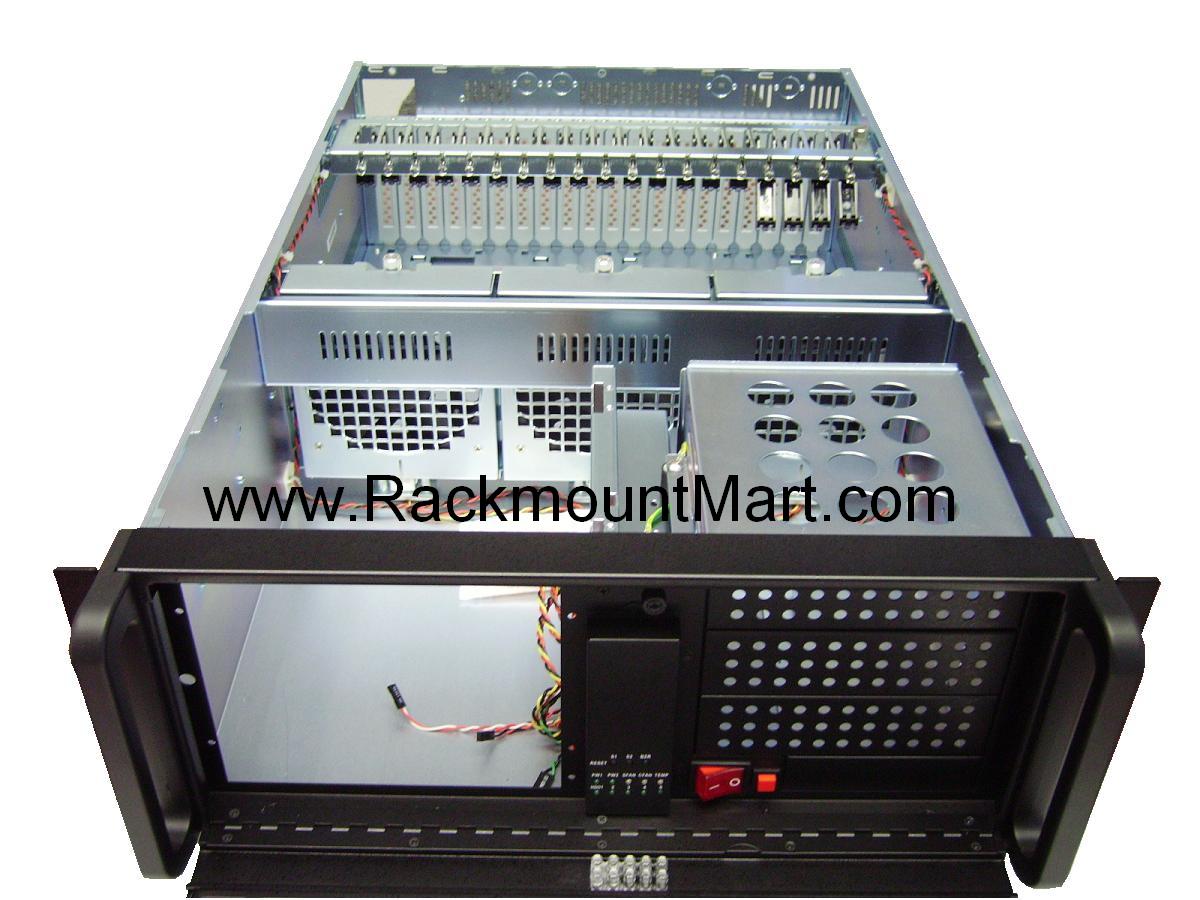

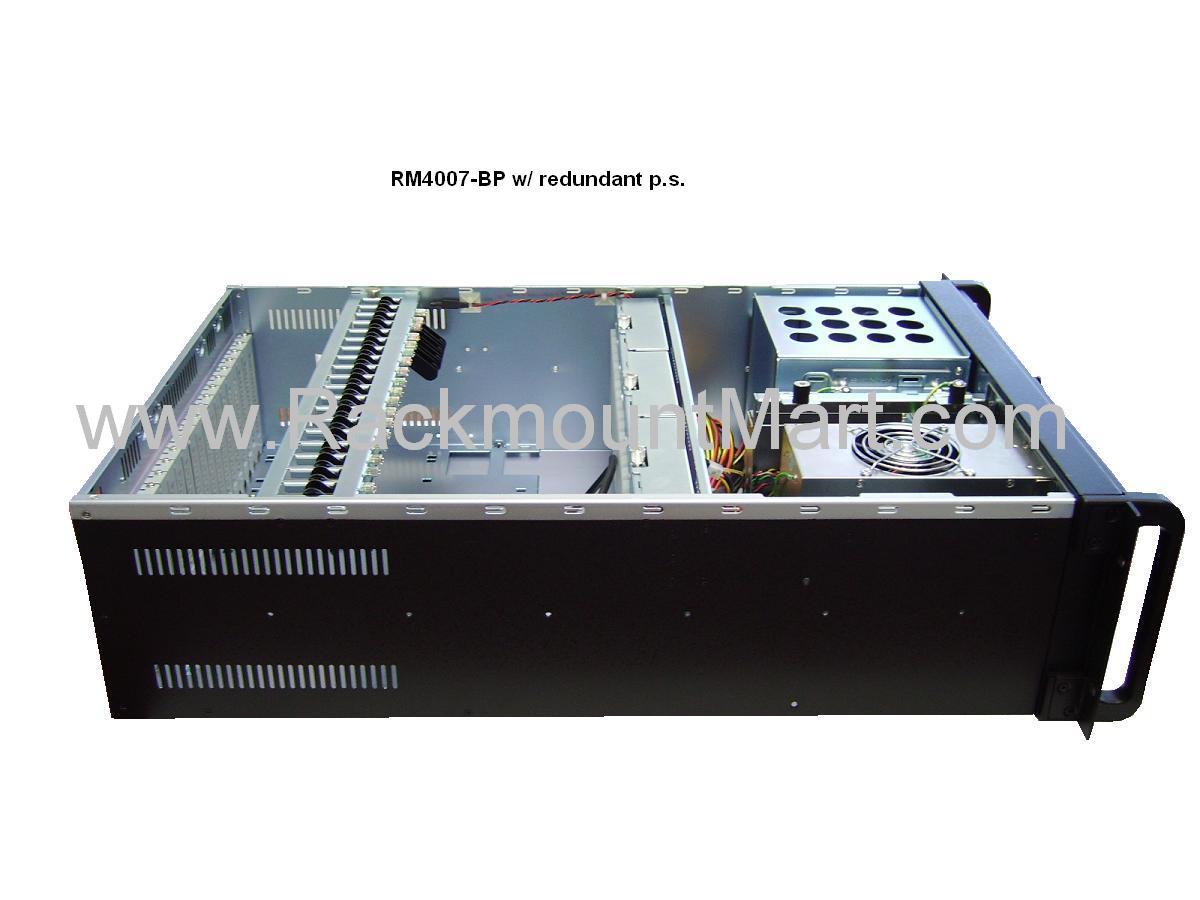

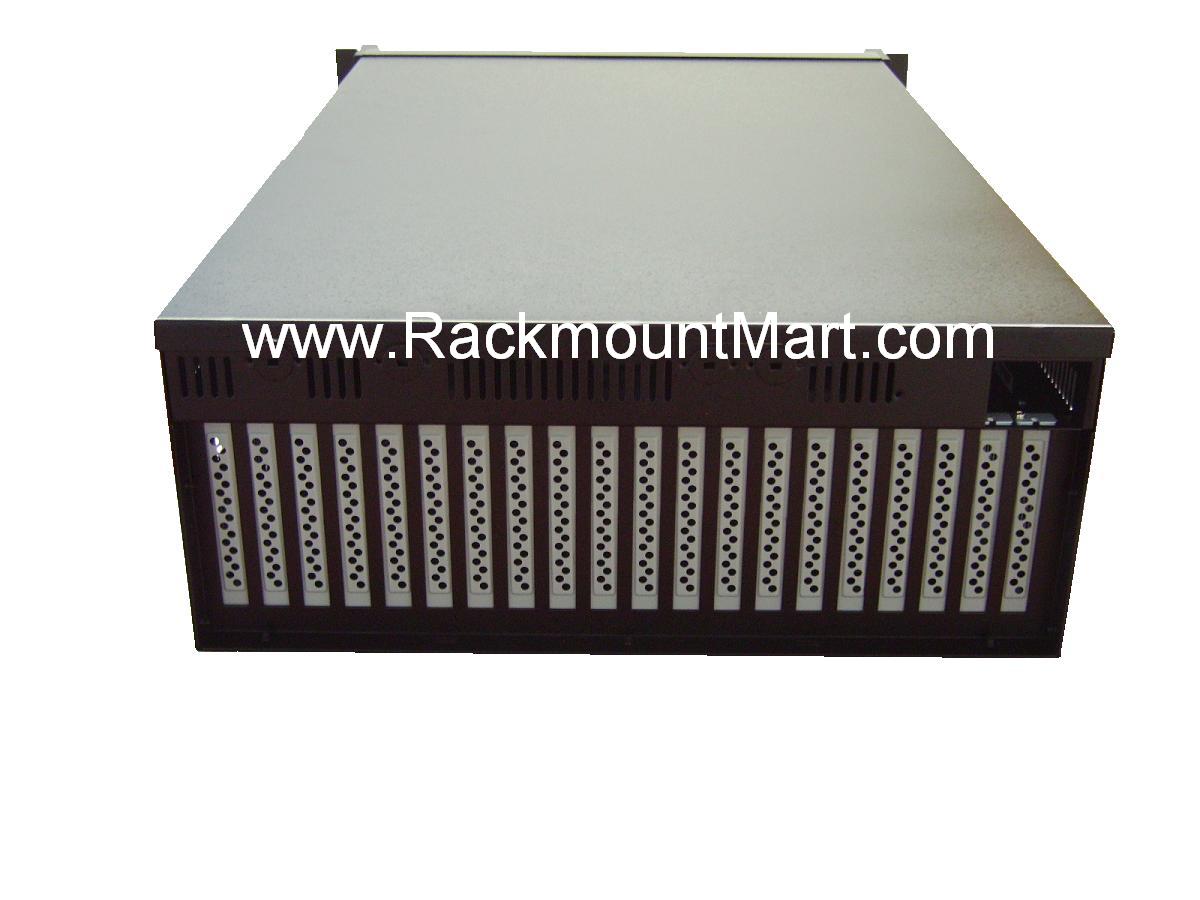

More photo - (click on the picture for enlarged view)

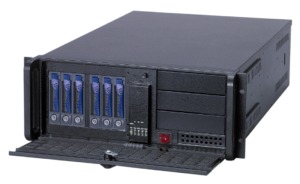

FEATURES: Three 120mm removable ball bearing cooling fans. Removable disk drive bay allows mounting of four 5.25 drives or six 1" IDE or SCA hard drives. Built-in temperature/fan detect board, two reset buttons and two power LED's for dual systems.

APPLICATIONS: Designed to meet the requirements of mission critical applications, it is ideal for communication and telephony servers.

BENEFITS: The 3x 120mm fan configuration is designed for pressured air cooling. Adjustable hold-down clamp protects both PCI and ISA cards against vibration, 4U form-factor design provides ample space for complex systems
