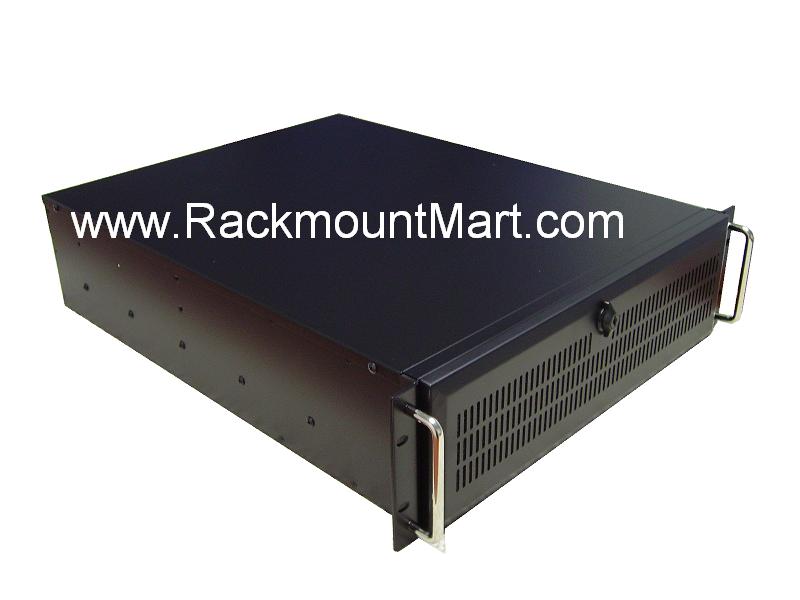

   3 U Rackmount Chassis :  Part # RM3016

   19" Rackmount Standard


Heavy Duty Cold Rolled Electroplated Steel



System Boards:

Pentium 4, Pentium D, Dual Xeon, AMD 64, Dual Opteron

Motherboard Size:

Support ATX M/B (Max. to 12" x 9.6")

Drive Bays:

2x 5.25" + 1x 3.5" Open Bay + 2x 3.5" HDD Bay(Internal) + 4x 3.5" Swappable HDD Trays/Carriers

Power Supply:

Single or Redundant ATX Power Supply in either 2U Form Factor

Cooling Units:

1x (120mm = 90CFM ea.) & 1x (80mm = 42.5CFM ea.) & 2x (60mm 23.5CFM ea.) & 2x (40mm 7CFM ea.) Fans

Front USB Ports: 2

Expansion Slot:

7 x Vertical Full Height PCI Slots


LEDs for Power, HDD Activity, & LAN


Power On/Off & System Reset Switches


(W x H x D):

482.6 x 177.8 x 622.3mm
(19" x 7 " x 24.5")


5% - 95% Non-condensing

Product Applications:

Multipurpose Server

            Download Dimensional Drawing

  More photos (click to enlarge )
