   3 U Rackmount Chassis :  Part # RM3015




   19" Rackmount Standard

Construction:

Heavy Duty Cold Rolled Electroplated Steel

Color:

Black (Standard)

System Boards:

Pentium 4, Pentium D, Dual Xeon, AMD 64, Dual Opteron

Motherboard Size:

Support ATX M/B (Max. to 12" x 13")

Drive Bays:

6x 5.25" + 1x 3.5" Open Bay + 2x 3.5"HDD Bay(Front) + 2x 3.5"HDD Bay(Rear Side)(Internal/Optional)

Power Supply:

Single or Redundant ATX Power Supply in either 2U Form Factor

Cooling Units:

4 x (80mm) and (2 x 40mm) (Fans)

Expansion Slot:

7 x Vertical Full Height PCI Slots

Connector Port (front): 2x USB

Indicators:

LEDs for Power, HDD Activity, & 2 LAN

Buttons:

Power On/Off & System Reset Switches

Dimensions:

(W x H x D):

482.6 x 132.08 x 650.24mm
(19" x 5.2 " x 25.6")

Humidity:

5% - 95% Non-condensing

Product Applications:

Multipurpose Server

            Download Dimensional Drawing

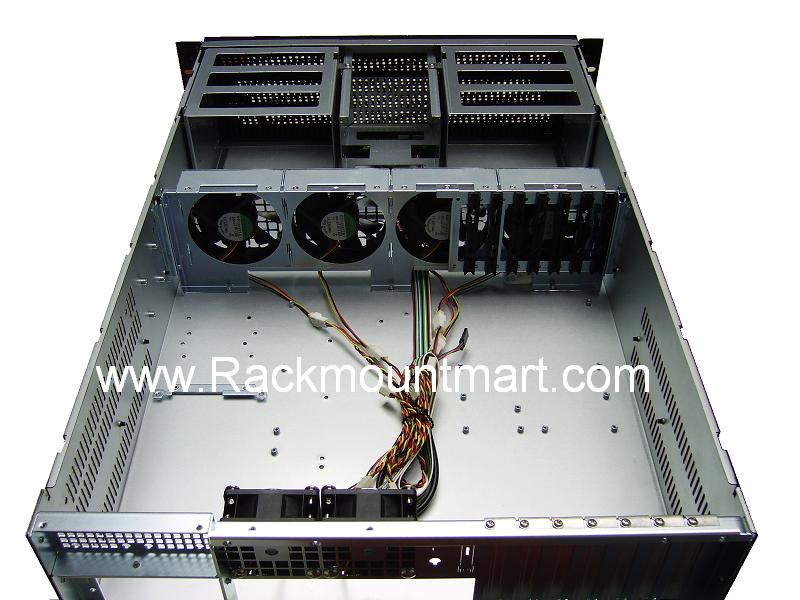

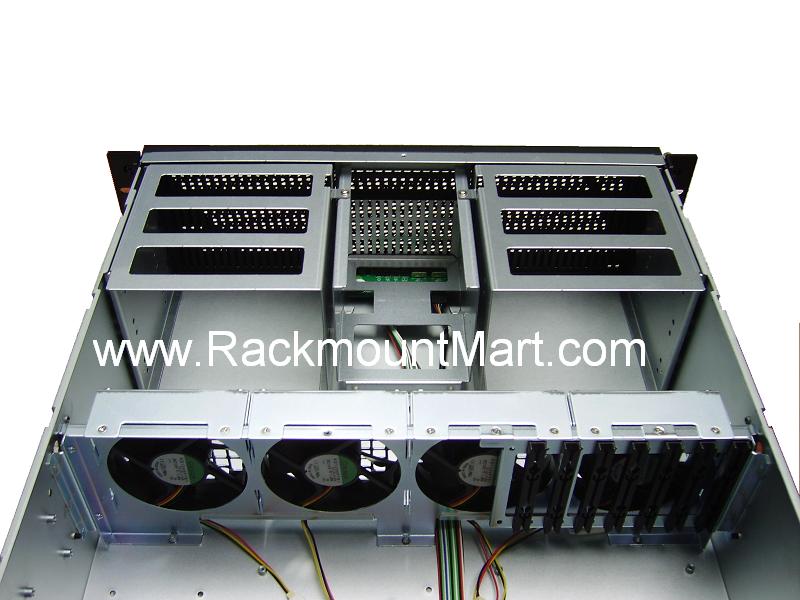

  More photos (click to enlarge )
