  3U Rackmount Chassis :  Part # RM3014  ( Military Grade )

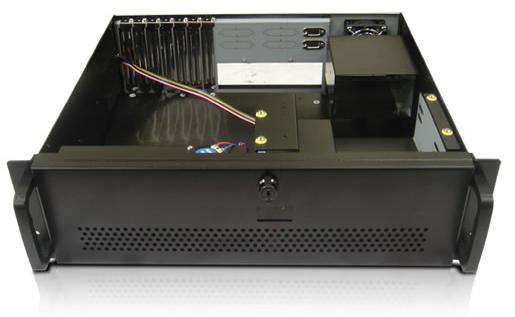

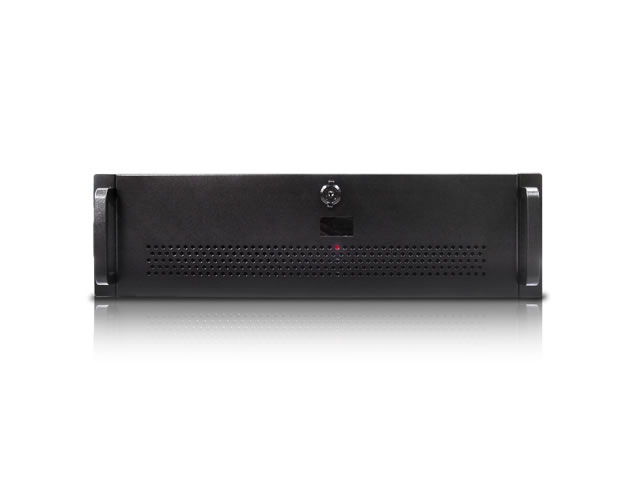

*Click to enlarge


*Click to enlarge



                      19" Rackmount Standard
Construction:
Material of Front Bezel Military Type - 1.6mm SECC Zinc-Coated Steel
Material of Handle Military Type - 1.6mm SECC Zinc-Coated Steel
Material of Main Chassis Military Type - 1.6mm SECC Zinc-Coated Steel
Color: Black
RoHS Compliance : Yes
Motherboard Size: Support 12" x 10" ATX M/B
Drive Bays: 1 x 3.5" Open Bay (FDD) & 1 x 3.5" Hidden Bay (HDD) & 1 x 5.25" Open Bay (CD-ROM Drive)
Power Supply: Single Power supply
Cooling Units: 1 x 80mm + 1 x 40mm  Fan
Switches: Power ON/OFF, System & Alarm Reset
Indicators: LEDs for Power ON/OFF, HDD, Fan & Alarm
Front  connector: Front USB 2.0 x 2 Connector
Air Filter: Removable & Washable
Speaker: 0.4W Built-In
Security:
Front Bezel
Dimensions: 18.88 x 5.19  x 15 inch  (W x H XD )



Introduction

This Military RM3014  rackmount chassis is designed to withstand the toughest and compact environment. It is 3U height with only 15" in depth and special features of front USB access, ball-bearing cooling fan, and system sensor board to enhance functionality and usability for critical missions and applications.

Features

  • Compact 3U Rackmount 15" Depth
  • 1.6mm Steel Body Chassis
  • Spill-proof Bezel with Lock
  • Shock Absorbing Drive Cage
  • Expansion Card Center Lock Crowbar
  • Front Access USB2.0 x2
  • 80mm x1 + 40mm x1 Cooling Fan
  • Power and HDD LED
  • Removable Air Filter
  • Power and Alarm Reset Switch
  • Fan and Temperature Monitor Option

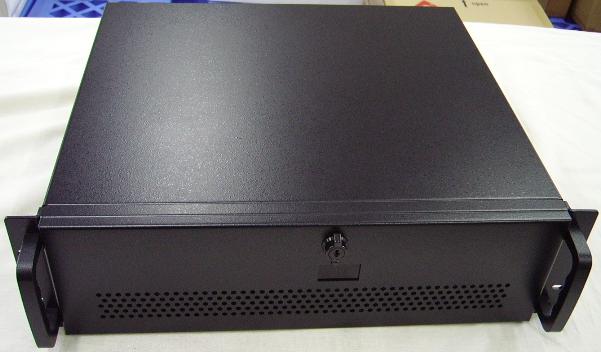

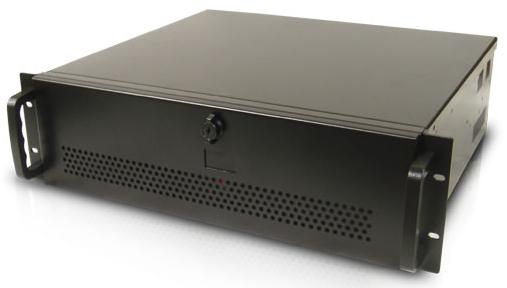

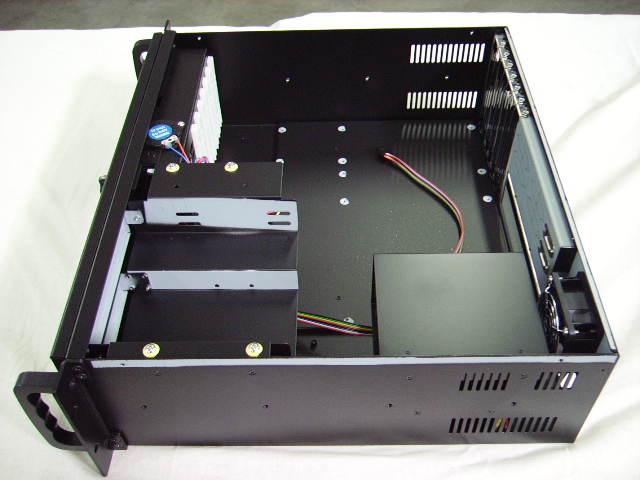

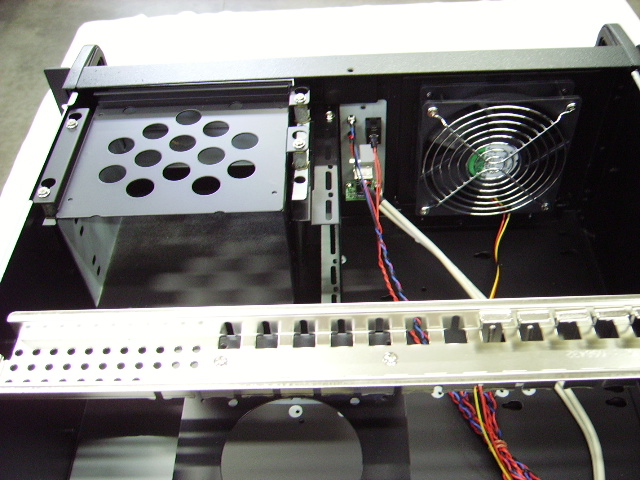

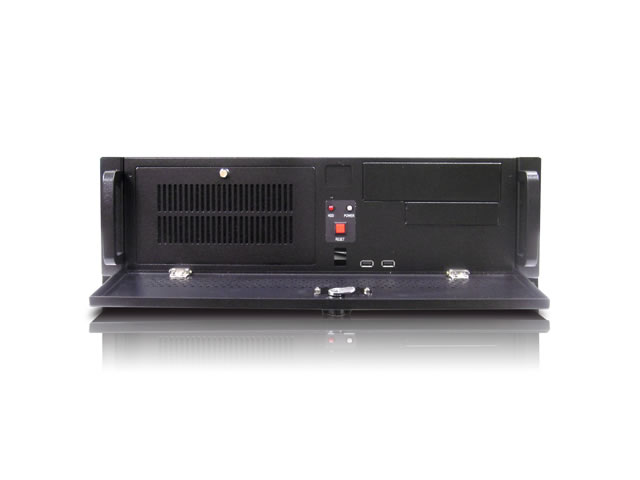

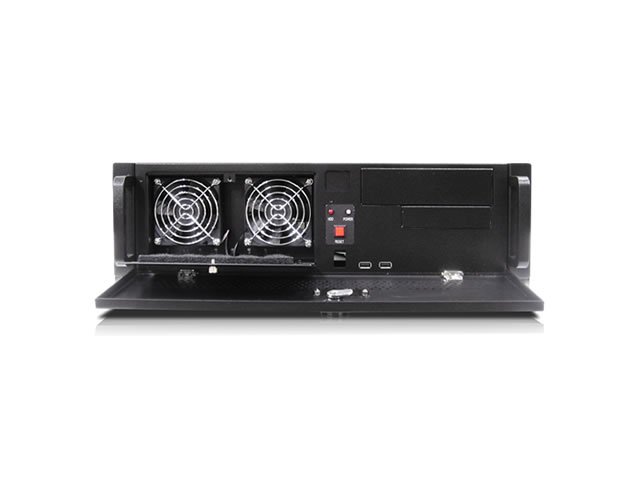

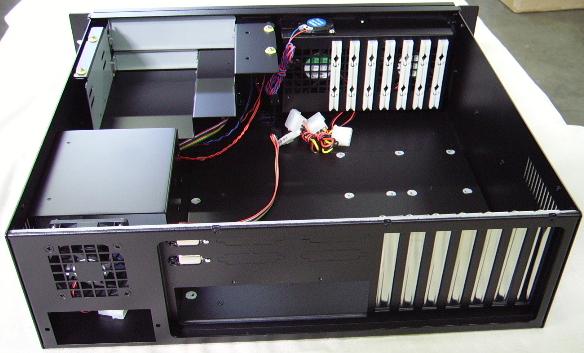

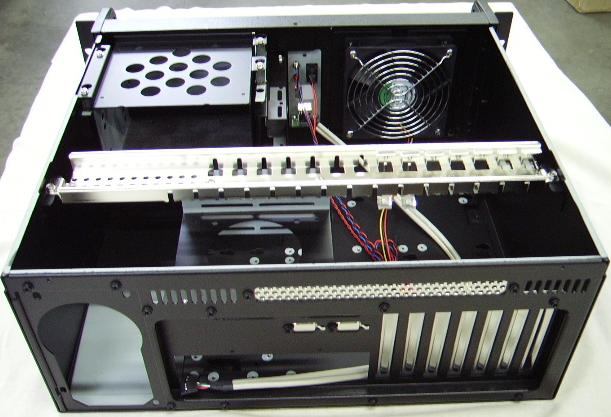

  For more pictures, click on the following for enlarged view:
