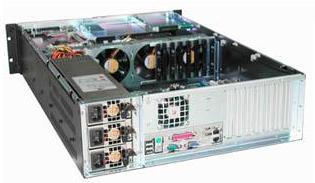

   3 U Rackmount Chassis :  Part # RM3011



      *click on the picture for enlarged view

EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black
Motherboard Size: Support ATX M/B (Max. to 12" x 13")
Drive Bays: 1 x 5.25", 1 x Slim CD-ROM,1 x Slim FDD & 10 x Hot Swappable Drive Trays for (PATA, SATA, or SCSI 320), Optional 2 x HDD Bracket above the power supply
Power Supply: 2U Single or Redundant
Cooling Units: 4 x 9cm (51 CFM ea.), 1 x 6cm(23.5 CFM ea.) Heavy Duty Ball Bearing Fans
Front USB Ports: 2
Expansion Slot: 7 x Full Length PCI Slots
Indicators: LEDs for Power ON/OFF, 2 x HDD, Fan, Temperature & 3 x LAN Activity
Thermal Card: Installed
Buttons: Power On/Off, System Reset, Buzzer Reset
Door(s): 1 x Front Door with Thumbscrew Lock
Dimensions: 483(W) x 133(H) x 650(D) / mm (19" x 5.2" x 25.6")
         Download Dimensional Drawing

  More photos - (click on the pictures to enlarge)
