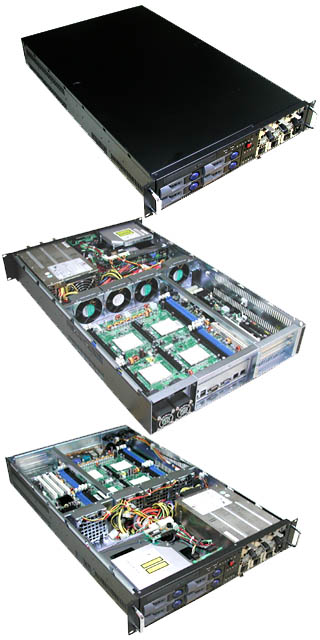

2 U Rackmount Chassis :  Part # RM2014

EIA RS-310C 19" Rackmount Standard

Construction:

Heavy Duty Cold Rolled Electroplated Steel

Color:

Black (Standard) or Custom

System Boards:

Pentium D, Dual Xeon, AMD 64, Dual Opteron, Quad Opteron

Motherboard Size:

Support EATX M/B (Max. to 13 " x 16")

Drive Bays:

1x Slim CD-ROM & 4x 3.5" Hot swap Tray

Drive Interface:

SATA2, U320, SAS

Power Supply:

2U redundant up to 750W

Cooling Units:

4x (80mm = 42.5CFM ea.) & 2x (40x28mm = 15.3CFM ea.) Heavy Duty Ball Bearing Fans

Thermal Managment Card:

Installed

Riser Card: 32bit Ribbon or optional 64bit Ribbon
Front USB ports: 2

Expansion Slot:

Version A : 3 Horizontal Slots
Version B : 7 Vertical Slots

Indicators:

LEDs for Power ON/OFF, HDD Activity, Fan, Temperature

Buttons:

Power On/Off & System Reset (Dimple Button), & Power Supply Reset

Crossbar: PCI Spanner Bar for Riser Card

Dimensions:

(W x H x D):

483 x 88 x 710mm (19.0" x 3.5" x 28.0")

Carton Size:

57.0 x 24.0 x 90.5 (22.4" x 9.5" x 35.6")

Humidity:

5% - 95% Non-condensing

Product Applications:

Mission critical server





Ordering information
Part Number  Description
RM2014-SATA-R75  2U Rackmount Chassis,  SATA, Black, w/ 750W redundant power supply
