                 2 U Rackmount Chassis :  Part # RM2005


RM2005 IDE Version



RM2005 SCA Version

EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black or Beige
System Boards: Dual Xeon based boards
Motherboard Size: Support ATX M/B (Max. to 12" x 13")
Drive Bays: 1 x 5.25 + 1 x 3.5 open + 4 x Swap drives for IDE HDD OR 4 x Hot Swap SCA-2 SCSI HDD
Power Supply: (Rear Installation) Special Single 300W ATX OR
Rddundant 300W ATX P/S
Cooling Units: 4 x 8cm (42.5 CFM) Heavy Duty Ball Bearing Fans
Front USB ports: 1
Expansion Slot: Version A : 3 Horizontal Slots
Version B : 7 Vertical Slots
Indicators: LED for Power & HDD Activity
Buttons: Power On/Off & System Reset
Dimensions: 483(W) x 88(H) x 651(D) mm (19" x 3.5" x 25.6")
Product Applications: Web Server, Email Server, RAID Server, Proxy Server, High-End Workstation, Print Server, File Server

  More photos - (click on the pictures for  enlarged views)

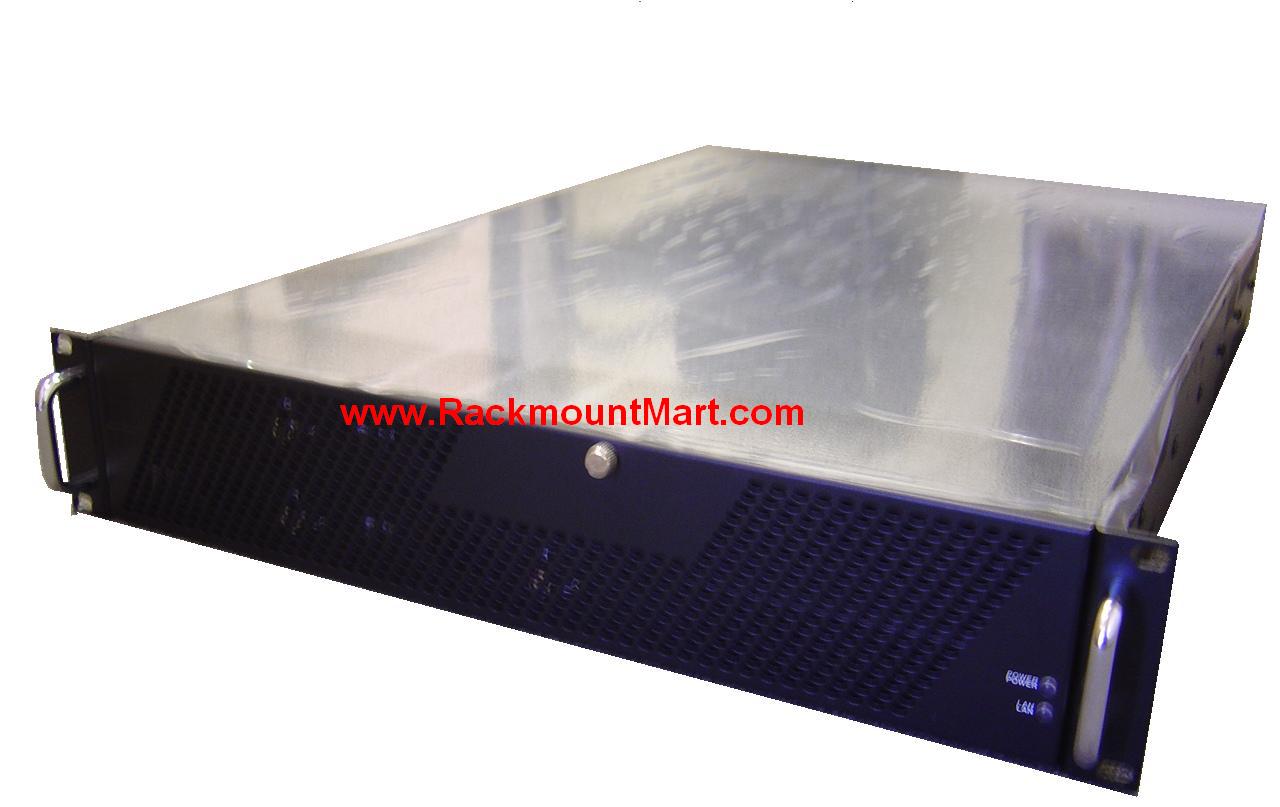

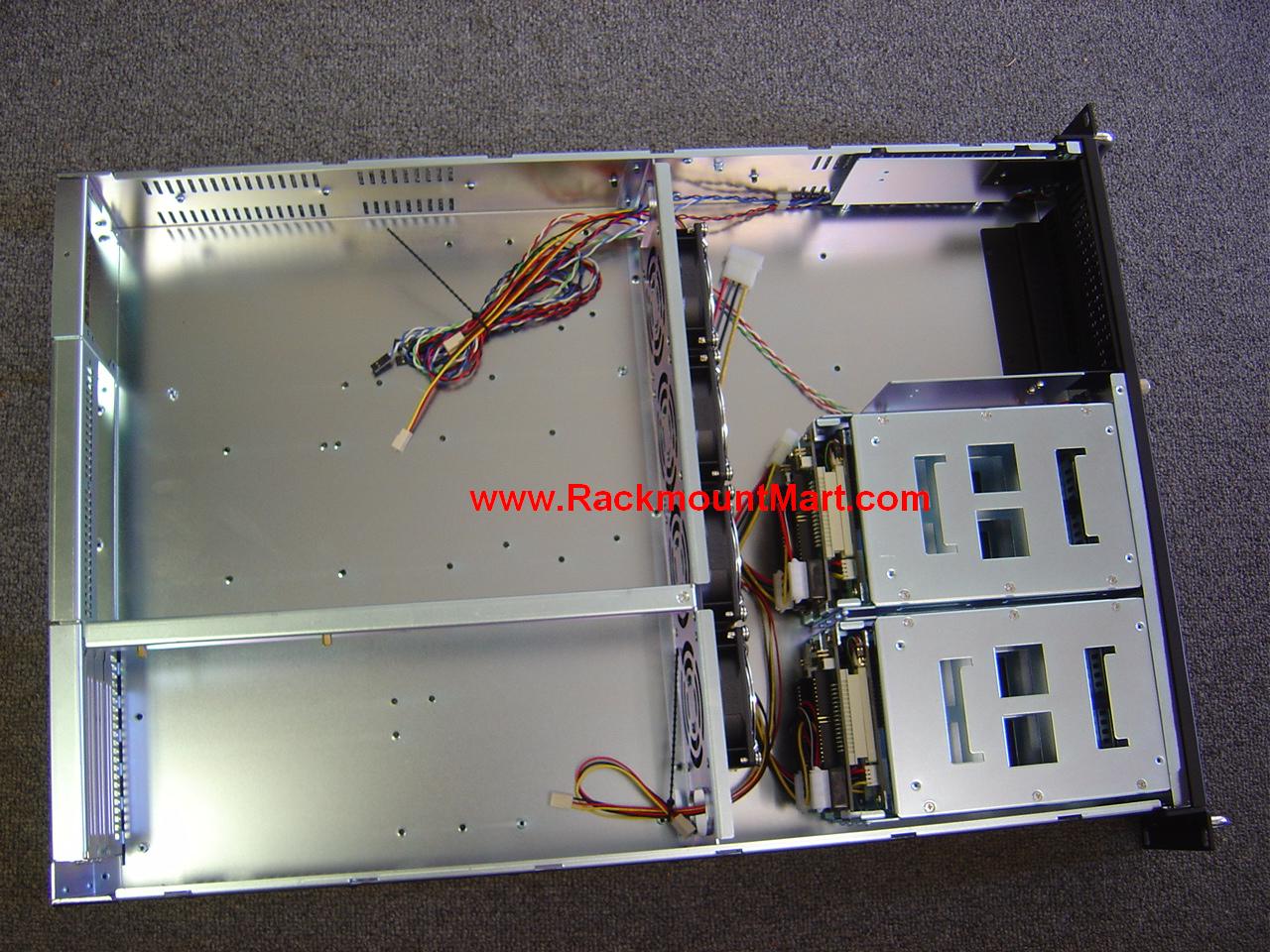

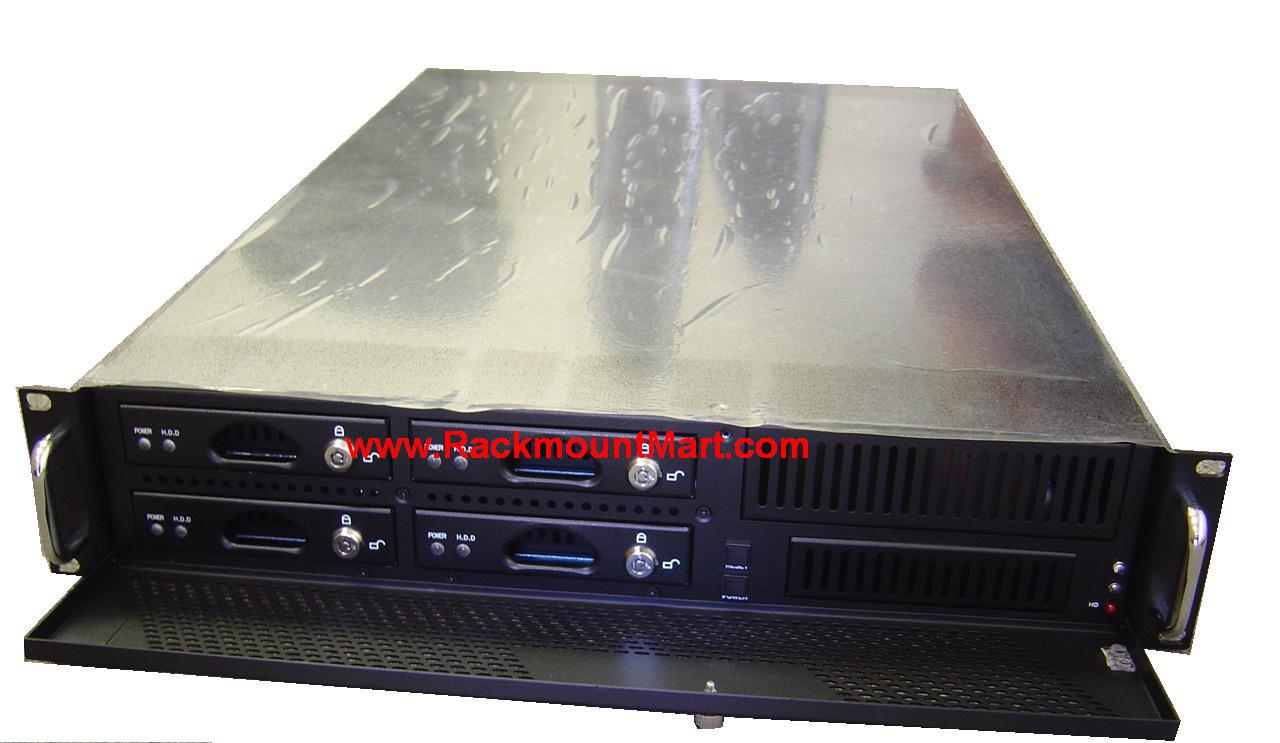

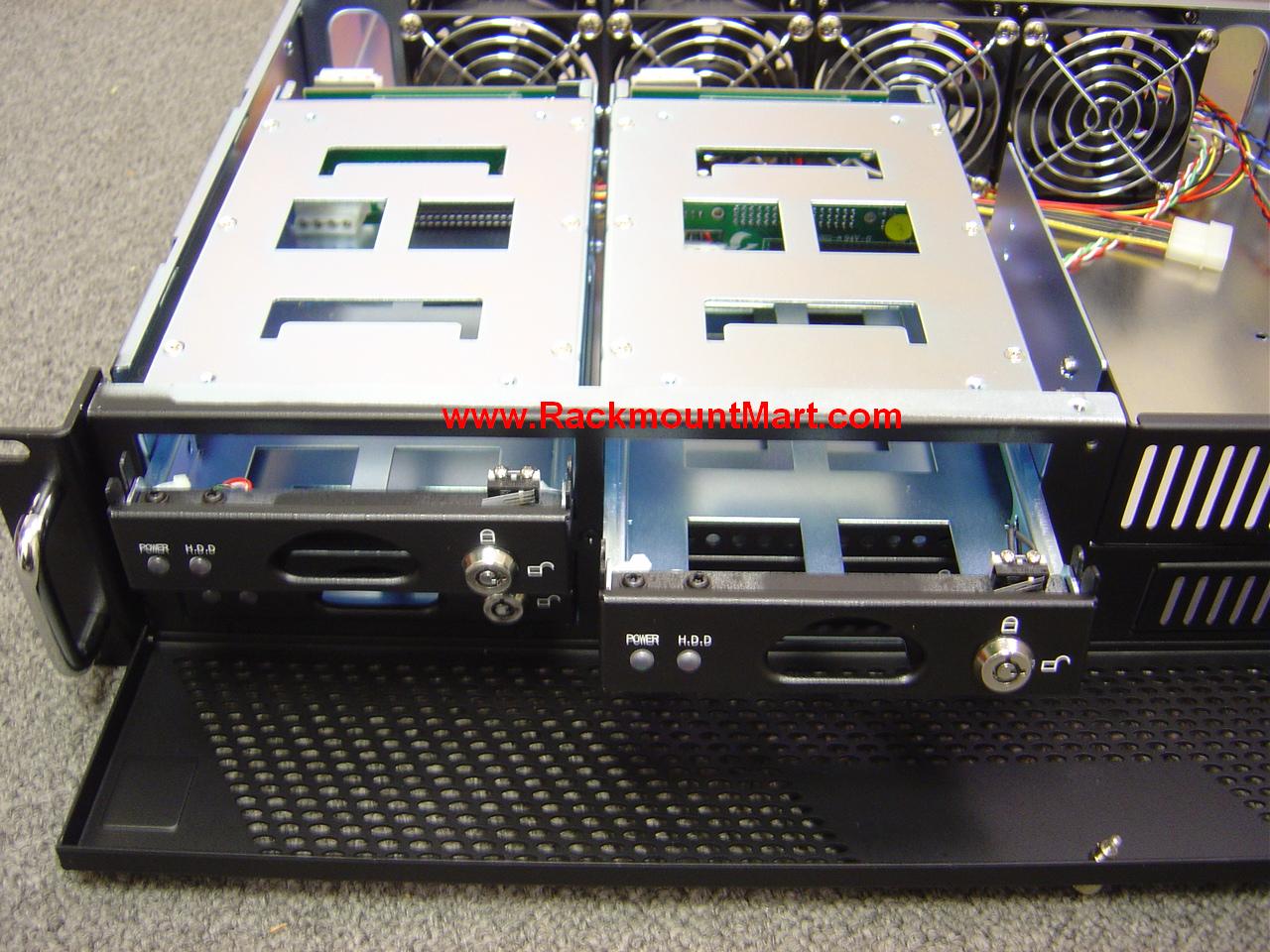

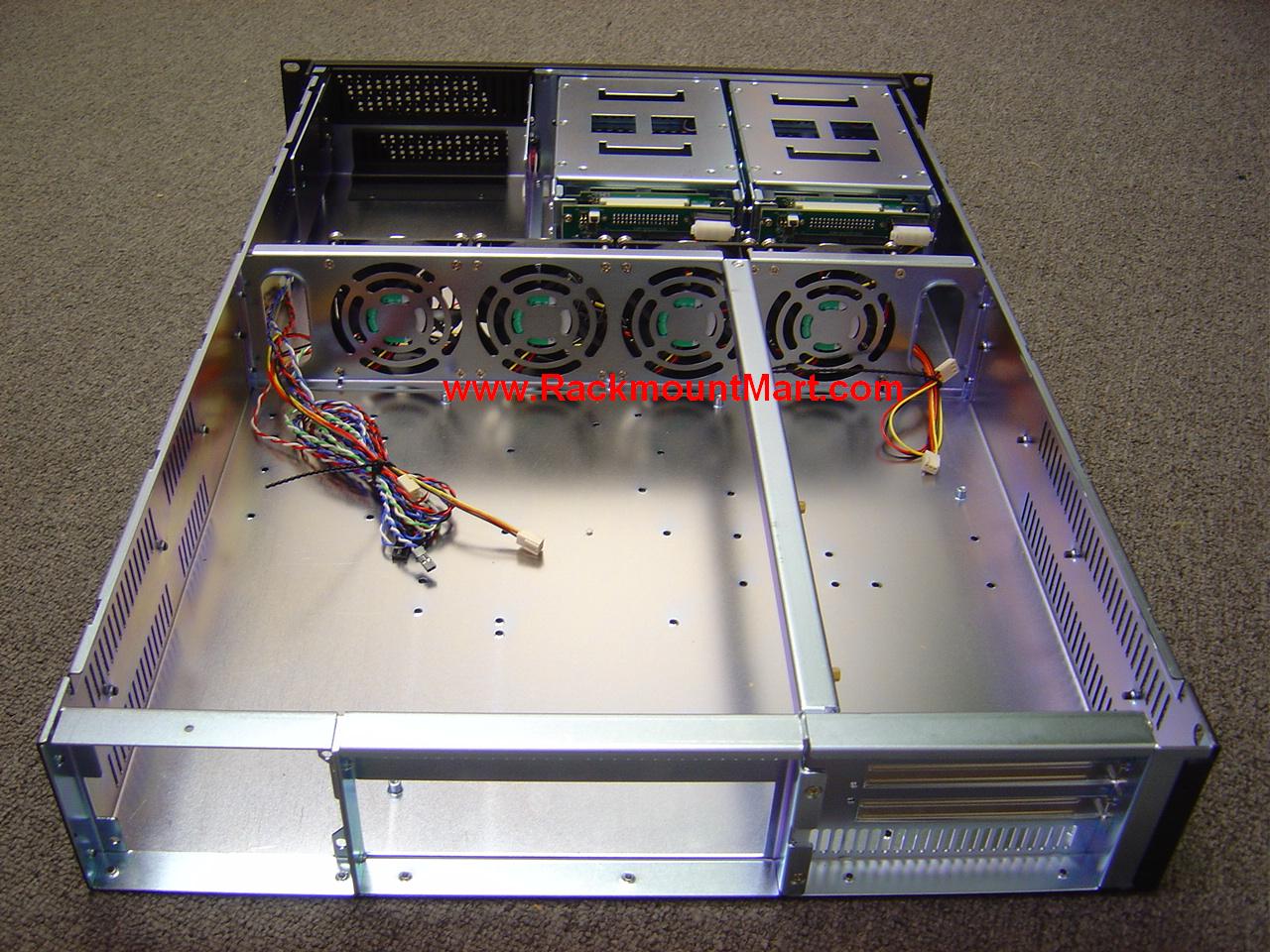

    IDE w / single PS           IDE w / mini PS             SCA w / mini PS
