42U Server Cabinet : Convex/Glass Doors - 27.5" Overall Depth
Model CR1214-C/G
TAA Compliant
MADE IN THE USA
|
|
This Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options.
- Includes one locking convex door and one locking tempered glass door
- Removable locking side panels
- 24” inside depth (Also available with a 36” depth)
- Other sizes available: 22U, 27U, 37U
- 1300 lb. weight capacity (Holds 800 lbs. on casters)
- Includes preinstalled casters and levelers
- Includes two sets of adjustable cage nut style mounting rails
- Top includes removable laser knockouts
- 19” EIA 310-D compliant
- Made in the USA
|
|
| Features |
| Easy Installation |
|
Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.) |
| Removable Cable Access Panels |
|

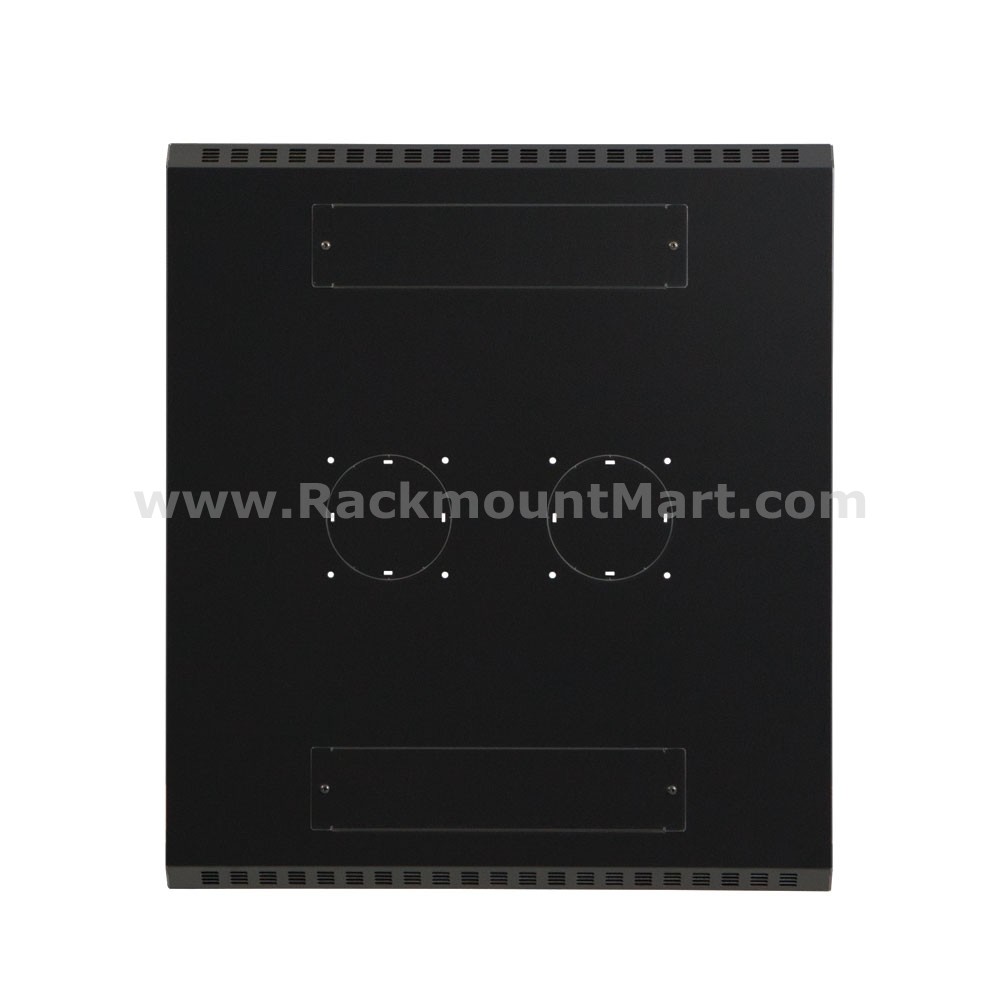

The top of the server cabinet includes removable laser knockouts for cable access and added versatility. |
| Locking, Removable Side Panels |
|
For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs. |
| Adjustable Rails |
|
Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24” for versatile mounting options. |
| Secured System |
|
Both doors are equipped with locks to help protect and secure your valuable equipment. |
| Locking Convex Door |
|
The locking convex door provides a unique curb appeal for your cabinet, while remaining a cost-efficient solution for your equipment. This design also helps promote better air circulation within the cabinet, and is especially helpful when storing equipment that generates a lot of heat. |
| Locking Glass Door |
|
The locking tempered glass door allows installers to easily access and view their network equipment. |
|
| Specifications |
- Width : 24"(Overall) 19"(Inside)
- Depth : 27.5"(Overall) 24"(Inside)
- Height : 80.50"(Overall)
- Color : Black
- Weight : 198.00 lbs.
|
|
Package Content |
- Qty 1 - 42U Server Cabinet - Convex/Glass Doors
|
|
Gallery
Ordering Information
| Part Number |
Description |
CR1214-C/G
|
42U Server Cabinet - Convex/Glass Doors - 24" Inside Depth (27.5" overall depth) |
| Options |
CR1214
|
42U Server Cabinet - Glass/Vented Doors - 24" Inside Depth |
CR1214-A
|
42U Server Cabinet - No Doors/No Side Panels - 24" Inside Depth |
CR1214-C
|
42U Server Cabinet - No Doors - 24" Inside Depth |
CR1214-G/S
|
42U Server Cabinet - Glass/Solid Doors - 24" Inside Depth |
CR1214-G/G
|
42U Server Cabinet - Glass/Glass Doors - 24" Inside Depth |
CR1214-S/C
|
42U Server Cabinet - Solid/Convex Doors - 24" Inside Depth |
CR1214-C/C
|
42U Server Cabinet - Convex/Convex Doors - 24" Inside Depth |
CR1214-S/V
|
42U Server Cabinet - Solid/Vented Doors - 24" Inside Depth |
CR1214-V/V
|
42U Server Cabinet - Vented/Vented Doors - 24" Inside Depth |
CR1214-S/S
|
42U Server Cabinet - Solid/Solid Doors - 24" Inside Depth |
CR1214-C/V
|
42U Server Cabinet - Convex/Vented Doors - 24" Inside Depth |
