2-Post Extension Support Bracket
For use with 19, 23 and 24 inch EIA rack mounting rails
Made in Canada, TAA Compliant


RDAB2U31
31" Mounting Depth

RDAB2U15
15" Mounting Depth

RDAB2U20

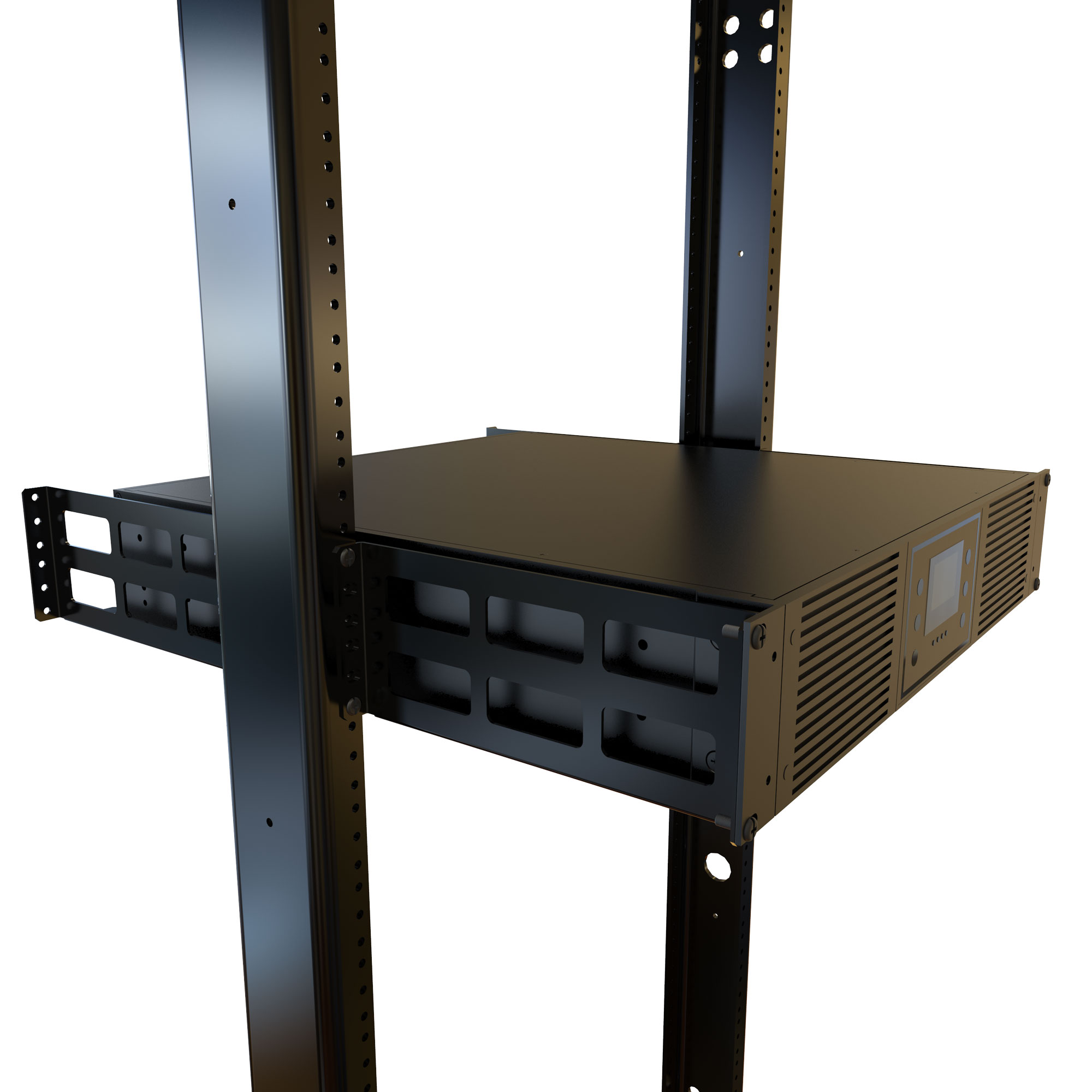

20" Mounting Bracket mounted to 2 Post rack with UPS installed ( Rack & UPS sold separately)






Features

  • Constructed in 14-gauge steel.
  • Available in four (4) depths.
  • Angles mount to 19, 23 and 24 inch EIA rack mounting rails.
  • Ideal for mounting a UPS, Server, Switch, NVR and other rack mount equipment.
  • Mounts to the front and/or rear of the rack for maximum load rating.
  • Finished in black powder paint.
  • Includes all four (4) pieces shown as well as mounting hardware.
  • Tested to nearly double the suggested load rating of 400 lbs.
  • TAA Compliant
  • RoHS and REACH compliant.
  • Manufactured in North America.











Model HCMP191UBK
Overall Dimensions Mounting Diemensions:
1.75" (H) x 19" (W) x 1.5" (D) 1U Height : 1.75"

Model HCMP192UBK
Overall Dimensions Mounting Diemensions:
3.5" (H) x 19" (W) x 1.5" (D) 2U Height : 3.5"




 Ordering Information

Model Number Description
RDAB2U15
Price : Please call
2U 2-Post Extension Support Brackets.
Overall Dims: 3.5" (H) x 1.57" (W) x 6" (Depth per bracket)
Mounting Dims: 3.5" (H) x 19" (W) x 15" (Depth including Standard Rack)
RDAB2U20
Price : Please call
2U 2-Post Extension Support Brackets.
Overall Dims: 3.5" (H) x 1.57" (W) x 8.5" (Depth per bracket)
Mounting Dims: 3.5" (H) x 19" (W) x 20" (Depth including Standard Rack)
RDAB2U26
Price : Please call
2U 2-Post Extension Support Brackets.
Overall Dims: 3.5" (H) x 1.57" (W) x 11.5" (Depth per bracket)
Mounting Dims: 3.5" (H) x 19" (W) x 26" (Depth including Standard Rack)
RDAB2U31
Price : Please call
2U 2-Post Extension Support Brackets.
Overall Dims: 3.5" (H) x 1.57" (W) x 14" (Depth per bracket)
Mounting Dims: 3.5" (H) x 19" (W) x 31" (Depth including Standard Rack)
