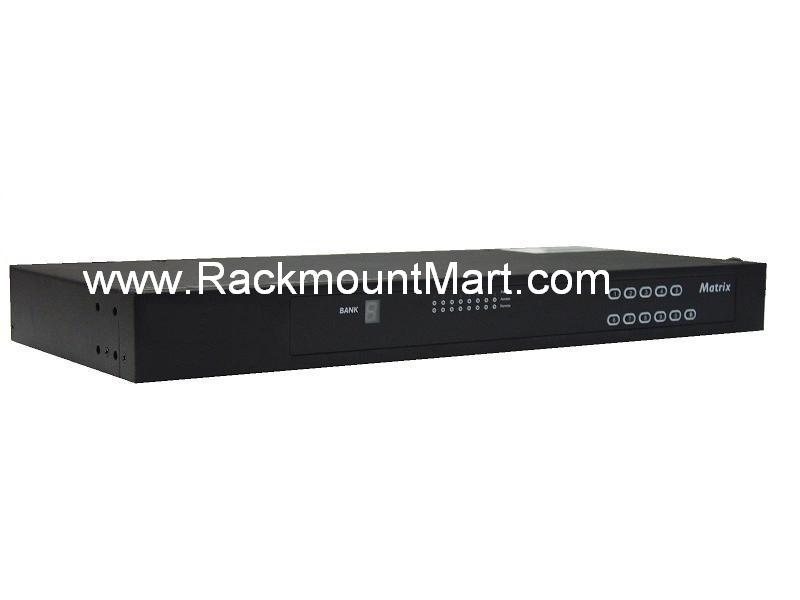

Matric VGA Combo KVM Switch
Model LCDK2004 / LCDK2005
Matrix VGA Combo KVM Switch ,
8 / 16 Ports, 1 Local User &
1 ~ 3 Extended Users (Remote Users)

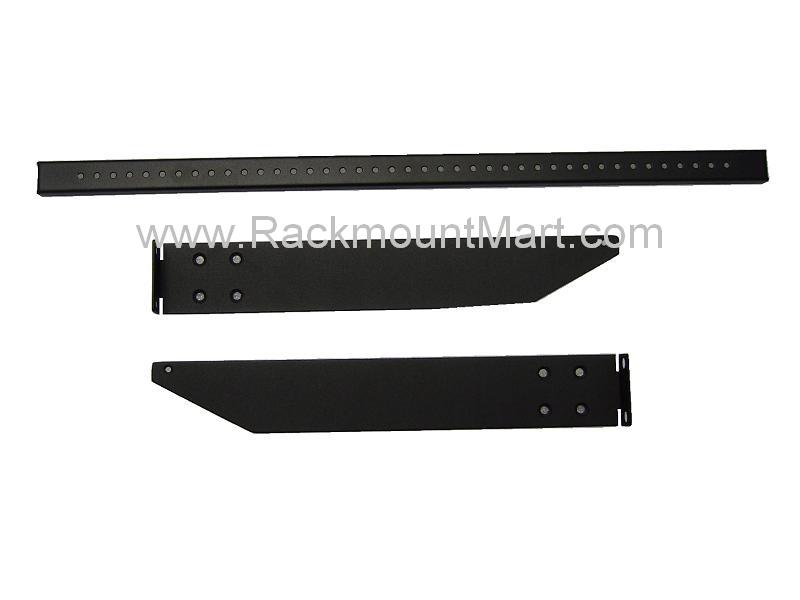

Standalone or 1U Rack Mountable
TAA & NDAA Compliant
|
16-Port Model LCDK2005
|
Matrix VGA Combo KVM Benefits
- Efficient system management with simultaneous multi-user access
- Capable of connecting 8 or 16 servers per device in 1U space
- Support resolution up to 1920 x 1080
- Support SUN 1152 x 900 resolution
- Standalone KVM or 1U Rack Mountable
- Multi-platform servers shared by different consoles in cascade connection
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Extended Cat6 cord remote access up to 492 feet / 150m
- Provide a diversity of consoles to access servers independently & simultaneously
- TAA Compliant
Switch Features & Options
- Greater distances between your switch and servers allow enhanced data center rack layouts
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
|
|
KVM Port |
|
Number of ports
|
8 or 16 |
|
Connector |
DB-15 combo connector |
Connectivity |
6-ft VGA + USB Keyboard / Mouse 2-in-1 KVM cable ( Part no.: LCD-A1014), Optional 10 & 15 feet |
| Resolution |
16:10 - max. 1920 x 1200 /
4:3 - max. 1600 x 1200 |
|
Expansion |
Up to 240 servers by 8-level cascade
|
|
Local Console |
|
Monitor port |
1 x DB-15 VGA |
|
Resolution |
16:10 - max. 1920 x 1200 /
4:3 - max. 1600 x 1200
|
|
Keyboard & mouse port |
2 x USB type connectorfor keyboard & mouse
|
|
Management |
|
OSD
|
English, France, German, Spanish, Italian,
Russian, Simplified Chinese, Japanese |
|
Hotkey combination |
Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win |
|
Security |
Password enable & disable, up to 8 users
profile for port access
|
|
PC Selection |
Front button, OSD menu & hotkey
|
|

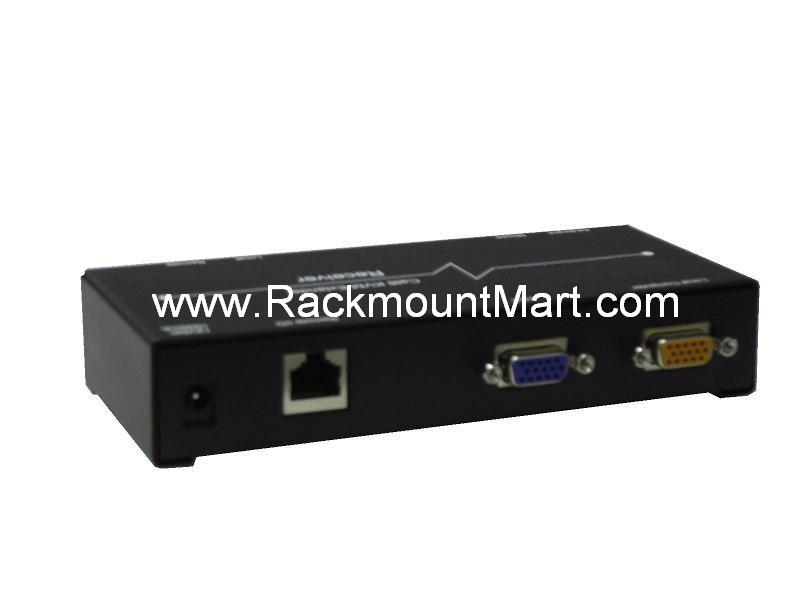

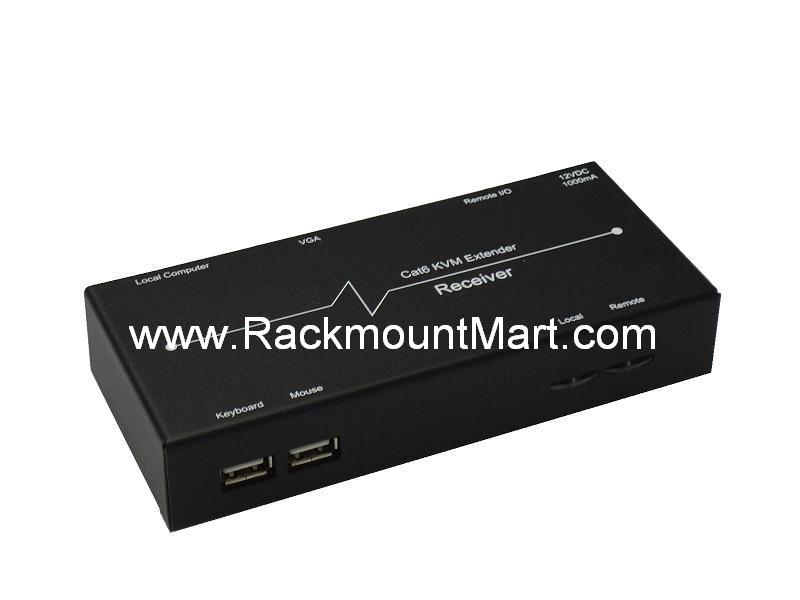

Remote Console |
|
Number of remote port
|
1 for LCDK2004-2 / LCDK2005-2
2 for LCDK2004-3 / LCDK2005-3
3 for LCDK2004-4 / LCDK2005-4 |
|
Resolution |
16:9 - ( 1920 x 1080 ) Max. 50 meters
16:10 - ( 1920 x 1200 ) Max. 50 meters
16:10 - ( 1440 x 900 ) Max. 100 meters
4:3 - ( 1600 x 1200 ) Max. 100 meters
4:3 - ( 1280 x 1024 ) Max. 150 meters |
|
Keyboard & mouse port |
2 x USB type connector for keyboard & mouse
|
|
Remote I/O |
RJ45 via Cat5 / Cat6 cable up to 492 feet
|
|
Power |
|
Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
|
Consumption |
Max. 29 Watt |
|
Regulatory Approval |
| |
UL, FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001 |
|
Environmental |
|
Temperature |
0 to 55
Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage) |
|
Relative Humidity |
20%~90%, non
condensing (Operation)
5%~90%, non
condensing (Storage) |
|
Shock |
100G acceleration
(11ms) |
|
Vibration |
10~300Hz 0.5G RMS random vibration |
|
Mechanical |
|
Dimension
(W x D x H)
|
17.4" x 6.7" x 1.73"/ 443mm x 171mm x 43.6 mm |
|
Weight |
Approximately
6.5 lbs / 3kg |
|
|

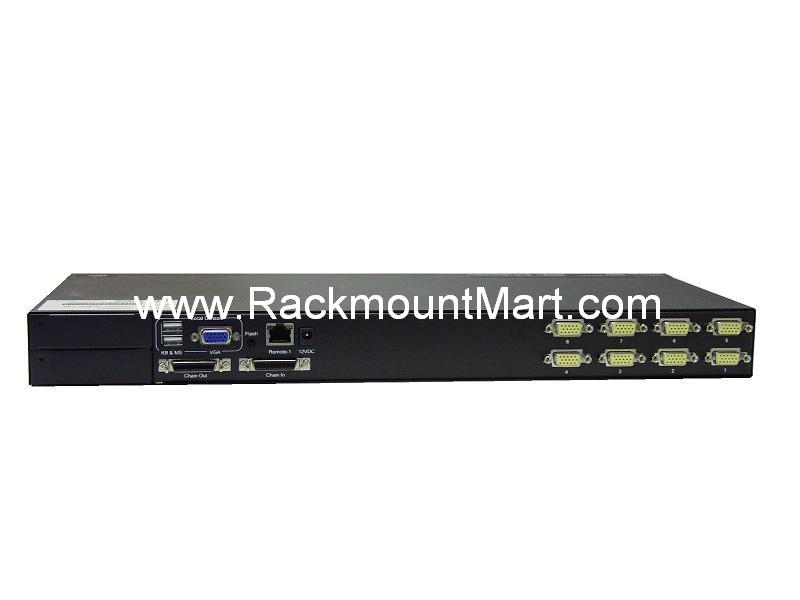

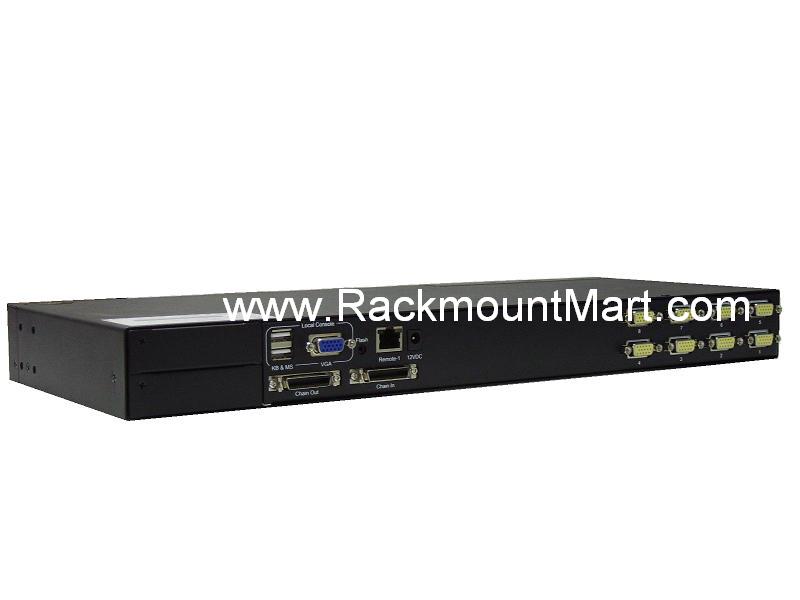

KVM port connection |
 |
|

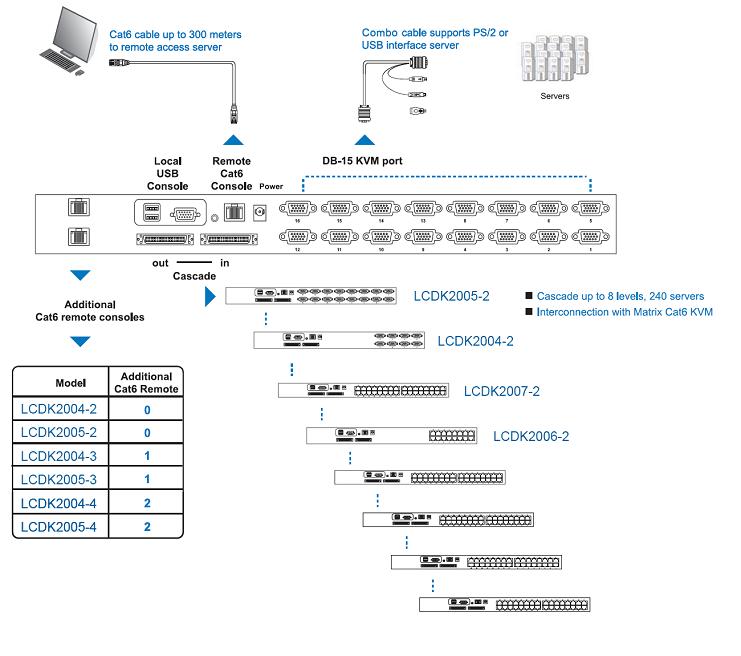

Remote & Local console connection |
 |
|
|
KVM Cascade
|
 |
|
|
Console Information
| Console Local Remote IP |
8-port |
16-port |
| 2 1 1 0 |
LCDK2004-2 |
LCDK2005-2 |
| 3 1 2 0 |
LCDK2004-3 |
LCDK2005-3 |
| 4 1 3 0 |
LCDK2004-4 |
LCDK2005-4 |
ACCESSORIES
Ordering
Information
| Part
Number |
Description |
LCDK2004-2
|
8-Port Matrix VGA DB-15 KVM Switch, 1 Local User & 1 Extended User/ Remote User, with 8 x 6-ft USB KVM cable ( LCD-A1014). |
LCDK2004-3
|
8-Port Matrix VGA DB-15 KVM Switch, 1 Local User & 2 Extended Users/ Remote Users, with 8 x 6-ft USB KVM cable ( LCD-A1014). |
LCDK2004-4
|
8-Port Matrix VGA DB-15 KVM Switch, 1 Local User & 3 Extended Users/ Remote Users, with 8 x 6-ft USB KVM cable ( LCD-A1014). |
|
LCDK2005-2 |
16-Port Matrix VGA DB-15 KVM Switch, 1 Local User & 1 Extended User/ Remote User, with 16 x 6-ft USB KVM cable ( LCD-A1014). |
LCDK2005-3
|
16-Port Matrix VGA DB-15 KVM Switch, 1 Local User & 2 Extended Users/ Remote Users,16 x 6-ft USB KVM cable ( LCD-A1014). |
LCDK2005-4
|
16-Port Matrix VGA DB-15 KVM Switch, 1 Local User & 3 Extended Users/ Remote Users, 16 x 6-ft USB KVM cable ( LCD-A1014). |
|
Optional Cables |
LCD-A3001
|
6-ft Combo PS/2 USB KVM Cable |
LCD-A3002
|
10-ft Combo PS/2 USB KVM Cable |
LCD-A3003
|
15-ft Combo PS/2 USB KVM Cable |
LCD-A1014
|
6-ft USB 3-in-1 KVM Cable |
LCD-A1015
|
10-ft USB 3-in-1 KVM Cable |
LCD-A1016
|
15-ft USB 3-in-1 KVM Cable |
|
|
