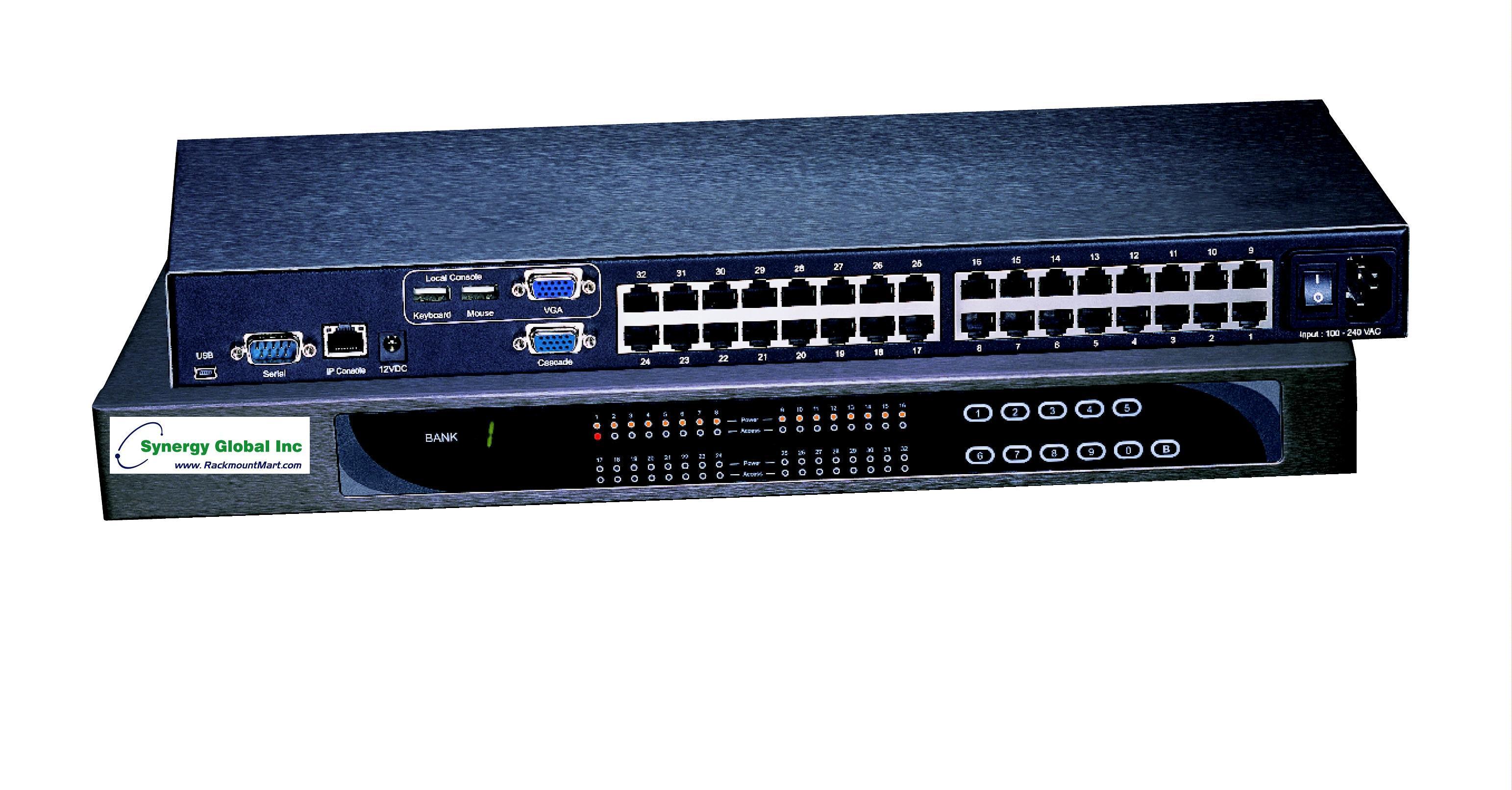

RACK MOUNT KVM SWITCH
Model LCDK1048
IP KVM : High Density 32-Port Cat 6 KVM Switch, 1 Local User &1 Network IP User
supports DisplayPort, HDMI, DVI and VGA Video Input
Optional 12V , 24V, 48V, 125V , 250V DC Power
1U Rackmountable or Standalone
TAA Compliant
|
LCDK1048
|
Cat6 KVM Over IP Benefits
- 32 Port Cat6 KVM switch, supports DisplayPort, HDMI, DVI & VGA Video Input
- IP remote access across the world wide web / KVM Over IP
- Local console & KVM ports support resolution up to 1920x1080
- Port switching via OSD, front button & keyboard hotkeys
- Hot pluggable, no software or drivers required
- Cascade levels up to 8 KVM switches
- Mix PC, server, Blade Server , SUN & MAC with Multi-Platform switch capability
- Standalone KVM or 1U Rack Mount
- Multi lingual on screen display menu
- TAA Compliant
Switch Features & Options
- Advanced user profiles and configurable OSD hot key combinations
- Dual power with failover
- 12V, 24V , 48V ,110V , 125V, 250V DC Power options
|
|
KVM |
|
Number of ports
|
32 |
|
Connector |
RJ-45 |
Connectivity |
DP / HDMI / DVI-D / VGA dongle via Cat5 / Cat6 cable to server up to 132 feet / 40 meter |
Resolution |
16:9 - up tp 1920 x 1080
4:3 - up to 1600 x1 200 |
|
Expansion |
Up to 256 servers by 8-level cascade
|
|
Local Console |
|
Graphic connector |
1 x DB-15 VGA |
Resolution |
16:9 - up tp 1920 x 1080
4:3 - up to 1600 x1 200 |
|
Input device |
2 x USB type A for keyboard & mouse
|
|
Management |
|
OSD
|
English, France, German, Spanish, Italian,
Russian, Simplified Chinese, Japanese |
|
Hotkey combination |
Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win |
|
Security |
Password enable & disable, up to 8 users
profile for port access
|
|
PC Selection |
Front button, OSD menu & hotkey
|
|
IP Remote Console |
|
Connector
|
RJ45 Ethernet |
|
Resolution |
15-user login, 1 x active user |
|
Input device |
DHCP / BOOTP / DNS
|
|
Remote I/O |
SSL v3, RSA, AES, HTTP / HTTPs, CSR
|
|
Resolution |
4:3 1600 x 1200
|
|
Power |
|
Input |
Auto-Sensing 100 to 240V AC , 50 / 60 Hz |
|
Consumption |
Max. 22 Watt |
|
Option DC |
250V , 125V , 110V , 48V, 24V or 12V DC power |
|
Regulatory Approval |
| |
UL, FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001 |
|
Environmental |
|
Temperature |
0 to 55
Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage) |
|
Relative Humidity |
20%~90%, non
condensing(Operation)
5%~90%, non
condensing(Storage) |
|
Shock |
10G acceleration
(11ms duration) |
|
Vibration |
10~300Hz / 0.5G RMS randon vibration |
|
Mechanical |
|
Dimension
|
17.4" x 6.7" x 1.73" (W x D X H)
443mm x 171mm x 44mm |
|
Weight |
Approximately
6 lbs / 2.6 kg |
|
|
Connection |
 |
|
|
KVM Cascade
|
 |
|
|
|
Ordering
Information
| Part
Number |
Description |
LCDK1048
|
32-Port High Density Cat6 KVM Switch, 1 Local user & 1 Network IP User, 1U Rackmountable. Dongles are optional. |
| Optional
DC Input Power |
| -DC12 |
Change to 12V DC power supply |
| -DC24 |
Change to 24V DC power supply |
| -DC48 |
Change to 48V DC power supply |
-DC110
|
Change to 110V DC power supply |
-DC125
|
Change to 125V DC power supply |
-DC250
|
Change to 250V DC power supply |
| Optional Dongles |
LCD-A2001
|
VGA-USB Dongle |
LCD-A2002
|
VGA-PS/2 Dongle |
LCD-A2003
|
DVI-USB Dongle |
LCD-A2004
|
HDMI -USB Dongle |
LCD-A2005
|
DisplayPort -USB Dongle |
LCD-A2006
|
USB-C / USB Dongle |
| Optional Cables |
LCD-A1019
|
6-ft Combo Cascade Cable |
|
|
