RACKMOUNT KEYBOARD DRAWER / KVM SWITCH / KVM Extender  :

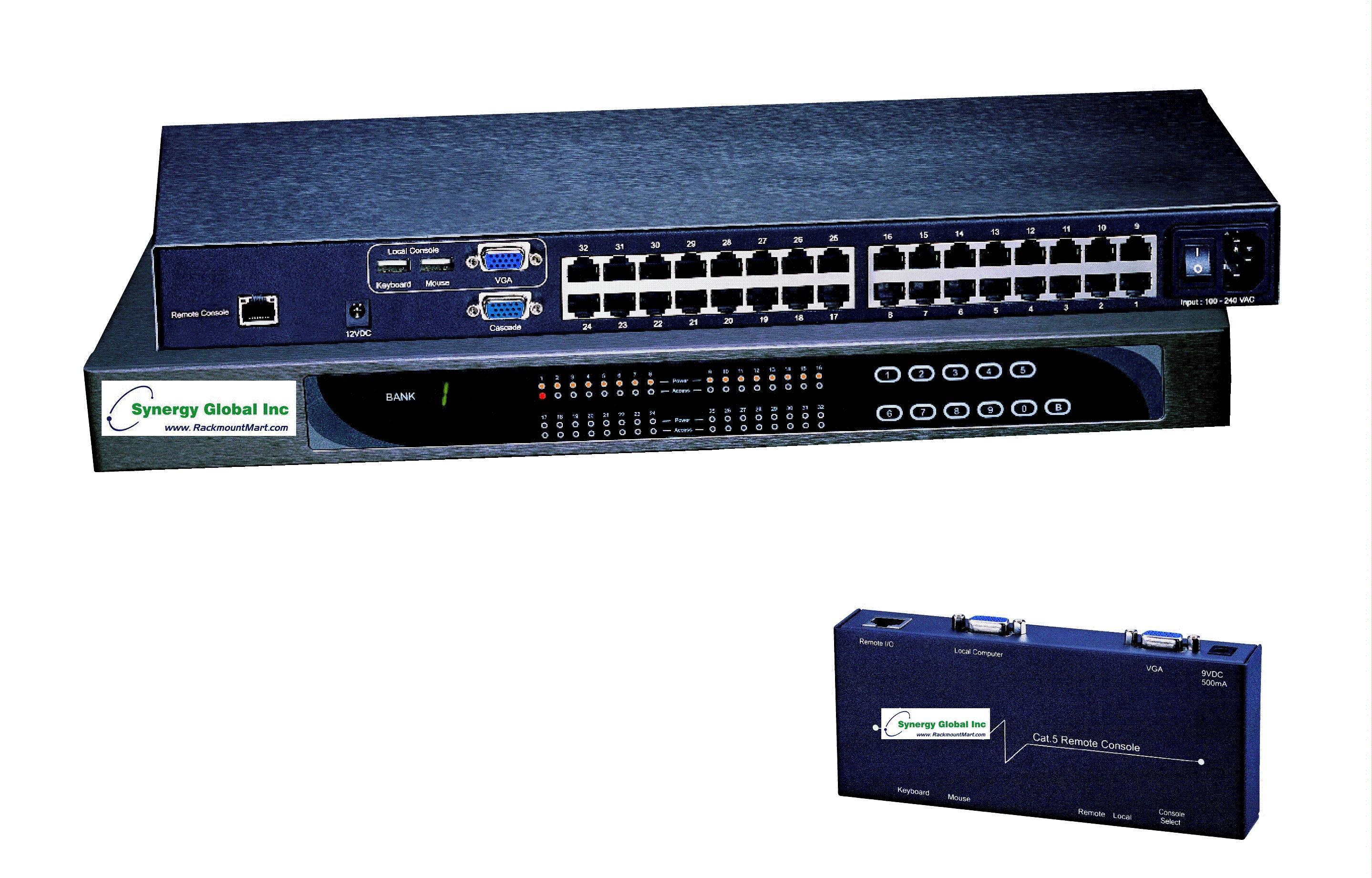

Model  LCDK1046



High Density 32-Port Cat6 KVM Switch, 1 Local User &1 Extended User (Remote User)
DisplayPort, HDMI, DVI and VGA Video Input
Optional 12V , 24V, 48V, 125V , 250V DC Power
1U Rackmountable or Standalone
TAA Compliant

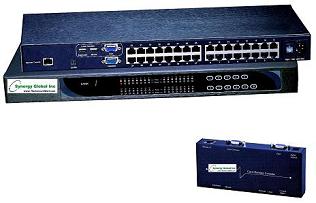

  32-Port Model: LCDK1046



   Cat6 KVM Features & Benefits
  • 32 Port Cat6 KVM switch, supports DisplayPort, HDMI, DVI & VGA Video Input
  • Local console & KVM ports support resolution up to 1920x1080
  • Port switching via OSD, front button & keyboard hotkeys
  • Hot pluggable, no software or drivers required
  • Cascade levels up to 8 KVM switches
  • Mix PC, server, Blade Server , SUN & MAC with Multi-Platform switch capability
  • Standalone KVM or 1U Rack Mount
  • Multi lingual on screen display menu
  • TAA Compliant
    Switch Features & Options
  • 12V, 24V , 48V ,110V , 125V, 250V DC Power options
KVM

Number of ports

 32

Connector

 RJ-45

Connectivity

 DP / HDMI / DVI-D / VGA dongle via Cat5 / Cat6 cable to server up to 132 feet / 40 meter

Resolution

 16:9 - up tp 1920 x 1080
 4:3 - up to 1600 x1 200

Expansion

 Up to 256 servers by 8-level cascade

Local Console

Graphic connector

 1 x DB-15 VGA

Resolution

 16:9 - up tp 1920 x 1080
 4:3 - up to 1600 x1 200

Input device

 2 x USB type A for keyboard & mouse

Management

OSD

 English, France, German, Spanish, Italian,
 Russian, Simplified Chinese, Japanese

Hotkey combination

 Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win

Security

 Password enable & disable, up to 8 users
 profile for port access

PC Selection

 Front button, OSD menu & hotkey

Remote Console

Connector

 1 x DB 15-pin, VGA

Resolution

16:9 - ( 1920 x 1080 ) Max. 50 meters
16:10 - ( 1920 x 1200 ) Max. 50 meters
16:10 - ( 1440 x 900 ) Max. 100 meters
4:3 - ( 1600 x 1200 ) Max. 100 meters
4:3 - ( 1280 x 1024 ) Max. 150 meters

Input device

 2 x USB type A for keyboard & mouse

Remote I/O

 RJ45 via Cat5 / Cat5e / Cat6 cable up to 150m

Compensation

 Auto adjust for cable length

Power
Input  Auto-Sensing 100 to 240V AC , 50 / 60 Hz
Consumption  Max. 22 Watt
Option DC 250V , 125V , 110V , 48V, 24V or 12V DC power
Regulatory Approval
   UL, FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  20%~90%, non condensing(Operation)
 5%~90%, non condensing(Storage)
Shock  10G acceleration   (11ms duration)
Vibration  10~300Hz / 0.5G RMS randon vibration
Mechanical

Dimension

  17.4" x 6.7" x 1.73" (W x D X H)
  443mm x 171mm x 44mm

Weight  Approximately 6 lbs / 2.6 kg
    Connection

*Click for enlarged view

    KVM Cascade

*Click for enlarged view

 Download Product Sheet
 Download User Manual


ACCESSORIES

Part #    Description
LCD-A2001

Price >>
VGA - USB Dongle
  • To connect DB-15 connector to the computer’s video card
  • To connect USB connector to the computer’s USB port
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor

  • *Click for enlarged view
    LCD-A2002

    Price >>

     VGA - PS/2 Dongle
  • To connect DB-15 connector to the computer’s video card
  • To connect PS/2 keyboard connector to the computer’s
        keyboard port
  • To connect PS/2 mouse connector to the computer’s
        mouse port
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor

  • *Click for enlarged view
    LCD-A2003

    Price >>

    DVI - USB Dongle
  • To connect DVI-D connector to the computer’s video card
  • To connect USB connector to the computer’s USB port
  • Increased distance of up to132 ft.
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor
  • Reduces clutter of multiple cables between tiers
  • Provide simple plug-n-play installation to any USB / SUN
         / iMAC servers
  • Connect Cat5/5e/6 cabling from the switch to the
        keyboard, video & mouse ports of the target server

  • *Click for enlarged view
    LCD-A2004

    Price>>

    HDMI - USB Dongle
  • To connect Cat5 /Cat5e / Cat6 cabling from the switch to
        KVM (Keyboard,Video & Mouse)ports of the target server
  • Increased distance of up to 132 ft.
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor
  • Provide simple plug-n-play installation to any USB / SUN
         / iMAC servers
  • Reduces clutter of multiple cables between tiers

  • *Click for enlarged view
    LCD-A2005

    Price>>

    DisplayPort - USB Dongle
  • To connect Cat5 /Cat5e / Cat6 cabling from the switch to
        KVM (Keyboard,Video & Mouse)ports of the target server
  • Increased distance of up to 132 ft.
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor
  • Provide simple plug-n-play installation to any USB / SUN
         / iMAC servers
  • Reduces clutter of multiple cables between tiers

  • *Click for enlarged view
    LCD-A2006

    Price >>

    USB-C / USB Dongle
    LCD-A1019

    Learn More >>
    6-ft Combo Cascade cable

    *Click for enlarged view



    Ordering  Information

    Part Number  Description
     LCDK1046
     Price:$1013
    32 Port High Density Cat6 KVM Switch, 1 Local user & 1 Extended User (Remote User), 1U Rackmountable. Dongles are optional.
    Optional DC Input Power
    -DC12
    Price : $231
    12V DC power supply
    -DC24
    Price : $231
    24V DC power supply
    -DC48
    Price : $231
    48V DC power supply
    -DC110
    Price : $384
    110V DC power supply
    -DC125
    Price : $384
    125V DC power supply
    -DC250
    Price : $846
    250V DC power supply
    Optional Dongles
    LCD-A2001
    Price : $54
    VGA-USB Dongle
    LCD-A2002
    Price : $54
    VGA-PS/2 Dongle
    LCD-A2003
    Price : $81
    DVI-USB Dongle
    LCD-A2004
    Price : $81
    HDMI -USB Dongle
    LCD-A2005
    Price : $81
    DisplayPort -USB Dongle
    LCD-A2006
    Price : $89
    USB-C / USB Dongle
    Optional Cables
    LCD-A1019
    Price : $23
    6-ft Combo Cascade Cable
