RACK KVM SWITCH

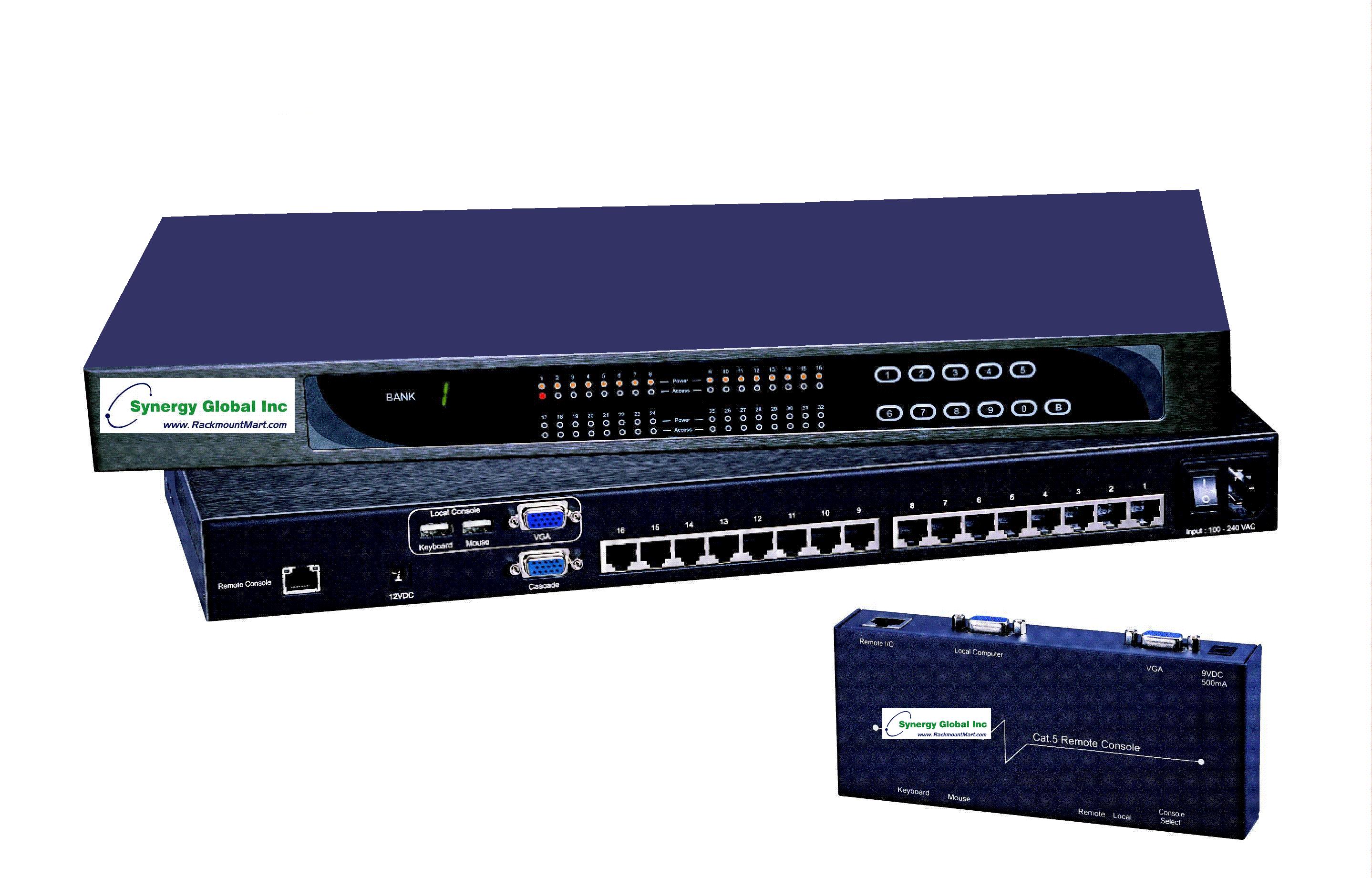

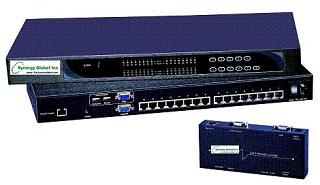

Model  LCDK1045



High Density 16-Port Cat6 KVM Switch, 1 Local User &1 Extended User (Remote User)
DisplayPort, HDMI, DVI and VGA Video Input
Optional 12V , 24V, 48V, 125V , 250V DC Power
1U Rackmountable or Standalone
TAA Compliant

  32-Port Model: LCDK1046



   Cat6 KVM Features & Benefits
  • 16 Port Cat6 KVM switch, supports DisplayPort, HDMI, DVI & VGA Video Input
  • Local console & KVM ports support resolution up to 1920x1080
  • Port switching via OSD, front button & keyboard hotkeys
  • Hot pluggable, no software or drivers required
  • Cascade levels up to 8 KVM switches
  • Mix PC, server, Blade Server , SUN & MAC with Multi-Platform switch capability
  • Standalone KVM or 1U Rack Mount
  • Multi lingual on screen display menu
  • TAA Compliant
    Switch Features & Options
  • 12V, 24V , 48V ,110V , 125V, 250V DC Power options
KVM Port

Number of ports

 16

Connector

 RJ-45

Connectivity

 DP / HDMI / DVI-D / VGA dongle via Cat5 / Cat6 cable to server up to 132 feet / 40 meter

Resolution

 16:9 - up tp 1920 x 1080
 4:3 - up to 1600 x1 200

Expansion

 Up to 256 servers by 8-level cascade

Local Console

Graphic connector

 1 x DB-15 VGA

Resolution

 16:9 - up tp 1920 x 1080
 4:3 - up to 1600 x1 200

Input device

 2 x USB type A for keyboard & mouse

Management

OSD

 English, France, German, Spanish, Italian,
 Russian, Simplified Chinese, Japanese

Hotkey combination

 Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win

Security

 Password enable & disable, up to 8 users
 profile for port access

PC Selection

 Front button, OSD menu & hotkey

Remote Console

Connector

 1 x DB 15-pin, VGA

Resolution

16:9 - ( 1920 x 1080 ) Max. 50 meters
16:10 - ( 1920 x 1200 ) Max. 50 meters
16:10 - ( 1440 x 900 ) Max. 100 meters
4:3 - ( 1600 x 1200 ) Max. 100 meters
4:3 - ( 1280 x 1024 ) Max. 150 meters

Input device

 2 x USB type A for keyboard & mouse

Remote I/O

 RJ45 via Cat5 / Cat5e / Cat6 cable up to 150m

Compensation

 Auto adjust for cable length

Power
Input  Auto-Sensing 100 to 240V AC , 50 / 60 Hz
Consumption  Max. 22 Watt
Option DC 250V , 125V , 110V , 48V, 24V or 12V DC power
Regulatory Approval
   UL, FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  20%~90%, non condensing(Operation)
 5%~90%, non condensing(Storage)
Shock  10G acceleration   (11ms duration)
Vibration  10~300Hz / 0.5G RMS randon vibration
Mechanical

Dimension

  17.4" x 6.7" x 1.73" (W x D X H)
  443mm x 171mm x 44mm

Weight  Approximately 6 lbs / 2.6 kg
    Connection



    KVM Cascade


 Download Product Sheet
 Download User Manual


Ordering  Information

Part Number  Description
LCDK1045
16-Port High Density Cat6 KVM Switch, 1 Local user & 1 Extended User (Remote User), 1U Rackmountable. Dongles are optional.
Optional DC Input Power
-DC12 Change to 12V DC power supply
-DC24 Change to 24V DC power supply
-DC48 Change to 48V DC power supply
-DC110
Change to 110V DC power supply
-DC125
Change to 125V DC power supply
-DC250
Change to 250V DC power supply
Optional Dongles
LCD-A2001
VGA-USB Dongle
LCD-A2002
VGA-PS/2 Dongle
LCD-A2003
DVI-USB Dongle
LCD-A2004
HDMI -USB Dongle
LCD-A2005
DisplayPort -USB Dongle
LCD-A2006
USB-C / USB Dongle
Optional Cables
LCD-A1019
6-ft Combo Cascade Cable
