     Home >>   Rackmount Keyboard  / KVM Switch / KVM Extender >>

Part#  LCDK1044

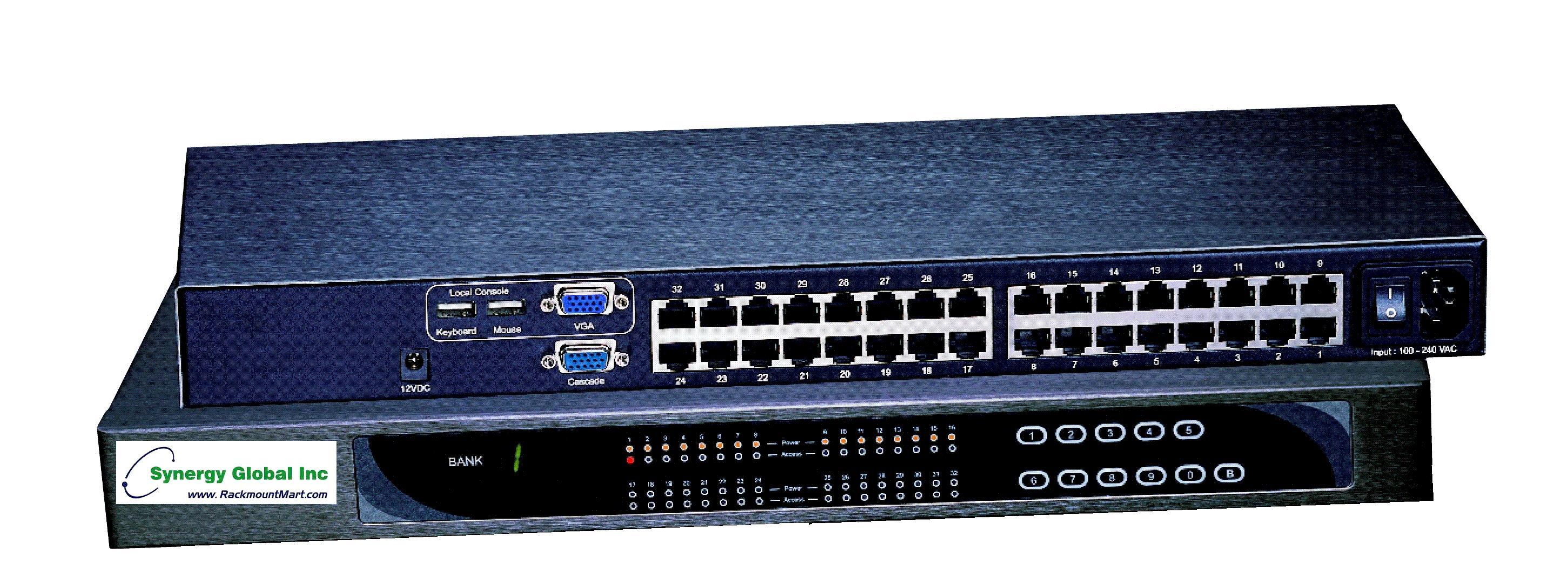

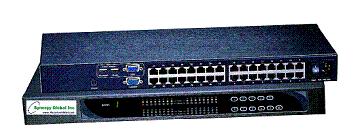

             High Density CAT6 KVM - 1U Rackmount Single Console CAT6 KVM Switch with 32 RJ-45 ports
                                                                          Optional PS2 / USB dongles

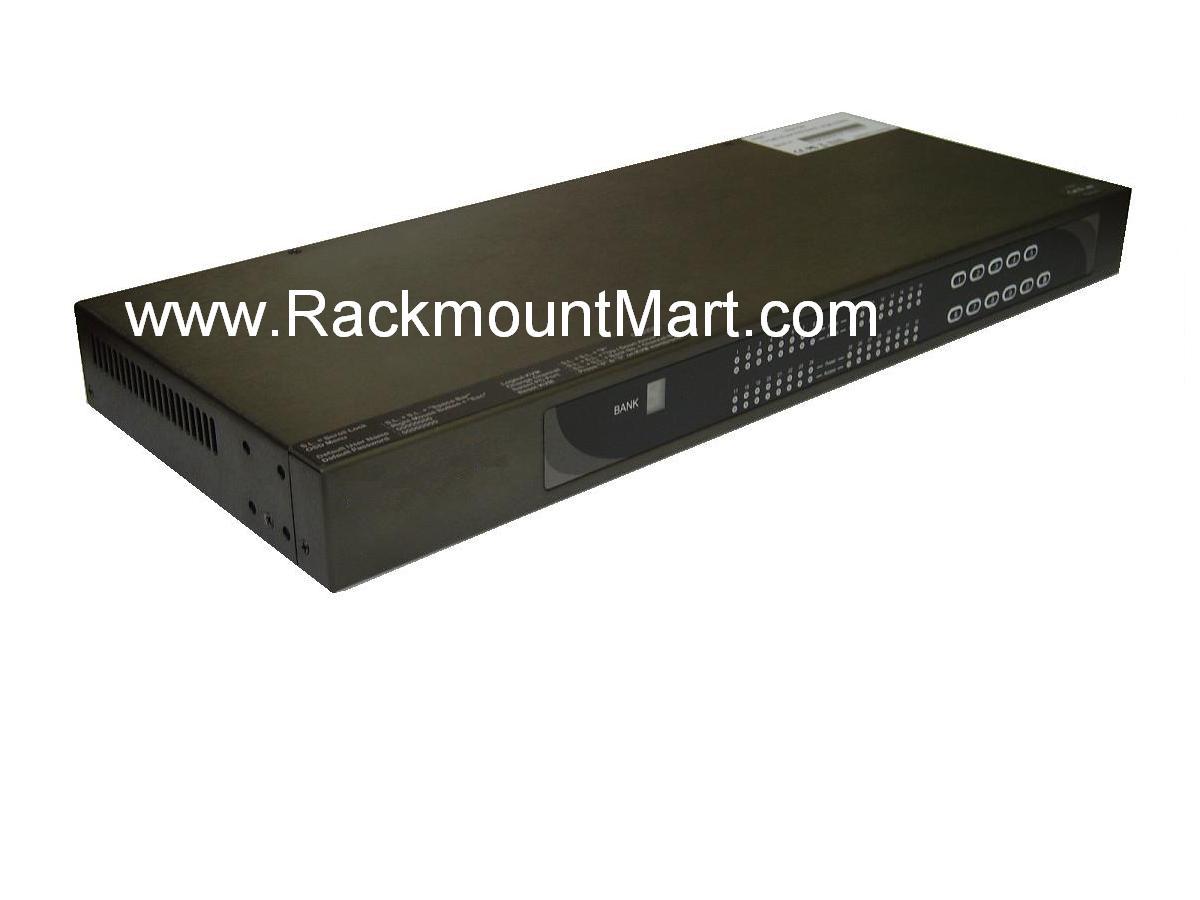

  Front View of LCDK2001/LCDK1043/LCDK1044

*click on above pictures for enlarged view

    Combo Cat6 KVM Benefits
  • Combo Cat6 KVM with 32 ports in 1U
  • Up to 40 meters between your servers & KVM ports
  • Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
  • Support DVI-USB, VGA-USB & VGA-PS/2 server interface
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
    Switch Features & Options
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover
  • 12V, 24V and 48V DC Power options

Number of ports





 DVI-D / VGA connector dongle up to 40 meters
(132 feet) via Cat6 / Cat5 cable


 Up to 256 servers by 8-level cascade

Local Console

Graphic connector

 1 x DB-15 VGA


 Up to 1600 x 1200

Input device

 2 x USB type A for keyboard & mouse



 English, France, German, Spanish, Italian,
 Russian, Simplified Chinese, Japanese

Hotkey combination

 Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win


 Password enable & disable, up to 8 users
 profile for port access

PC Selection

 Front button, OSD menu & hotkey


 Mix PCs, SUN and Mac G3 / G4 Mac / iMac

Support  Windows 7 / Vista / 2003 / XP, Linux, Unix
Input  100 or 240V AC at 50 or 60 Hz via IEC type cord
 OR AC / DC power adapter 12V@3.3A (optional)
Consumption  Max. 24 Watt, Standby 5 Watt
Option DC  12V / 24V / 48V DC input
Regulatory Approval
   cUL, FCC, CE
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  90%, non condensing
Shock  50G peak acceleration   (11ms, half-sine wave)
Vibration  58~100Hz / 0.98G (11ms / cycle)


 443 x 171 x 43.6 mm / 17.4 x 6.7 x 1.72 inch

Weight  Approximately 6.5 lbs / 3kg
    KVM port & Cat6 dongle connection

*click on above pictures for enlarged view
    KVM Cascade

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual


Part #    Description
  • To connect DB-15 connector to the computerís video card
  • To connect USB connector to the computerís USB port
  • Details
  • To connect DB-15 connector to the computerís video card
  • To connect PS/2 keyboard connector to the computerís keyboard port
  • To connect PS/2 mouse connector to the computerís mouse port
  • Details
  • To connect DVI-D connector to the computerís video card
  • To connect USB connector to the computerís USB port
  • Details
  • 6ft Combo KVM cascade cable
  • To cascade multiple KVM
  • Details

    Optional Peripheral & Accessory
    - Cable and Dongle - DC Power Input ( 12V / 24V / 48V )
    Customer who ordered this product may also order these :
    - Rack Keyboard - Wall Rack Mount
    - KVM Switch - Rack Shelves
    - PDU (Power Distribution Unit ) - Rack Drawer
    - Server Rack Cabinet - Power Strips
    - 4 Post Rack - Rack Cooling Fan


    Ordering information

    Part Number  Description
     Price: $
     1U Rackmount  Local console High Density  CAT6 KVM  RJ-45 32 port Switch with Combo  PS/2 & USB interface, Optional PS2 / USB Dongles.
    Optional DC Input Power
    Price : $171
    Add 12V DC power supply
    Price : $171
    Add 24V DC power supply
    Price : $171
    Add 48V DC power supply
    Price : $357
    Add 110V DC power supply
    Price : $357
    Add 125V DC power supply
