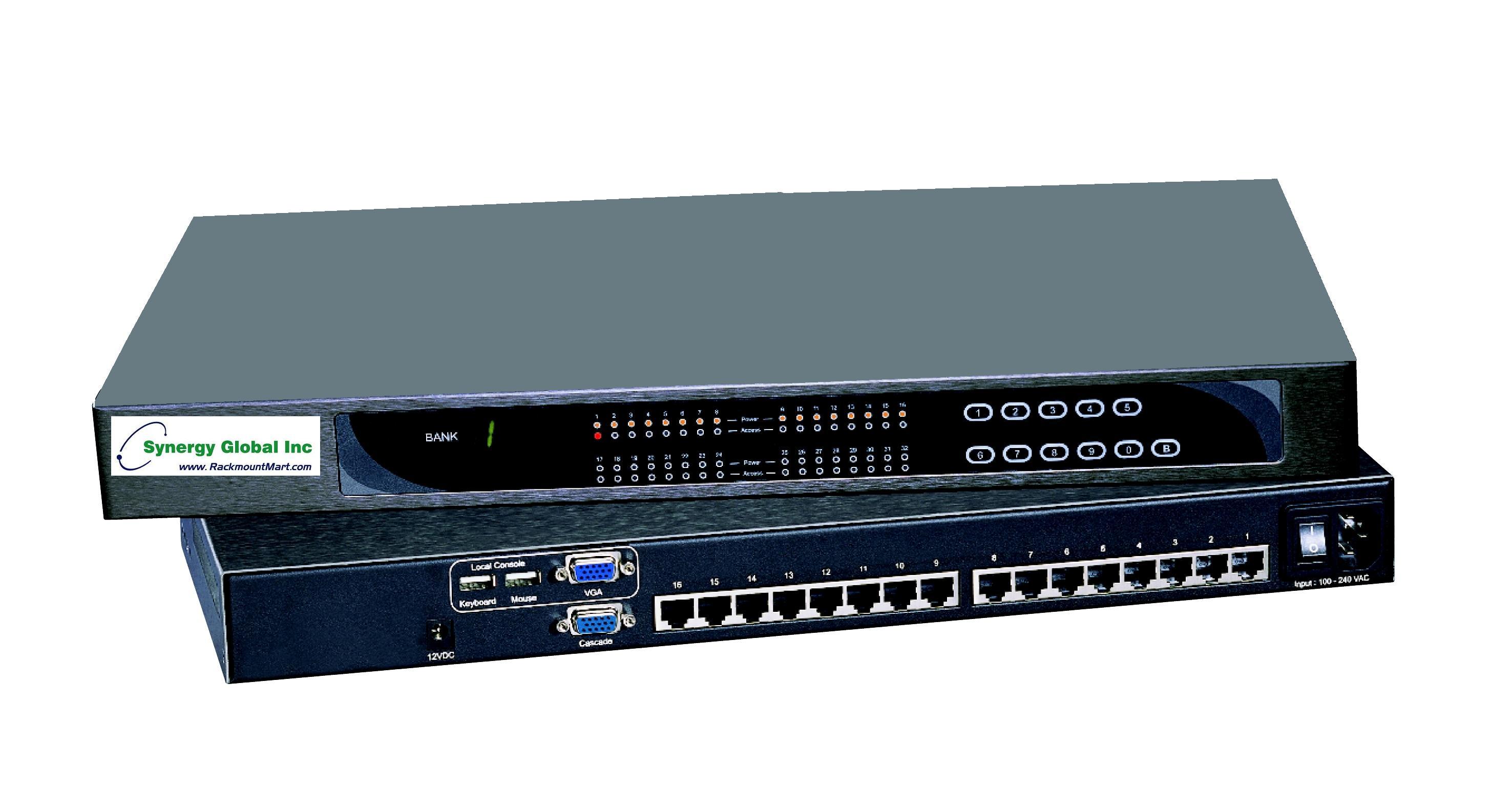

RACK MOUNT CAT6 KVM SWITCH
Model LCDK1043
High Density 16-Port Cat6 KVM Switch, 1 Local User
DisplayPort, HDMI, DVI and VGA Video Input, Optional 12V , 24V, 48V, 125V , 250V DC Power 1U Rackmountable or Standalone TAA Compliant
32-Port Model : LCDK1044
|
Cat6 KVM Features & Benefits
- Cat6 KVM with 16 ports support DisplayPort, HDMI, DVI & VGA Video Input
- Local console & KVM ports support resolution up to 1920x1080
- Port switching via OSD, front button & keyboard hotkeys
- Hot pluggable, no software or drivers required
- Cascade levels up to 8 KVM switches
- Mix PC, server, Blade Server , SUN & MAC with Multi-Platform switch capability
- Standalone KVM or 1U Rack Mount
- Multi lingual on screen display menu
- TAA Compliant
Switch Features & Options
- 12V, 24V , 48V ,110V , 125V, 250V DC Power options
|
KVM Port |
Number of ports
|
16 |
Connector |
RJ-45 |
Connectivity |
DP / HDMI / DVI-D / VGA dongle via Cat5 / Cat6 cable to server up to 132 feet / 40 meters |
Resolution |
16:9 - up tp 1920 x 1080
4:3 - up to 1600 x1 200 |
Expansion |
Up to 256 servers by 8-level cascade
|
Local Console |
Graphic connector |
1 x DB-15 VGA |
Resolution |
16:9 - up tp 1920 x 1080
4:3 - up to 1600 x1 200 |
Input device |
2 x USB type A for keyboard & mouse
|
Management |
OSD
|
English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese |
Hotkey combination |
Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win |
Security |
Password enable & disable, up to 8 users profile for port access
|
PC Selection |
Front button, OSD menu & hotkey
|
Power |
Input |
Auto-Sensing 100 to 240V AC , 50 / 60 Hz |
Consumption |
Max. 22 Watt |
Option DC |
250V , 125V , 110V , 48V, 24V or 12V DC power |
Regulatory Approval |
|
UL, FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001 |
Environmental |
Temperature |
0 to 55
Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage) |
Relative Humidity |
20%~90%, non
condensing(Operation)
5%~90%, non
condensing(Storage) |
Shock |
10G acceleration
(11ms duration) |
Vibration |
10~300Hz / 0.5G RMS randon vibration |
Mechanical |
Dimension
|
17.4" x 6.7" x 1.73" (W x D X H)
443mm x 171mm x 44mm |
Weight |
Approximately
6 lbs / 2.6 kg |
|
Connection |
|
|
KVM Cascade
|
|
|
|
Ordering
Information
Part
Number |
Description |
LCDK1043
|
16-Port High Density Cat6 KVM Switch, 1 x Local User,1U Rackmountable. No Dongles. |
Optional
DC Input Power |
-DC12 |
Change to 12V DC power supply |
-DC24 |
Change to 24V DC power supply |
-DC48 |
Change to 48V DC power supply |
-DC110
|
Change to 110V DC power supply |
-DC125
|
Change to 125V DC power supply |
-DC250
|
Change to 250V DC power supply |
Optional Dongles |
LCD-A2001
|
VGA-USB Dongle |
LCD-A2002
|
VGA-PS/2 Dongle |
LCD-A2003
|
DVI-USB Dongle |
LCD-A2004
|
HDMI -USB Dongle |
LCD-A2005
|
DisplayPort -USB Dongle |
LCD-A2006
|
USB-C / USB Dongle |
Optional Cables |
LCD-A1019
|
6-ft Combo Cascade Cable |
|
|
