RACK MOUNT IP KVM SWITCH
Model LCDK1038
8-Port VGA Combo KVM Switch ,
1 Local User &
1 Network IP User
Standalone or 1U Rack Mountable
TAA Compliant
|
Model with 16 port KVM: LCDK1039
|
KVM Benefits
- VGA Combo DB-15 KVM with 8 ports
- IP remote access across the world wide web / KVM Over IP
- Cascade switches up to 8 levels & Mix switches between Cat6 & VGA Combo KVM
- Standalone KVM or 1U Rack Mountable
- Max. Resolution: 1920 x 1200
- Support native SUN Resolution 1152x900
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Cost efficient remote server management between user & equipment rooms within the building
- TAA Compliant
Switch Features & Options
- Mix legacy PS/2 servers with newer USB and SUN solutions
- Greater distances between your switch and servers allow enhanced data center rack layouts
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
- 12V, 24V, 48V, 110V, 125V DC Power options
|
|
KVM Port |
|
Number of ports
|
8 |
|
Connector |
DB-15 combo connector |
Connectivity |
6-ft VGA + USB Keyboard / Mouse 2-in-1 KVM cable ( Part no.: LCD-A1014), Optional 10 & 15 feet |
| Resolution |
16:10 - max. 1920 x 1200 /
4:3 - max. 1600 x 1200 |
|
Expansion |
Up to 128 servers by 8-level cascade
|
|
Local Console |
|
Graphic connector |
1 x DB-15 VGA |
| Resolution |
16:10 - max. 1920 x 1200 /
4:3 - max. 1600 x 1200 |
|
Input device |
2 x USB type A for keyboard & mouse
|
|
IP Remote Console |
|
Connector |
RJ45 Ethernet |
|
User management |
15-user login, 1 x active user |
|
Network protocol |
DHCP / BOOTP / DNS
|
|
Security |
SSL v3, RSA, AES, HTTP / HTTPs, CSR
|
|
Resolution |
4:3 - max. 1600 x 1200 |
|
Browser |
IE, Firefox, Safari, Chrome, Opera
|
|
Management |
|
OSD
|
English, France, German, Spanish, Italian,
Russian, Simplified Chinese, Japanese |
|
Hotkey combination |
Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win |
|
Security |
Password enable & disable, up to 8 users
profile for port access
|
|
PC Selection |
Front button, OSD menu & hotkey
|
|
Compatibility |
|
Multi-platform |
Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
|
Support |
Windows 7 / Vista / 2003 / XP, Linux, Unix |
|
Power |
|
Input |
100 or 240V AC at 50 / 60 Hz via IEC type cord |
|
Consumption |
Max. 19 Watt |
|
Option DC |
250V , 125V , 110V , 48V, 24V or 12V DC power |
|
Regulatory Approval |
| |
UL, FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001 |
|
Environmental |
| Temperature |
0 to 55
Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage) |
|
Relative Humidity |
5~90%, non
condensing |
|
Shock |
10G peak
acceleration
(11ms duration) |
| Vibration |
10~300Hz, 10.5G RMS random vibration |
|
Mechanical |
|
Dimension
|
17.4" x 6.7" x 1.73" (w X d X h ) /
443mm x 171mm x 44 mm |
|
Weight |
Approximately
6.5 lbs / 3kg |
|
|
KVM port connection |
 |
|
|

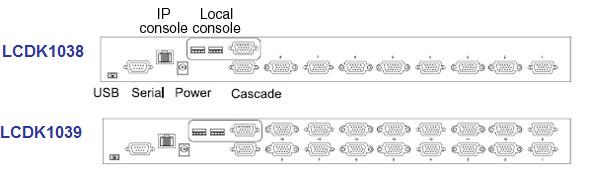

IP & Local console connection |
 |
|
|
KVM Cascade
|
 |
|
|
ORDERING INFORMATION
| Part
Number |
Description |
LCDK1038
|
8-Port VGA Combo USB PS2 KVM
Switch, 1 Local user & 1 Network IP User, No cable |
| Optional
DC Input Power |
-DC12
|
12V DC power supply |
-DC24
|
24V DC power supply |
-DC48
|
48V DC power supply |
-DC110
|
110V DC power supply |
-DC125
|
125V DC power supply |
-DC250
|
250V DC power supply |
|
Optional Cables |
LCD-A1019
|
6-ft Combo Cascade Cable |
LCD-A3001
|
6-ft Combo PS/2 USB KVM Cable |
LCD-A3002
|
10-ft Combo PS/2 USB KVM Cable |
LCD-A3003
|
15-ft Combo PS/2 USB KVM Cable |
LCD-A1014
|
6-ft USB 3-in-1 KVM Cable |
LCD-A1015
|
10-ft USB 3-in-1 KVM Cable |
LCD-A1016
|
15-ft USB 3-in-1 KVM Cable |
LCD-A1005
|
10-ft PS/2 3-in-1 KVM Cable |
LCD-A1006
|
15-ft PS/2 3-in-1 KVM Cable |
LCD-A1007
|
33-ft PS/2 3-in-1 KVM Cable |
|
|
