     Home >>   Rackmount Keyboard Drawer / KVM Switch>>

RACKMOUNT KEYBOARD DRAWER / KVM SWITCH   :
Model LCDK1024


8-Port VGA Combo KVM Switch, 1 Local User & 1 Extended User (Remote User)
Standalone or 1U Rack Mountable
TAA & NDAA Compliant

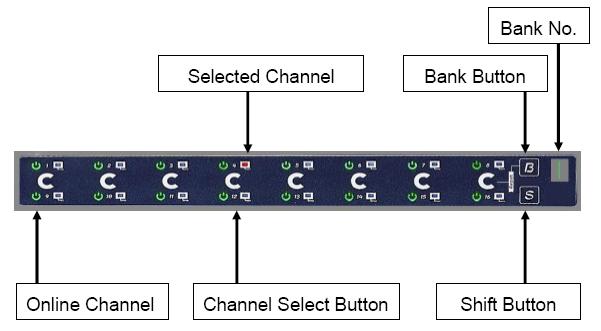

    Front View of a 16-Port Model LCDK1025

    KVM Benefits
  • VGA Combo DB-15 KVM Switch with 8 ports
  • Remote access up to 492 ft / 150 meters
  • Standalone KVM or 1U Rack Mountable
  • Max. Resolution: 1920x1200
  • Support native SUN Resolution 1152x900
  • No Software required - Easy PC selection via on screen display manual, push buttons and hotkeys
  • Cascade switches up to 8 levels & Mix switches between Cat6 & VGA Combo KVM
  • Built-in microprocessor emulation for each port boots up process.
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Cost efficient remote server management between user & equipment rooms within the building
  • Hot pluggable, no software or divers required
  • TAA Compliant
    Switch Features & Options
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • 12V, 24V, 48V, 110V, 125V DC Power options
KVM Port

Number of ports

 8

Connector

 DB-15 combo connector

Connectivity

6-ft VGA + USB Keyboard / Mouse 2-in-1 KVM cable ( Part no.: LCD-A1014), Optional 10 & 15 feet
Resolution 16:10 - max. 1920 x 1200 /
  4:3 - max. 1600 x 1200

Expansion

 Up to 128 servers by 8-level cascade

Local Console

Graphic connector

 1 x DB-15 VGA

Resolution 16:10 - max. 1920 x 1200 /
  4:3 - max. 1600 x 1200

Input device

 2 x USB type A for keyboard & mouse

Remote Console
Connector

 1 x DB 15-pin, VGA

Resolution

 16:9 - ( 1920 x 1080 ) Max. 50 meters
 16:10 - ( 1920 x 1200 ) Max. 50 meters
 16:10 - ( 1440 x 900 ) Max. 100 meters
  4:3 - ( 1600 x 1200 ) Max. 100 meters
  4:3 - ( 1280 x 1024 ) Max. 150 meters

Input device

 2 x USB type A for keyboard & mouse

Remote I/O

 RJ45 via Cat5 / Cat5e / Cat6 cable up to 150m

Compensation

 Auto adjust for cable length

Management

OSD

 English, France, German, Spanish, Italian,
 Russian, Simplified Chinese, Japanese

Hotkey combination

 Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win

Security

 Password enable & disable, up to 8 users
 profile for port access

PC Selection

 Front button, OSD menu & hotkey

Compatibility
Multi-platform

 Mix PCs, SUN and Mac G3 / G4 Mac / iMac

Support  Windows 7 / Vista / 2003 / XP, Linux, Unix
Power
Input  100 or 240V AC at 50 / 60 Hz via IEC type cord
Consumption  Max. 19 Watt
Option DC 250V , 125V , 110V , 48V, 24V or 12V DC power
Regulatory Approval
    UL, FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration   (11ms duration)
Vibration  10~300Hz, 10.5G RMS random vibration
Mechanical

Dimension

17.4" x 6.7" x 1.73" (w X d X h ) /
443mm x 171mm x 44 mm

Weight  Approximately 6 lbs / 2.7kg

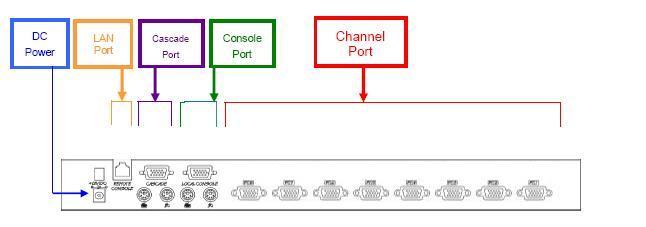

    KVM port connection

*click on above pictures for enlarged view

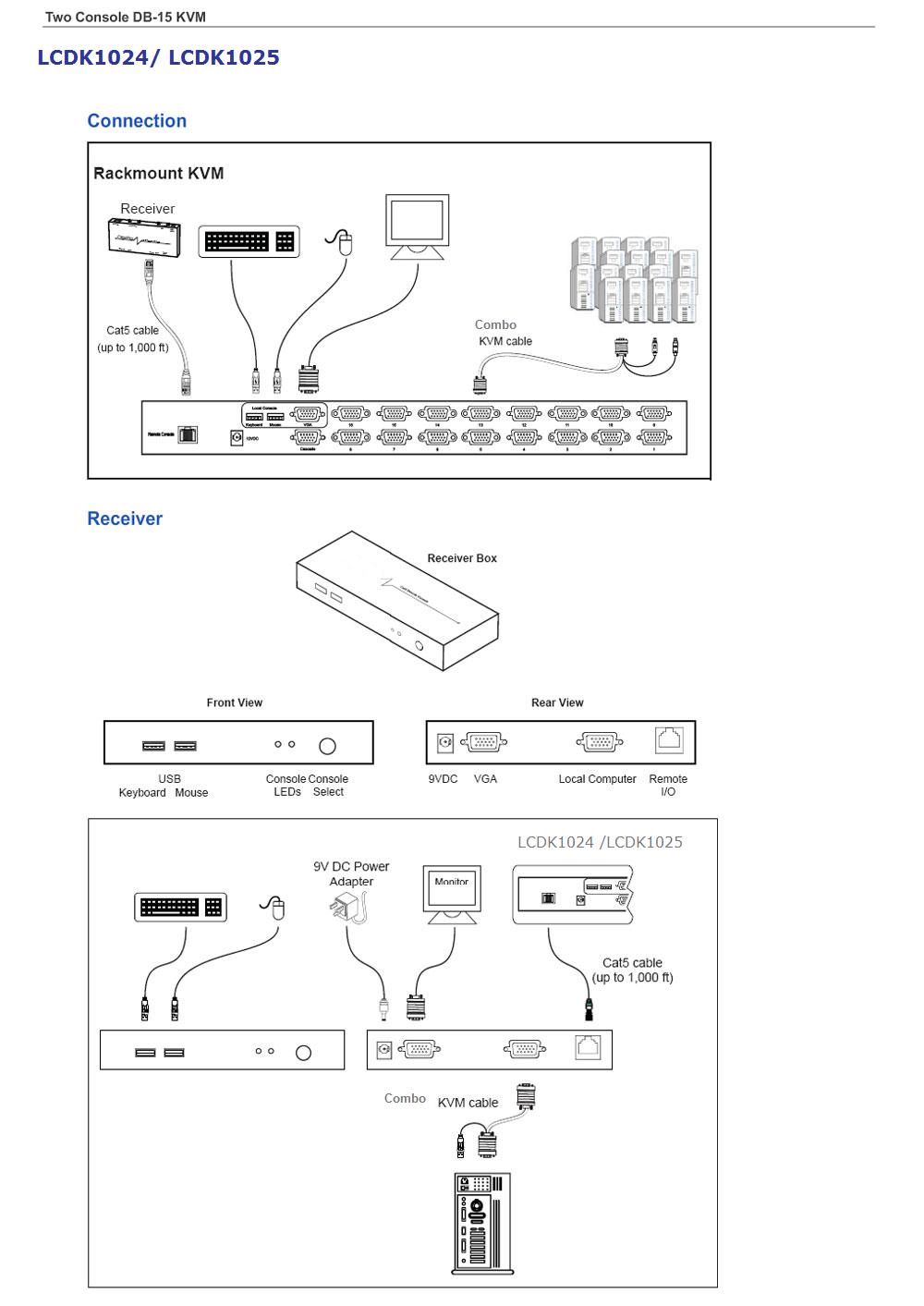

    Remote & Local console connection

*click on above pictures for enlarged view

    KVM Cascade

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual


Ordering Information

Part Number  Description
LCDK1024
1U Rackmount 8-Port Combo USB PS2 KVM Switch with 1 6-ft USB cable( LCD-A1014), 1 Local User + 1 Extended Remote User
Optional Cables
LCD-A1019
6-ft Combo Cascade Cable
LCD-A3001
6-ft Combo PS/2 USB KVM Cable
LCD-A3002
10-ft Combo PS/2 USB KVM Cable
LCD-A3003
15-ft Combo PS/2 USB KVM Cable
LCD-A1014
6-ft USB 3-in-1 KVM Cable
LCD-A1015
10-ft USB 3-in-1 KVM Cable
LCD-A1016
15-ft USB 3-in-1 KVM Cable
