     Home >>   Rackmount Keyboard Drawer / KVM Switch >>

VGA COMBO KVM SWITCH ( USB PS2 ) :
Model  LCDK1020

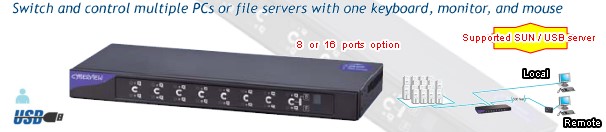

8 Port VGA Combo KVM Switch ( VGA USB PS2 KVM Switch )
with 8 x KVM cables , Optional 12V ~ 250V DC Power
1U Rackmountable or Standalone
TAA Compliant

   16-Port Model : LCDK1020

    Benefits
  • VGA Combo KVM Switch with 8 ports
  • Cascade switches up to 8 levels & Mix switches between Cat6 & VGA KVM
  • Standalone KVM or 1U Rack Mountable
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Max. Resolution: 1920x1200
  • Support native SUN Resolution 1152x900
  • Hot pluggable, no software or drivers required
  • Easy & quick installation
  • TAA Compliant
    Switch Features & Options
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • 12V, 24V, 48V, 110V, 125V DC Power options
KVM Port

Number of ports

 8

Connector

 DB-15 combo connector

Connectivity

6-ft VGA + USB Keyboard / Mouse 2-in-1 KVM cable ( Part no.: LCD-A1014), Optional 10 & 15 feet
Resolution 16:10 - max. 1920 x 1200 /
  4:3 - max. 1600 x 1200

Expansion

 Up to 128 servers by 8-level cascade

Local Console

Graphic connector

 1 x DB-15 VGA

Resolution

 16:10 - max. 1920 x 1200 /
  4:3 - max. 1600 x 1200

Input device

 2 x USB type A for keyboard & mouse

Management

OSD

 English, France, German, Spanish, Italian,
 Russian, Simplified Chinese, Japanese

Hotkey combination

 Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win

Security

 Password enable & disable, up to 8 users
 profile for port access

PC Selection

 Front button, OSD menu & hotkey

Compatibility
Multi-platform

 Mix PCs, SUN and Mac G3 / G4 Mac / iMac

Support  Windows 7 / Vista / 2003 / XP, Linux, Unix
Power
Input  100 or 240V AC at 50 / 60 Hz via IEC type cord
Consumption  Max. 19 Watt
Option DC 250V , 125V , 110V , 48V, 24V or 12V DC power
Regulatory Approval
   UL, FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration   (11ms duration)
Vibration  10~300Hz, 10.5G RMS random vibration
Mechanical

Dimension

17.4" x 6.7" x 1.73" (w X d X h )/
443mm x 171mm x 44 mm

Weight  Approximately 6 lbs / 2.7kg

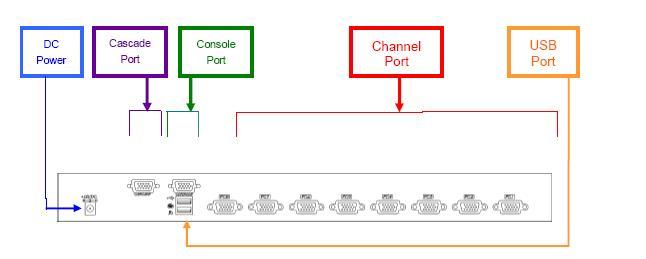

    KVM port connection

*click on above pictures for enlarged view

    KVM Cascade

*click for enlarged view

 Download Product Sheet
 Download User Manual



Gallery



Ordering  Information

Part Number  Description
LCDK1020
8-Port VGA Combo USB PS2 KVM Switch. No cable.
Optional DC Input Power
-DC12 Change to 12V DC power supply
-DC24 Change to 24V DC power supply
-DC48 Change to 48V DC power supply
-DC110
Change to 110V DC power supply
-DC125
Change to125V DC power supply
-DC250
Change to 250V DC power supply
Optional Cables
LCD-A3001
6-ft Combo PS/2 USB KVM Cable
LCD-A3002
10-ft Combo PS/2 USB KVM Cable
LCD-A3003
15-ft Combo PS/2 USB KVM Cable
LCD-A1014
6-ft USB 3-in-1 KVM Cable
LCD-A1015
10-ft USB 3-in-1 KVM Cable
LCD-A1016
15-ft USB 3-in-1 KVM Cable
LCD-A1005
10-ft PS/2 3-in-1 KVM Cable
LCD-A1006
15-ft PS/2 3-in-1 KVM Cable
LCD-A1007
33-ft PS/2 3-in-1 KVM Cable
LCD-A1019
6-ft Cascade Cable
