     Home >>   Rackmount Keyboard Drawer / KVM Switch / KVM Extender >>

RACK MOUNTING KEYBOARD DRAWER
Part #   LCDK1001 ( New Version )

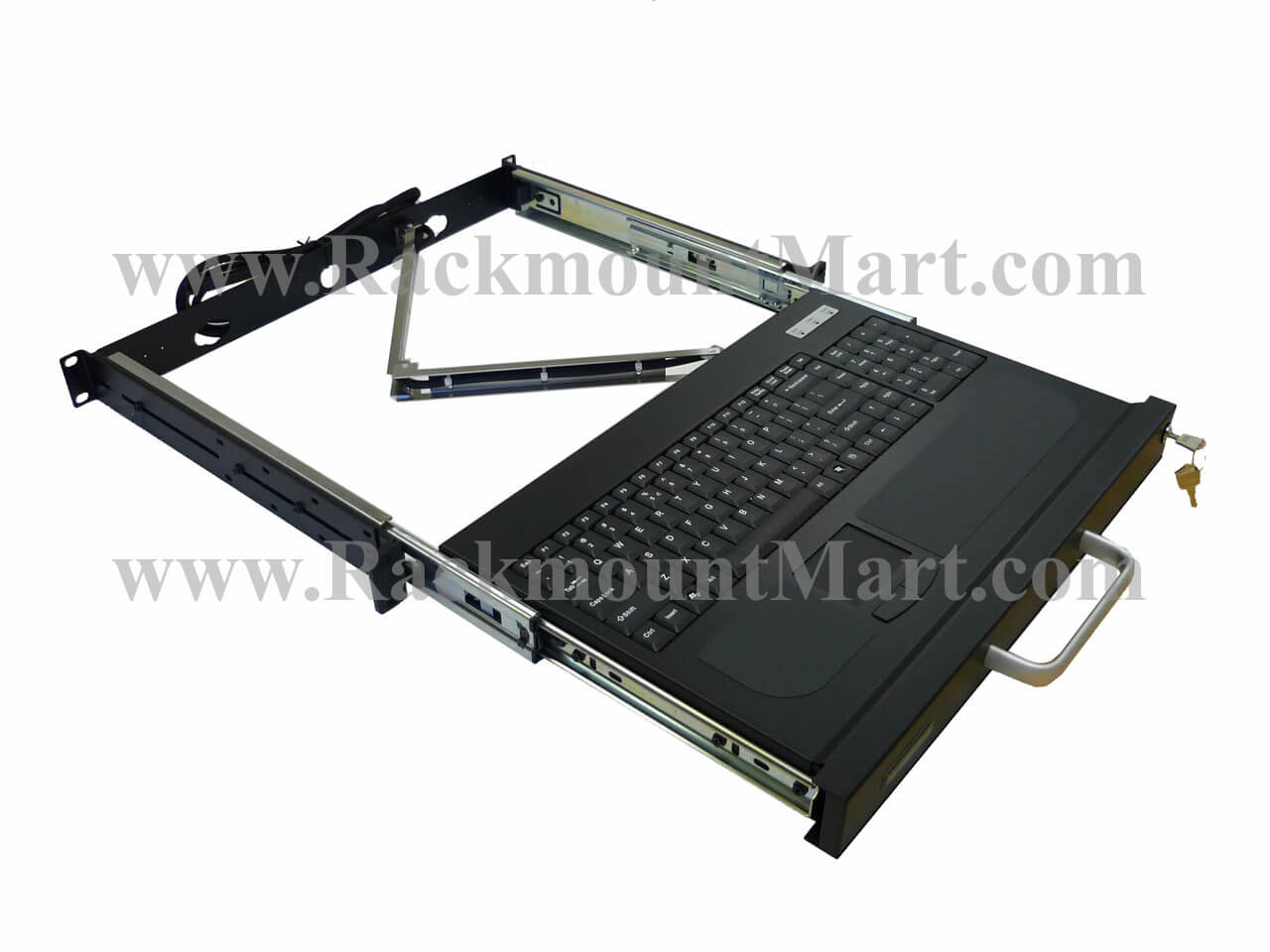

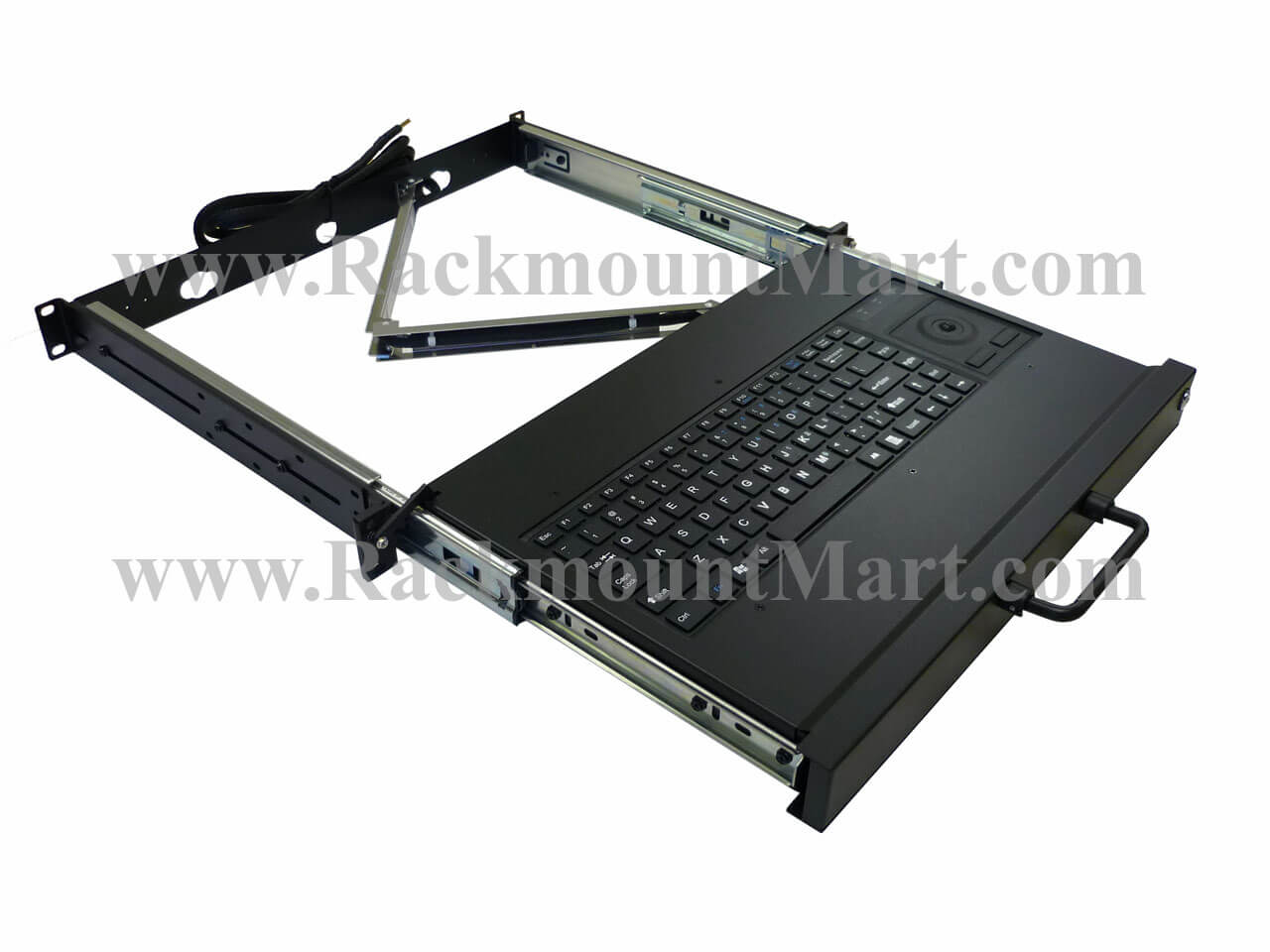

Xymphony 1U Short Depth Rack Mounting Keyboard Drawer with Trackball or Touchpad
Combo USB PS2 Connector
Optional SUN Keyboard or MAC Keyboard
TAA Compliant

              Space saving : only 15.7"(400mm) deep 1U Rackmount Keyboard
              Also known as: rackmount keyboard, rack mount keyboard, rackmount keyboard drawer,
              rackmount keyboard mouse drawers, rack mount USB keyboard , rack keyboard, rack keyboard drawer

    Drawer Features & Benefits
  • Short depth design of 400mm ( 15.7" ) for model LCDK1001-n/-b

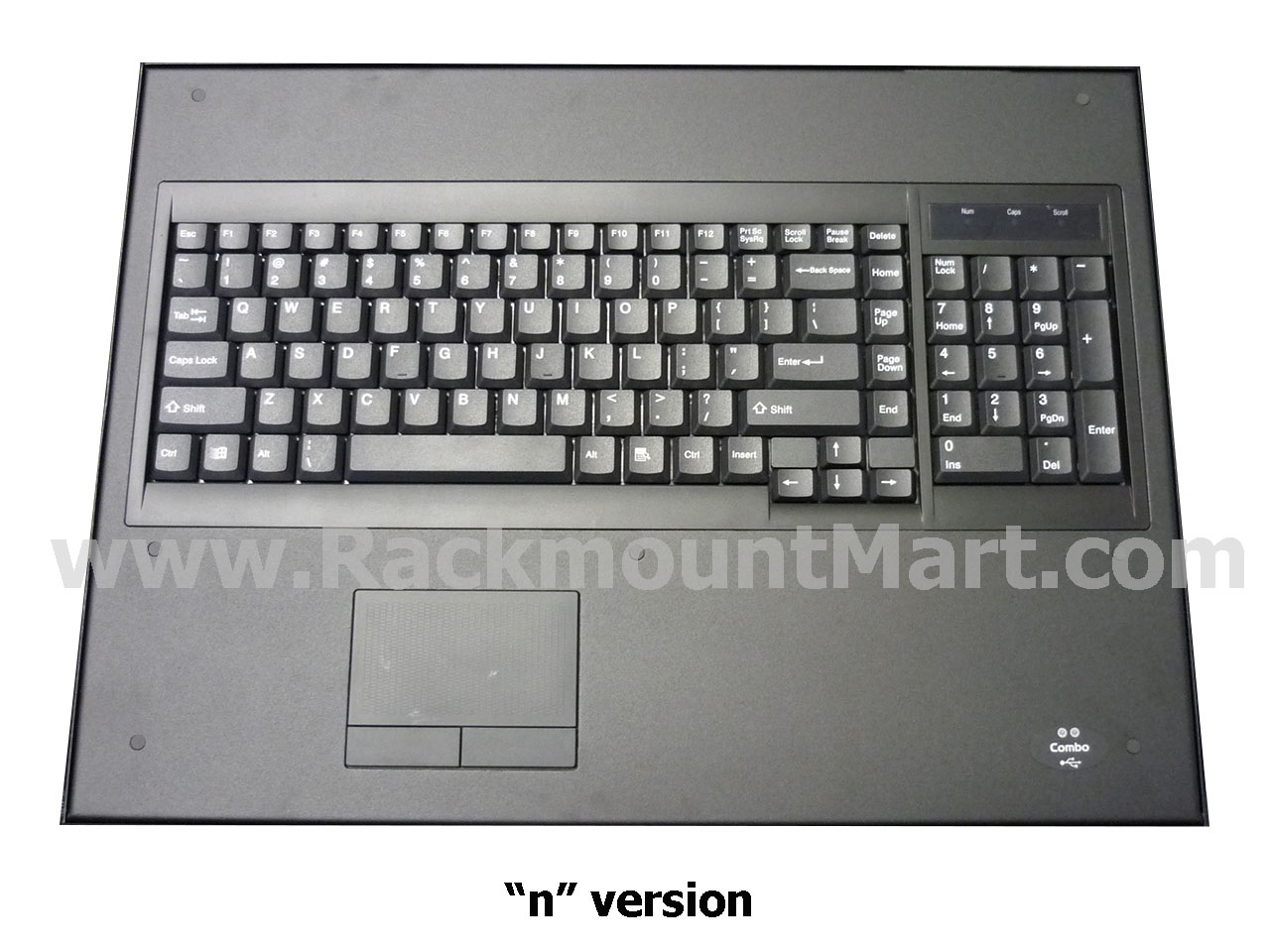

  • 104-key keyboard with either trackball (b) or touchpad (n)
  • Light weight & low shipping cost
  • Lockable drawer with key to secure keyboard & mouse access
  • Solid handle
  • Combo interface either PS/2 or USB for keyboard drawer
                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs etc

Keyboard & Pointing Device

Model n / b

Standard Windows Keyboard  with Numeric Keypad & Touchpad / Trackball

Model Mn / Mb
MAC style

Optional MAC Keyboard with Hot-Keys & Touchpad / Trackball Mouse

Model Sn / Sb
SUN style

Optional Sun Keyboard with Hot-Keys & Touchpad / Trackball Mouse

Rear I/O Connector



 Console port     :  HD15 female
 DC power input :  Plug-round type


Regulatory Approval
    FCC, CE , Reach , RoHS2, TAA Compliant
Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 65 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration   (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Dimension
LCDK1016-n
LCDK1016-b

442 x 400 x 44 mm /
17.4 x 15.7 x 1.73 inch
   (W x D x H)

Weight
LCDK1016-n
LCDK1016-b
 Approximately 18.9 lbs / 8.6kg

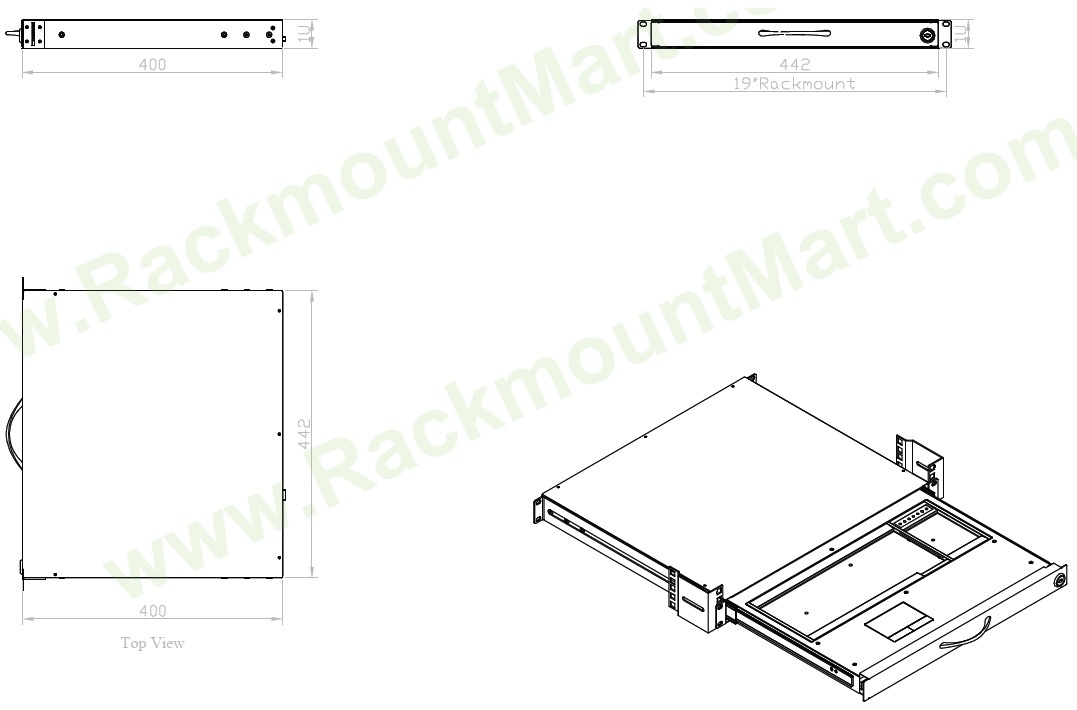

    Dimension


LCDK1001-n / LCDK1001-b


*Click for enlarged view



 Product Sheet

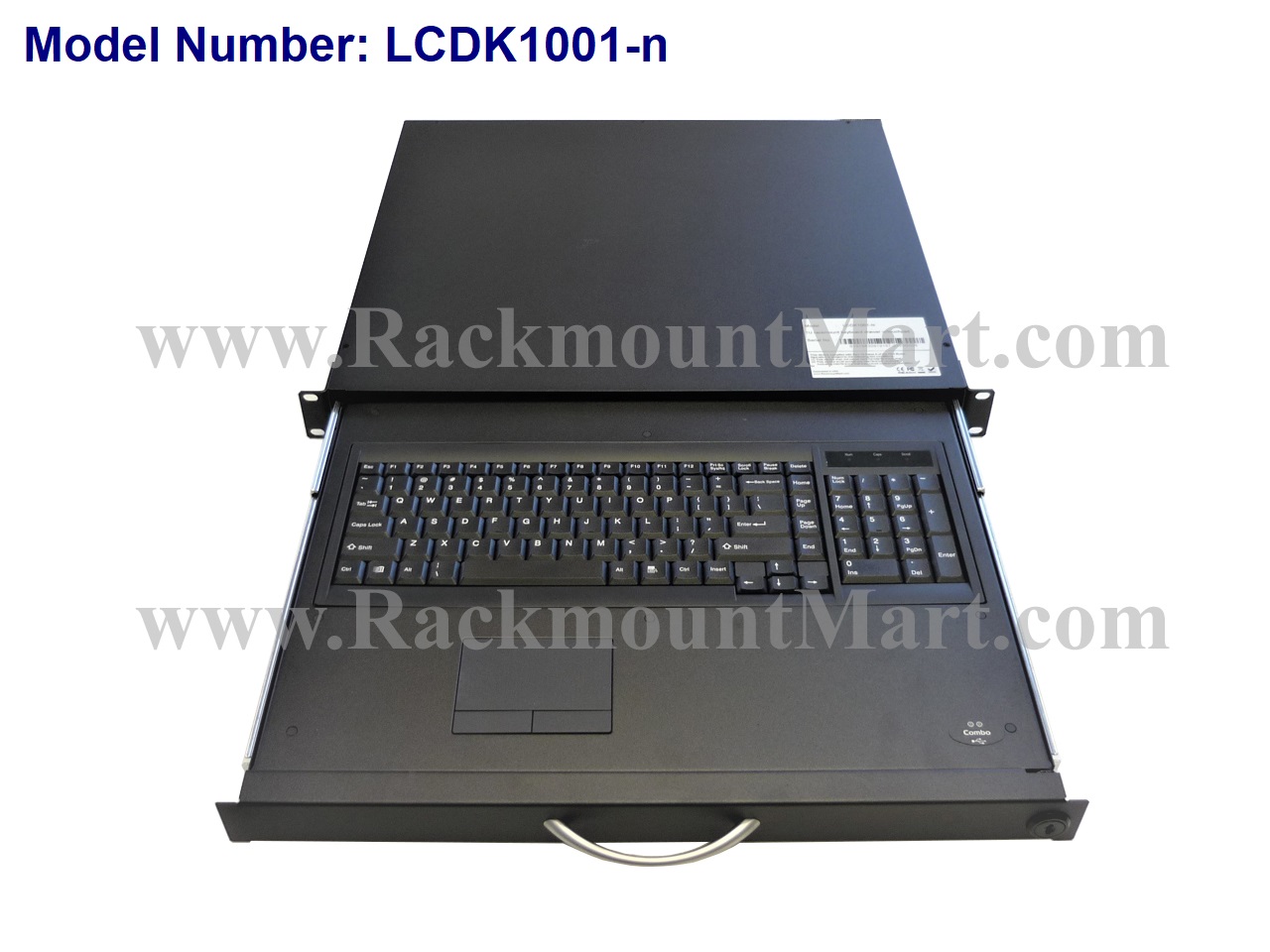

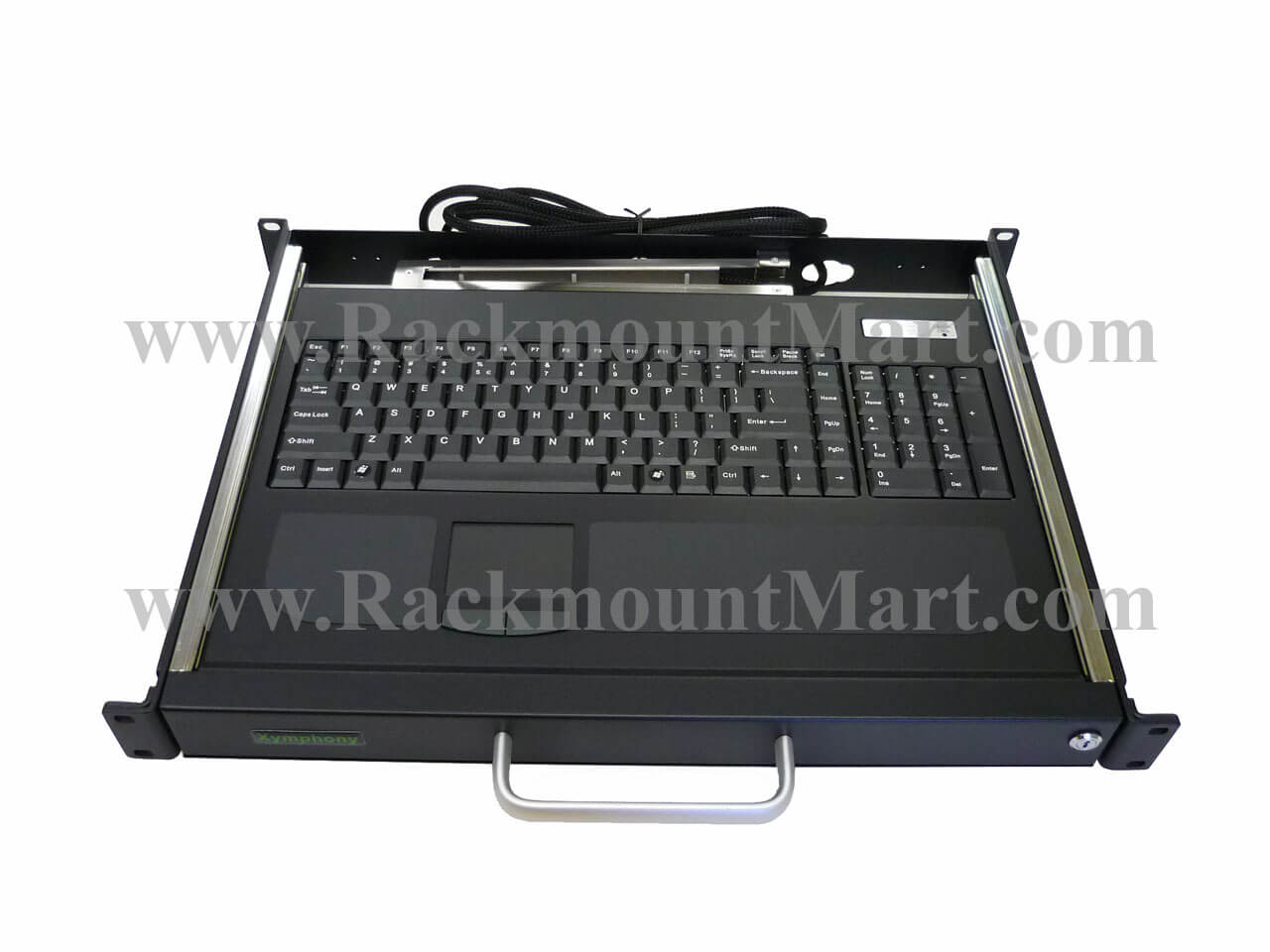

LCDK1001-n
Dimension : 442 x 400 x 44 mm

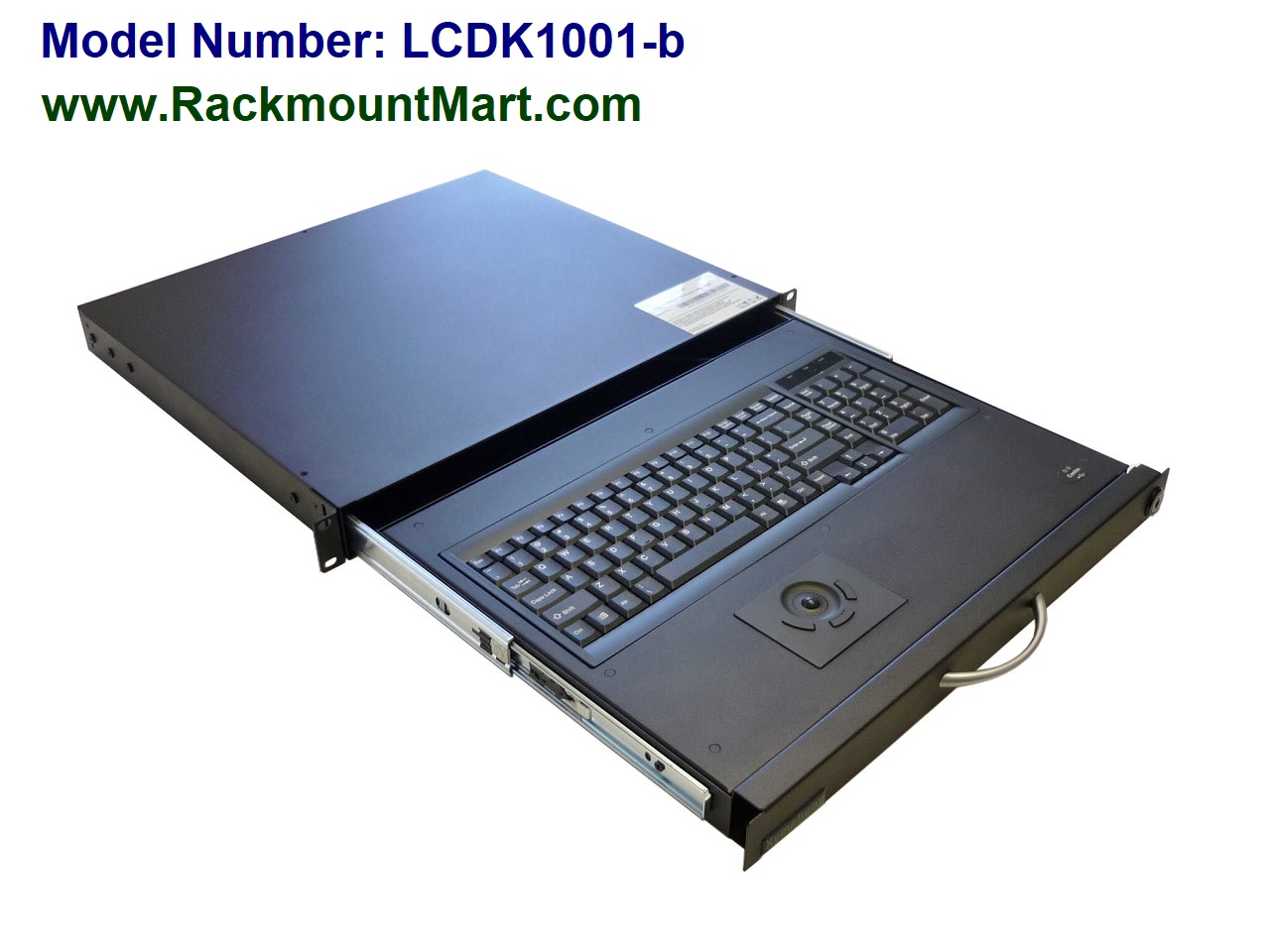

LCDK1001-b
Dimension : 442 x 400 x 44 mm

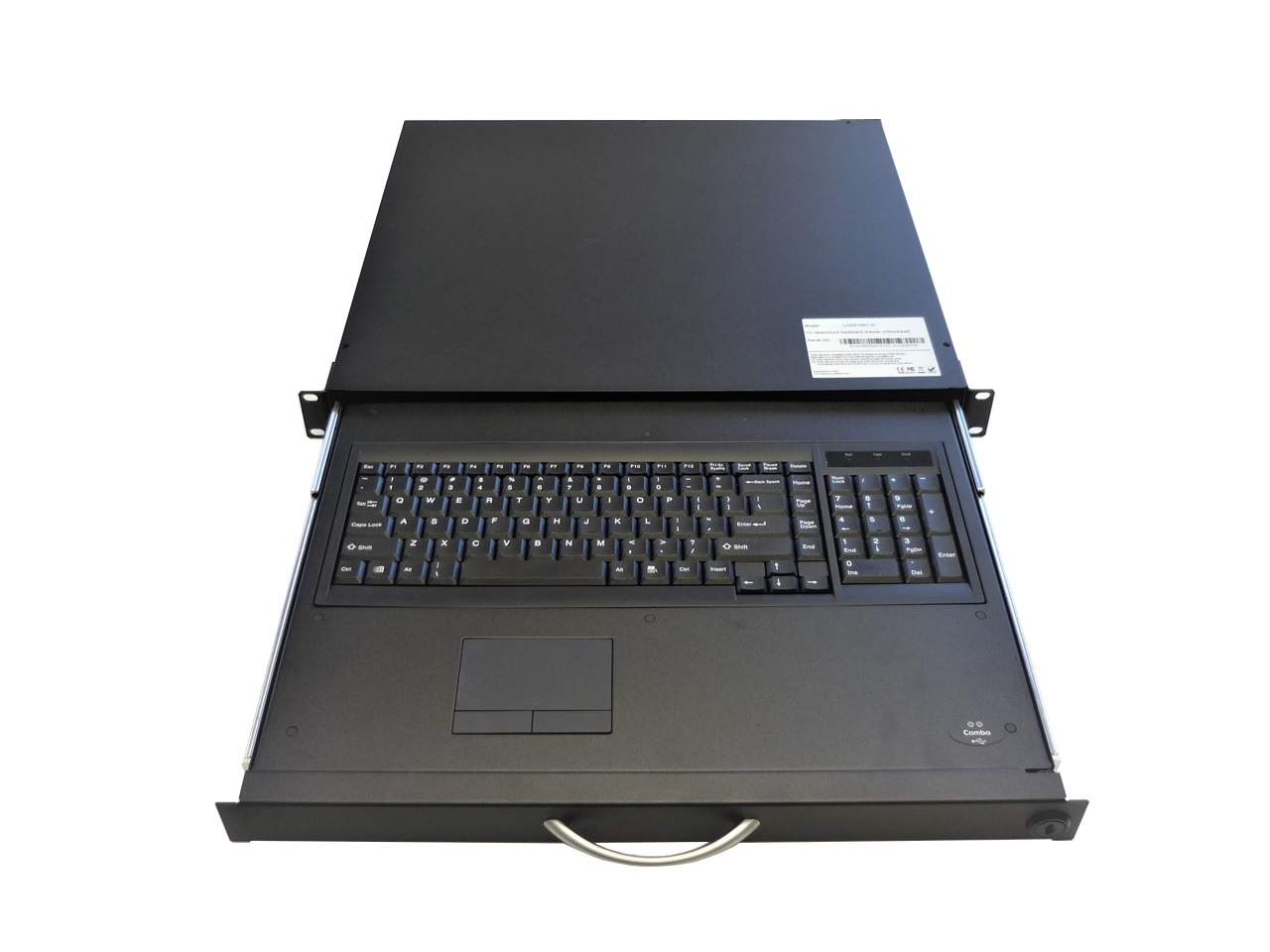

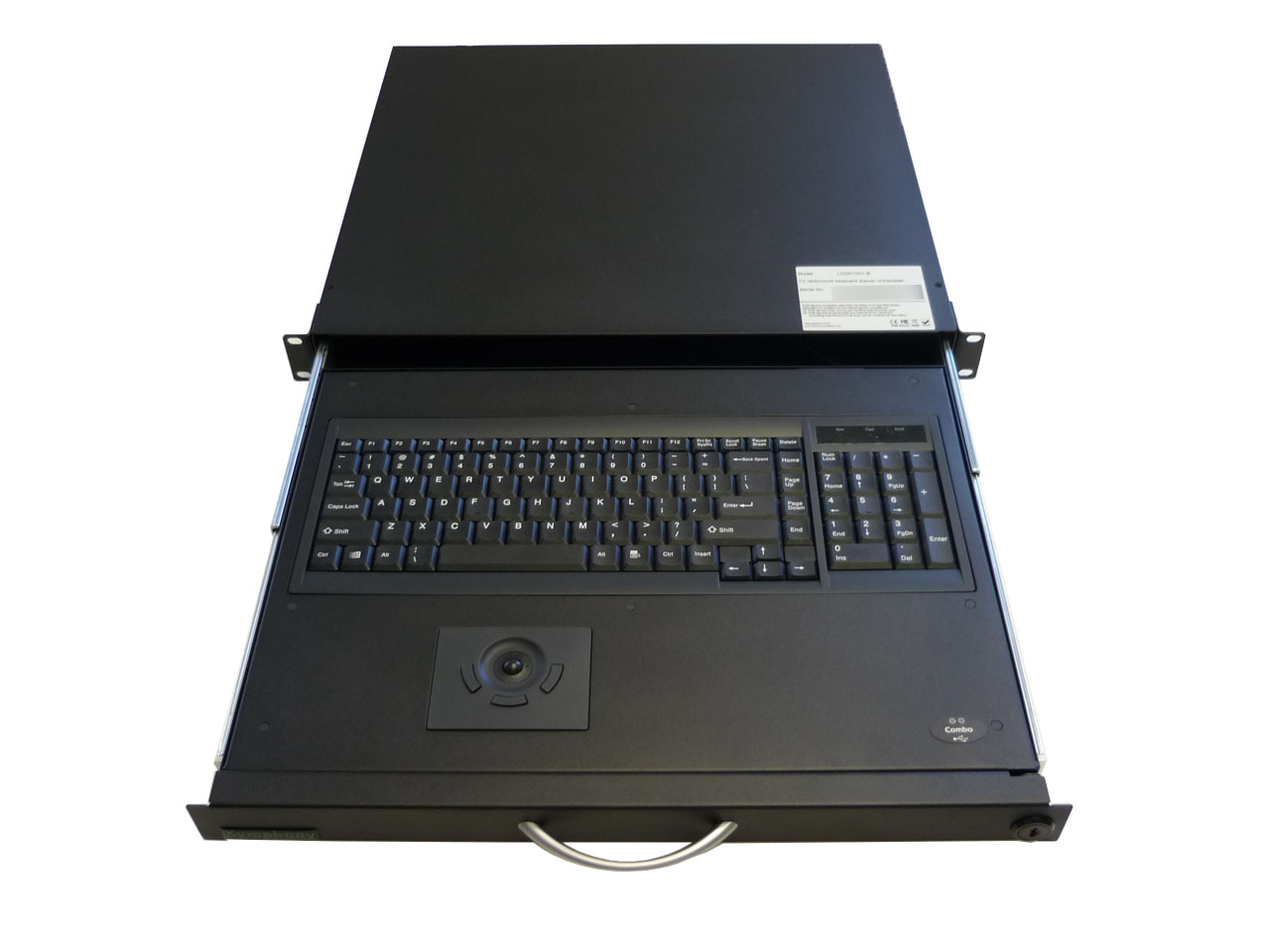

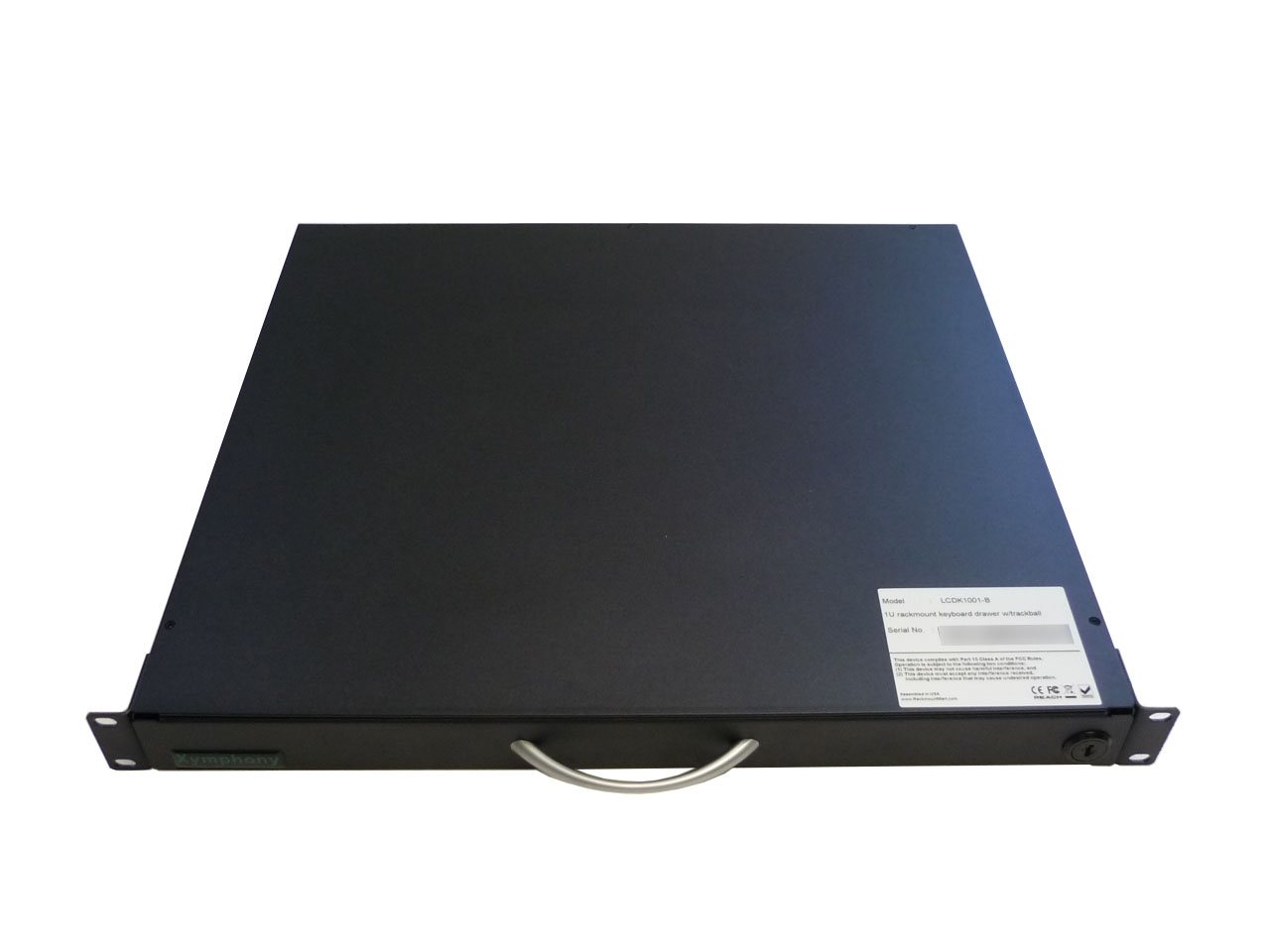

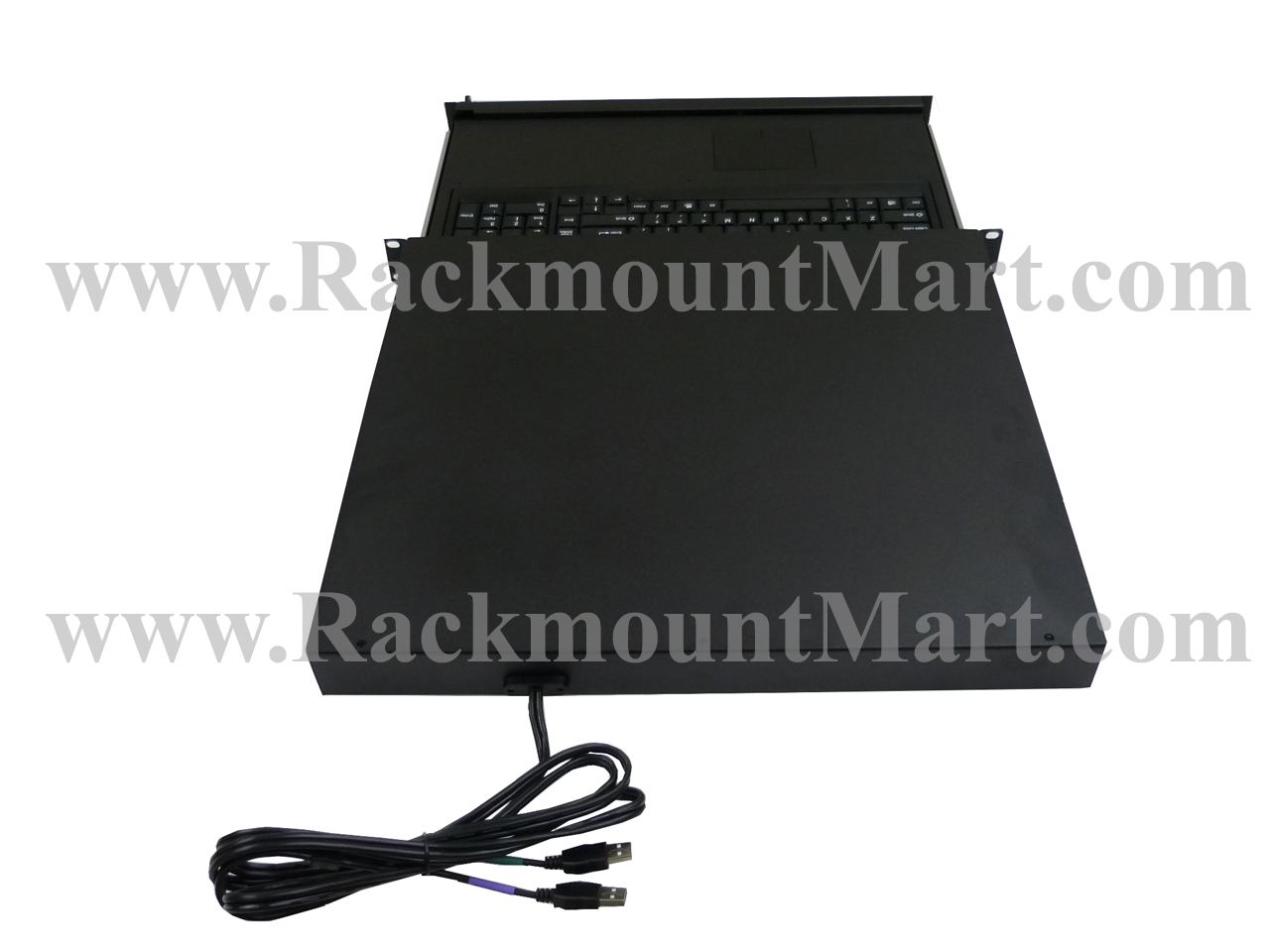

More Photos  (Click on the photo for enlarged view )




 Customer who ordered this product may also order these :
- Rack  LCD Monitors - Equipment Rack / Server Rack
- Rack  KVM Switch - Rack Shelves



Ordering Information
TOUCHPAD
Part Number  Description
LCDK1001-n
Price : $217
1U Short Depth Rackmount Keyboard Drawer with touchpad , Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
LCDK1001-Sn
Price : $399
1U Short Depth Rackmount Keyboard Drawer with SUN Keyboard & touchpad with USB interface & 1 x USB cable. Black
LCDK1001-Mn
Price : $399
1U Short Depth Rackmount Keyboard Drawer with MAC Keyboard & touchpad with USB interface & 1 x USB cable. Black
TRACKBALL
Part Number  Description
LCDK1001-b
Price : $217
1U Short Depth Rackmount  Keyboard Drawer with trackball, Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
LCDK1001-Sb
Price : $399
1U Short Depth Rackmount  Keyboard Drawer with SUN keyboard and trackball , USB interface & 1 x USB cable. Black
LCDK1001-Mb
Price : $399
1U Short Depth Rackmount  Keyboard Drawer with MAC keyboard and trackball , USB interface & 1 x USB cable. Black
