1U Rack Mounting 20" LCD Drawer:
Part#  LCD1U20-011


1U  20" Industrial Grade TFT LCD Rack Drawer with VGA & DVI
Assembled in USA & TAA Compliant

Optional  S-Video & Composite Video, Audio, HDMI, SDI, DC Input Power

   1U LCD Drawer LCD1U20-011

    Drawer Features & Display Benefits
  • 1U 20" LCD drawer with DVI-D / VGA input
  • 1600 x 1200 high resolution
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • Enhanced aesthetics with molded front panel and two point lock
  • Assembled in USA & TAA Compliant
    Options
  • 3G / HD / SD-SDI Broadcast-grade input
  • S-Video + Composite ( BNC )
  • HDMI or Audio input
  • DC power : 12V / 24V / 48V / 110V ~ 125V
                          LCD Screen

LCD Type

20 inch Industrial Grade TFT LCD Panel

Backlight

CCFL

Display Size

20 inch diagonal

Resolutions

1600 x 1200

Contrast ratio

800 : 1

Brightness

300 cd/ m2

Active area (mm) 408 x 306

Panel color

16.7M

Viewing angle

178° x 178°

Signal Input

VGA or DVI-D

LCD MTBF

45,000 hrs

                          Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
                     Environmental

Storage temp.

-5ēC to 60ēC

Operating temp.

0ēC to 50ēC

Relative Humidity

5 ~90%, non condensing

Shock

10G peak acceleration (11ms duration)

Vibration

5~500Hz 1G RMS random vibration

Package Content

LCD1U20-011 unit X 1 , 6ft VGA cable X 1, Power cord X 1 , M6 screw, cage nut & cup washer X 8
                          Mechanical
Dimension:
( Single console )
439.6 x 650 x 44 mm / 17.3 x 25.6 x 1.73 inch
Product Weight 13.5 kgs / 30 lbs
                              Regulatory Approval
  FCC, CE, RoHS Compliant , REACH Compliant, Assembled in USA & TAA Compliant

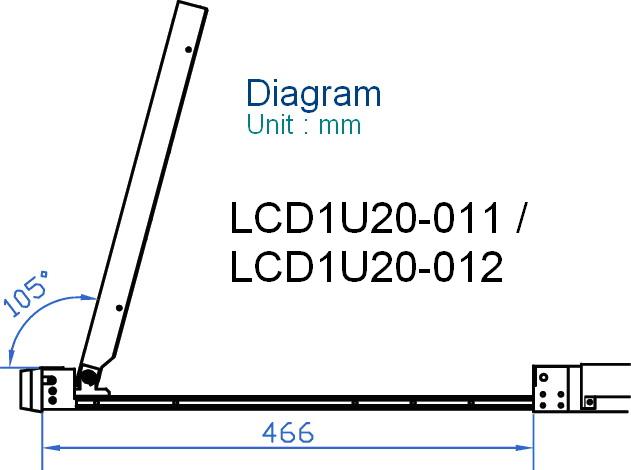

    Dimension

*click on above pictures for enlarged view

    Construction

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual


        Free Ground Shipping *Click for details


More Photo:





I/O Diagram


Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
 Customer who ordered this product may also order these :
- KVM Switch - Rack Shelves
- Rack Mount Keyboard - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
- Wall Rack Mount

Ordering  information
Part Number  Description
LCD1U20-011
Price : $1227
1U Rackmount 20" LG Industrial Grade LCD Rack Drawer with  VGA &  DVI-D Input , one 6-ft long VGA cable included. ( Video signal Inputs only )
LCD1U20-011-Spk
Price : $1341
1U Rackmount 20" LG Industrial Grade LCD Rack Drawer with  VGA , DVI-D  & Audio, one 6-ft long VGA cable included. ( Video  & Audio signal Inputs included )
LCD1U20-011-HDMI
Price : $1341
1U Rackmount 20" LG Industrial Grade LCD Rack Drawer with VGA &  HDMI  Input with speakers , one 6-ft long VGA cable included.( Video & Audio signal Inputs included , No DVI-D  )
LCD1U20-011-SDI
Price : $1713
1U Rackmount 20" LG Industrial Grade LCD Rack Drawer with  VGA + DVI-D + HDMI w/ speaker + SDI Input  , one 6-ft long VGA cable included.( Video Inputs only  )
Optional  inputs
-AV
Price : $114
 With VGA + DVI-D + S-Video &  BNC Composite Video input with RCA adapter
-BNC
Price : $114
 With VGA + DVI-D + BNC + S-Video
-ADH
Price : $171
 With VGA + DVI-D + HDMI w/ speaker
Option DC Power
-DC12
Price : $271
Add 12V DC power supply
-DC24
Price : $271
Add 24V DC power supply
-DC48
Price : $271
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply
-DC250
Price : Please call
Add 250V DC power supply
Other Options
QUAD DISPLAY Please check part numbers ***LCD1U19-016 (4:3 format ) or
LCD1U19-017 ( Wide screen format )***
