Model LCD1U19-020

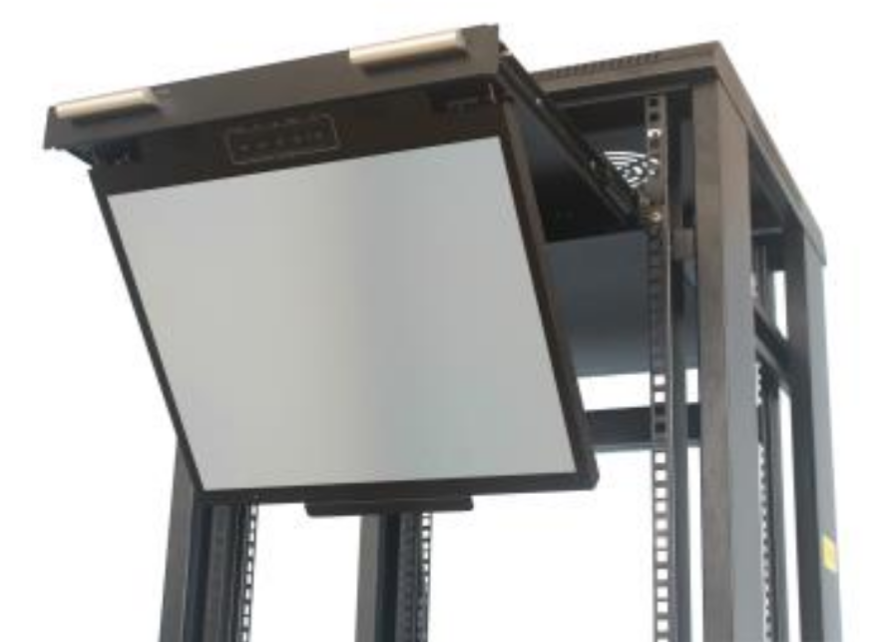

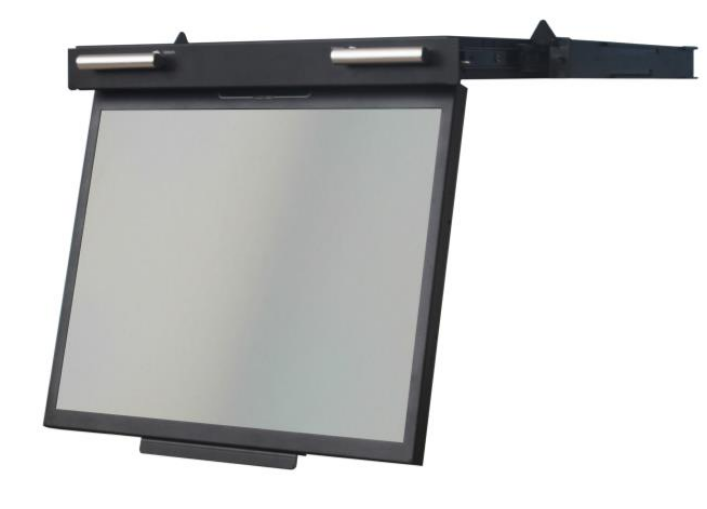

SiriusView 1U Rackmount 19" Flip-Down Monitor

LCD1U19-020

Features

Space-saving 1U flip-down design for 19" racks
Angle adjustment range: 0°-104°
19 inch 1280 x 1024 resolution
DVI-D, VGA, Audio input
Heavy duty steel chassis construction
Front OSD control buttons
Build in 2x 2watts stereo speakers

Options

Composite video input
HDMI or Display port input
3G / HD / SD-SDI broadcast grade input
9~36V DC power input
Touchscreen
AR Hardness glass

LCD Screen
LCD Type	Industrial Grade monitor 19 inch TFT LCD Panel
Backlight	LED
Display Size	19 inch diagonal
Resolutions	1280 x 1024
Contrast ratio	1000 : 1
Brightness	350 cd/ m2
Pixel Size ( HxV ) mm	0.294 x 0.294
Viewing angle (H/V)	170° x 160°
Panel color	16.7 M
Input	DVI-D, VGA, Audio input
LCD MTBF	50,000 hrs
Power Supply
Input	Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input
Wide Range DC Power Input (option)	Screw Type Terminal Block with internal wide Range DC 9-36V power module
Environmental
Operating temp.	0ºC to 50ºC
Operating Humidity	5% - 95% ( non -condensing )
Shock	15G / Peak ( 11 ms )
Vibration	5 - 500 Hz / 1 Grms PTP
Mechanical
Dimension (WxDxH)	17.64 x 20 x 1.73 inch 448 x 508 x 44 mm
Product Weight	17.5 kgs / 38.5 lbs
Regulatory Approval
	FCC, CE, RoHS

	Download Data Sheet
	Download Drawing
	Download User Manual

Gallery

Ordering Information

Part Number	Description
LCD1U19-020	1U Flip-Down Rackmount 19" TFT LCD Monitor Drawer
