1U 16.2" High Resolution Rackmount LCD Drawer
 Model  LCD1U17-017

SiriusView 1U 1920 x 1200 16.2" High Resolution Monitor Rackmount Drawer
Short Depth, VGA & DVI-D
TAA Compliant
   1U LCD Drawer LCD1U17-017


*click for enlarged view

     Drawer Features & Display Benefits
  • 1U 16.2" widescreen LCD drawer with DVI-D / VGA input
  • 1920 x 1200 native WUXGA Ultra high resolution
  • Support Full HD with 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • 8-bit colors
  • Enhanced aesthetics with molded front panel and two point lock
  • Short depth design of 18.9" ( 480mm ) only
  • TAA Compliant
    Options
Panel: High Resolution 16.2" Widescreen LCD panel

Backlight Type

LED

Resolutions

1920 x 1200

Response time

30 ms

Contrast ratio

800 : 1 typical

Brightness ( typ. )

300

Dot pitch ( mm )

0.191

Panel color

16.7 M, 8-bit

Viewing angle (H/V)

89/89/89/89 degree

Signal input

VGA or DVI-D

MTBF (hrs)

 20,000

Product Dimension

441.6 x 480 x 44 mm /
17.4 x 18.9 x 1.73 inch

Storage temp.

-20ºC to 60ºC

Operating temp.

0ºC to 55ºC

Relative Humidity

5 ~90%, non condensing

Shock

10G peak acceleration (11ms duration)

Vibration

10~300Hz, 0.5G RMS random vibration

Safety Approval

FCC, CE, RoHS2 & REACH compliant
TAA Compliant

Input : Consumption

Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :
Screen on : Max. 34 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt

    Construction


*click for enlarged view

     Diagram


*click for enlarged view

  Product Sheet
  User Manual


        Free Ground Shipping *Click for details



Gallery




Back to top


Ordering  Information
Part Number  Description
LCD1U17-017
1U 16.2" High Resolution Rackmount LCD Drawer, with VGA + DVI-D input

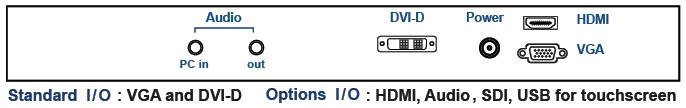

Optional Video/Audio Inputs
-HDMI
VGA + DVI-D + HDMI * Chassis depth : 20.9" / 530mm
-SDI
 VGA + DVI-D + HDMI + 3G-SDI * Chassis depth : 20.9" / 530mm
-DP
DisplayPort + VGA + Speaker for DisplayPort * Chassis depth : 20.9" / 530mm
-SPK
 Audio-IN/OUT with speaker + VGA + DVI-D * Chassis depth : 20.9" / 530mm
Optional Touch Screen
-TRB
 Resistive 1-Point Touch screen & USB controller
-TRS
 Resistive 1-Point Touch screen & serial controller
-TPC
 Projective Capacitive 10-Point Touch screen & USB controller
Optional DC power
-DC12
 Change to 12V DC power supply * Chassis depth : 20.9" / 530mm
-DC24
 Change to 24V DC power supply * Chassis depth : 20.9" / 530mm
-DC48
 Change to 48V DC power supply * Chassis depth : 20.9" / 530mm
-DC110
 Change to 110V DC power supply * Chassis depth : 20.9" / 530mm
-DC125
 Change to 125V DC power supply * Chassis depth : 20.9" / 530mm
-DC250
 Change to 250V DC power supply * Chassis depth : 20.9" / 530mm
