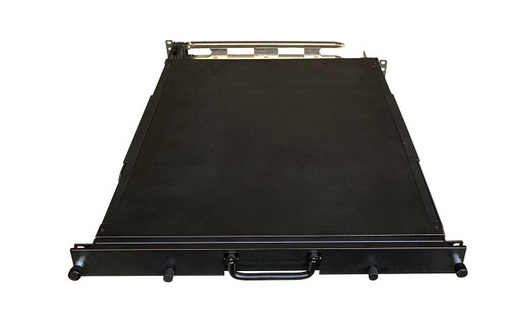

Rugged Military Grade 1U Rack Mount LCD Drawer
Model MIL1U19-011

SiriusView Military Grade 1U Rackmount 19" Monitor Drawer
MIL-STD-810 F/G Compliant

MIL1U19-011

Features

Meet MIL-STD-810F/G standard
Wide operation temperature
19 inch 1280 x 1024 resolution
DVI-D, VGA, Audio input
Front OSD control buttons
Build in 2x 2watts stereo speakers

Options

Composite video BNC input
HDMI or Display port input
High brightness LCD panel, up to 1000 nits
9~36V DC power input
Touchscreen
Front AR or EMC glass protect screen

LCD Screen
Backlight	LED
Display Size	19 inch
Resolutions	1280 x 1024
Contrast ratio	1000 : 1
Brightness	450 cd/ m2
Pixel Size ( HxV ) mm	0.294 x 0.294
Viewing angle (H/V)	170° x 160°
Panel color	16.7 M
Input	DVI-D, VGA, Audio input
Power Supply
Input	100-240V AC 50/60Hz via 4 pins lock connector
Wide Range DC Power Input (option)	Screw Type Terminal Block with internal wide Range DC 9-36V power module
Environment (MIL-STD-810G)
Operating temp.	-20ºC to 70ºC (MIL-STD-810, Method 501.5 & 502.5)
Storage temp.	-30ºC to 80ºC (MIL-STD-810, Method 501.5 & 502.5)
Humidity	5% - 95%, non-condensing (MIL-STD-810, Method 507.5)
Shock/Vibration	Procedure VI, 50G @ 11ms (MIL-STD-810, Method 516.6)
Altitude	10,000 ft Operational, 30,000 ft Storage (MIL-STD-810, Method 500.5)
Mechanical
Dimension (WxDxH)	17.64 x 23.62 x 1.73 inch 448 x 600 x 44 mm
Product Weight	17.5 kgs / 38.5 lbs

	Download Data Sheet
	Download Drawing
	Download User Manual

Gallery

Ordering Information

Part Number	Description
MIL1U19-011	Military Grade 1U Rackmount 19" Monitor Drawer
