Industrial Monitors:   Model   ID-55Pw-LED


          55" High Resolution Wide Screen ( 16:9 ) Open Frame LCD with LED Backlight Panel Display

LCD with LED Backlight Panel
LCD Type

TFT LCD Panel

Backlight

LED

Resolutions

1920 x 1080

Display Color

16.7M

Brightness

350 cd/m2

Contrast ratio

1400 : 1 ( Typical )

Active area (mm)

1210 x 680

Viewing angle 178° x 178°

LCD MTBF

50,000 hrs

Signal Input

HDMI / DVI-D / VGA / S-Video / BNC

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 220 Watt,
                   Standby 20 Watt

Mounting

Universal mount
OPTIONS

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Other Option

- 48V / 24V / 12V DC Power    Details
- Multi-Display Controller         Details
- MIL-type or lockable connector
- TV - PAL or NTSC

Mechanical
Dimension
( W x D x H )
 51.6 x 2.6 x 30.8 inch /
 1311.6 x 65.8 x 782.4 mm
Product Weight  40.2 kgs ( 88.4 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant, TAA Compliant, Assembled in USA

  Front View of  ID-55Pw-LED

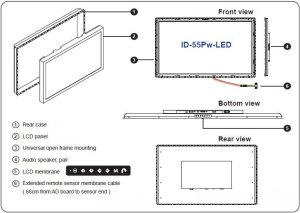

  Construction

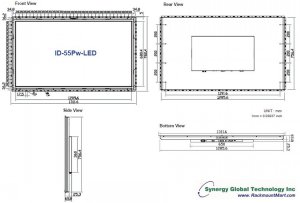

  Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

 Download Product Sheet
 Download User Manual



   DISPLAY BENEFITS :
  • 55" widescreen LCD supports Full HD 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 48V or 24VDC power
  • MIL-type or lockable connector
  • TV - PAL or NTSC

    Diagram for  I/O Outlet

Ordering information :
Part Number Description
ID-55Pw-LED
Standard Version  - 55" (16:9) LG Open Frame TFT LCD Display,
with VGA + DVI-D + HDMI + RCA + S-Video + audio + remote controller
Optional Video/Audio Inputs
-SDI
With VGA + DVI-D + HDMI + RCA + S-Video + audio + remote controller + SDI input
-MC
Multi-Display Controller
Optional Controller
-TV
TV tuner (NTSC or PAL) with remote controller
VGA + DVI-D + HDMI + RCA + S-Video + audio + remote controller + TV (analog)
Optional DC power
-DC12
12V DC Power
-DC24
24V DC Power
-DC48
48V DC Power
-DC125
125V DC Power
Optional Connectors
-MD
MIL-type Lockable DC Power jack, Male Download Spec Sheet
-MA
MIL-type Lockable VGA jack, Male Download Spec Sheet
-LD
Lockable DC Power jack, Male Download Spec Sheet
-LS
Lockable USB jack for touch screen Download Spec Sheet
