Industrial Monitor
   Model   ID-42Pw-LED


                                    42" High Resolution Widescreen LCD Panel w/ LED-backlit Display
LCD w/ LED Backlight Panel
LCD Type LG TFT LCD Panel

Backlight

LED

Display Size

42" Widescreen diagonal

Resolutions

1920 x 1080

Display Color

16.7 M

Brightness

360 cd/m2

Contrast ratio

1400 : 1 ( Typical )

Active area (mm)

930 x 523

Viewing angle 178 x 178

LCD MTBF

50,000 hrs

Signal Input

HDMI / DVI-D / VGA / S-Video / BNC

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :Max. 200 Watt,
                   Standby 20 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Optional DC Power

48V / 24V DC Power   Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details
- TV
- MIL-type or lockable connector

Mechanical
Dimension
( W x D x H )
 1030.2 x 80.8 x 624.2 mm /
 40.6 x 3.2 x 24.6 inch
Product Weight  26.2 kgs ( 57.6 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory Safety : FCC & CE certified
Environmental : RoHS2 & REACH compliant
Package Content

Package Content

42" High Resolution LCD display X 1, 6ft VGA cable X 1, Power cord X 1, Remote controller X 1

  ID-42Pw-LED

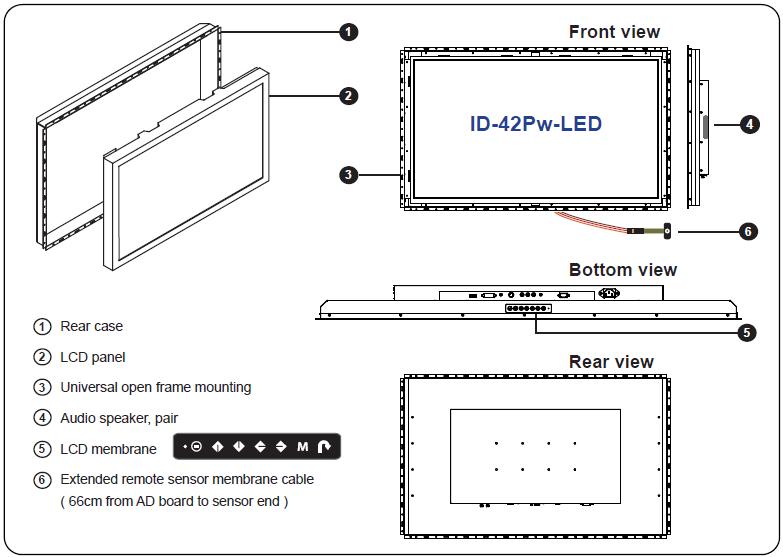

  Construction

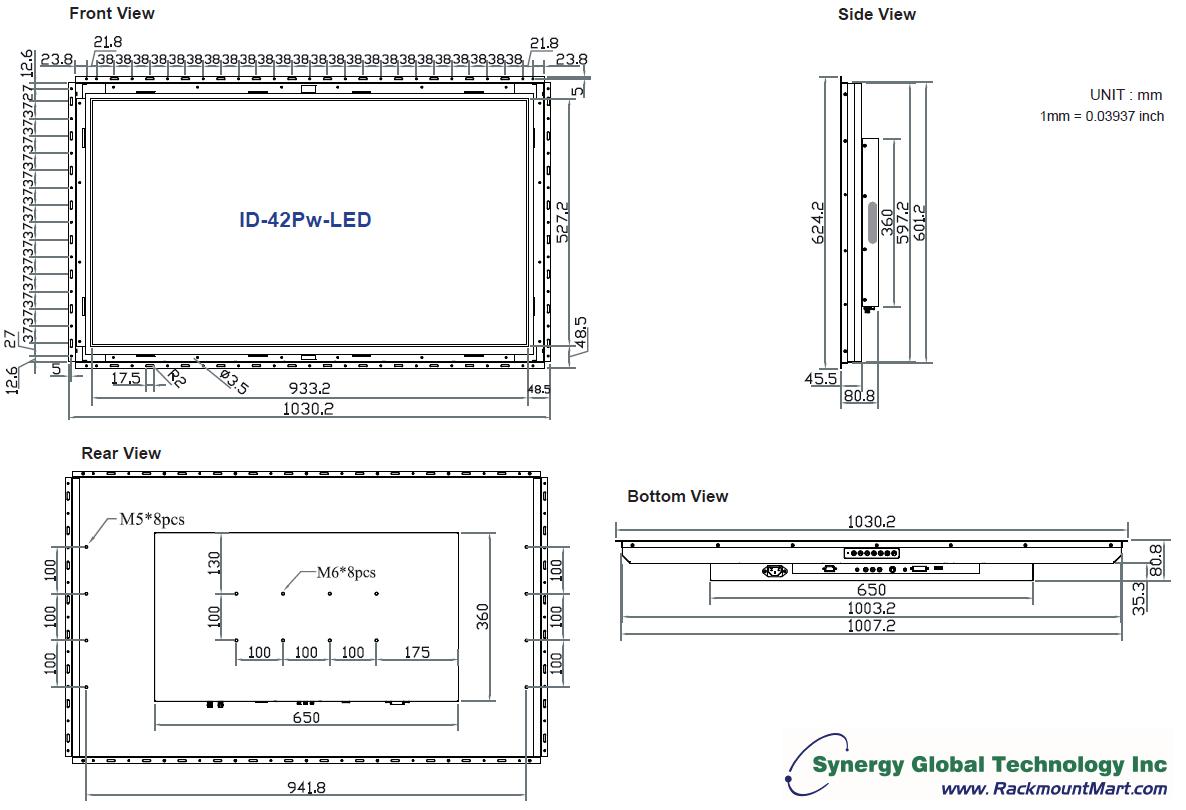

   Dimensions

                       Download Product Sheet
                       Download User Manual



Gallery




   DISPLAY BENEFITS :
  • 42" widescreen LCD supports Full HD 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • Projected Capacitive ( 10-point touch )
  • MIL-type or lockable connector
  • 48V or 24VDC power
  • TV - Analog

    Diagram for  I/O Outlet

Ordering Information
Part Number Description
ID-42Pw-LED
Open Frame 42" High Resolution Widescreen LCD Panel w/ LED-backlit Display, with VGA + DVI-D + HDMI + RCA + S-Video + audio + remote controller
Optional Video/Audio Inputs
-SDI
Add 3G / HD / SD-SDI Broadcast grade input
(VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller + SDI)
Download Spec Sheet
-MC
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TPC
Add Projected Capacitive 10-point multi-touch + USB controller
** casing dimension will be changed if multi-touch is applied
Optional Controller
-TV
Add TV tuner (NTSC or PAL) with remote controller
(VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller + TV (analog))
Optional DC power
-DC24
Add 24V DC Power
-DC48
Add 48V DC Power
-DC110
Add 110V DC Power
-DC125
Add 125V DC Power
Optional Connectors
-MD
Add MIL-type DC Power lockable jack, male Download Spec Sheet
-MA
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Add Lockable DC Power jack, male Download Spec Sheet
-LS
Add Lockable USB jack Download Spec Sheet
