     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

Chassis Mount Touch Screen Monitor
Part #   ID-2-08DN


                                                         8.4" Chassis Mount Touch Screen Monitor

*click on photo for enlarged view
 Download Product Sheet
 Download Dimensional Drawing
   Download Touchscreen Drivers

         Free Ground Shipping * Click for details


Dimension 254W x 190H x 42D mm
Case Material ABS front frame + SECC
Weight 1.5 Kg / 3.3 lbs
Mounting Spec. VESA 75
Panel Frame Water Proof IP65
Optional Accessory Wall Mount Kit / Stand
Max Resolution SVGA 800 x 600
Color Support 16.2M /262K colors
Max Sync Rate ( V x H ) 60 Hz x 80 kHz
Response Time 10 ms(Falling time)
20 ms(Raising time)
Controls / Adjustments Color : Contrast,Brightness,Color temperature
Image : H-Position,V-Position,Clock
OSD : OSD H-Position/V-Position,OSD Time,Reset,Language
OSD Languages Traditional Chinese , Simplified Chinese , English Spanish , Japanese , French , German
Contrast Ratio 600:1
Backlight LED
Backlight Life 50,000 hours
Touch Screen AMT 4 wires Resistive Touch screen
Image Aspect Ratio 4:3
H-View Angle 160
V-View Angle 140
Signal Interfaces VGA/DVI, RS232/USB(Optional)
Cables Included (Length: 1.8M) VGA Cable x 1
Power Adapter 100~240V AC Input, 12V DC Output
Power Consumption Operational 0.57A max.
Operating Temperature 0 C ~ 60 C
Operation Humidity Range 5~90%RH@39 C,non-condensing
Storage Temperature -30 C ~ +80 C
Storage Humidity Range 5~90%RH@39 C, non-condensing
Brightness 450

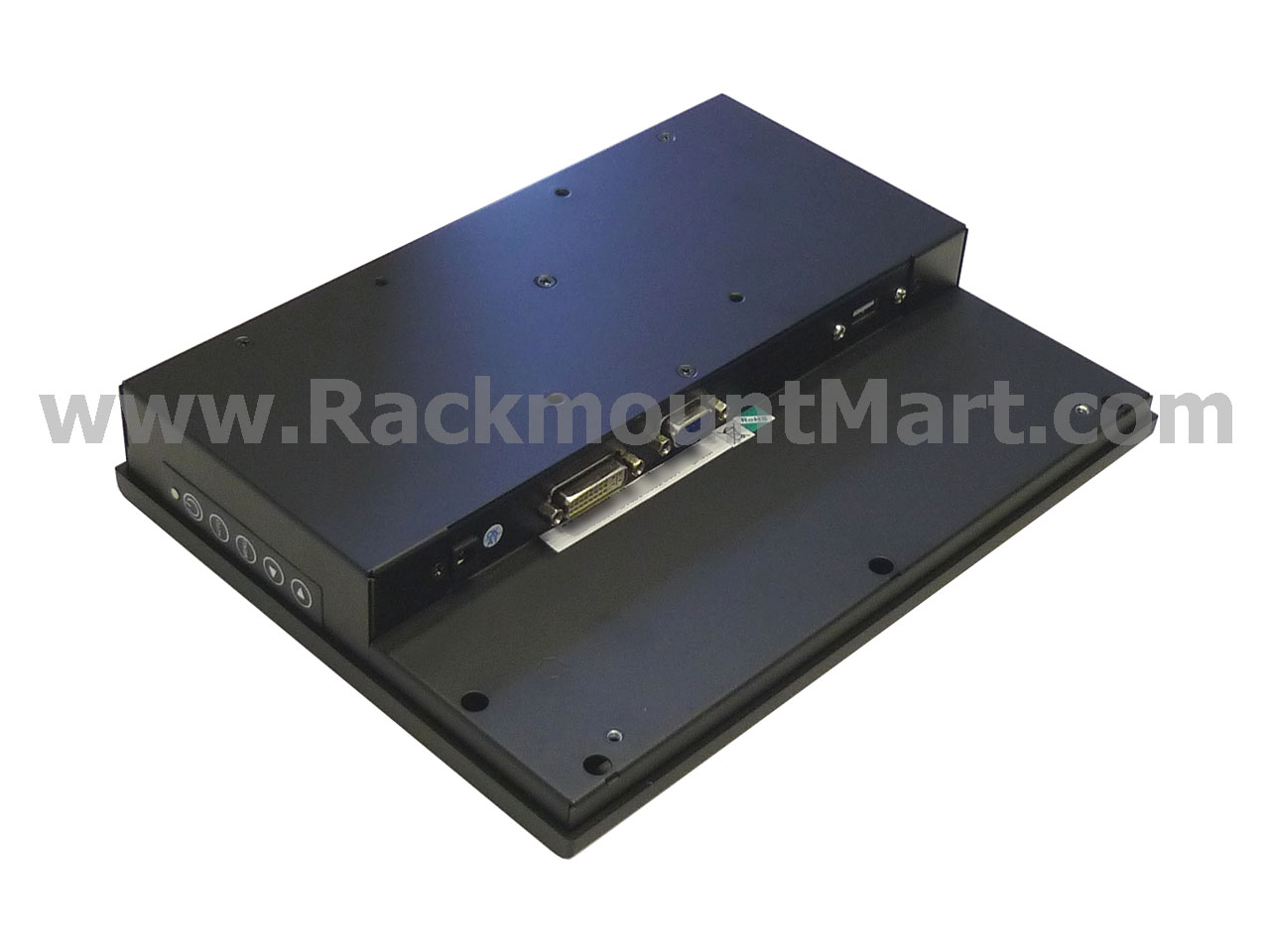

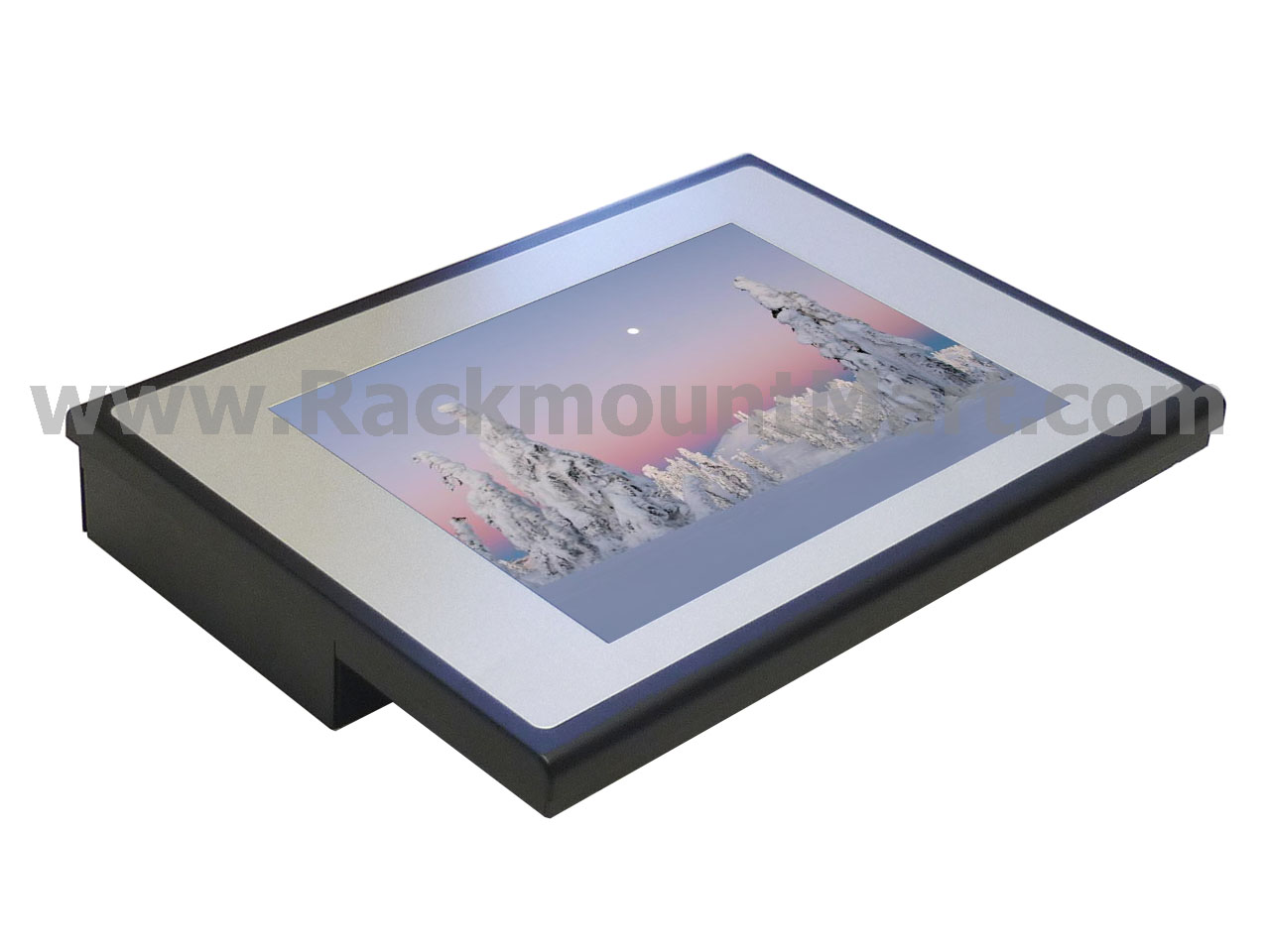

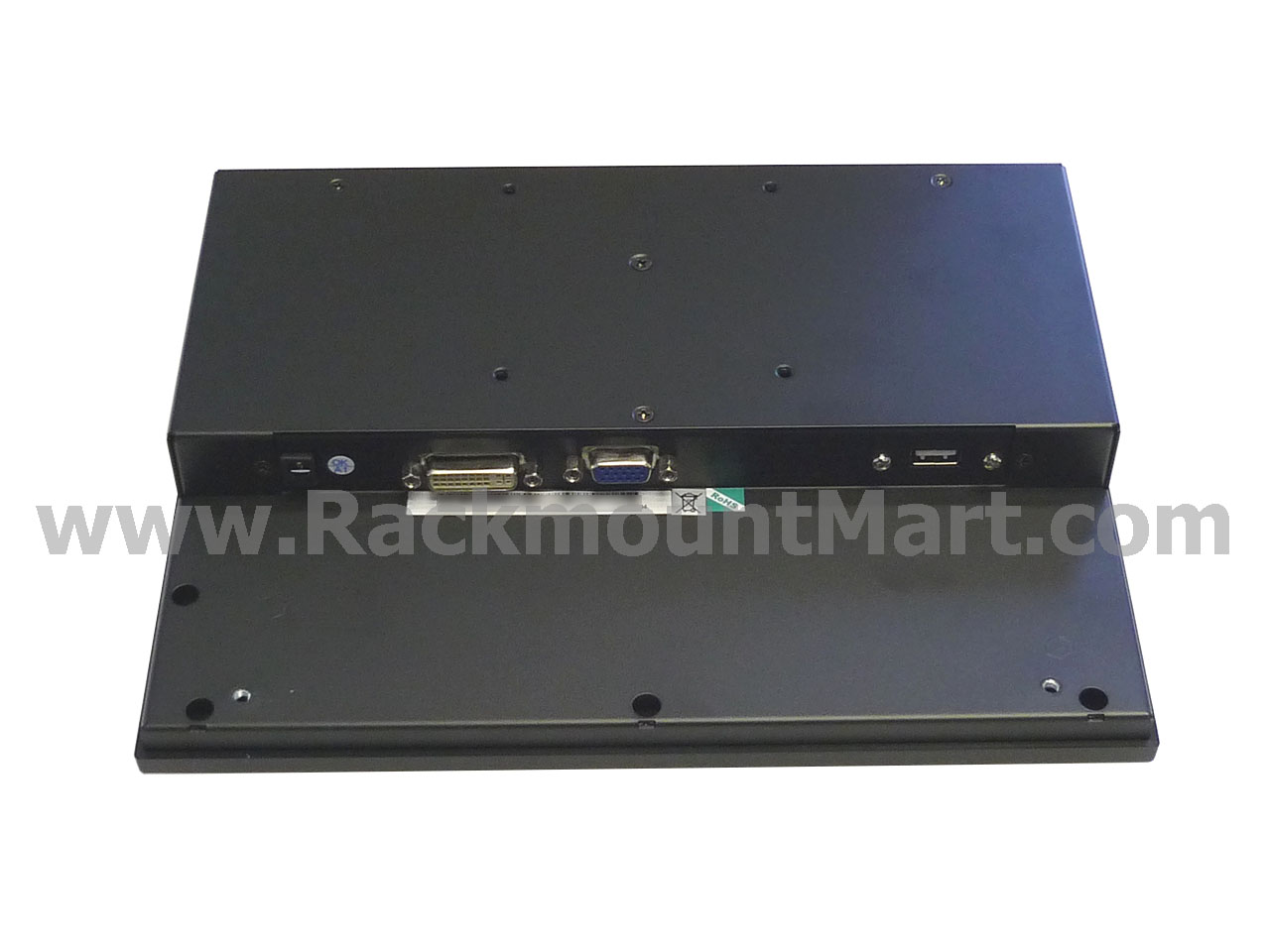

  More photos (click to enlarge )



Ordering information :
Part # Description
ID-2-08DN-TRB
Price : $620
8.4" Chassis Mount LCD display with IP65 / NEMA4 on screen and USB Resistive Touch Screen
ID-2-08DN-TRS
Price : $620
8.4" Chassis Mount LCD display with IP65 / NEMA4 on screen and Serial Resistive Touch Screen
