40" 4K Ultra Hi-Definition Monitor
Model 4K40
SiriusView 40" 4K Ultra Hi-Definition High Contrast LED Monitor
TAA Compliant
| Display |
| Screen Size |
39.5 Inch |
| Max. Resolution |
3840 x 2160 @ 60Hz |
| Pixel Pitch |
0.2247 x 0.2247mm |
| Brightness |
350cd/m² |
| Contrast Ratio |
5000 : 1 |
| Aspect Ratio |
16 : 9 |
| Viewing Angle (H/V) |
176° / 176° |
| Display Color |
1.07 Billion |
| Response Time |
< 8.5ms (Gray to Gray) |
| Video System |
NTSC / PAL |
| Frequency (H/V) |
60~75 KHz(H) / 55~75 KHz(V) |
| Interface |
| Display Port In (ver. 1.2) |
1 |
| HDMI In (ver. 1.4) |
1 |
| DVI-D In (Dual) |
1 |
| 3G-SDI In / Out |
1 / 1 |
| Audio In |
1 (for VGA & DVI) |
| Audio Out |
1 |
| VGA In |
1 |
| Transmitter |
| Remote Control |
Yes |
| Audio |
| Built-in Speakers |
Yes |
| Features |
| Multi Display Function |
PIP / PBP |
| Noise Reduction |
Yes |
| Image Rotation |
Yes (Landscape & Portrait) |
| Menu Rotation |
Yes (Landscape & Portrait) |
| Aspect Ratio |
Yes (Full, 4:3, 5:4, 1:1) |
| Dynamic Contrast |
Yes (ON / OFF) |
| Gamma Selection |
Yes (1.8, 2.0, 2.2, 2.4 and 2.6) |
| Color & Monochrome
Selection |
Yes |
| Super Resolution |
Yes (ON / OFF) |
| Dimension |
| Outline Dimension |
35.43” x 22.38” x 9.45” ( W x H x D ) |
| Cabinet |
| Color |
Black |
| Material |
Electro-Galvanized Steel |
| Desk Top Stand |
Yes (Height Adjustable) |
| Power |
| Electrical Ratings |
AC100 ~ 240V(50/60Hz)
|
| Circumstance |
| Operating Temperature |
0 ~ 40° C / 32 ~ 104° F |
| Storage Temperature |
-20 ~ 60° C / -4 ~ 140° F |
| Mounts |
| VESA™ Mount Size |
200 X 200mm |
| Wall |
SYWB-31, SYWB-S3763, SWB-2642Y
(Optional. See product sheet for details) |
| Ceiling |
SYCMK-01
(Optional. See product sheet for details) |
*Design and Specifications are subject to change without notice
|
Front View of 4K40

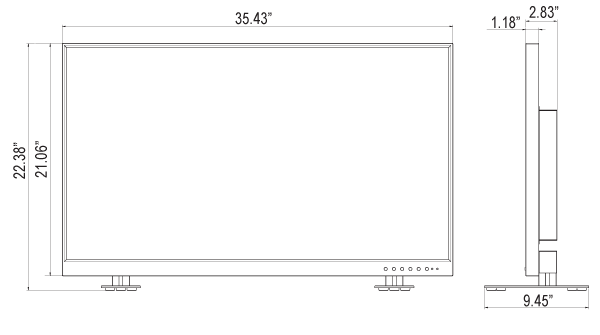

Dimension
|
|
|
4K40 is a true manufacturer of LCD CCTV monitors. It is true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. The monitor is designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.
The newly developed 4K UHD 39.5 Inch 4K40DHD is professional monitor featuring a full 4K 3840 x 2160 resolution. These monitors accept 4K signals at the multiple various video interface, Display port / 60p, HDMI / 30p, DVI-D / 30p also accept full SDI signal & VGA up to 1920 x 1080 / 60p for various application use.
Features:
- 39.5 Inch High Contrast 3840 x 2160 Resolution Panel with LED Backlight
- Anti-Reflection Front Coating
- Full 60fps Frame Rate (Display port)
- Multi-Input Interface: Diplay Port, HDMI, DVI-D, SDI, VGA
- Image Rotation: Landscape and Portrait
- Menu Rotation: Landscape and Portrait
- Aspect Ratio: Full / 4:3 / 5:4 / 1:1
- Dynamic Contrast: ON / OFF
- Gamma Selection: 1.8 / 2.0 / 2.2 / 2.4 and 2.6
- Color and Monochrome Selection
- Super Resolution: ON / OFF
- Wide Viewing Angle
- Industrial Grade Metal Cabinet
- Desktop Stand
|
Product Interface :
| A. AC In : AC power input |
F. HDMI IN : Digital HDMI signal input |
| B. SDI Lamp : Light indicating of SDI in |
G. DP IN : Display Port signal input |
| C. VGA IN : VGA (PC RGB) signal input |
H. AUDIO IN / OUT : Audio signal input & output |
| D. SDI IN / OUT : SDI signal input & output |
I. USB IN : USB input for system update |
| E. DVI IN : Digital DVI signal input |
|
Gallery
Ordering
Information
| Part Number |
Description |
4K40
|
40" 4K Ultra Hi-Definition Monitor |
