Mini Rackmount Server
Model RM1101






    **Click on photos above for enlarged views

                          19" 1U Extra Short Rackmount Mini Server
Color: Black
Processor:
 		 -Supports VIA C3/ Eden 376 pin EBGA type
 -Front Side Bus 100/133 MHz
-VIA Eden series processor 533 / 800 / 1G MHz (For 533 MHz CPU Only : Special heat sink design, NO FAN REQUIRED and therefore no worry about fan failure that will cause system breakdown anymore )
Power Consumption: - 5W
-Integrated full-speed 192KB L1/L2 cache
Drive Bays: 1 x 3.5” HDD  + 1 x  2.5” HDD ( optional )
System Chipset: -Motherboard chipset : VIA VT8601A and VT82C686B
-VGA chipset: VT8601A integrated Trident graphics
-Sound chipset: Realtek ALC 201A AC97 Sound
-LAN chipset: 3 x 10/100Mbps Realtek LAN
Memory: Support PC133/100 SDRAM DIMM. One DIMM socket up to 512MB (32M x N)
Graphics: -Integrated graphics controller with VT8601A Trident VGA
-64-bit single cycle 2D/3D graphic engine
-Supports 2M to 8Mbyte of frame buffer
-Extended screen resolutions up to 1600x1200
Sound: AC97 2.1 compliant
Power: 110V~220V AC IN or DC 12V Input
Indicators: 1x power LED, 1x HDD LED, 1x LAN LED

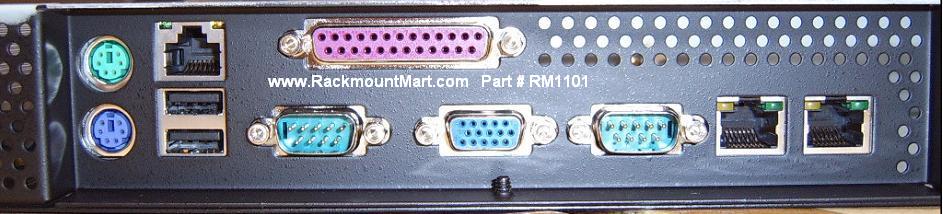

I/O: PS/2 for keyboard and mouse, 2x USB, 2x COM ports, 1x Parallel, 3x LAN ports
Internal Connector: -One 40pin IDE for DOM
-One 44pin IDE for DOM or 2.5” slim HDD
-One Disk-On-Chip socket
-One 50pin Compact Flash Disk socket
Dimensions: 44.5 (H) x 440 (W) x 178 (D) mm


 Gallery



                                                                                             M/B

Ordering information
Part Number  Description
RM1101-533  1U Extra Short  Rackmount Mini Server System ,  One M/B, VIA EDEN 533MHz CPU, 3 x 10/100 Realtek LAN
RM1101-800  1U Extra Short  Rackmount Mini Server System ,  One M/B, VIA EDEN 800MHz CPU, 3 x 10/100 Realtek LAN
RM1101-1000  1U Extra Short  Rackmount Mini Server System ,  One M/B, VIA EDEN 1G MHz CPU, 3 x 10/100 Realtek LAN
