                                        22 Inches Rack mounting LCD Flat Panel
                                                  Model  LCDR7U22-01

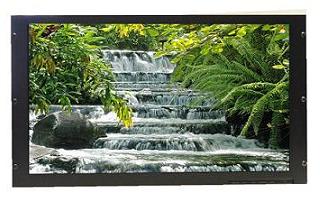

                                        7U Rack Mounted  21.5" Widescreen LCD Flat Panel Full HD
                                                                       ( Made in U.S.A. )
                 *** This model is discontinued..  The replacement model is LCDR7U22-02. Learn More..

                                                                     * Click on the photos to enlarge

 Features :
- 21.5" Wide Format TFT LCD display with full HD 1920 x 1080
   native resolution.
- 15, 000: 1 dynamic contrast ratio for superior details
- Fast Video response time provides sharp text and crisp
   motion.
- 16:9 aspect ratio features a widescreen viewing area
- High contrast and wide viewing angle.
- Only 2.8" deep allows mounting in confined spaces.
- DVI-D digital input in addition to standard VGA input.
- Plugs directly into a standard VGA card.
- Video and power cables provided.
- Color : Black
                           Free Ground Shipping *Click for details

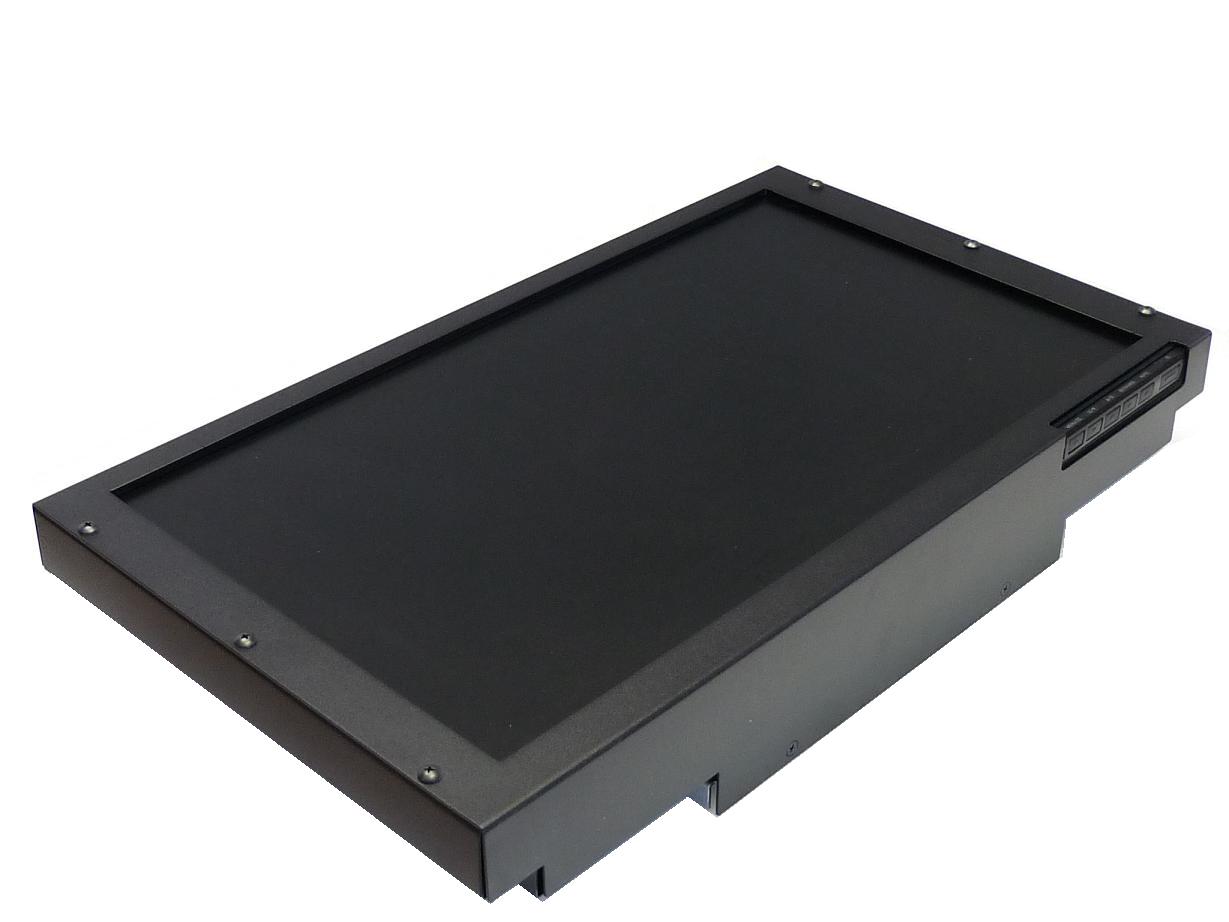

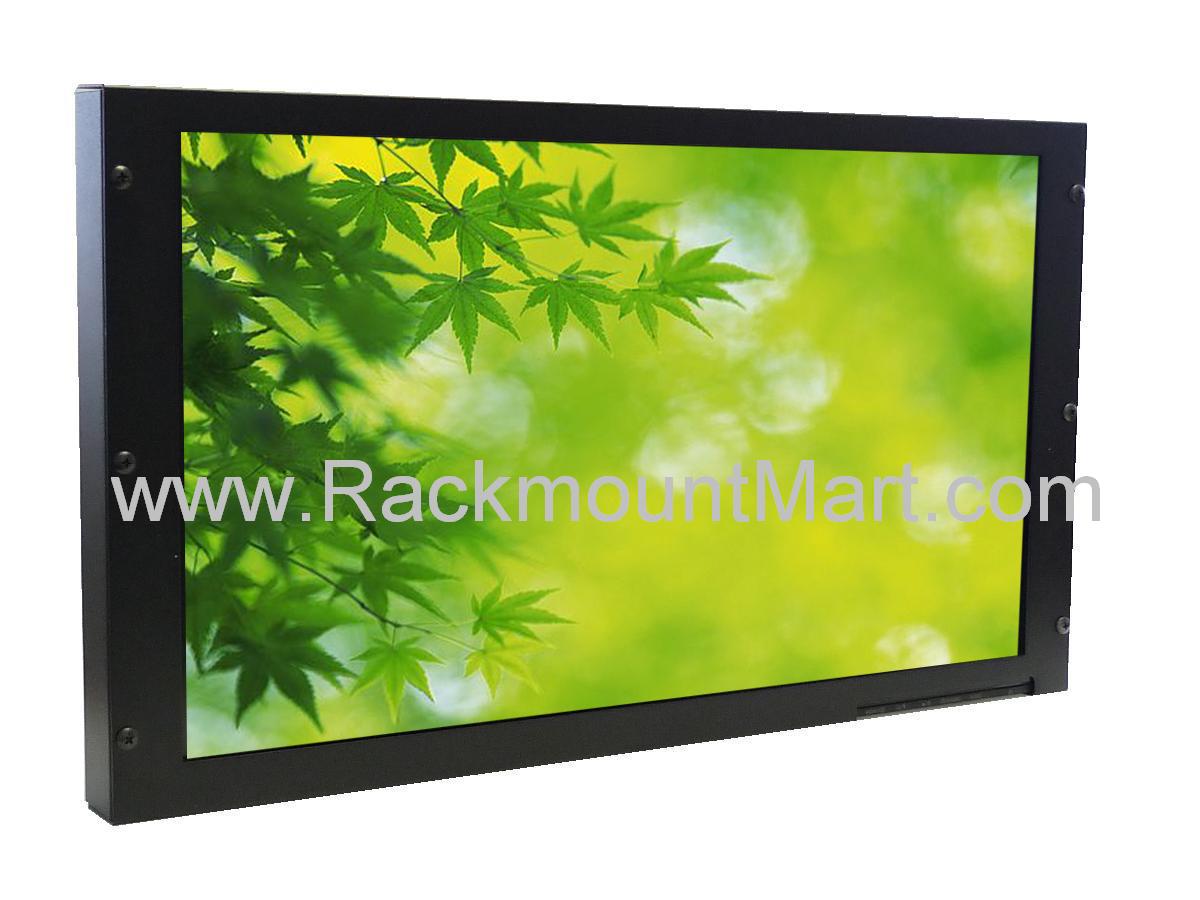

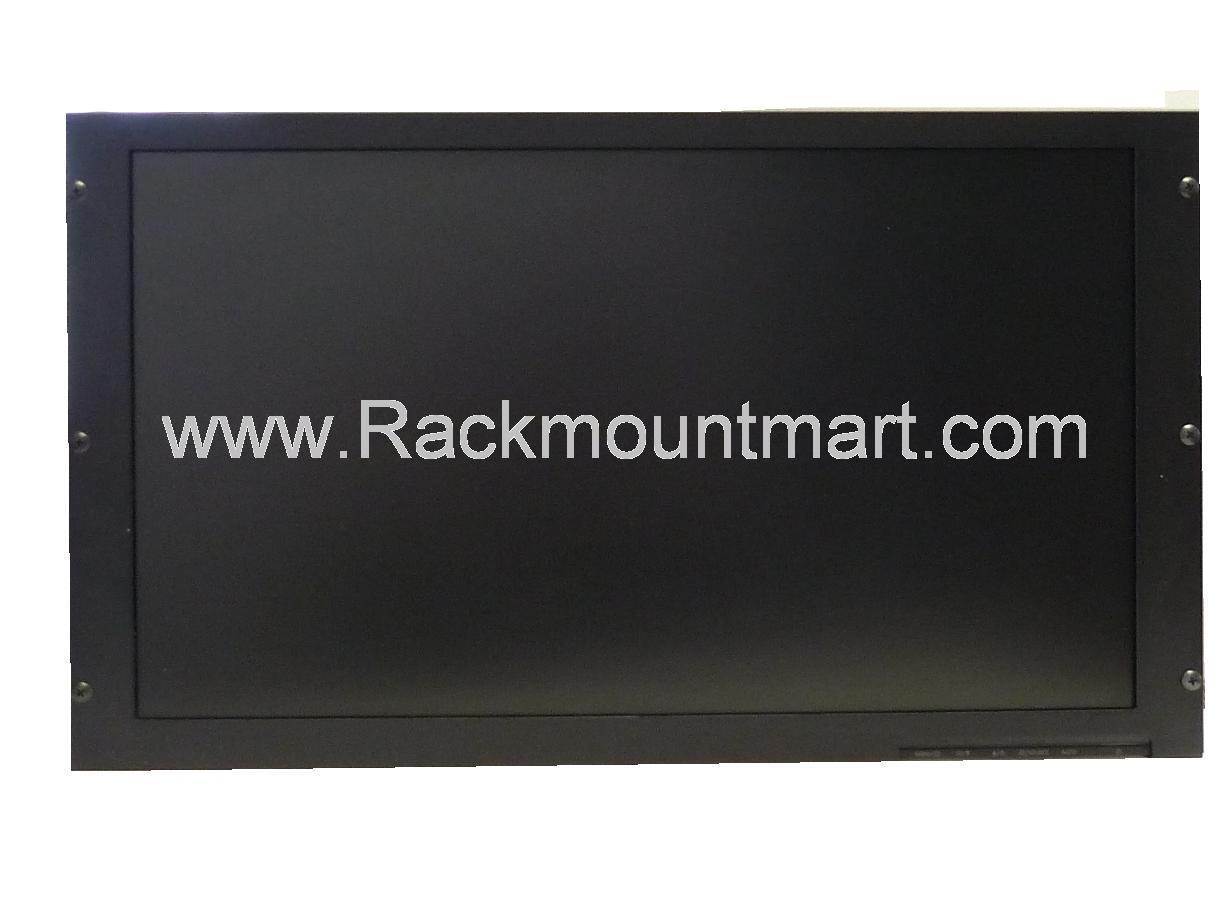

Gallery

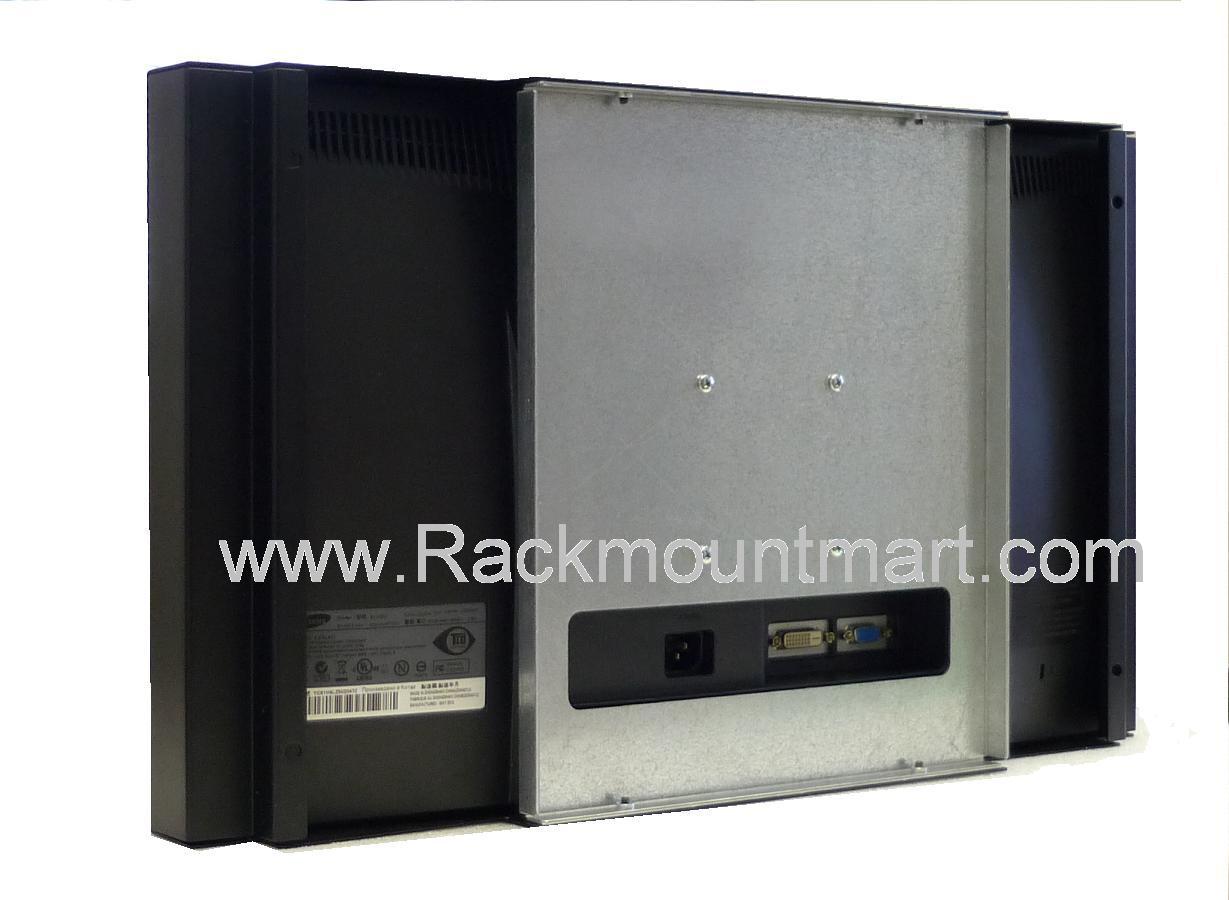

Dimensions 21.6" (W) x 12.26" (H) x 2.25" in front of mounting rail & 1.04" behind mounting rail
Display Type 21.5 "  viewable, a-si TFT/TN LCD Monitor
Resolution  Full HD Native Resolution : 1920 x 1080 maximum, 16.7M colors.
Response Time 5 ms (G to G ).
Brightness  250  nits typical
Backlight  LED backlight
Contrast Ratio  1000:1 typical / 15,000 : 1 Dyn
Viewing Angle Horizontal: 170 degrees
Vertical: 160 degrees
Input Signal (VGA) Analog RGB ,
(Digital) DVI-D (with HDCP)
Syn Type  Separate H/V , Composite H /V , SOG

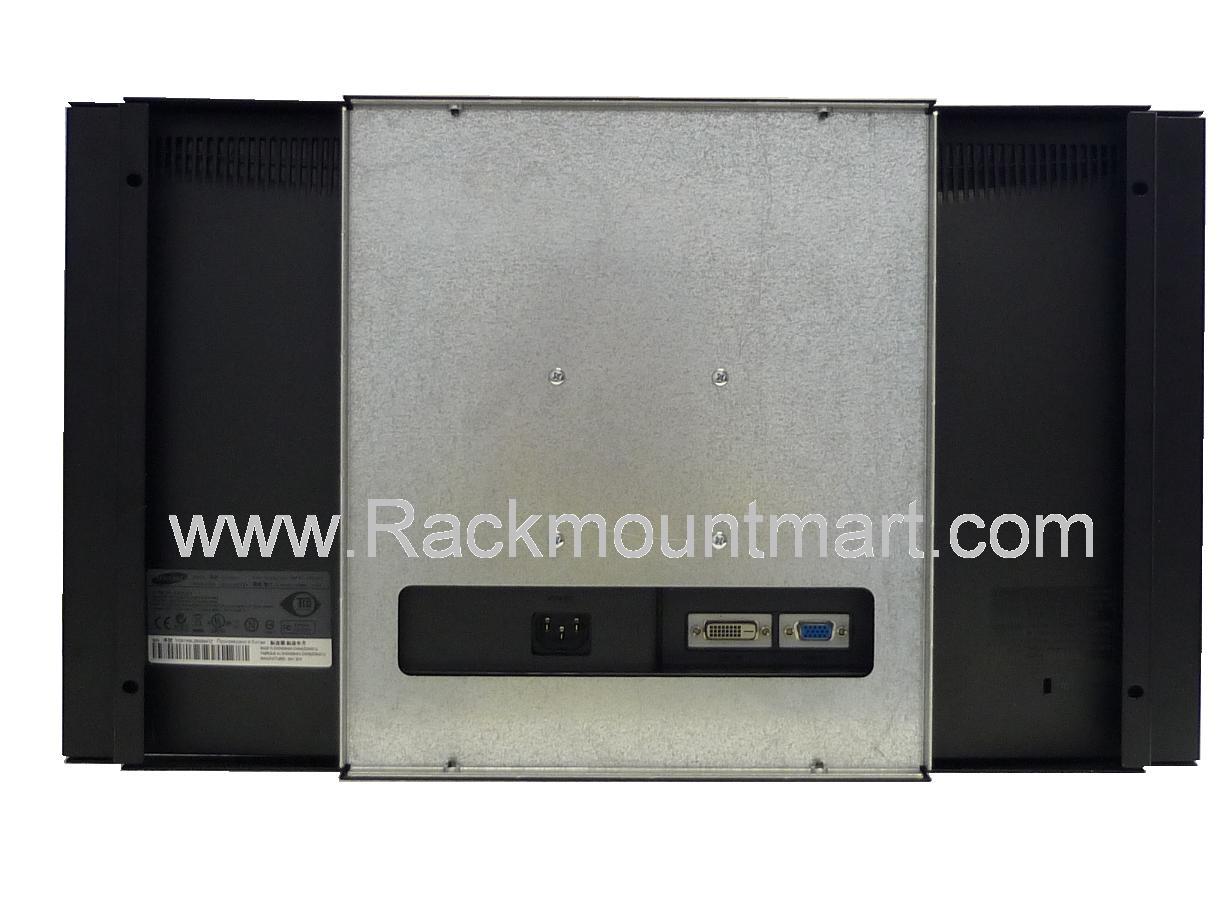

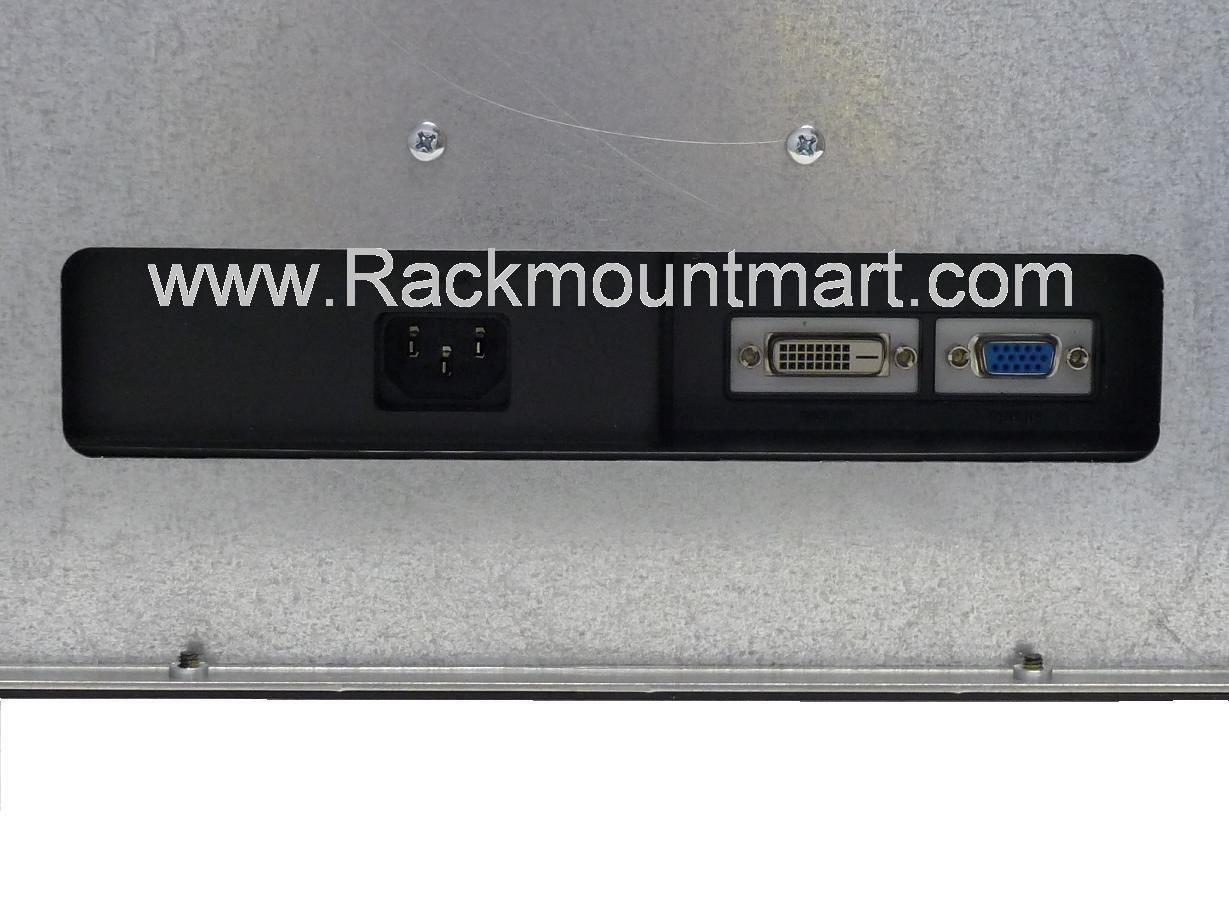

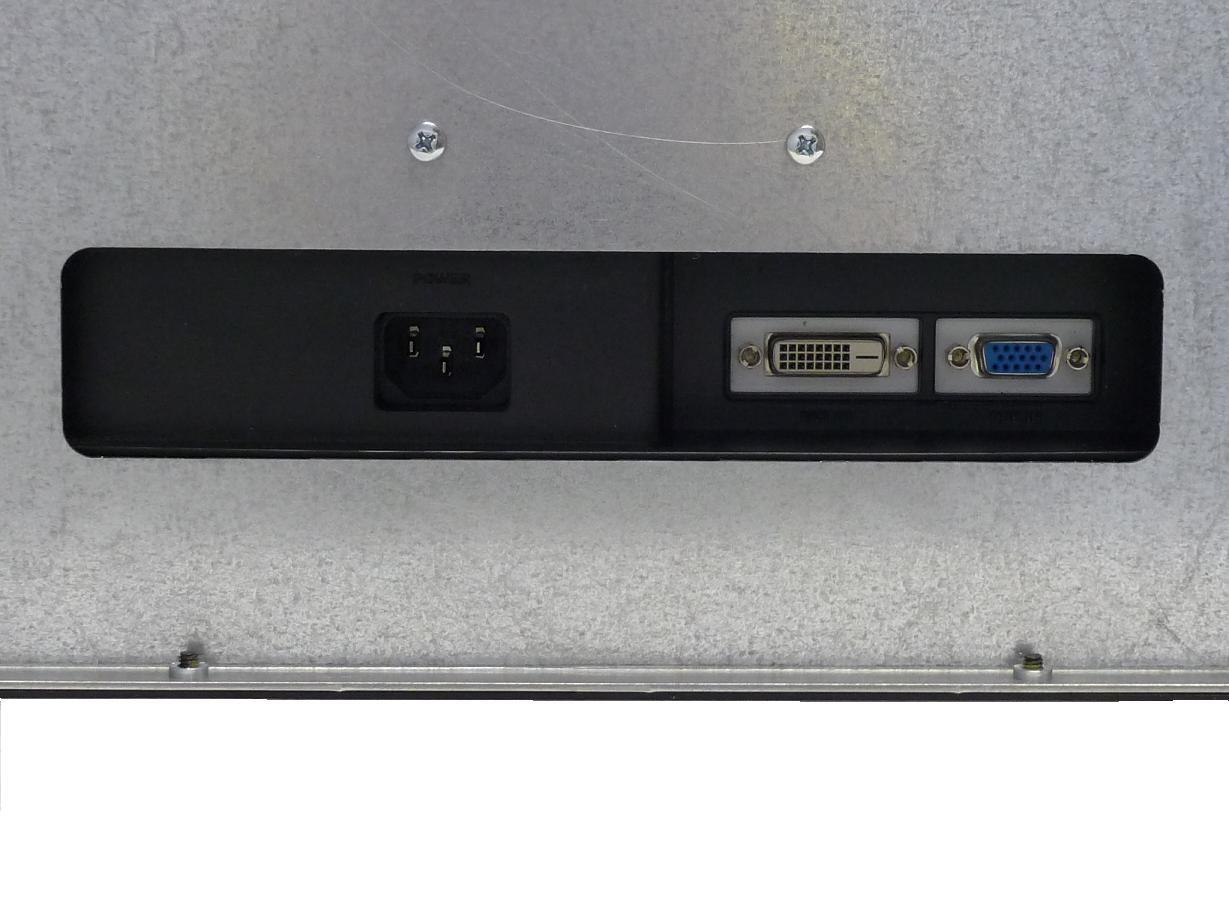

Video Connector Analog: 15 pin mini HD D-sub.
Digital:  DVI-D.

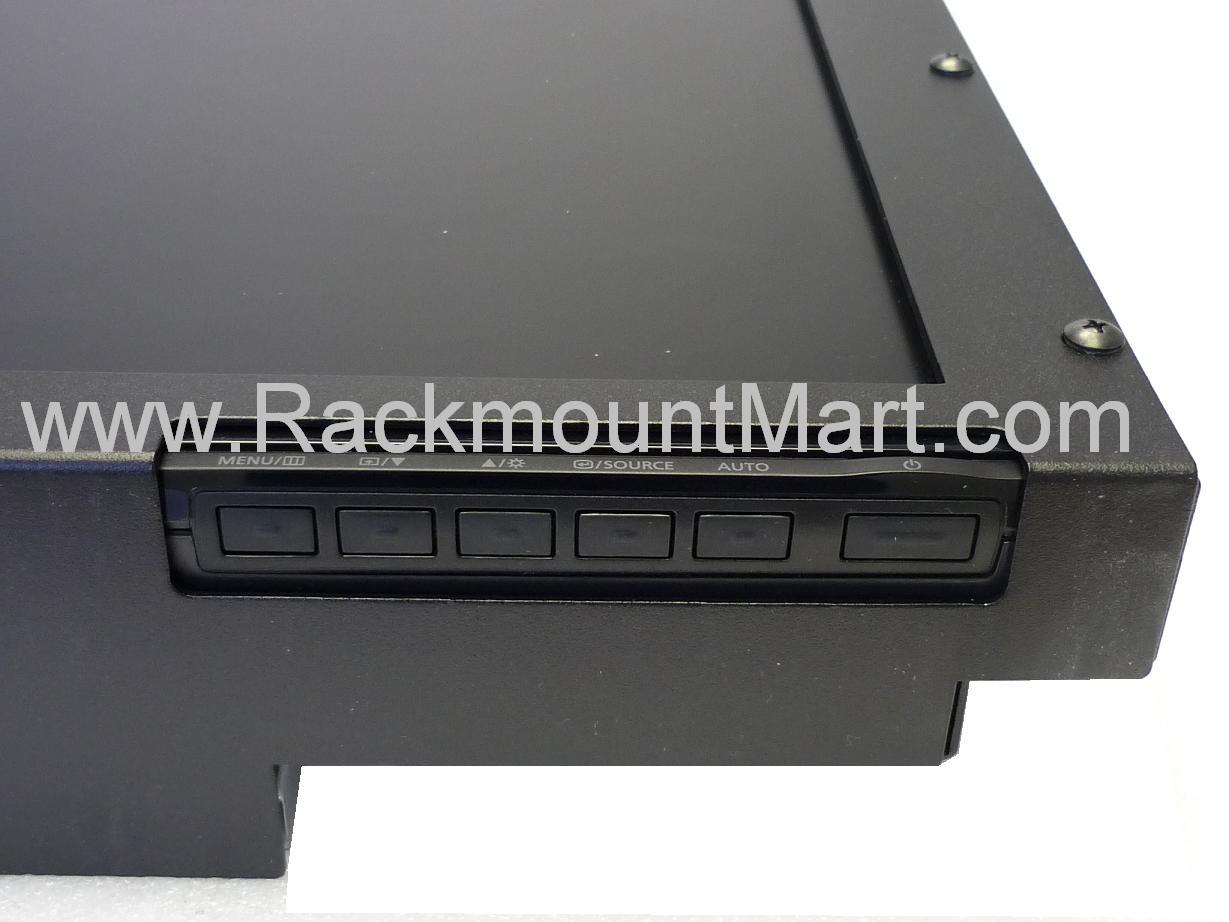

On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), OSD H & V position, Input Select, Color Temp., Reset. Auto Adjust
Plug & Play  DDC2B
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 45 Watts Max
Environment
Temperature Operating: 10 to 40 degree Celsius
Storage   : -20  to 45 degree Celsius
Humidity Operating: 10% to 80% RH (max)

Ordering  Information
Part Number  Description
LCDR7U22-01-b        7U Rackmount 22" Samsung Widescreen Full HD LCD Monitor , black, Made In USA
