     Home >>   Rackmount LCD Flat Panel >>

      1U/ 2U/ 3U/ 4U/ 6U/ 7U / 8U / 9U Rack mountable LCD Flat Panel :

  Part #  LCDR3U7-03-SDI

Dual 7" 1.2 TFT MegaPixel Multiformat SDI and Analog HD/SD Monitor set


Panel: 2 x 7" LCD panels

Display

7" LCD Panels x 2

Display Area

6.14" x 3.27"

Resolutions

800 H x RGB x 480 V

Pixel pitch

0.065mm  x 0.175mm

Brightness

380 cd/m2

System

NTSC / PAL auto rec

Input per  panel (total)

1 (2) Composite , 1 (2) S-Video,
1 (2) Component HD/SD,
1 (2) SDI

Approx.  weight

5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.12" (W) x 5.14" (H)  x2.5 " (D)

  Free Ground Shipping *Click for details

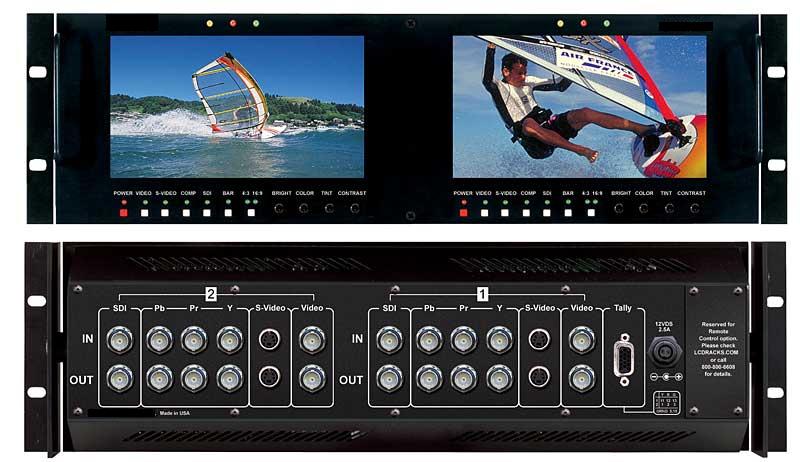

  Front  View

                    *click on  picture for  enlarged view

 Features :

  • High Resolution 7-inch wide screen 800 x 480 Dots with
    1.2 million pixels
  • 100% digital processing
  • Analog signals converted to 10 bit digital
  • High resolution scaling of all images
  • Wide viewing radius - 130 degree horizontal and 120 degree
    vertical provides superior visibility when the viewer is not
    directly in front of the screen
  • 380 candelas per square meter (cd/m?) luminance produces
    enhanced image quality in varying light and viewing conditions
  • 400:1 ratio of contrast between black and white luminance
    values with response rates less than 30 ms results in
    excellent quality for moving images
  • 4:3 and 16:9 screen aspect ratios for DTV applications in
    HD and SD format
  • Works with all analog SMPTE/ITU production formats and
    frame rates
  • Standard Multiformat inputs:
    • SDI (ITU-R BT601 format)
    • Component Analog SD/SD
    • Composite Video PAL/NTSC
    • Y/C(S-Video)
    • Loop through of all inputs signals
  • Easy to see three color tally indicators
  • Built in Color Bars
  • Adjustment Settings Memory
  • MADE IN USA

Description :

The Rack mounted and tiltable LCDR3U7-03-SDI represents leading edge technology in LCD/TFT imaging for broadcast and professional video applications. The LCDR3U7-03-SDI has the highest resolution TFT screens and completely digital signal processing. All SMPTE-259M/274M video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using state of the art LSIs that incorporate 4 x 4 pixel interpolation with precision Gamma correction to product the best images available.



Ordering  information
Part Number  Description
LCDR3U7-03-SDI  3U Rackmount 2 x 7"  Rack mounted LCD  Panel  with 1.2 TFT Megapixel monitor set & Multiformat SDI & Analog HD/SD monitor set
