     Home >>   Rackmount LCD Flat Panel >>

       1U/ 2U/ 3U/ 4U/ 6U/ 7U / 8U / 9U Rack mountable LCD Flat Panel :

Part #  LCDR3U7-03-2HDA

Dual Screen Analog HD/SD 7" monitor set with DVI


Panel: 2 x 7" LCD panels

Display

7" LCD Panels x 2

Display Area

6.14" x 3.27"

Resolutions

800 H x RGB x 480 V

Pixel pitch

0.065mm  x 0.175mm

Brightness

380 cd/m2

System

NTSC/PAL auto recognition for standard definition signals

Input per  panel (total)

1 (2) Composite, 1 (2) S-Video, 1 (2) Component HD/SD , 1 (2) DVI/HDMI

Approx.  weight

5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.12" (W) x 5.14" (H)  x2.5 " (D)

Free Ground Shipping *Click for details

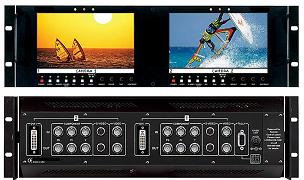

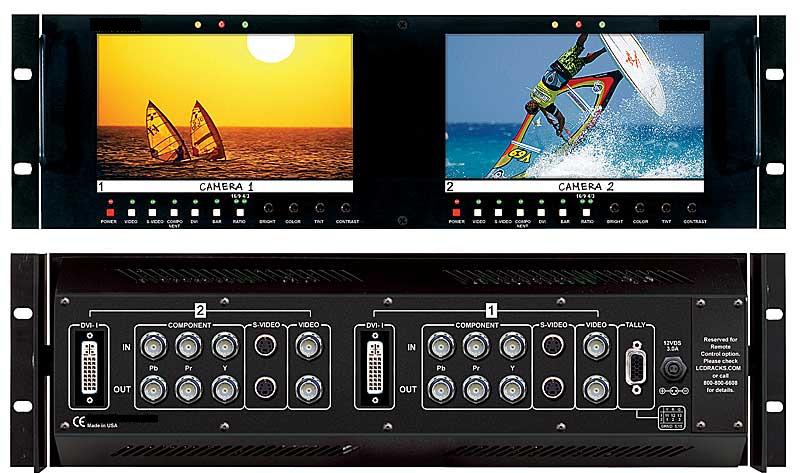

  Front  View

                    *click on  picture for  enlarged view

 Features :

  • High Resolution 7-inch 1.2 MegaPixel wide screen
  • 100% digital processing
  • Analog signals converted to 10 bit digital
  • High resolution scaling of all images
  • Wide viewing radius - 130 degree horizontal and 120 degree
    vertical provides superior visibility when the viewer is not
    directly in front of the screen
  • 380 candelas per square meter (cd/m2) luminance produces
    enhanced image quality in varying light and viewing conditions
  • 400:1 ratio of contrast between black and white luminance
    values with response rates less than 30 ms results in
    excellent quality for moving images
  • 4:3 and 16:9 screen aspect ratios for DTV applications in
    HD and SD format
  • Works with all analog SMPTE/ITU production formats and
    frame rates
  • Blue Screen for color adjustment
  • Internal Color Bar Generator for each screen
  • Three lamp tally indicators for each screen
  • Ready to mount in 19" rack out of the box
  • Front Panel Tilts to achieve optimal viewing
  • Standard Multiformat inputs:
    • DVI
    • Standard Definition Component Analog
    • Y/C (S-Video)
    • High Definition Component Analog YPrPb
    • Composite Video PAL/NTSC
    • Loop through of all input signals
  • Accepts All HD Progressive and Interlace Signals
  • Accepts 480P signals
  • MADE IN USA

Description :

The Rack mounted and tiltable LCDR3U7-03-2HDA represents leading edge technology in LCD/TFT imaging for broadcast and professional video applications featuring High Resolution, megapixel, TFT screens with completely digital signal processing. All SMPTE/ITU analog video standards and signal types plus DVI are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available.



Ordering  information
Part Number  Description
LCDR3U7-03-2HDA 3U Rackmount Dual Analog HD/SD  7" monitor set with DVI
