         1U Rackmount LCD Monitor Keyboard Drawer / KVM Switch :

Part #  LCD1U17-04

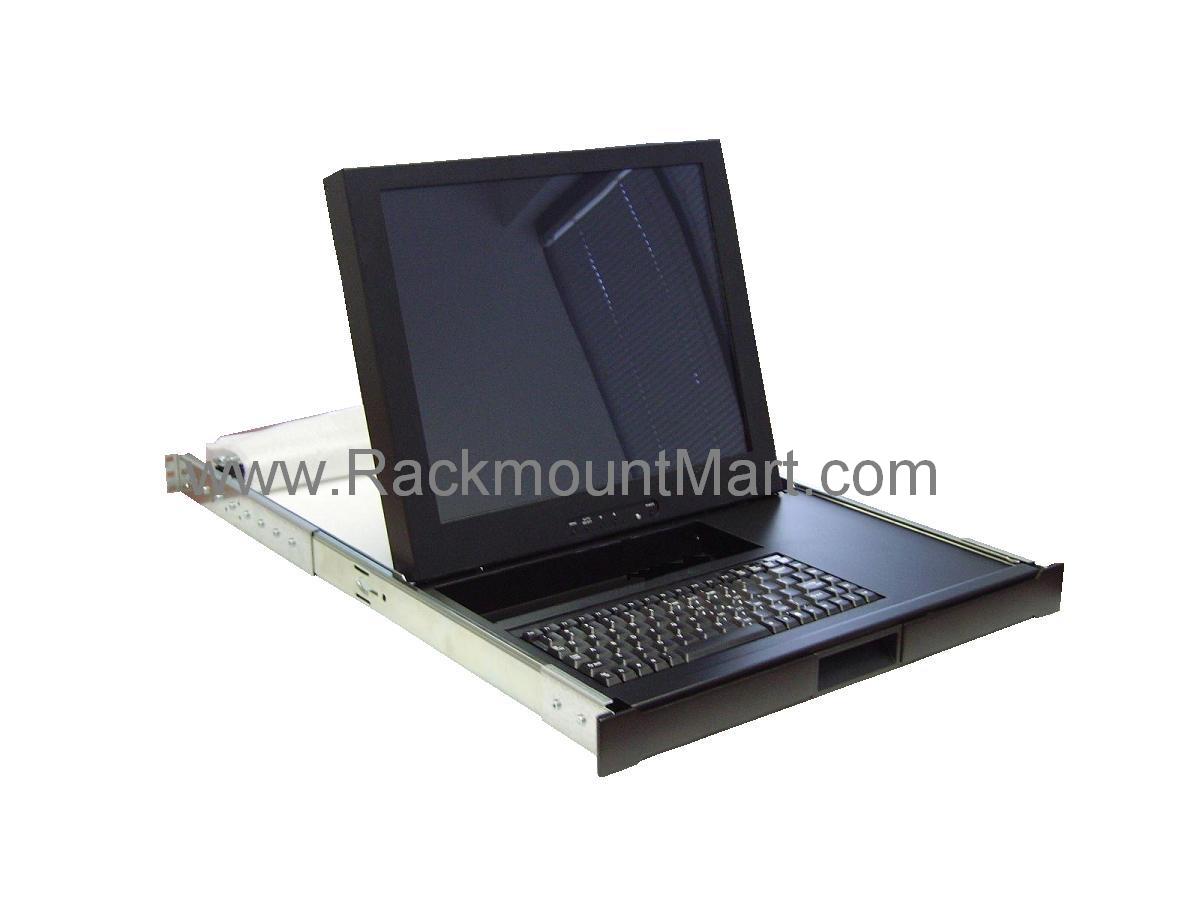

  NOVA 1U Rackmount 17"    TFT LCD Monitor Keyboard  Drawer w/ Mouse Area (mouse optional )
 Optional Composite Video + ARGB + DVI Input / Lock / Retainer / USB or PS/2 Interface
( Made in USA, TAA complaint )



                                                                                  Made in U.S.A.

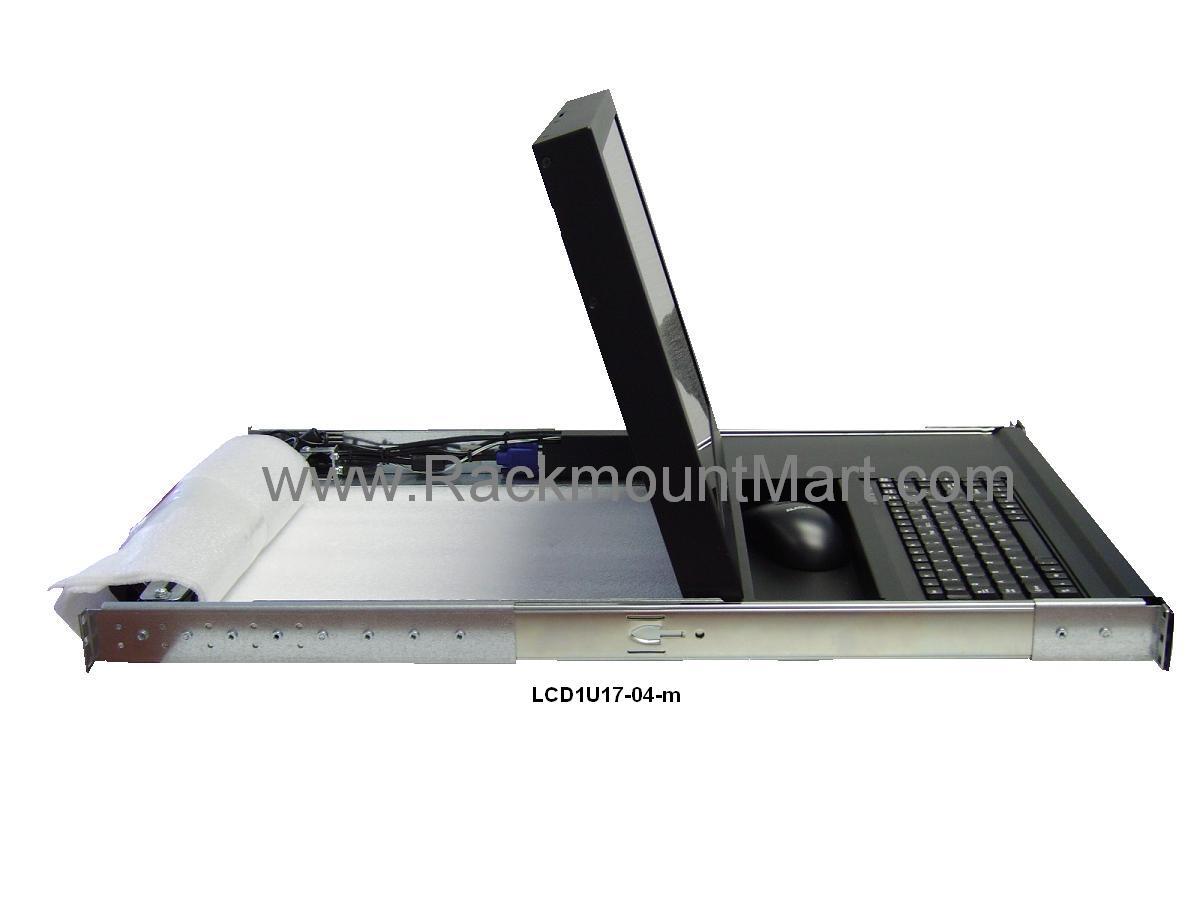

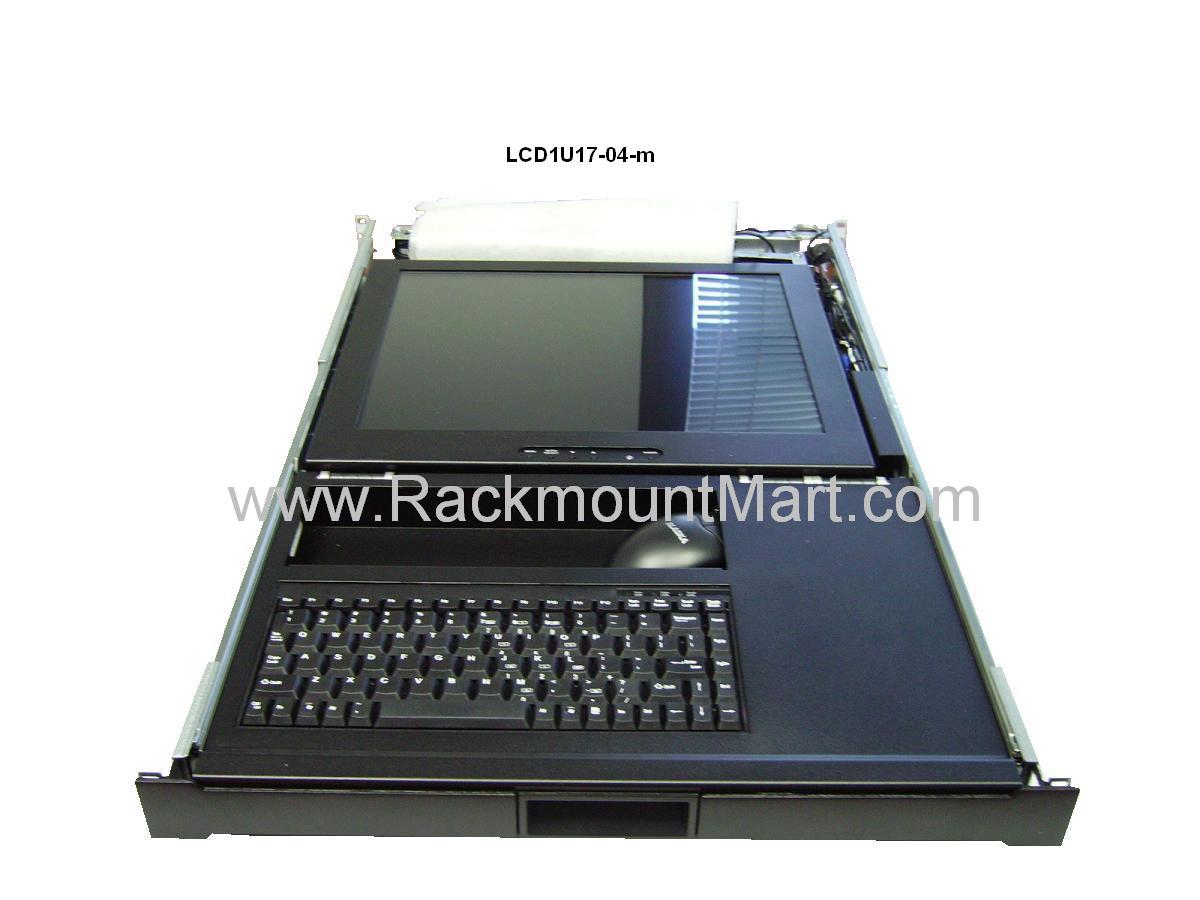

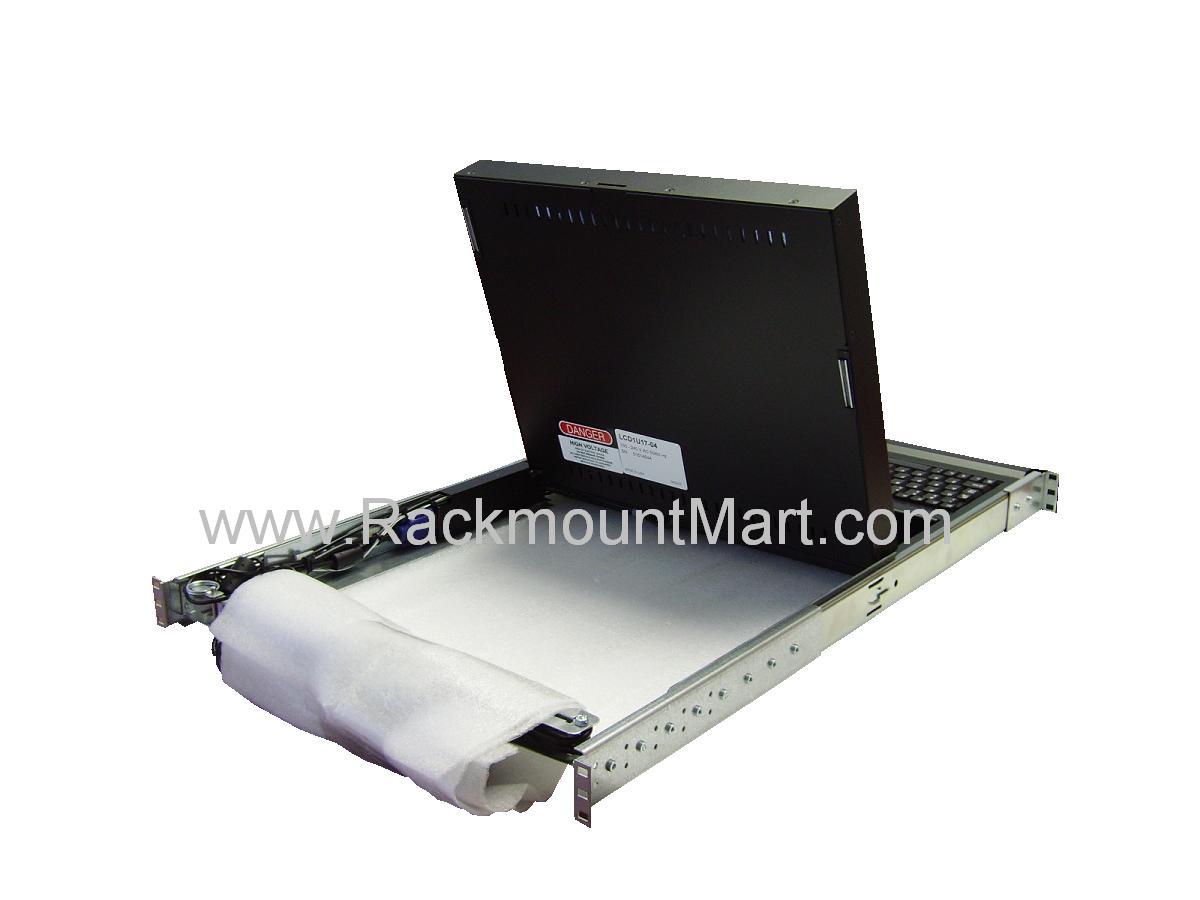

 More photos - (click on the photos for enlarged views)




   17" TFT LCD Panel
Dimensions 19.0" (W) x 1.75" (H) x 25.2" (D)
Environment Temperature Operating: 0 to 50 degrees C
Storage: -20 to 60 degrees C
Humidity Operating: 10% to 85% non-condensing

DISPLAY SPECIFICATIONS

Display Type 17" LCD, 16.7 million colors.
Resolution  1280 x 1024 maximum.
Frequency Horizontal:  31.5 to 80 KHz.
Vertical:     56 to 75 Hz.
Response Time 25 ms typical.
Brightness 250 cd/m2 typical.
Contrast Ratio 1000:1 typical.
Viewing Angle Horizontal: 178 degrees
Vertical: 178 degrees
Input Signal Video: Analog RGB
Sync: H/V Separate (TTL)
Video Connector Signal: 15-pin mini D-sub, detachable
On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), Auto Adjust, OSD Horiz. & Vert. position, Load and Save values.
Power AC Input 90-260VAC
Frequency 50/60 Hz
Power Consumption 60 Watts Maximum
Plug & Play DDC1 and DDC2B

KEYBOARD SPECIFICATIONS

Compatibility IBM AT, PS/2, DOSV
  Key Layout 88/89 keys
Travel distance 3.0  0.3mm
Travel to peak 1.0  0.2mm
Peak force 50  10 gm
Operating temperature -20 to 65oC
Storage temperature 200mA
Operating humidity: 10% to 95% RH
Switch life: 5 million life cycles
Electronic data +5VDC  5% 250mA

Compatibility with KVM TBA

Features :

 -1U high (1.75")

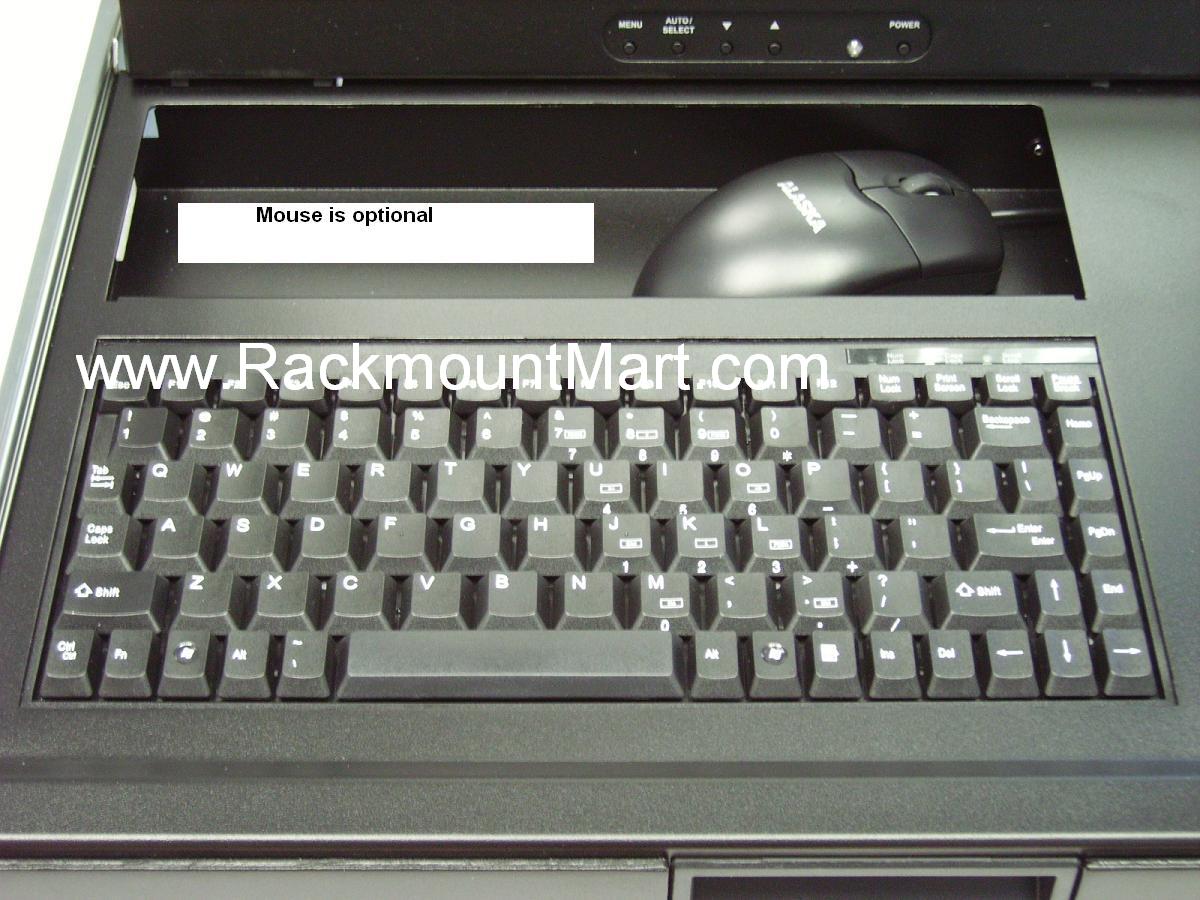

 -users can store and use a mouse
 -Wide horizontal and vertical viewing angles (160 degree)
 -Sunlight LCD and contrast ratio
 -Ball bearing rackmount slides
 -available in both PS/2 and USB models
 -PS/2 model is compatible with all PS/2 & UNIX computers (w/ 4-ft cable with female 6 pin
  miniDIN keyboard connector )
 - USB model is compatible with all USB-enabled PS/2, MAC or Sun computers
  (w/ 4-ft cable 2/ female USB Type B connector )


Ordering information :
  Part # Description
 LCD1U17-04
 Price:$1021
1U Rackmount 17"  LCD Monitor Keyboard Drawer with Standard Keyboard & mouse area with PS/2 interface
 LCD1U17-04-ck
 Price:$1208
1U Rackmount 17"  LCD Monitor Keyboard Drawer with  Cherry Keyboard & mouse area with PS/2 interface
-M     Price : $20  Add Optical Mouse
-R      Price : $25  Add retainers
-L      Price : $25  Add Lock
-C     Price : $25  Add Lock  and retainer
-U     Price : $20  Add USB option for keyboard
-AV  Price : $110  Add S-Video &Composite Video inputs
