4U Rackmount Chassis : Part
# RM4021 ( Military Grade )
|
*Click to
enlarge
Product Sheet
|
19" Rackmount
Standard |
Construction: |
Material of Front Bezel |
Military Type -
1.6mm SECC Zinc-Coated Steel |
Material of Handle |
Military Type -
1.6mm SECC Zinc-Coated Steel |
Material of Main Chassis |
Military Type -
1.6mm SECC Zinc-Coated Steel |
|
Color: |
Black |
RoHS Compliance
: |
Yes |
Motherboard Size: |
Support 12" x 13" ATX M/B |
Drive Bays: |
1 x 3.5" Open Bay (FDD)
& 2 x 3.5" Hidden Bay (HDD) & 2 x 5.25"
Open Bay (CD-ROM Drive) |
Power Supply: |
Single or
Redundant power supply |
Cooling Units: |
1 x 120mm Fan |
Switches: |
Power ON/OFF, System & Alarm Reset |
Indicators: |
LEDs for Power ON/OFF, HDD, Fan & Alarm |
Front connector: |
Front USB 2.0 x 2 Connector |
Air Filter: |
Removable & Washable |
Speaker: |
0.4W Built-In |
Security: |
Front Bezel
|
Dimensions: |
18.95 x 6.97 x 15.4inch
(W x H XD ) |
|
|
Introduction
This
Military RM4021 rackmount chassis is designed to
withstand the toughest and compact environment. It is 4U
height with only 15.4" in depth and special features of front
USB access, ball-bearing cooling fan, and system sensor board
to enhance functionality and usability for critical missions
and applications.
Features
- Compact 4U Rackmount 15.4" Depth
- 1.6mm Steel Body Chassis
- Spill-proof Bezel with Lock
- Shock Absorbing Drive Cage
- Expansion Card Center Lock Crowbar
- Front Access USB2.0 x2
- 120mm x1 Cooling Fan
- Power and HDD LED
- Removable Air Filter
- Power and Alarm Reset Switch
- Fan and Temperature Monitor Optional
- Optional 14 Slots Backplane

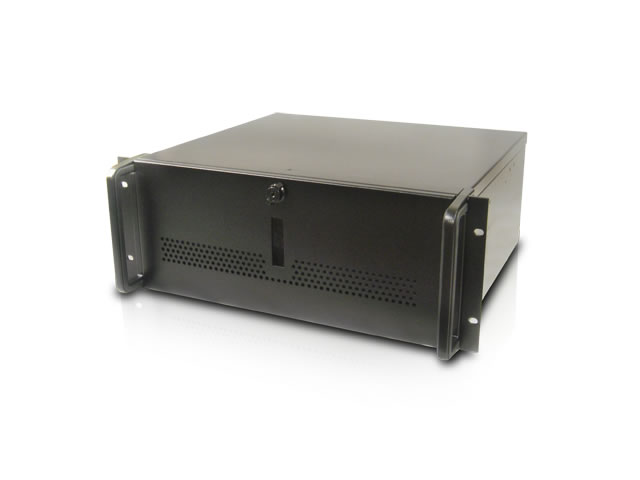

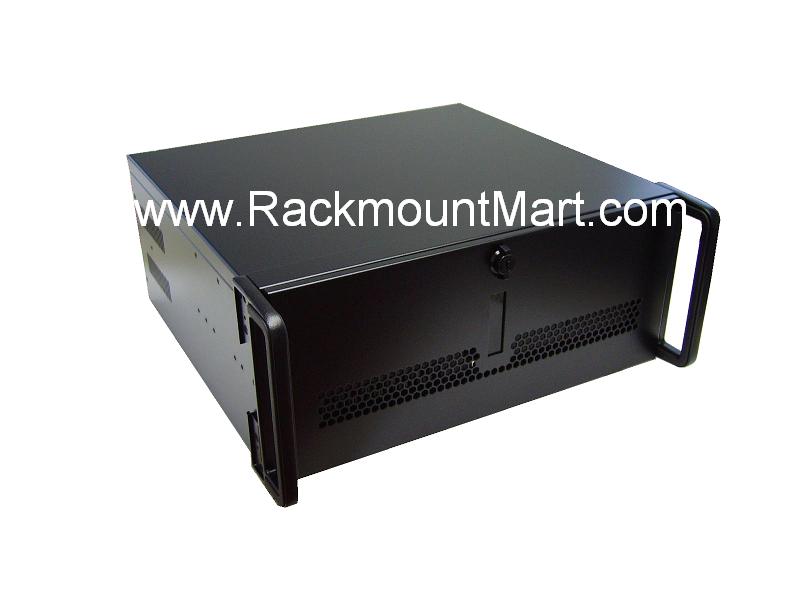

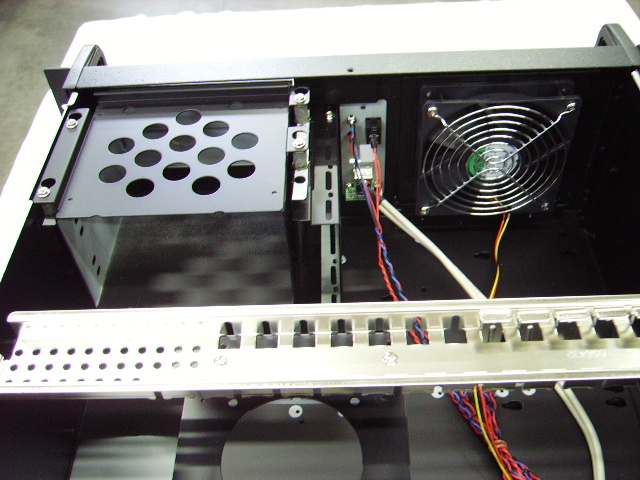

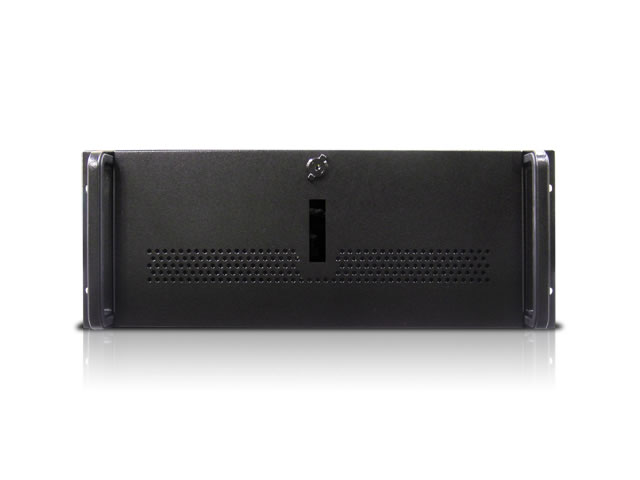

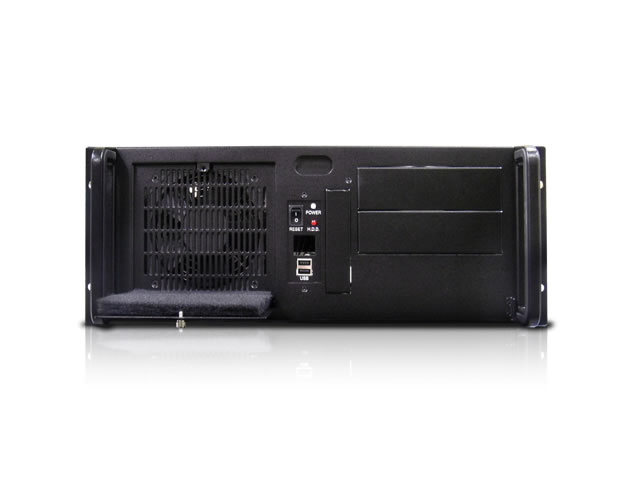

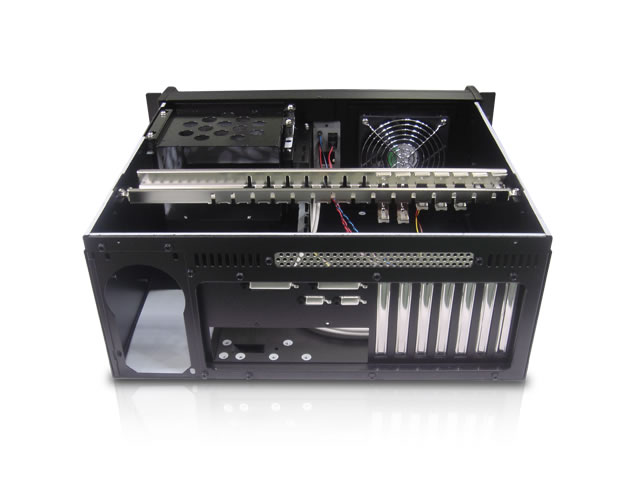

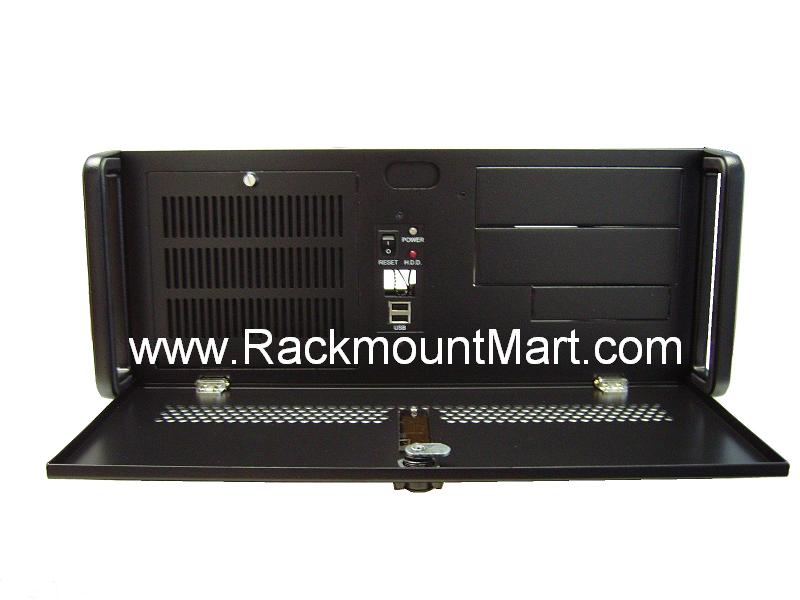

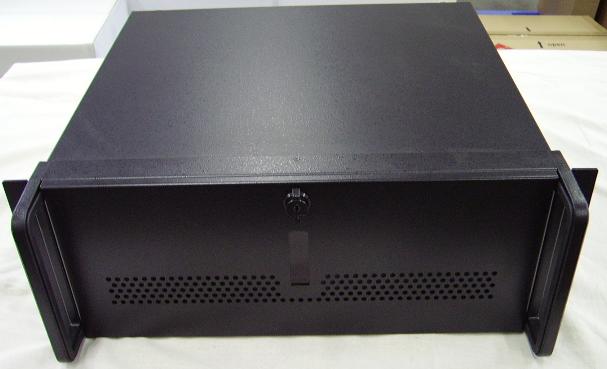

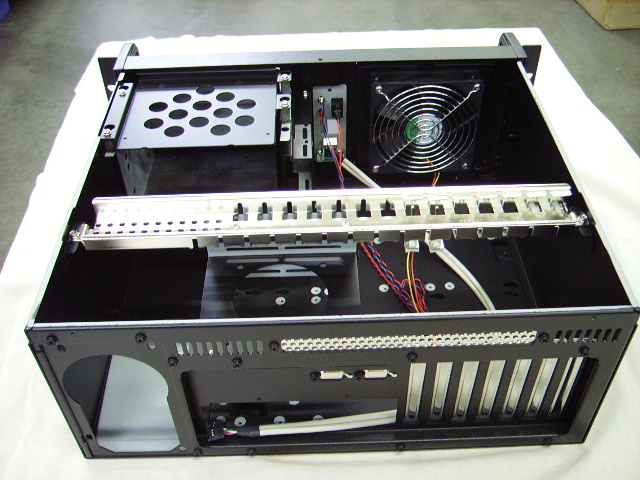

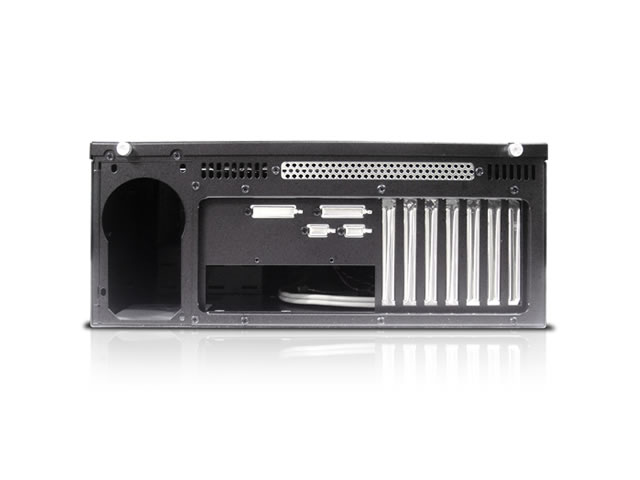

Gallery
|
