                        2U Rackmount Chassis :  Part # RM2034

*****This model is discontinued .  Learn more about replacement model RM2004   *****





19" Rackmount Standard
Construction: 1.6mm SECC Zinc-Coated Steel
Color: Black (Standard) or Custom
Motherboard Size: Support Size max to 12" x 10"
Drive Bays: 1x Slim CD Drive & 5.25" Drive
& 2x 3.5" HDD(internal)
Drive Interface: SATA, U320 SCSI, or SAS
Power Supply: Single PS2 size
Cooling Units: 1 x 80mm Fan
Expansion Slot: 2x Front Side USB Port
3 horizontal Low Profile Slots
Indicators: LEDs for Power ON/OFF and HDD
Buttons: Power ON/OFF, System & Alarm Reset
Dimensions: 19" x 3.5" x 15"(W x H x D)
Product Applications: Web Server, Proxy Server, VPN Gateway, High-End Workstation, Print Server


Features
- Compact 2U Rackmount 15" Depth
- 1.6mm Steel Body Chassis
- Front Access USB2.0 x2
- 80mm Cooling Fan
- Power and HDD LED
- Air Filter
- Power and Alarm Reset Swith

Introduction
RM2034 military grade rackmount chassis is designed with ultra compact size for toughest and compact environment. The RM2034 is 2U height with only 15" in depth and special features of front USB access and 80mm cooling fan to enhance functionality and usability for critical missions and applications.

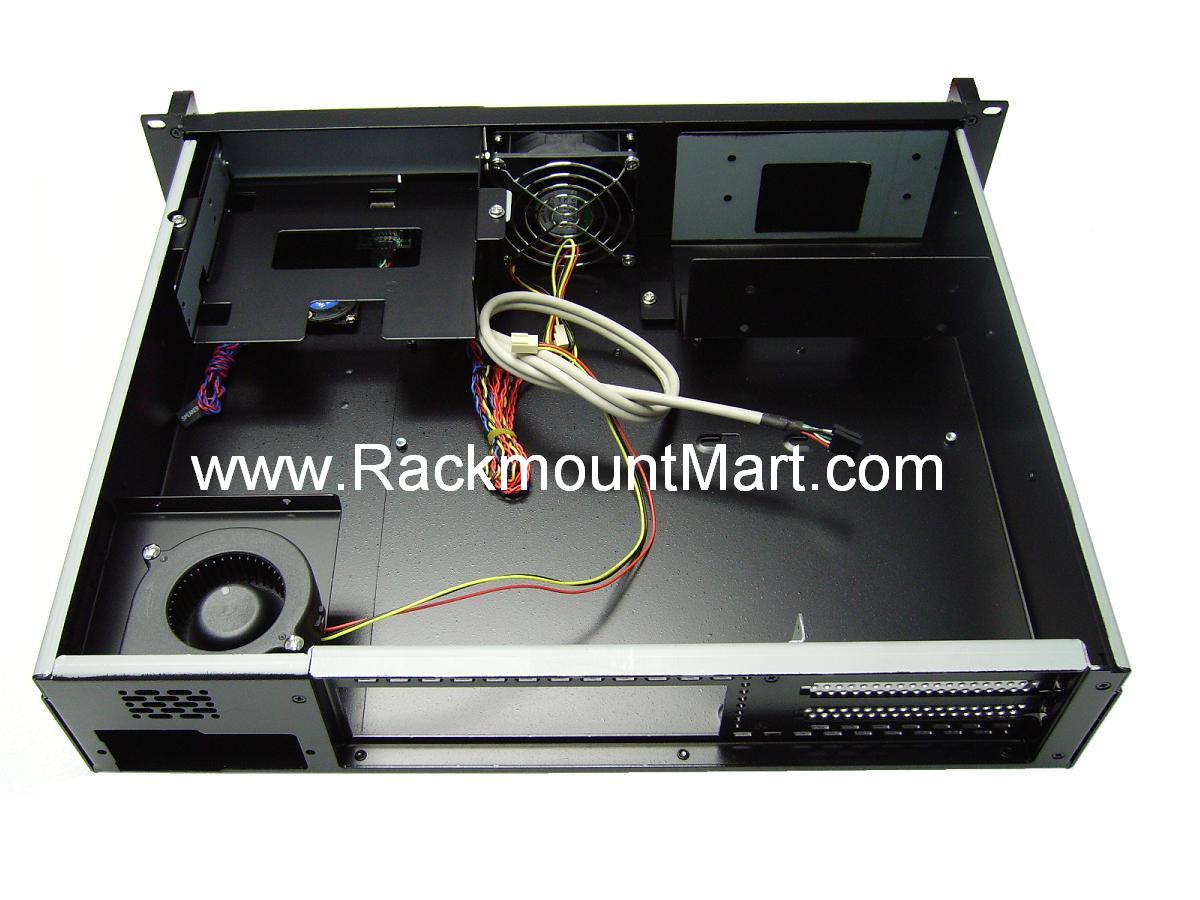

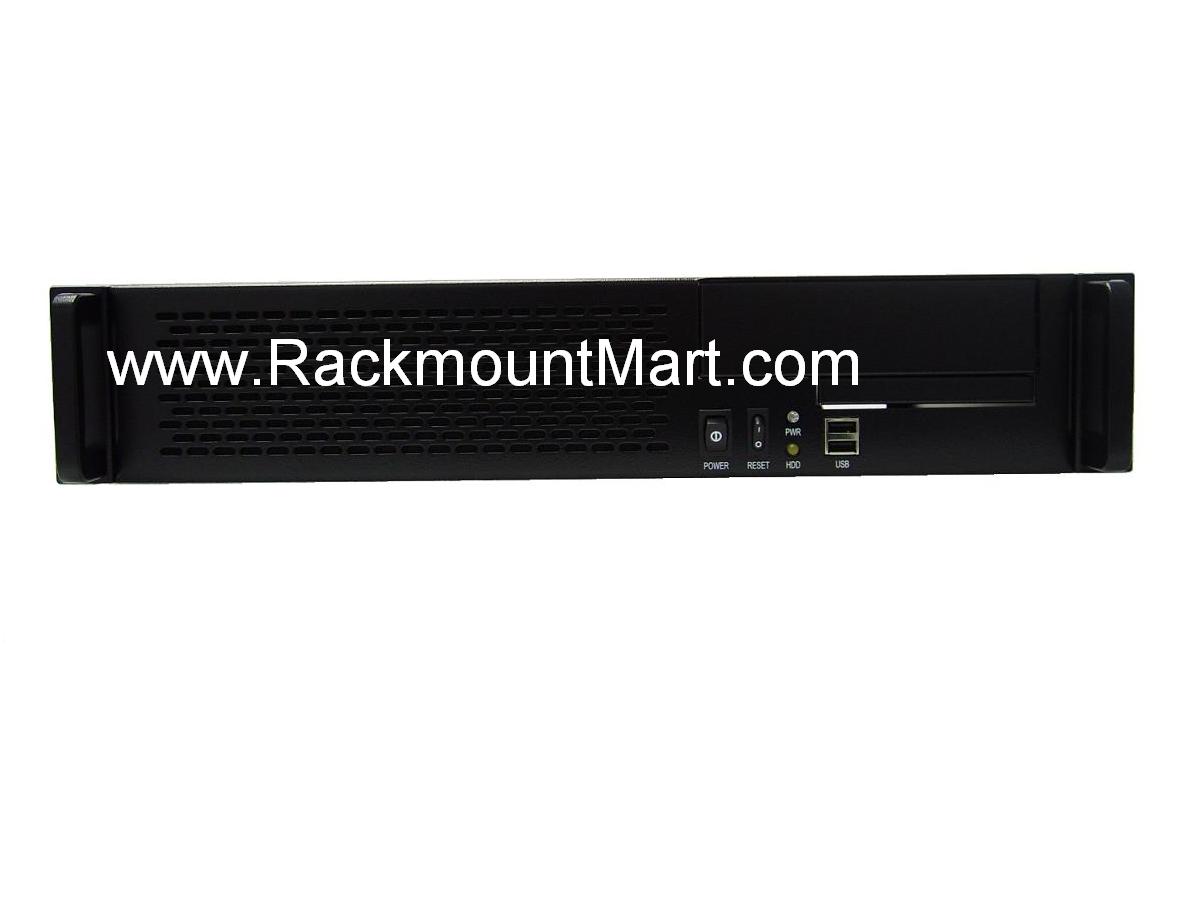

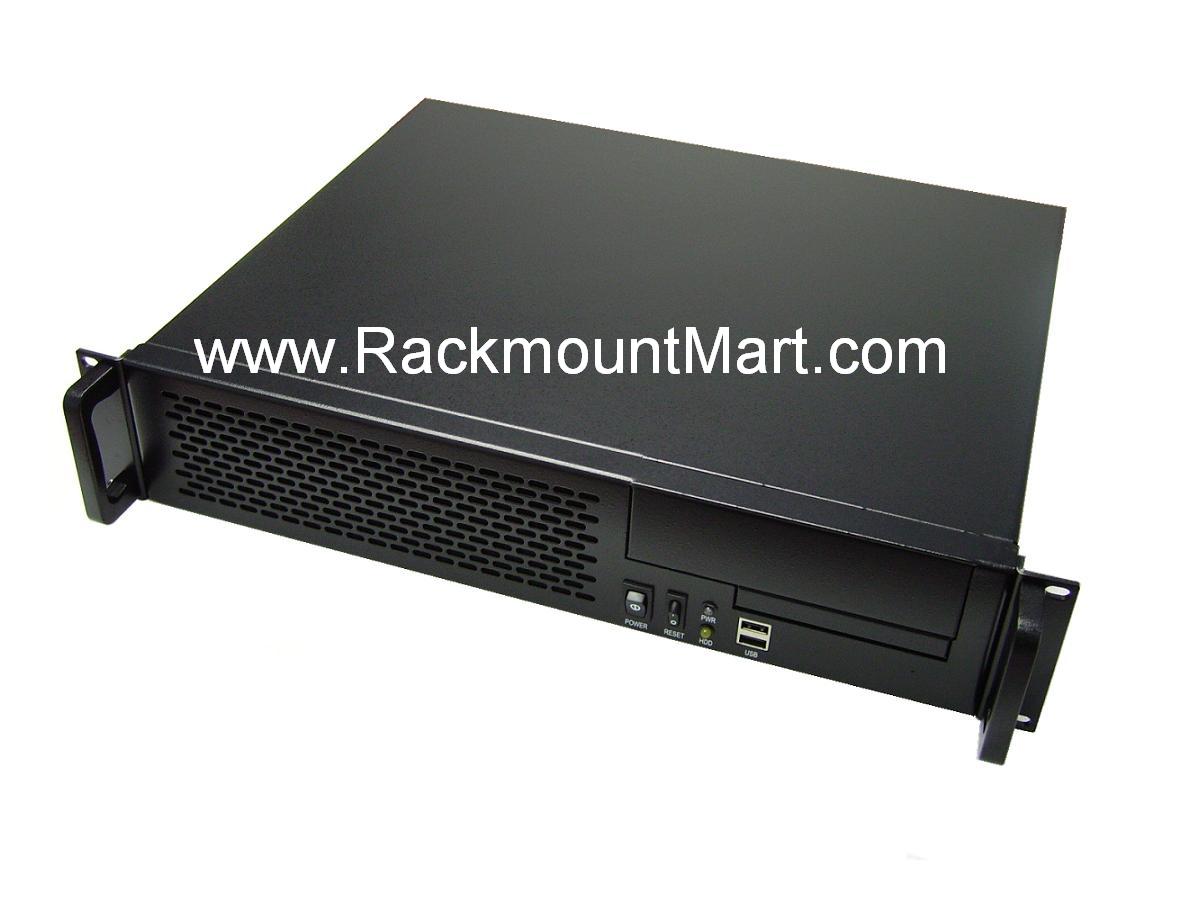

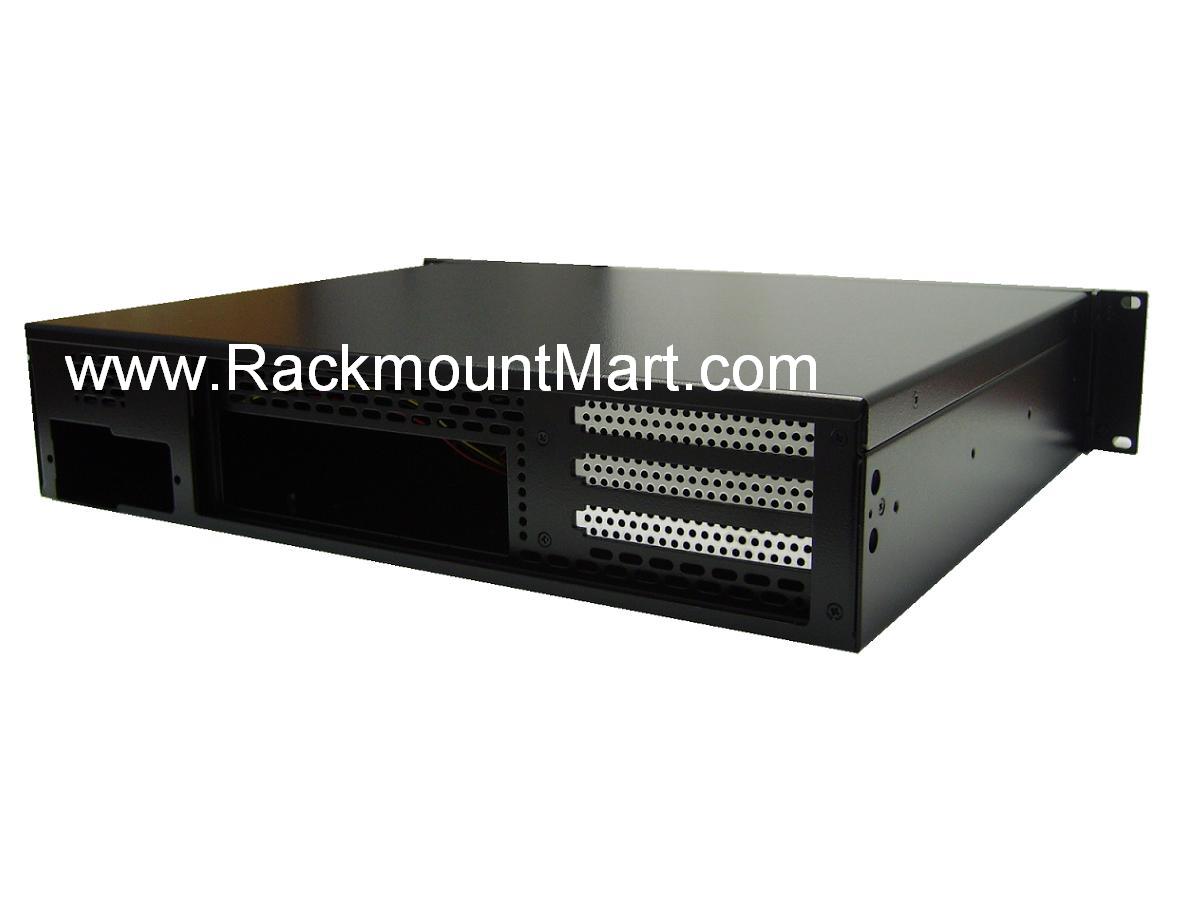

More photos - (click on the pictures for enlarged view)




Ordering information
Part Number  Description
RM2034  2U Rackmount Chassis,  Black, Case only.
RM2034-25  2U Rackmount Chassis,  Black, w/ 250W P.S.
RM2034-35  2U Rackmount Chassis,  Black, w/ 350W P.S.
RM2034-40  2U Rackmount Chassis,  Black, w/ 400W P.S.
