SAS / SATA JBOD : Part # TA5002

                   Tower JBOD 5x3.5" SATA HDDs, Dual-channel Disk Array Enclosure with 200W
                                        with Riser Card and One Cable






    **Click on pictures to enlarge






   Click here to download the BOIS

   Click here to download the Drivers
  Introduction

  The TA5002 is a external SATA (eSATA) Storage Array RAID Subsystem with built-in Port Multiplier and eSATA host interface, supports both 1.5 Gb/s and 3Gb/s Serial ATA transfer rates. Connected to a eSATA PCI-X/PCI card, this subsystem gives your more than 10 times the data transfer speed of an average Network-attached storage (NAS) and massive hard drive space capability. It supports RAID 0, 1, 5, 0+1, JBOD functions, providing a protected, easy to manage, cost effective storage solution.
  Features
  • RAID 0, 1, 0+1 and 5 to protect data and ensure accessibility; Self-healing storage with auto-rebuild and hot spare functions
  • Over 10 times faster average NAS system; Supports High Definition video stream (RAID0 mode); Sustained data transfer throughput up to 230 Mbytes/sec*
  • Supports five SATA/SATA II hard drives (not included)
  • Hard drive temperature monitoring and alarm system; Five hot-swappable SATA hard drive trays with special designed power-off and lock mechanism to take offsite as a safe backup
  • Plug and play; Easy to setup and manage; Host controller included
  • Operating system independent, supports Windows, Linux, MAC
  OS Support
  • Windows 2000, XP, 2003, VISTA (RAID0, 1, 0+1, 5, JBOD)
  • Mac OS X 10.4.x or later (JBOD, RAID0, RAID10 via OS), Mac OS X 10.3.9 (RAID 5)
  • Linux (RAID via OS)

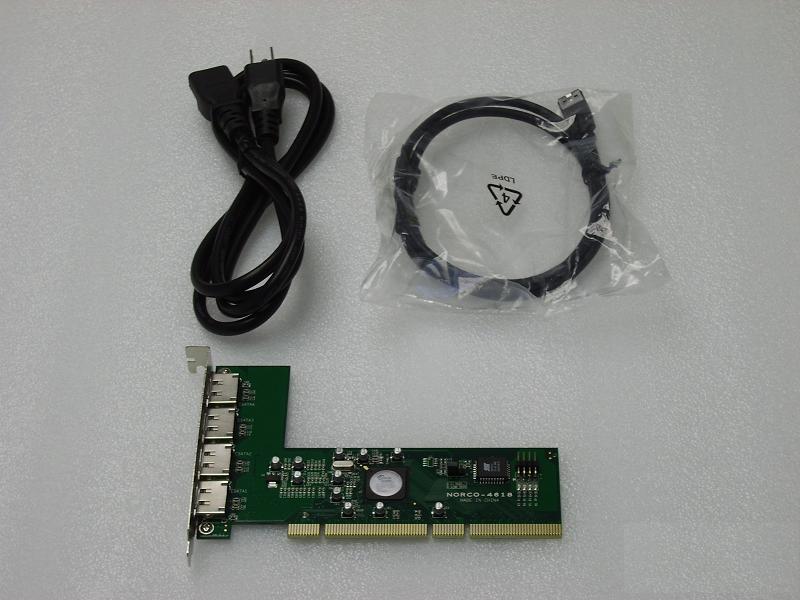

  Package Contents
  • TA5002 RAID system tower

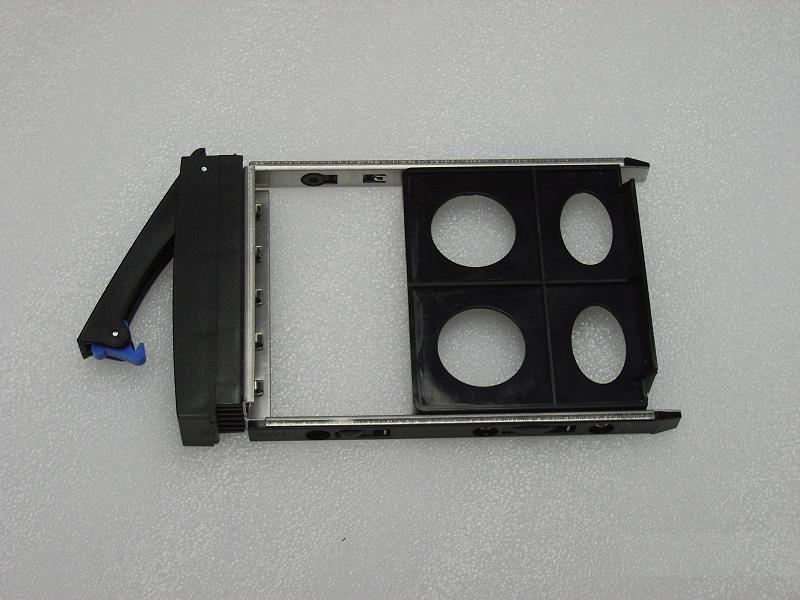

  • Five SATA II drive trays
  • One external SATA II cable
  • One eSATA PCI/PCI-X controller
                                             Technical Specification
  Form Factor   Compact 5-Drive Tower
  HDD Interface   SATA I / SATA II 3Gb
  Host Interface   eSATA, 3Gb/s
  RAID Feature   Non-RAID
  Number of Disks   Up to 5
  Performance   Up to 230 MB/Sec
  AC Input   115-240V
  Cooling fan   90mm ball-bearing fan x 1
  Power Supply   Single 200 Watt
  Dimensions   6.5: x 9.8" 8.27"
