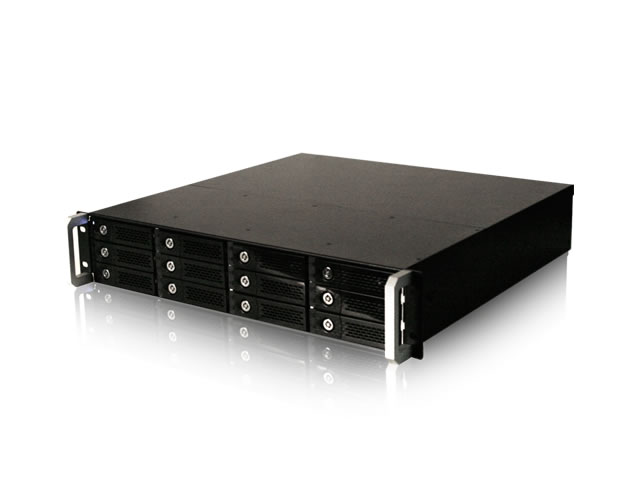

SATA JBOD :  Part # SS2008

     **Click on pictures to enlarge

  PCI-E Bus Connection

     The higher speed of PCI Express also easily handles advanced formats such as full resolution 1080i HD, 720P, HDV and SD video Capture and Playback Mode. Only high speed PCI Express SAS/SATA RAID Card HBA ensures RAID Protection for your Data, Can easily configured as a RAID Level 0,1,5,6,10, capable of providing high performance to support your Video Application
    SS2008 is 8 Bay SAS Expander JBOD System. The SS2008 simplifies setup and provides cost effectiveness without compromising performance. It is design to be used in editing with Apple Final Cut Pro® and Adobe® Premiere® Pro CS4 video editing software, compatible with video capture cards from AJA, Blackmagic Design, Bluefish444 and Matrox. Designed for use with the PCI-E RAID controller, and can easily be configured as a RAID 0, 1, 5, 6,10, or JBOD, capable of providing performance, fault-tolerance and expansion necessary to support your application.

  • Up to  16 TB of for each SAS Expander Box
  • 3 MiniSAS 8088 connectors
  • SAS Expansion ready, daisy chain multiple systems
  • 8 hot-swap 3.5 inch SAS/SATA II drive modules
  • Low noise cooling fan ensures data integrity
  • Universal power supply: 120-240VAC Universal auto switching
  • Unique design, aluminum enclosure finished
  • Mac OS X , Windows® & Linux compatible
  Compatible with Popular Video Software
  & Operating System

     The SS2008 is designed to connect with the PCI-E RAID controller, providing RAID5 level protection, yet it is fast enough for a single 8-drive SAS Expander JBOD System unit to support multi-track audio with Protools and multi-stream video formats include DV, HDV, DVCPRO HD, ProRes 422, uncompressed SD, uncompressed 8-Bit HD & Uncompressed 10-bit capture and playback Mode. With speed over 600MB/Sec, this system is the best storage solution for digital content creators, digital audio Production, video post-production, graphic design, digital photography, pre-press, D2D backup, video surveillance and game programming. Also, it is equipped with studio-grade low noise cooling system, making it acceptable and compatible with any studio control room.
  Connection Diagram
                                                                **Click on pictures to enlarge
  Video Capture & Playback Supported
  • 8 bit Uncompressed HD 1080i
  • 10 bit Uncompressed SD
  • 8 bit Uncompressed SD
  • DVCPRO HD, HDV, DV & Prores
  Qualified RAID Controller Cards
  • ATTO - R380 PCI-e (SAS/SATA)
  • Areca 1680X PCI-e (SATA/SAS)
  • Areca 1680IX PCI-e (SATA/SAS)
  • ighpoint - 4322 PCI-e (SAS/SATA)

  • Areca 1680X PCI-e (SATA/SAS)
  • Areca 1680IX PCI-e (SATA/SAS)
  • ATTO - R380 PCI-e (SAS/SATA)
  • Highpoint - 4322 PCI-e (SAS/SATA)
Technical Specification
  Host Interface   1 x miniSAS Host, 2 x manias Expander Ports
  HDD Interface   SATA II & SAS
  Data Transfer Rate   SATAII 3 Gbps
  Power Supply   Universal Auto-Switching
  Cooling   Swap Fan Module
  O.S. support   Mac OS X, Windows, Linux
  Daisy Chain Technology:   Expand up to 16 units, spanning up to 128 hard disk drives
