2U 12-Drive miniSAS Rackmount JBOD systems :
Part#  SS2006 / XJ3000-2123

                                  2U Rackmount Storage Chassis, 12 SAS/SATA Hot-Swap bays, 19" depth
                                    Single/Dual (Optional) expander, 500W 1+1 hot-swap redundant 80+

*click on photo for enlarged view

  • Enterprise JBOD
  • High performance, redundancy & connectivity SAS interface supports
  • High performance/availability SAS drives and high capacity/lower cost SATA drives in a single system, the flexibility to reduce total cost of ownership (true mix-and-match of drives in a single enclosure)
  • Two 4-port connectors for host or expansion with automatic port speed detection and negotiation
  • Scalable with expansion ports to couple with business growth
  • Environment monitoring with SEP/SES support
  • Redundant 6G expander modules and power supply, hot-swap drives and fans for high availability and easy maintenance


  • 12 x 6G SAS/SATA hard disk bays with lock
  • 2 x hot-swap blowers
  • Hot-swap 500W 12V high-efficiency redundant power supply module
  • 2 x 24Gb/s Mini SAS ports with single expanders
  • 4 x 24Gb/s Mini SAS ports with dual expanders (Optional)
  • Serial port for console monitoring
Number of Expander Single / Dual (Optional)
Expander Chip LSISAS2x28
Host Interface Single Mini SAS 4x connector
Expansion Interface Single Mini SAS 4x connector
Transfer Bandwidth 2,400MB/s per connector
Drive Interface 3.0/6.0 Gb dual ported SAS,
1.5/3.0/6.0 Gb single ported SATA
Drive RPM Up to 15,000
Form Factor 3.5”, 1” height
Admin/Firmware Upgrade In-band & Out-of-band
Serial port via Hyperterminal
LED Indicators, Audible Alarm Yes
Disk Drive Hot-swap 12-bay
Cooling 2 x hot-swap blowers
Power Supplies 500W 1+1 hot-swap redundant 80+ (Sliver)
Power Entry Dual AC Inlet
Universal A/C Input 100~240V AC full range
Operating Environment Temperature 0ºC to 35ºC
Relative humidity 20% to 80%
Non-operating Environment Temperature -20ºC to 60ºC
Relative humidity 10% to 90%
(W x D x H)
mm: 482.6 x 481 x 88.8
inches: 19 x 19 x 3.5
Gross Weight 23kgs / 50.6lbs (w/ PSU; w/o Rail & Disks)
Packaging Dimension
(W x D x H)
600 x 730 x 288
Cubic Feet 5.2
Reference Container Loading 20' 210
40' 435
40'H 520
Mounting Option Adjust plate or 20” tool-less rail (optional)
Download Product Sheet

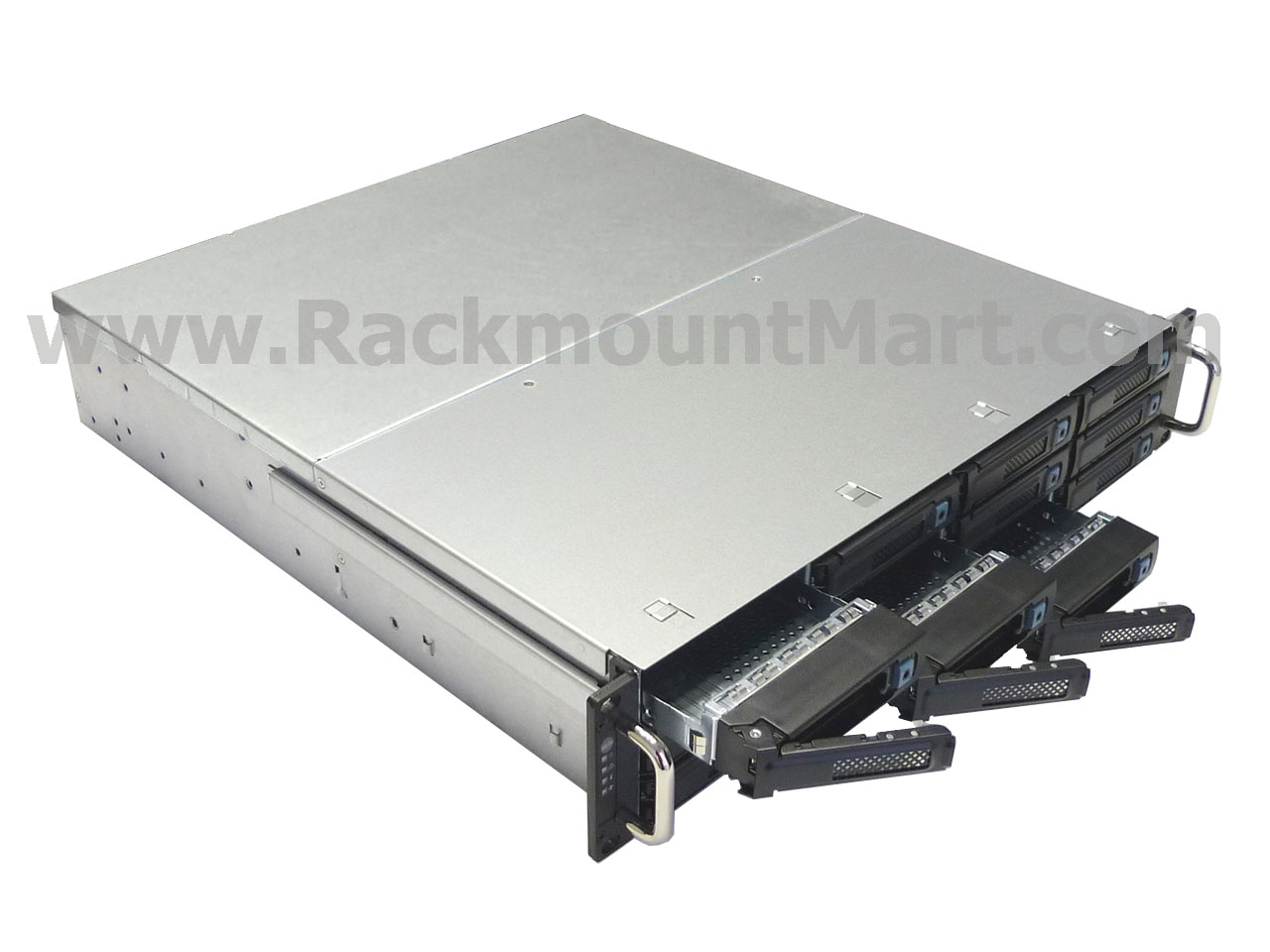

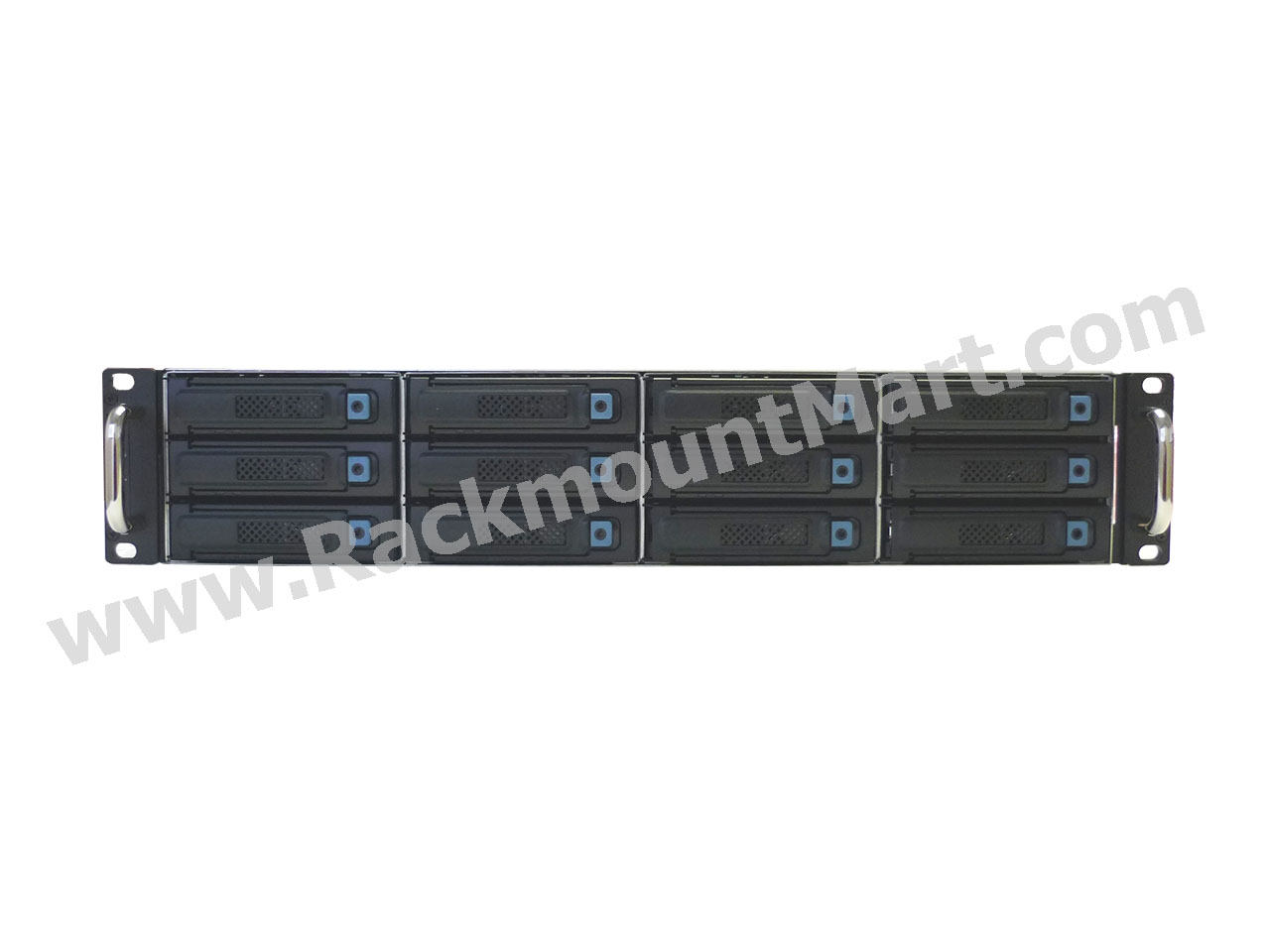

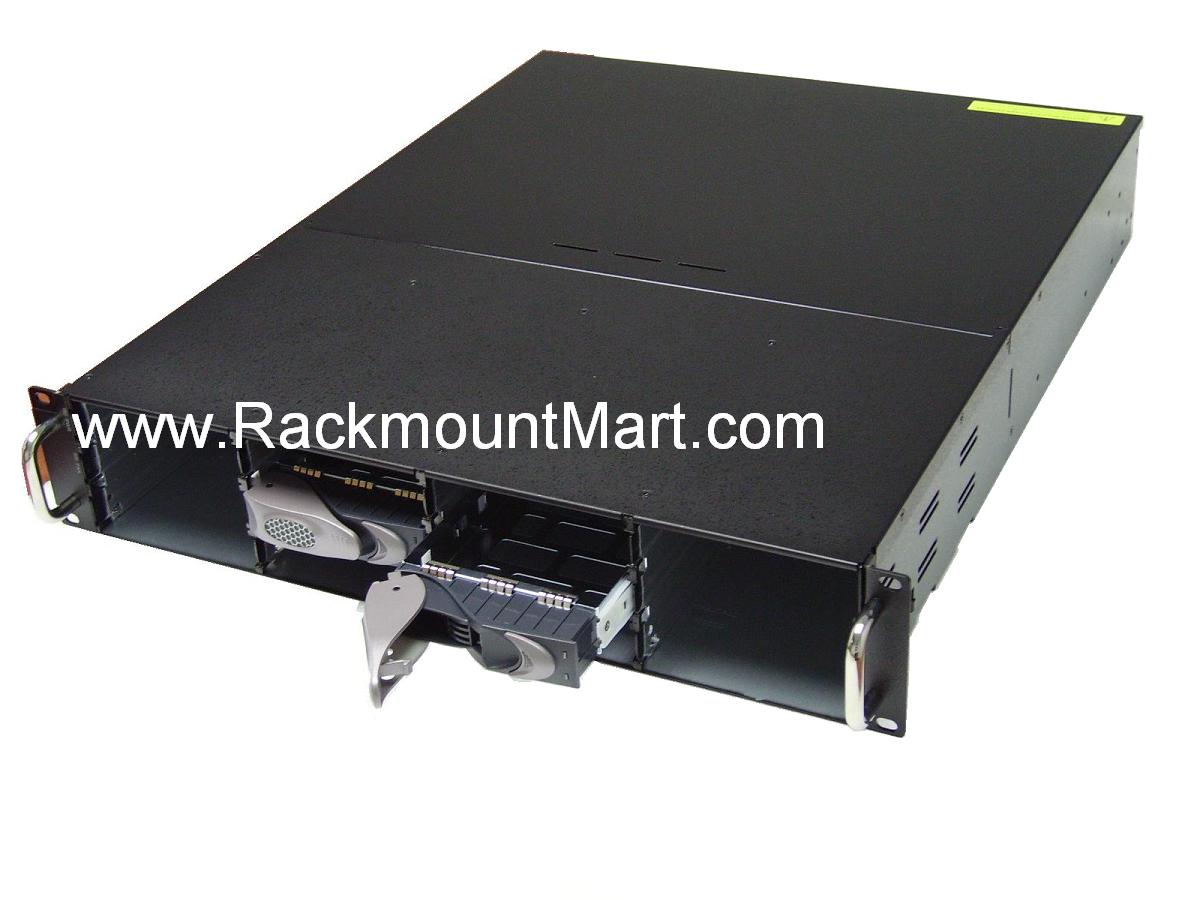

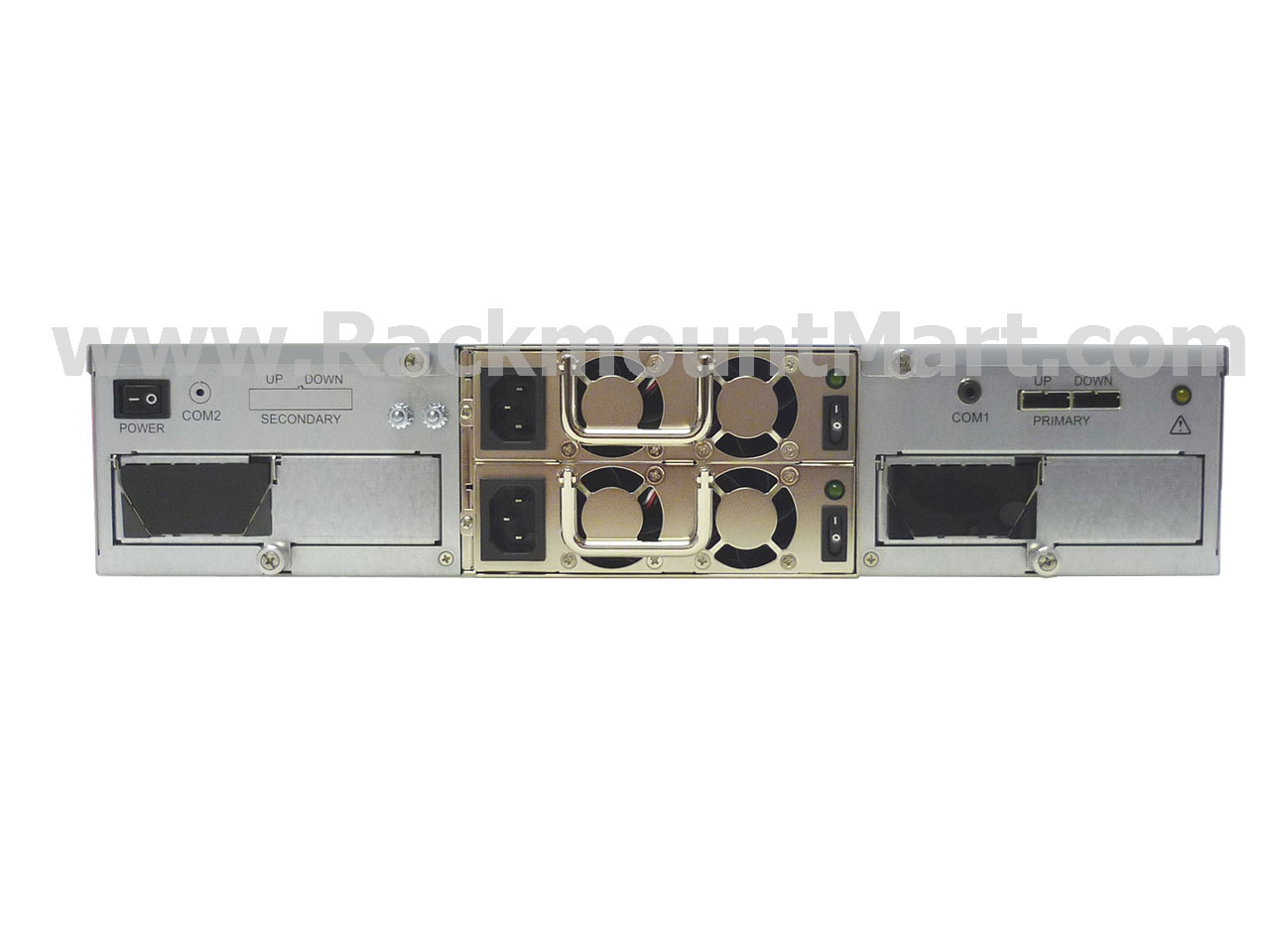

More photos ( Click for enlarged views )

 Ordering Information

Part # Description
 Price : $1,989.00
2U 12-Drive miniSAS Rackmount JBOD systems
