9U Rack Industrial Monitor
Part#  LCDR9U19-02


  SiriusView 9U Rack mountable 19" INDUSTRIAL GRADE A LCD Quad Video Monitor, TAA Compliant
                      With RS-232 / Alarm I/O / VCR in & VCR out / AV / BNC / VGA   Optional DC power input

19" LCD panel

Display type

TFT / LCD active matrix color

Resolutions

1280 x 1024

Contrast ratio

1000 : 1 typical

Brightness

250 cd/ m2 typical

Active area (mm)

376 x 301

Panel color

16.7M

Viewing angle

170° x 160°

Back light

LED

MTBF (hrs)

30,000

Signal input

VGA

Power

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :
Sreen on : Max. 25 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt

                                  Mechanical

Casing Color

Black

Product Dimension

480 x 68.5 x 399 mm /
18.9 x 2.7 x 15.7 inch

Net Weight

9.5 kgs / ( 20.9 lbs )
                                  Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE, RoHS2 , REACH & TAA compliant

Package Content LCD Monitor x 1 ,  6-ft VGA cable x 1, Power adapter X 1, Power cord X 1
 Download User Manual
 Download Product Sheet

      Free Ground Shipping *Click for details

   Front View

                      *click on photo for enlarged view

  Construction

                      *click on photo for enlarged view

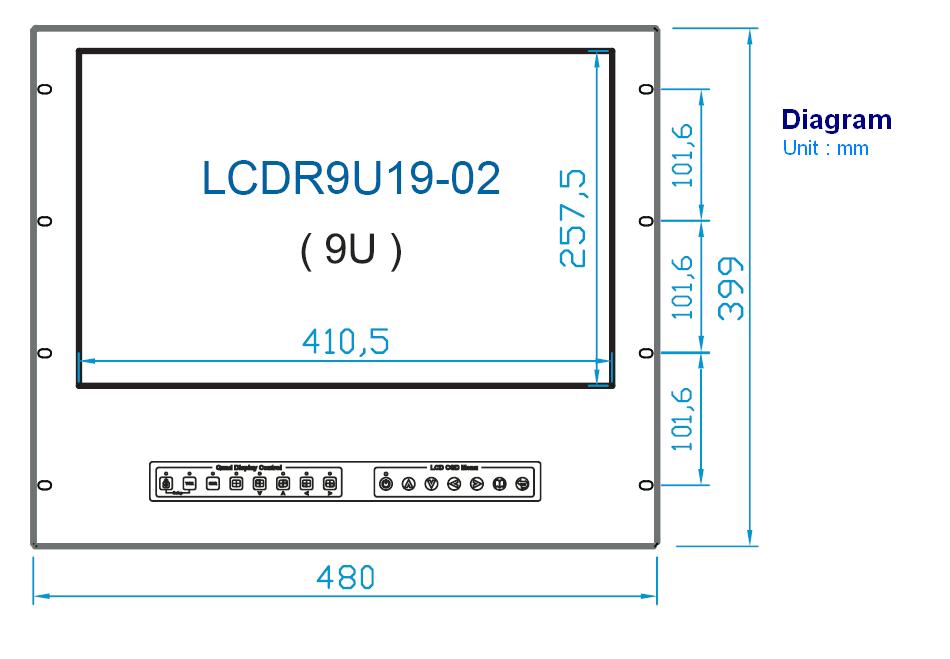

   Front / Bottom / Side Views & Dimensions

                      *click on photo for enlarged view


   Display Features & Benefits :
  • 9U 19" rackmount industrial Grade LCD
  • Built-in Quad Display
  • Ideal for CCTV security & industrial control
   0PTIONS :
  • DC power : 12V / 24V / 48V / 110 ~ 125V

More Photos, click on the following for enlarged view:



Front QD membrane button
-On-screen menu setup in Quad mode
-LCD on-screen menu setup

 Specifications
Item Description
Model Number QD (NTSC) QD (PAL)
Number of Color 16.7 M 16.7 M
Imaging System NTSC PAL
Resolution 1024 x 525 1024 x 625
Refresh Rate 60 50
Video Input Camera Input 1.0 Vpp, 75 Ohm x 4
VCR Input 1.0 Vpp, 75 Ohm x 1
Video Output Live Monitor 1.0 Vpp, 75 Ohm x 1
Loop Through Out 1.0 Vpp, 75 Ohm x 4
VCR Output 1.0 Vpp, 75 Ohm x 1
Auto Gain Control Yes
Time / Date Yes
On Screen Display Yes
Camera Title 8 Character Title
Display Format 2 x Zoom on Playback Yes
QUAD Yes
FULL Yes
SEQUENCE Yes
Dwell Time 0 to 99 Sec Adjustable
Built-in Buzzer Yes
Key Lock Yes

Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan


ORDERING INFORMATION
Part Number  Description
LCDR9U19-02
Price : $1265
9U Rack 19" INDUSTRIAL GRADE A LCD QUAD Monitor DISPLAY
Optional  DC Input Power
-DC12
Price : $215
Add 12V DC input power supply
-DC24
Price : $215
Add 24V DC input power supply
-DC48
Price : $215
Add 48V DC input power supply
-DC110
Price : $357
Add 110V DC input power supply
-DC125
Price : $357
Add 125V DC input power supply
