8U Rackmount 19" LCD MONITOR :
Part# LCDR8U19-02


        SiriusView 8U Rackmount 19" Industrial Grade LCD Display with LED-backlight , TAA Compliant
  Optional S-Video & BNC / Audio / HDMI / Touch Screen / DC Input / NEMA4 / SDI / Multi-display / MIL-type / Lockable connector

Panel: 19" Industrial Grade A LED-backlit LCD panel

Display type

19" Industrial Grade TFT LCD

Resolutions

1280 x 1024

Active area

376 x 301 mm

Contrast ratio

1000 : 1 typical

Brightness

250 cd/ m2 typical

Panel color

16.7 M

Viewing angle

170° / 160°

Back light

LED

LCD MTBF

30,000 hrs

Signal Input

VGA or DVI-D

Power Supply

Input : Auto-sensing 100 to 240VAC,
          50 / 60Hz
Consumption :
Sreen on : Max. 25 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt

Weight

7kgs / 15 lbs

Product Dimension

480 x 53 x 354.8 mm / 18.9 x 2.1 x 14 inch

Temperature 0 to 55 Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non-condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration

Safety Approval

FCC, CE, RoHS2 , REACH & TAA compliant
Package Content LCDR8U19-02 X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1

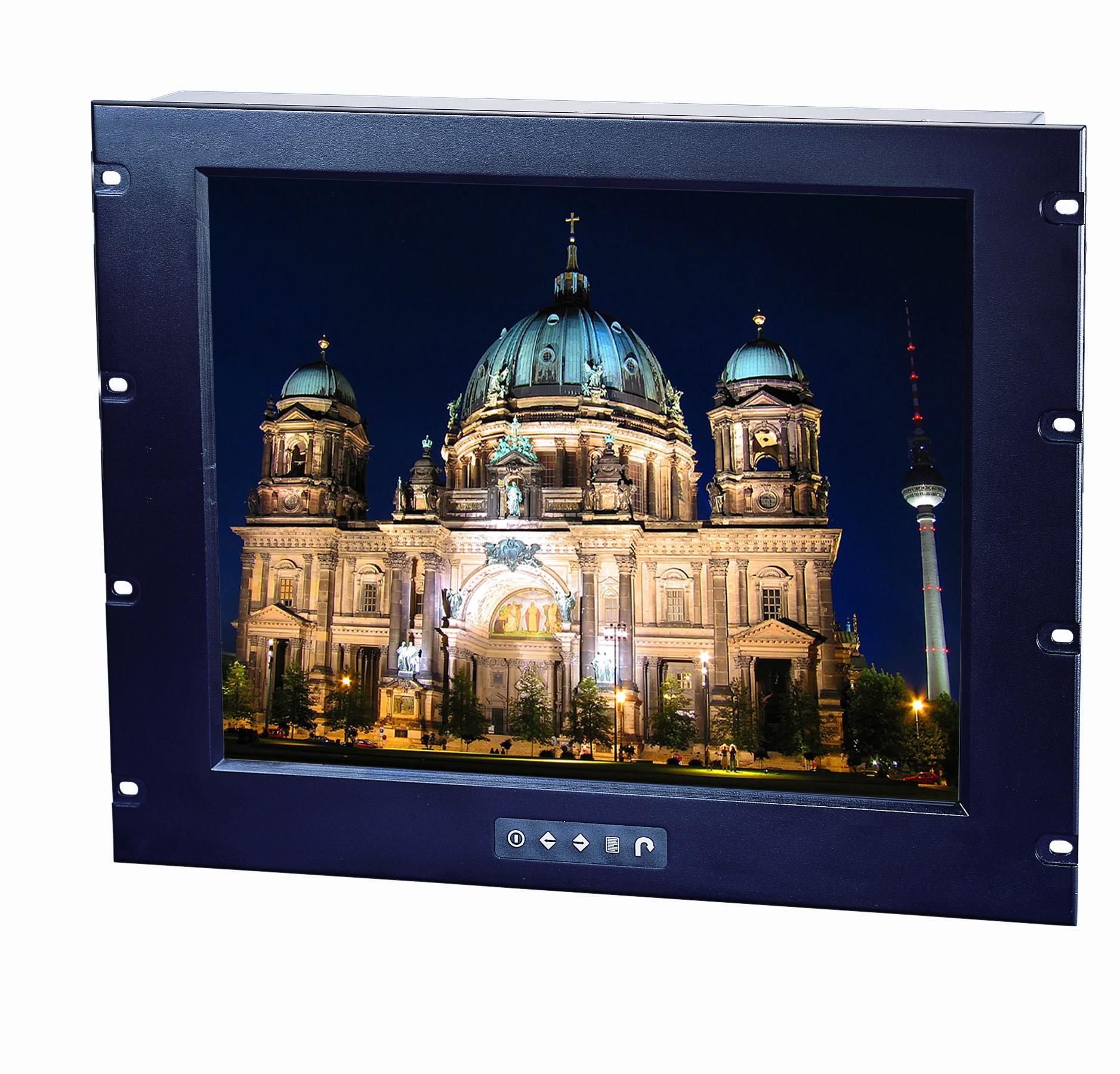

   Front View

*click on photo for enlarged view


 Download Product Sheet
 Download User Manual

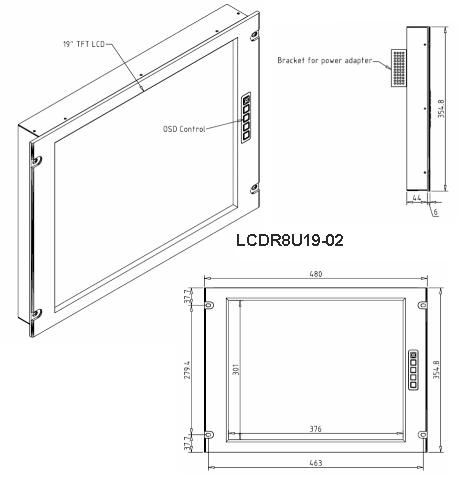

 Download Mechanical Drawing

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

     Free Ground Shipping *Click for details


More Photos, click on the following for enlarged view:



Display Features & Benefits :
  • 8U 19" rackmount Industrial Grade LCD with DVI-D / VGA input
  • This monitor is ideal for CCTV security & industrial control
  • TAA Compliant

Options :

  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 19" Touchscreen : Capacitive, Resistive
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one for AV2.2 upgrade )
  • DC power : 12V / 24V / 48V / 110 ~ 125V
  • MIL-type or lockable connector

     Diagram for  I/O Outlet

Back to top

Optional Peripheral & Accessory

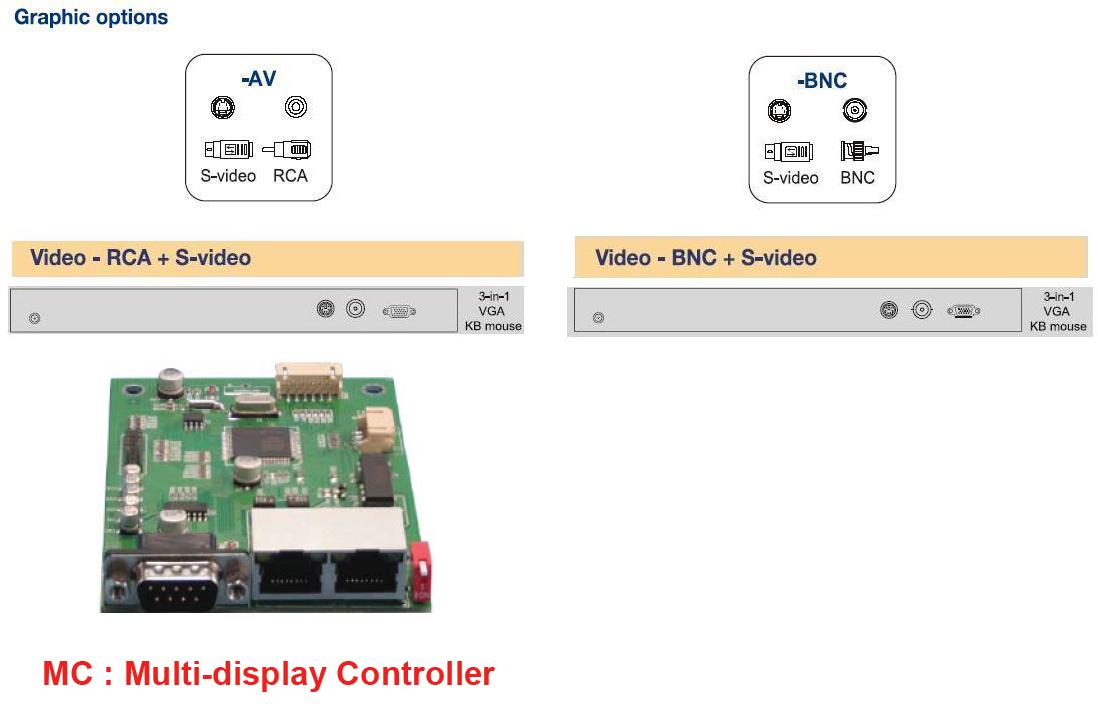

- S-Video + Composite Video (BNC or RCA) / Multi-display
- Touch screen
- DC Power Input ( 12V / 24V / 48V )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan

Ordering information
Part Number  Description
LCDR8U19-02
Price : $568
8U Rackmount 19" Industrial Grade A LED-backlit LCD Monitor
with VGA + DVI-D input.
LCDR8U19-02-AV
Price : $720
8U Rackmount 19" Industrial Grade A LED-backlit LCD Monitor
with VGA + DVI-D + S-Video + RCA (BNC-RCA adapter)  Inputs.
LCDR8U19-02-BNC
Price : $720
8U Rackmount 19" Industrial Grade A LED-backlit LCD Monitor
with VGA + DVI-D + S-Video + BNC Inputs.
LCDR8U19-02-HDMI
Price : $720
8U Rackmount 19" Industrial Grade A LED-backlit LCD Monitor
with VGA + HDMI with speakers + S-Video + BNC + Audio Inputs.
LCDR8U19-02-HDMI-AV
Price : $902
8U Rackmount 19" Industrial Grade A LED-backlit LCD Monitor
with VGA + DVI-D + HDMI + S-Video + BNC Composite Video + Audio with Speaker
Optional NEMA4 / IP65
-IP65
Price : $129
Add NEMA4 / IP65 Protective Glass
Optional Video/Audio Inputs
-SDI
(Upgrade from LCDR8U19-02)

Price : $486
with VGA + DVI-D + HDMI w/ speaker + 3G / HD / SD-SDI Download Spec Sheet
-SDI
(Upgrade from LCDR8U19-02-HDMI-AV)

Price : $314
with VGA + DVI-D + HDMI + S-Video + BNC Composite Video + Audio with Speaker + 3G / HD / SD-SDI Download Spec Sheet
-MC
Price : $93
Add Multi-display control
( VGA + DVI-D + Multi-Display Control )
Download Spec Sheet
Optional DC power
-DC12
Price : $171
Add 12V DC power supply
-DC24
Price : $171
Add 24V DC power supply
-DC48
Price : $171
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply
Optional Touch Screen
-TRS
Price : $271
Add resistive touch screen + Serial controller
-TRB
Price : $271
Add resistive touch screen + USB controller
-TCS
Price : $457
Add capacitive touch screen + Serial controller
-TCB
Price : $457
Add capacitive touch screen + USB controller
Optional Connectors For DC power only
-MD
Price : $93
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $143
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $36
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $36
Add Lockable USB jack Download Spec Sheet
