Rack Mountable 19" Widescreen LCD with LED-backlit Panel Monitor :
Part#  LCDR7U19-02


 SiriusView 7U Rack Mounted LCD : Industrial Grade A Widescreen 19 " LCD Monitor Panel, TAA Compliant
                              Optional HDMI / S-Video & Composite Video ( RCA or BNC ) / Touch Screen / DC Input power

19" Widescreen LCD w/ LED-backlit panel

Display type

Industrial Grade 19" Widescreen TFT LCD panel

Resolutions

1440 x 900

Contrast ratio

1000 : 1 typical

Brightness

300 cd/ m2 typical

Active area (mm)

408 x 255

Panel color

16.7M

Viewing angle

160° x 160°

Back light

CCFL

MTBF (hrs)

50,000

Signal input

VGA or DVI-D

Power

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :
Sreen on : Max. 25 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt

                                  Mechanical

Casing Color

Black

Product Dimension

480 x 58 x 310 mm /
18.9 x 2.3 x 12.2 inch

Net Weight

5.8 kgs / ( 12.8 lbs )
Package Content LCD Monitor x 1 ,  6-ft VGA cable x 1, Power adapter X 1, Power cord X 1
                                  Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE, RoHS2 , REACH & TAA compliant

 Download User Manual
 Download Product Sheet
Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

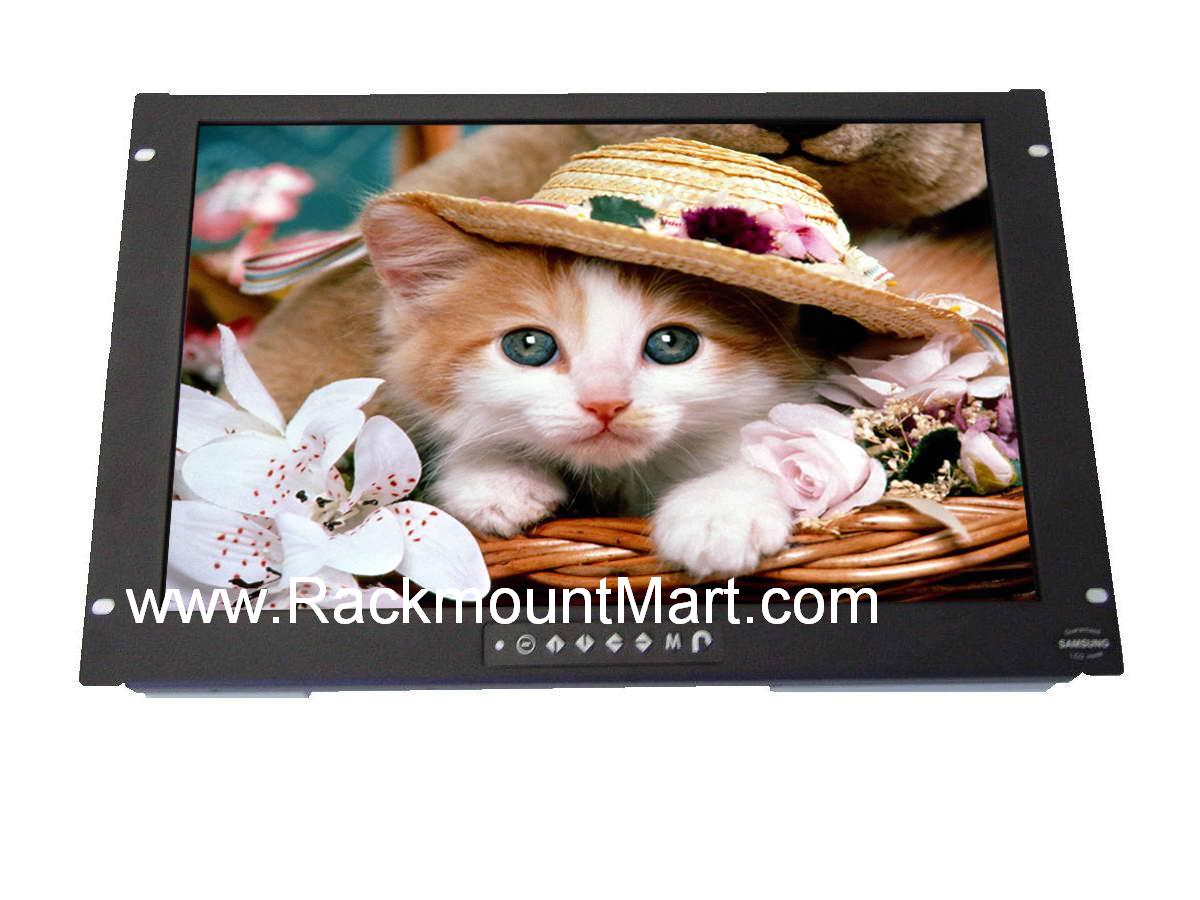

  Front View

  Construction


*click  for enlarged view

   Front / Bottom / Side Views & Dimensions


*click for enlarged view

   Free Ground Shipping *Click for details


More Photos



   DISPLAY BENEFITS :
  • 7U rackmount 19" widescreen LCD with DVI-D / VGA input
  • 1440 x 900 high resolution
  • Ideal for CCTV security & industrial control
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 19" Touchscreen : Capacitive, Resistive
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one for AV2.2 upgrade )
  • DC power : 12V / 24V / 48V / 110 ~ 125V
  • MIL-type or lockable connector

     Diagram for  I/O Outlet


Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan



Ordering information
Part Number  Description
LCDR7U19-02
Price : $553
7U Rackmount 19" Widescreen Industrial Grade A TFT LCD Monitor
with VGA + DVI-D
LCDR7U19-02-BNC
Price : $705
7U Rackmount 19" Widescreen Industrial Grade A TFT LCD Monitor
with VGA + DVI-D + BNC + S-Video + Audio
LCDR7U19-02-HDMI-BNC
Price : $705
7U Rackmount 19" Widescreen Industrial Grade A TFT LCD Monitor
with VGA + HDMI w/ speaker + BNC + S-Video + Audio
LCDR7U19-02-HDMI-AV
Price : $887
7U Rackmount 19" Widescreen Industrial Grade A TFT LCD Monitor
with VGA + DVI-D + HDMI + BNC + S-Video + Audio w/ speaker
Optional NEMA4 / IP65
-IP65
Price : $129
Add NEMA4 / IP65 Protective Glass
Optional Video/Audio Inputs
-SDI
(Upgrade from LCDR7U19-02)

Price : $486
With VGA + DVI-D + HDMI w/ speaker + 3G / HD / SD-SDI input Download Spec Sheet
-SDI
(Upgrade from LCDR7U19-02-HDMI-AV)

Price : $314
With VGA + DVI-D + HDMI + BNC + S-Video + Audio w/ speaker + 3G / HD / SD-SDI input Download Spec Sheet
-MC
Price : $93
Add Multi-display control
( VGA + DVI-D + Multi-Display Control )
Download Spec Sheet
Optional  Touch screen
-TRS
Price : $270
Add Resistive touch screen + Serial controller
-TRB
Price : $270
Add Resistive touch screen + USB controller
-TCS
Price : $457
Add Capacitive touch screen + Serial controller
-TCB
Price : $457
Add Capacitive touch screen + USB controller
Optional  DC Input Power
-DC12
Price : $171
Add 12V DC input power supply
-DC24
Price : $171
Add 24V DC input power supply
-DC48
Price : $171
Add 48V DC input power supply
-DC110
Price : $357
Add 110V DC input power supply
-DC125
Price : $357
Add 125V DC input power supply
Optional Connectors For DC power only
-MD
Price : $93
Add MIL-type DC Lockable jack, Male Download Spec Sheet
-MA
Price : $143
Add MIL-type VGA Lockable jack, Male Download Spec Sheet
-LD
Price : $36
Add Lockable DC jack, Male Download Spec Sheet
-LS
Price : $36
Add Lockable USB jack Download Spec Sheet
