                                                                Rack Monitor :

                Part #  LCDR3U06-01-Tri

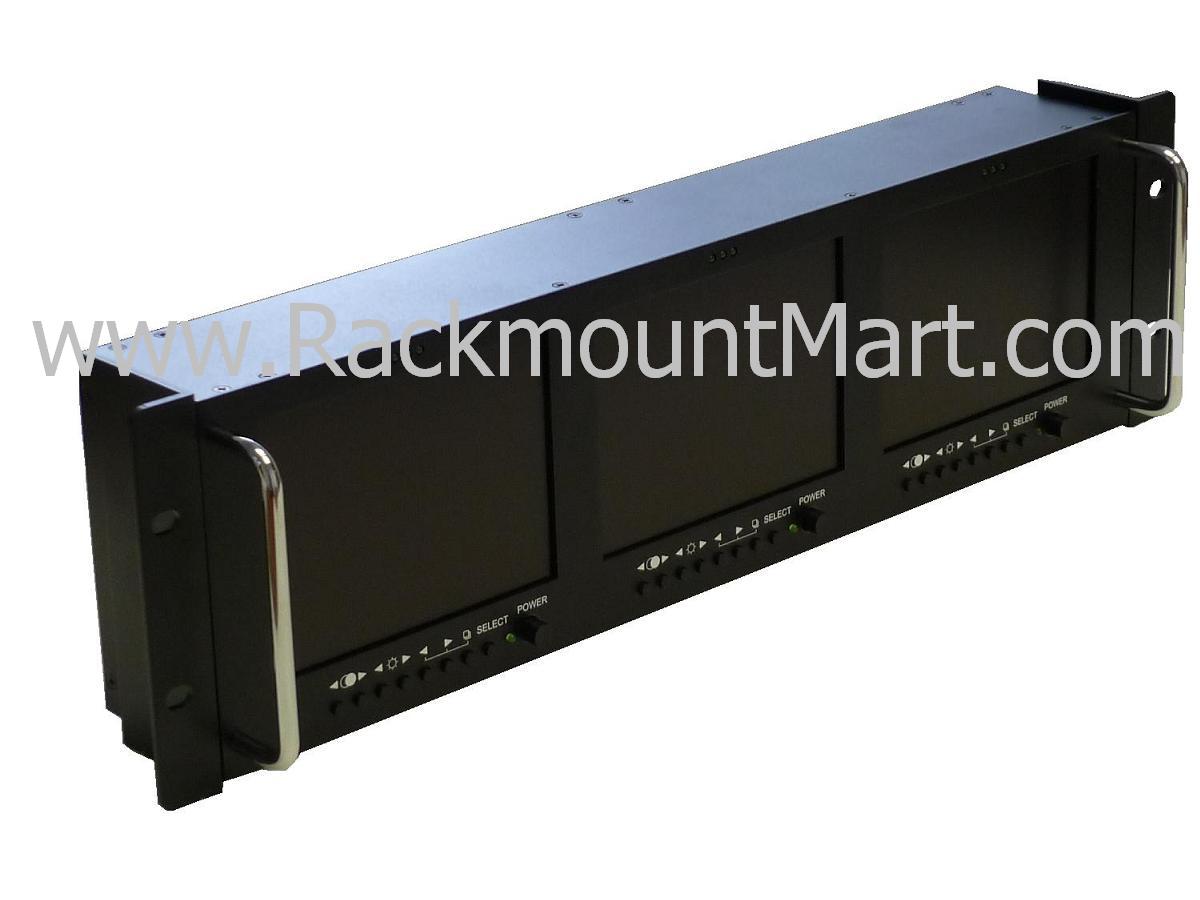

                                              SiriusView 3U Rack mount  Tri  5.7" Color TFT  LCD Monitors

            Free Ground Shipping *Click for details




  More photos (click to enlarge )
Features :
- 3 x 5.7" TFT LCD panel
- Rotate Angle:
Up Down:24°
- Viewing angle -
Top15°, Bottom35°,Left/Right55°
- Fits in standard 19" rack/cabinet
- On Screen Display (OSD)

Dimensions 483 mm× 132 mm × 67.4 mm
Color Black
Display Type 5.7"  Color TFT x3
Resolution
960 (W) × 234 (H)
Pixel Pitch(mm) 0.118 (W) × 0.362 (H)
Rotate Angle Up Down:24°
Brightness 350 nit
Contrast Ratio 150:1
Viewing Angle Top15°, Bottom35°,Left/Right55°
Input Video System 1.0Vp-p@75ohm (Auto Switch)
NTSC : ƒH: 15.75Khz PAL: fH : 15.625Khz
ƒV: 60Hz fV : 50Hz

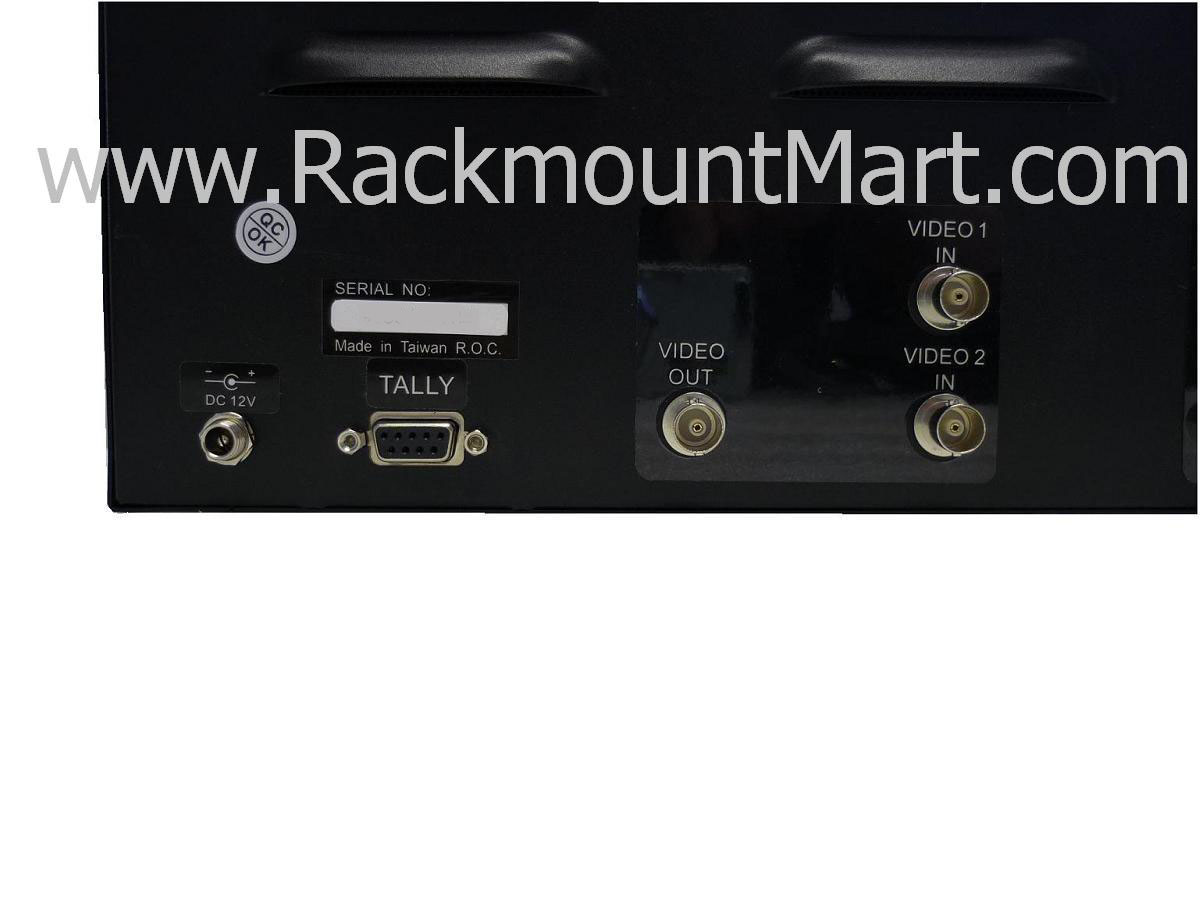

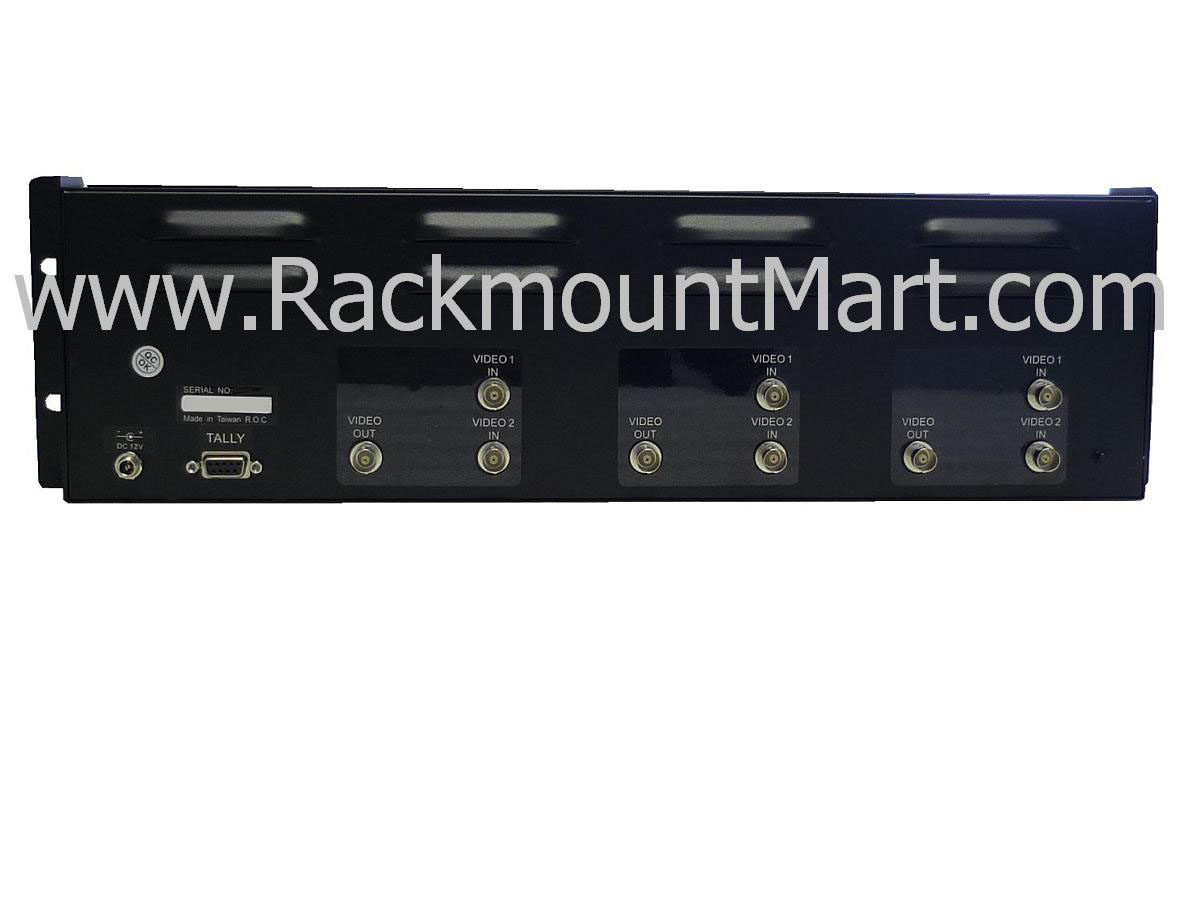

Input/Output Connector BNC×3

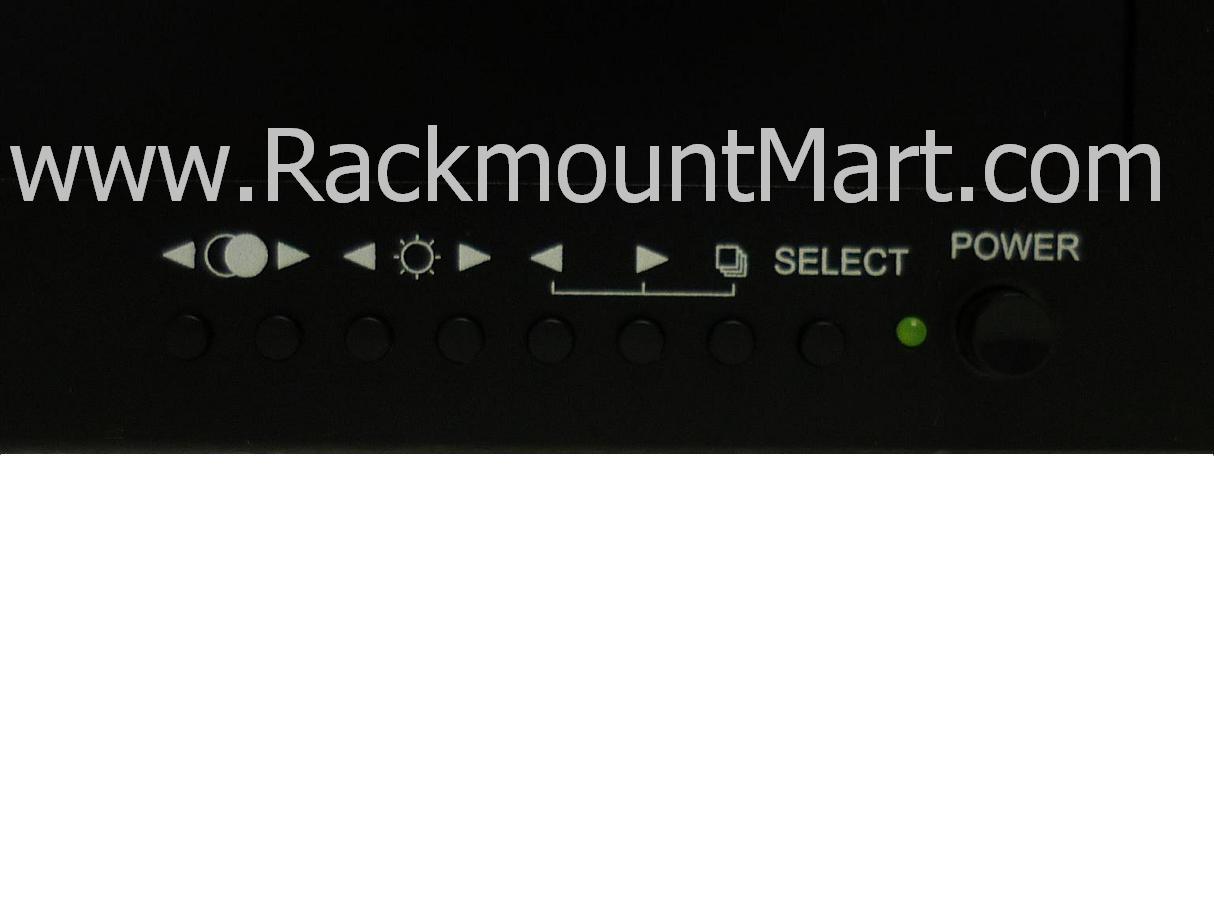

OSD Function Video Left-Right Reverse Switch
Bright ness & Contrast Hot Key direct access
Output Video System 1.0Vp -p@75ohm
Power AC Input AC110V~AC220V
Frequency 50/60 Hz
Power Consumption 15 Watts Maximum
Environment Temperature Operating:0°C ~60°C
Storage: 0°C ~80°C

Ordering  information
Part Number  Description
LCDR3U06-01-Tri
Price:$1147
3U Rackmount Tri 5.7"  TFT LCD Monitor , black
