     Home >>   Rackmount LCD Flat Panel >>

      1U/ 2U/ 3U/ 4U/ 6U/ 7U / 8U / 9U Rack mountable LCD Flat Panel :

Part #  LCDR3U7-03

SiriusView Dual 7" 1.2 TFT MegaPixel monitor set with integrated 6 x2 Router / Sequencer


Panel: 2 x 7" LCD panels

Display

7" LCD Panels x 2

Display Area

6.14" x 3.27"

Resolutions

800 H x RGB x 480 V

Pixel pitch

0.065mm  x 0.175mm

Brightness

380 cd/m2

System

NTSC / PAL auto rec

Input per  panel (total)

 6 Composite

Approx.  weight

5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.12" (W) x 5.14" (H)  x2.5 " (D)

 Free Ground Shipping *Click for details

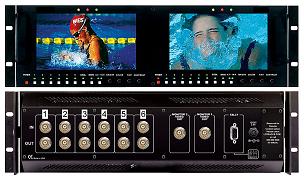

  Front  View

                    *click on  picture for  enlarged view

 Features :

  • High Resolution 7-inch wide screen 800 x RGB x 480 Dots
    with 1.2 million pixels
  • 100% digital processing
  • Analog signals converted to 10 bit digital
  • High resolution scaling of all images
  • Wide viewing radius - 130? horizontal and 120? vertical
    provides superior visibility when the viewer is not directly in
    front of the screen
  • 380 candelas per square meter (cd/m?) luminance produces
    enhanced image quality in varying light and viewing conditions
  • 400:1 ratio of contrast between black and white luminance
    values with response rates less than 30 ms results in
    excellent quality for moving images
  • 4:3 and 16:9 screen aspect ratios for DTV applications in
    HD and SD formats
  • Automatic NTSC/PAL format detection
  • Standard Multiformat inputs:
    • 6 Composite Video PAL/NTSC
    • Loop through of all inputs signals
  • Any of the 6 inputs can be routed to each screen
  • Each screen can sequence through all active inputs
  • Active output for video displayed on each screen
  • Easy to see three color tally indicators
  • Built in Color Bars
  • Blue Screen for color adjustment
  • Adjustment Settings Memory
  • MADE IN USA

Description :

The Rack mounted and tiltable LCDR3U7-03 is a unique product with an integrated 6 x 2 router / sequencer. The LCDR3U7-03  features 2 7-inch TFT-MegapixelT screens and completely digital signal processing. Analog composite signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using state of the art LSIs that incorporate 4 x 4 pixel interpolation with precision Gamma correction to product the best images available.



Ordering  information
Part Number  Description
LCDR3U7-03  3U Rackmount 2 x 7"  Rack mounted LCD  Panel  with 1.2 TFT Megapixel monitor set with integrated 6 x 2 router / sequencer
