     Home >>   Rackmount LCD Flat Panel >>

                       1U/ 2U/ 3U/ 4U/ 6U/ 7U / 8U / 9U Rack mountable LCD Flat Panel :
                            Part #  LCD
R3U5.6-01-SDI


     Triple 5.6" Rack Mounted LCD Panel w/ Composite Video & SDI Inputs and Active Reclocked Loop through feature


Panel:  3 x 5.6" LCD panels

Display

5.6" LCD Panels x 3

Display Area

4.46" x 3.33"

Resolutions

960 H x 234 V

Pixel pitch

0.118mm  x 0.362mm

Brightness

350 cd/m2

System

NTSC / PAL auto rec

Input per  panel (total)

 1( 3 ) Composite, 1 (3) SDI

Approx.  weight

5 lbs

Power Consumption

12 VDC , 2.0 Amps

Product Dimension


19.125" (W) x 5.14" (H)  x2.5 " (D)

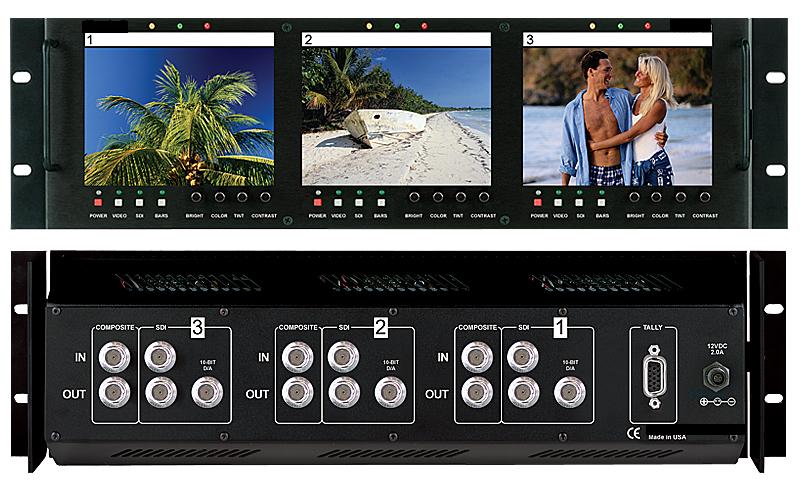

  Front  View

                    *click on  picture for  enlarged view

 Features :

  • High Resolution, 960 x 234 pixels, 224,640 total
  • Ultra bright 350 candle luminance
  • One Composite video input per monitor with active loop through and 75 Ohm termination
  • One SDI (SMTPE 259M) Input per monitor with active loop through and active clock recovery with automatic 75Ohm termination
  • Low power consumption and heat dissipation for mobile applications
  • Individual color, tint, brightness and contrast controls for each panel
  • Three color, self-powered tally system provided for each panel
  • NTSC/PAL auto recognition
  • Built-in Color Bar Generator
  • Unique 180 degree tilt adjustment while mounted in rack
  • MADE IN USA

Free Ground Shipping *Click for details





Description :

 The LCDR3U5.6-01-SDI  is a rack mounted unit that has three independently controlled 5.6" active matrix LCD panels. These 5.6" panels have 960 x 234 pixels producing a true high resolution image. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19" rack, 3U high. Each screen has one composite video with active loop through and one SDI (SMTPE 259M) input with active loop through and active clock recovery with automatic 75? termination. Each of the three screens has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. The unit includes power supply, manual and features auto recognition for NTSC or PAL.



Ordering  information
Part Number  Description
LCDR3U5.6-01-SDI  3U Rackmount 3 x 5.6"  Rack mounted LCD  Panel and SDI Inputs
