 1U/ 2U/ 3U/ 4U/ 6U/ 7U / 8U Rack mountable LCD Flat Panel :
                                Part #  LCD
R2U4-02

                       2U  Four  4"  Rack mounted Full Color Active Matrix LCD Panel


Panel:  4 x  4" LCD panels

Display

4" LCD Panels x 4

Display Area

3.23" x 2.43"

Resolutions

480 H x 234V

Pixel pitch

0.171mm  x 0.264mm

Brightness

300 cd/m2

System

NTSC / PAL auto rec

Input per  panel (total)

 1 ( 4 ) Composite

Approx.  weight

3.5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.125" (W) x3.43" (H)  x 1.9 " (D)

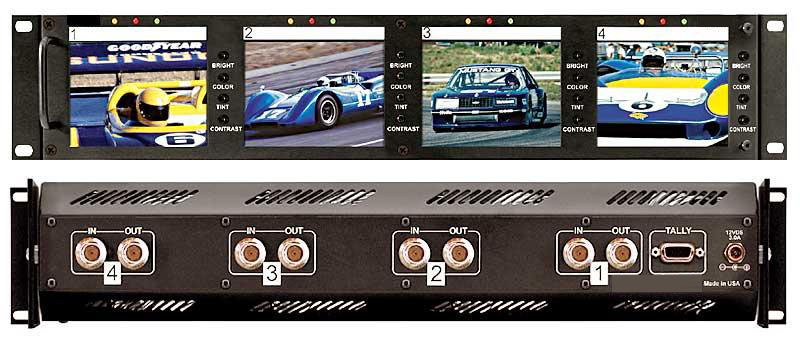

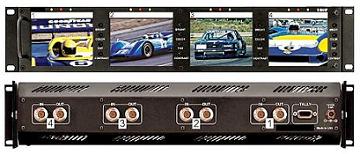

  Front  View

                    *click on  picture for  enlarged view



 Features :

  • Ultra-compact design fits in EIA standard rack 2U high.
  • High Resolution, 480 x 234 pixels, 112,320 total.
  • Ultra bright panels with 300 candle luminance each.
  • NTSC/PAL auto recognition.
  • Individual color, tint, brightness and contrast controls.
  • 100degree tilt adjustment while mounted in rack.
  • Three color, self-powered tally system provided for each panel.
  • Dry Erase Marker for EZ Identifying of screens is included.
  • MADE IN USA

Free Ground Shipping *Click for details





Description :

The LCDR2U4-02 is a rack mountable unit that offers three 4" high-resolution active matrix LCD panels. Each of the three 480 x 234 pixel screens has its own set of controls for color, tint, contrast, and brightness. Each panel has an on/off switch, two composite video inputs with active loop through feature, a self-powered 3 color tally system, and auto-recognition of NTSC or PAL video formats. This unit is only 2U high, can be tilted up to 100 degrees while rack mounted, and is the smallest video monitoring system of its kind. It is constructed of steel and aluminum, and includes power supply and owners manual.





Ordering  information
Part Number  Description
LCDR2U4-02  2U Rackmount 4 x 4"  LCD Monitor panel with auto NTSC/PAL auto recognition
