     Home >>   Rackmount LCD Flat Panel >>


 1U/ 2U/ 3U/ 4U/ 6U/ 7U / 8U Rack mountable LCD Flat Panel :
                                Part #  LCD
R2U4-01

         2U  Triple  4"  Rack mounted LCD Panel with 2 Composite Video Inputs per Screen, Tally,
                                              Loop  Through and Auto NTSC / PAL Detection


Panel:   3 x  4" LCD panels

Display

4" LCD Panels x 3

Display Area

3.23" x 2.43"

Resolutions

480 H x 234V

Pixel pitch

0.171mm  x 0.264mm

Brightness

300 cd/m2

System

NTSC / PAL auto rec

Input per  panel (total)

 2 ( 6 ) Composite

Approx.  weight

3.5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.125" (W) x3.43" (H)  x 1.9 " (D)

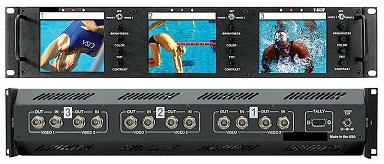

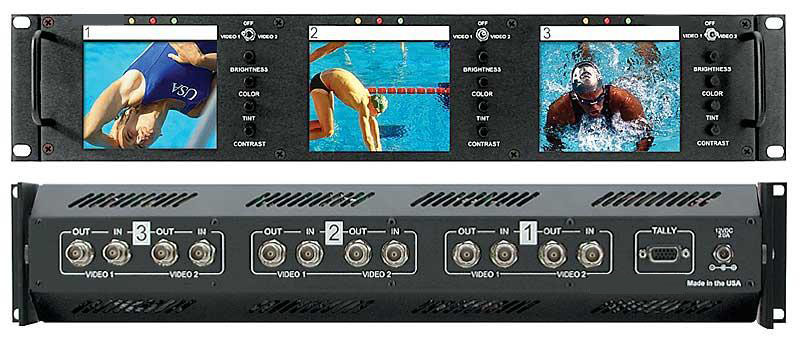

  Front  View

                    *click on  picture for  enlarged view



 Features :

  • Ultra-compact design fits in EIA standard rack 2U high
  • Each screen has 2 Composite Video inputs with Active
    Loop-through capability
  • Ultra bright panels with 300 candle luminance each
  • High Resolution, 480234 pixels, 112,320 total
  • Automatic NTSC/PAL Video Signal Detection
  • Comes with Dry Erase Marker for EZ identifying of screens
  • MADE IN USA

Free Ground Shipping *Click for details





Description :

TheLCDR2U4-01 is a rack mountable unit that offers three 4" high-resolution active matrix LCD panels. Each of the three 480 x 234 pixel screens has its own set of controls for color, tint, contrast, and brightness. Each panel has an on/off switch, two composite video inputs with active loop through feature, a self-powered 3 color tally system, and auto-recognition of NTSC or PAL video formats. This unit is only 2U high, can be tilted up to 100 degrees while rack mounted, and is the smallest video monitoring system of its kind. It is constructed of steel and aluminum, and includes power supply and owners manual.





Ordering  information
Part Number  Description
LCDR2U4-01  2U Rackmount 3 x 4"  LCD Monitor panel with Composite Video Inputs
