1U/ 2U/ 3U/ 4U/ 6U/ 7U / 8U / 9U Rack mountable LCD Flat Panel :
Part #  LCDR2U4-03-3GSDI


2U Quad 4.3" High Resolution LCD Rack Mount Monitor with 3G-SDI Input/Output


Panel:  4 x 4.3" LCD panels

Display

4.3" LCD Panels x 4

Display Area

93.0 x 55.8 mm

Resolutions

800 x 480

Pixel pitch

0.116 mm x 0.116mm

Brightness

200 cd/m2

Contrast Ratio

400 : 1

Viewing Angle

65 x 65

Screen Color (Bit Depth)

6-bit

Aspect Ratio

15:9 Native

Included Inputs

3G / HD / SDI

Optional Input Modules

HDMI, DVI, Dual HD-SDI, FIBER-OPTIC

Tally Hardware Interface

HD-15 Female

System

HDSDI/SDI all standard and frame rates

Available # of Slots

1 (per screen)

Approx.  weight
(Without Modules)

2.68 lbs

Power Consumption

24 W, 12 VDC

Product Dimension

17.1"W x 3.45"H x 1.23"D

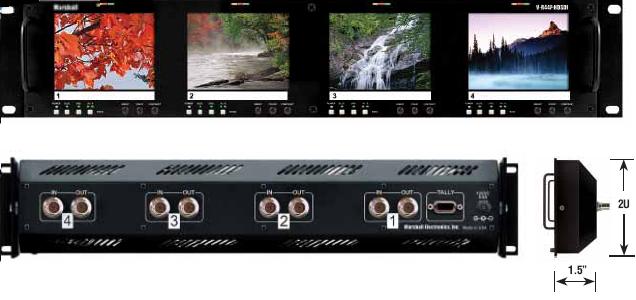

  Front  View

                    *click on  picture for  enlarged view
  Dimention

                    *click on  picture for  enlarged view

 Features :

  • High-Resolution 4.3 Panel
  • Modular Input Design
  • Multi-Format Compatibility
  • ColorMatch Conversion with Color Temperature Adjustment
  • False Color Filter, and other Advanced Features
  • Flexible Screen Markers
  • User-Definable Function Buttons
  • MADE IN USA

 Free Ground Shipping *Click for details




Description :

The LCDR2U4-03-3GSDI offers four 800 x 480 LCDs in one single configuration, along with excellent viewing angles. The LCDR2U4-03-3GSDI includes four 3G-SDI modules with loop-through, Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, two user-definable function buttons, and more. A variety of optional input/output modules will be offered.

Ordering  information

Part Number  Description
LCDR2U4-03-3GSDI 2U Quad 4.3" High Resolution LCD Rack Mount Monitor with 3G-SDI Input/Output
