     Home >>   Rackmount Keyboard Drawer / KVM Switch / KVM Extender >>

RACKMOUNT KEYBOARD DRAWER / KVM SWITCH / KVM Extender  :
Part #  LCDK1066-B-U


Xymphony 1U  Rackmount USB Keyboard with Mouse Support and Storage Area
******** Mouse is optional ********
Made in U.S.A. , TAA Compliant


Features:

 - 1 rack unit high (1.75").
 - USB keyboard uses longlife membrane switch technology.
 - Choice of front panel options (lock, retainer, blank).
 - Locks in the extended position to provide; stability.
 - Ball bearing slides with mounting length adjustable from 23" to 30".

The LCDK1006-C keyboard provides an area for mouse use in front of the Cherry keyboard while the LCDK1066-B-U keyboard provides an area for mouse use behind the Standard keyboard. Both models offer a convenient mouse storage area located at the rear of the unit. The front panel features a recessed handle to allow mounting behind rack doors. Optional front panel retainers are available to insure the keyboard stays in the rack for mobile or high vibration use. The front panel may also be ordered with an optional keyed lock to secure the keyboard in the rack and discourage unauthorized use.


LCDK1066-B-BK-U-L

Download Product Sheet



   More photos (Click on pictures for enlarged views) :

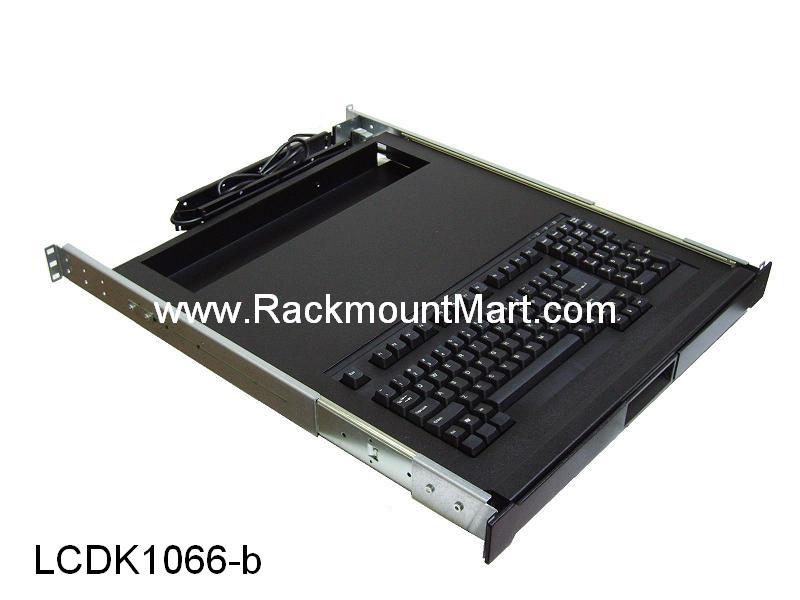

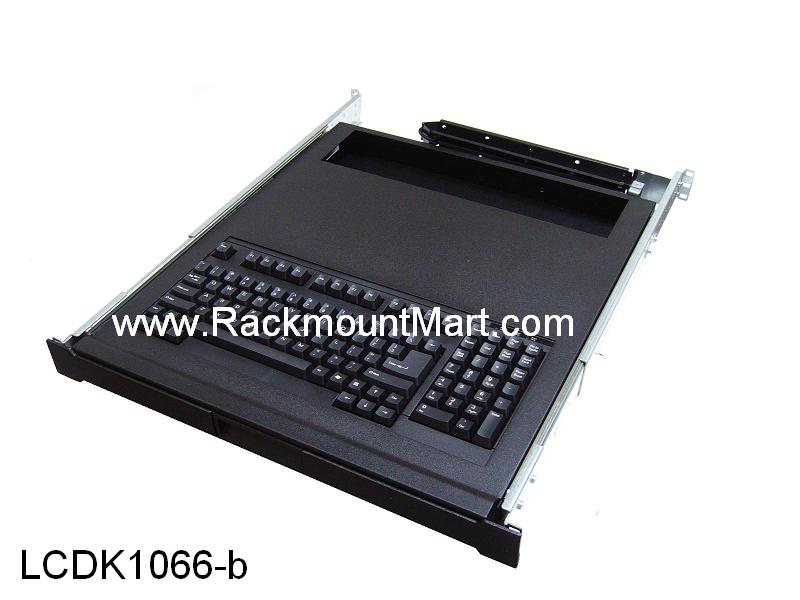

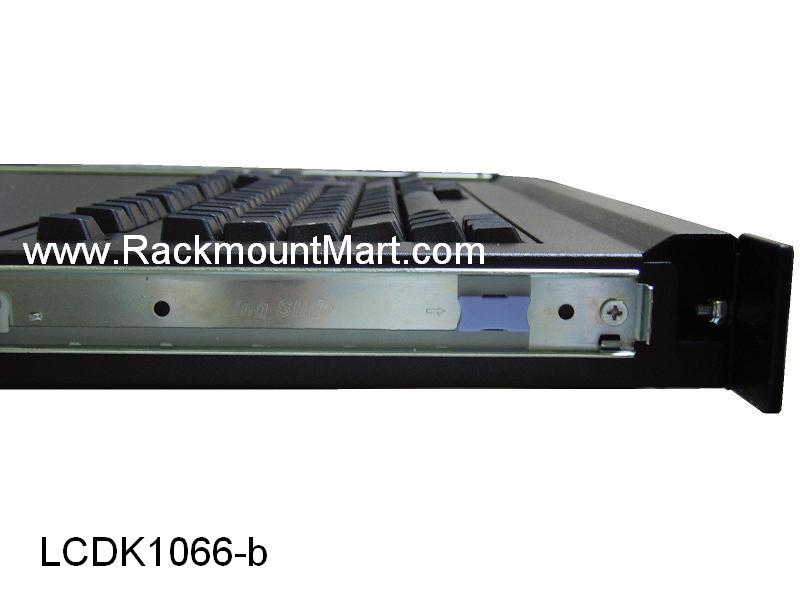

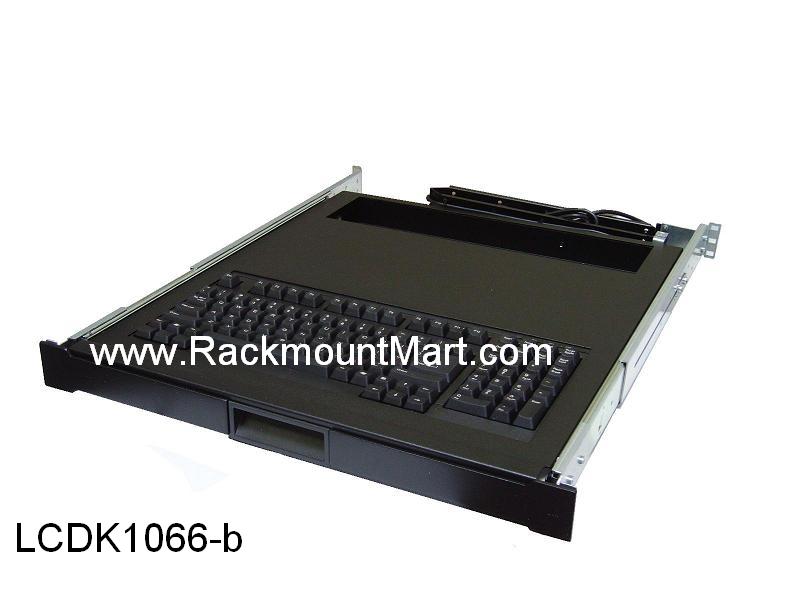

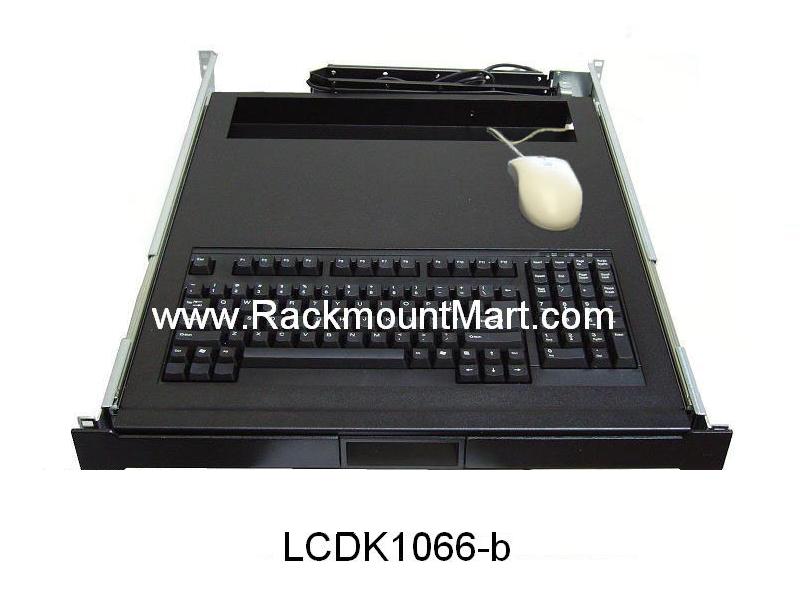

LCDK1066-B-BK-U-L LCDK1066-B-BK-U-L LCDK1066-B-BK-U-L LCDK1066-B-BK-U-L





 Dimensions LCDK1066-B-U : 19.0" (W) x 1.75" (H) x 19.0" (D) - total unit
 Power

+5VDC+/- 5%

 KVM Use LCDK1066-B-U : N/A
 Color Light gray or  Black



Ordering information

Part Number  Description
LCDK1066-B-BK-U
Price : $296
 1U Rackmount Keyboard Drawer with standard USB keyboard and mouse area behind keyboard,
 black, made in USA , TAA Compliant
Mouse
Price : $20
 Add Optical Mouse for LCDK1066-B-U
-R
Price : $25
 Add retainers
-L
Price : $25
 Add Lock
-C
Price : $25
 Add Lock  and retainer
